Hidea JIS Bow Shackle BB Type: Ideal for Heavy Lifting and Towing Applications

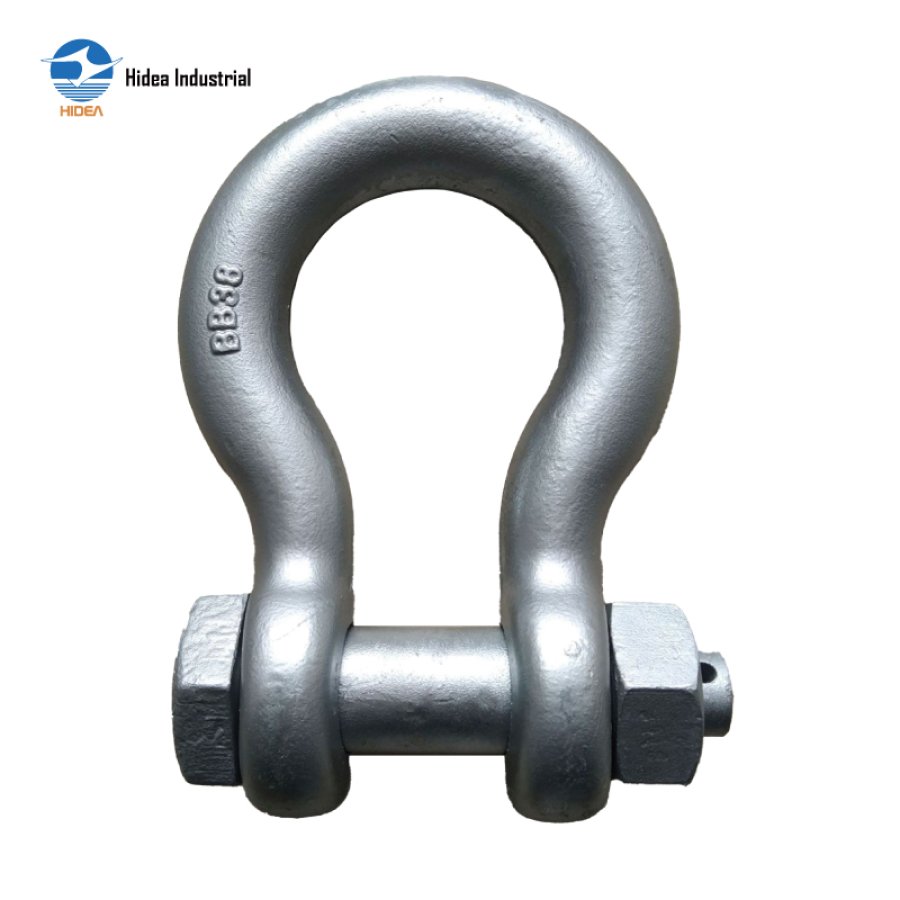

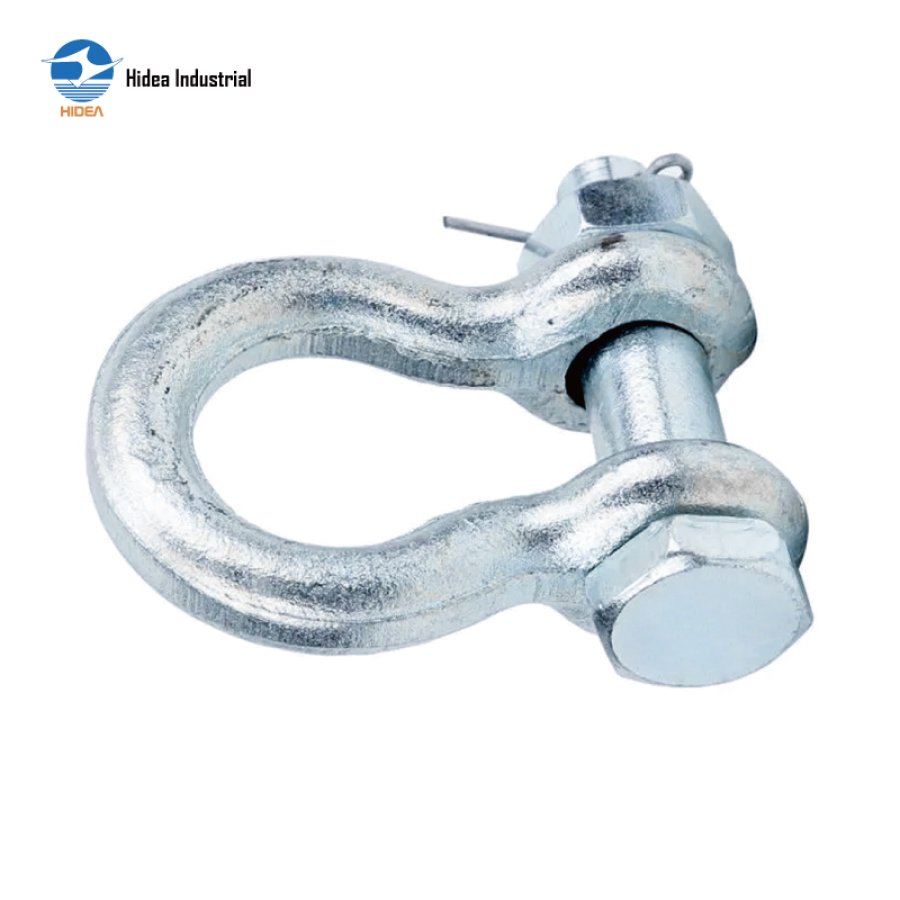

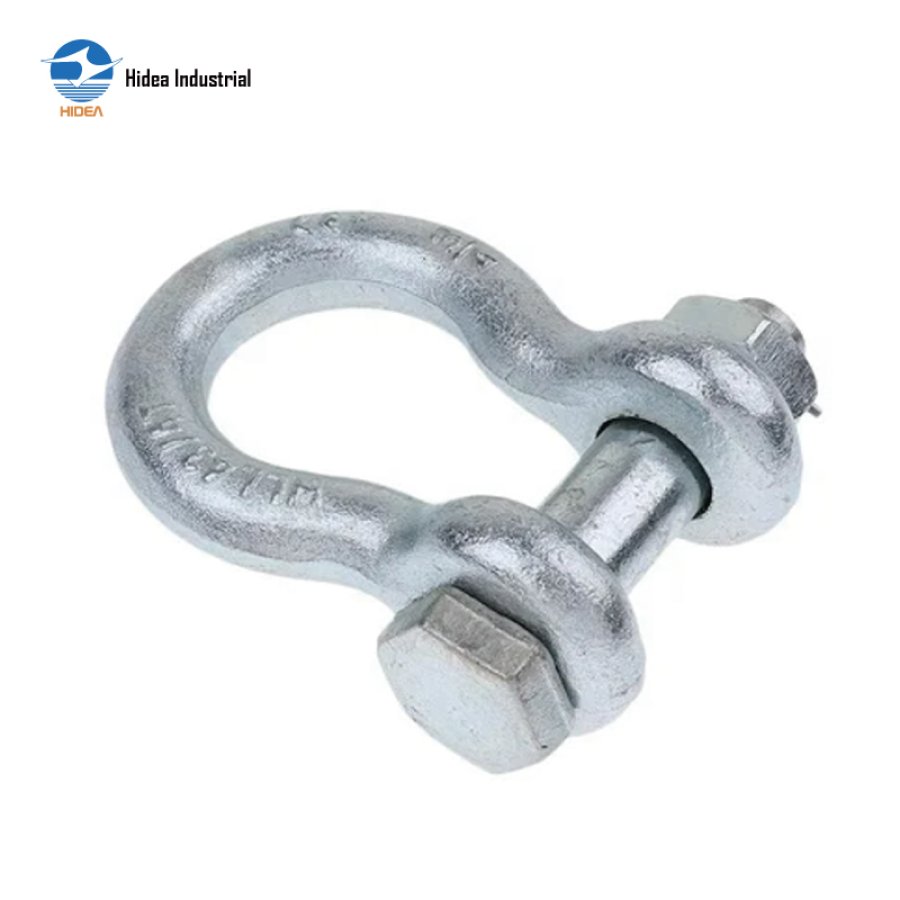

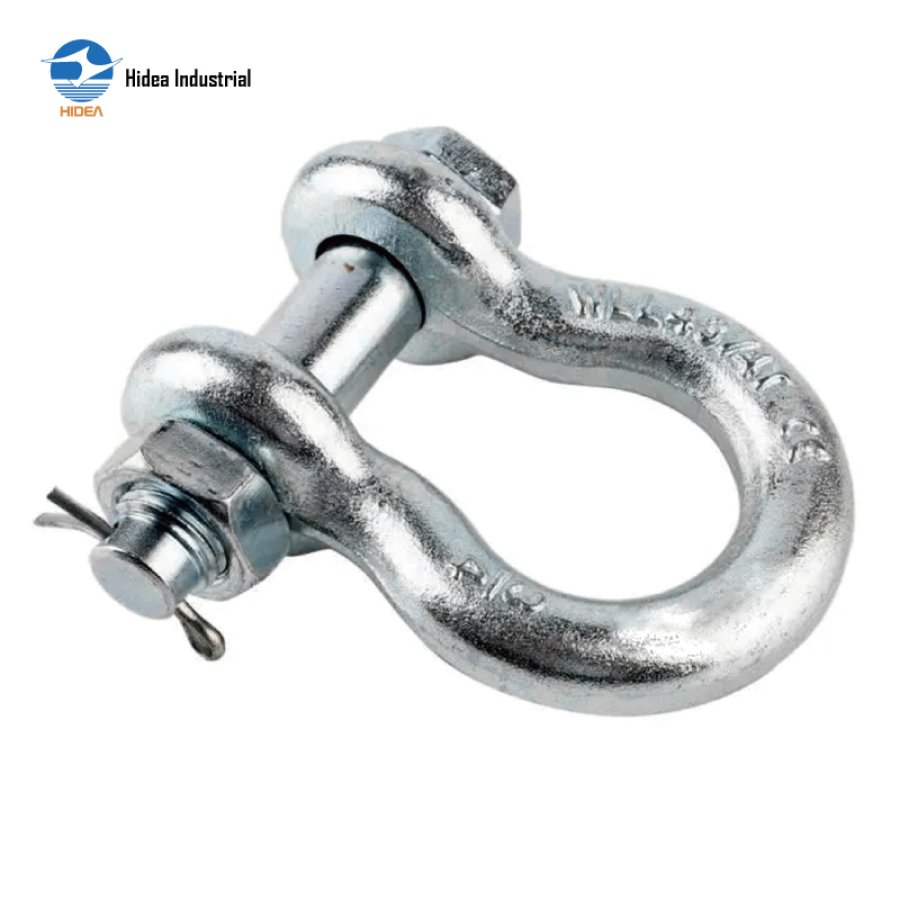

JIS BOW SHACKLE BB TYPE

Material: body AND pin carbon steel
Drop forged, quenched & tempered
Safety factor 4:1 & certificates available
Surface hot dip galvanized (H.D.G)
Standard JIS BB

Inquire Now

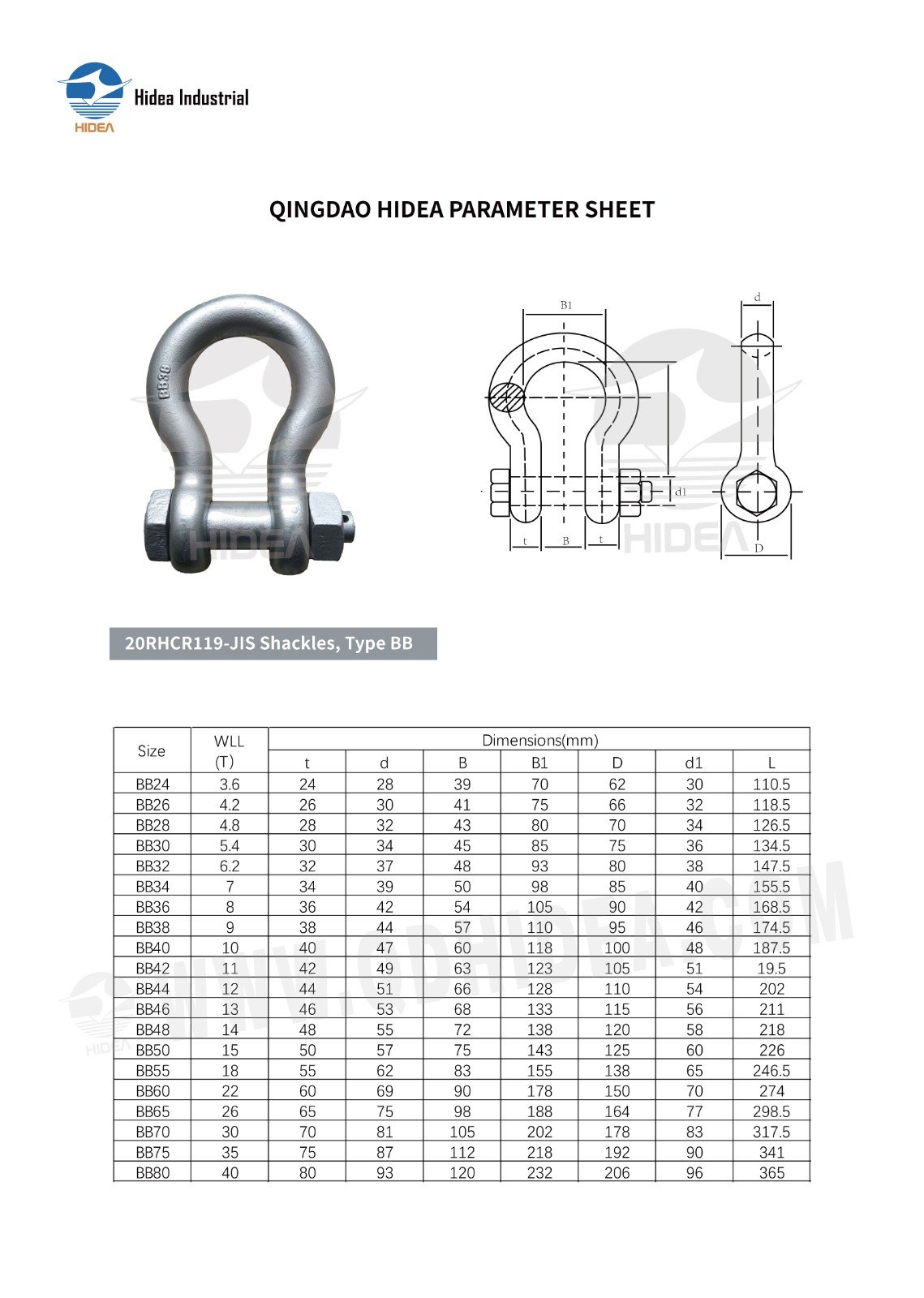

QINGDAO HIDEA PARAMETER SHEET FOR

20RHCR119-JIS Shackles,Type BB

Size	WLL (T)	Dimensions(mm)
Size	WLL (T)	t	d	B	B1	D	d1	L
BB24	3.6	24	28	39	70	62	30	110.5
BB26	4.2	26	30	41	75	66	32	118.5
BB28	4.8	28	32	43	80	70	34	126.5
BB30	5.4	30	34	45	85	75	36	134.5
BB32	6.2	32	37	48	93	80	38	147.5
BB34	7	34	39	50	98	85	40	155.5
BB36	8	36	42	54	105	90	42	168.5
BB38	9	38	44	57	110	95	46	174.5
BB40	10	40	47	60	118	100	48	187.5
BB42	11	42	49	63	123	105	51	19.5
BB44	12	44	51	66	128	110	54	202
BB46	13	46	53	68	133	115	56	211
BB48	14	48	55	72	138	120	58	218
BB50	15	50	57	75	143	125	60	226
BB55	18	55	62	83	155	138	65	246.5
BB60	22	60	69	90	178	150	70	274
BB65	26	65	75	98	188	164	77	298.5
BB70	30	70	81	105	202	178	83	317.5
BB75	35	75	87	112	218	192	90	341
BB80	40	80	93	120	232	206	96	365
