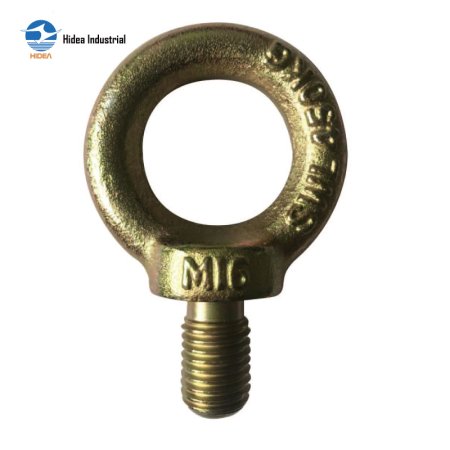

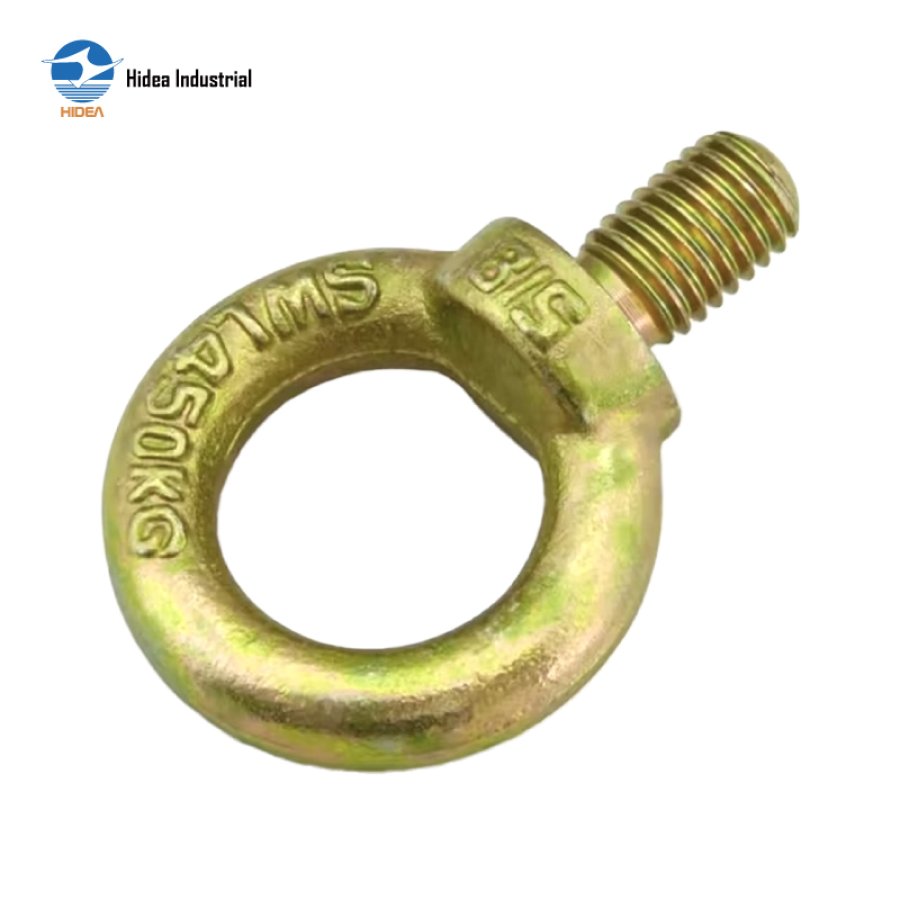

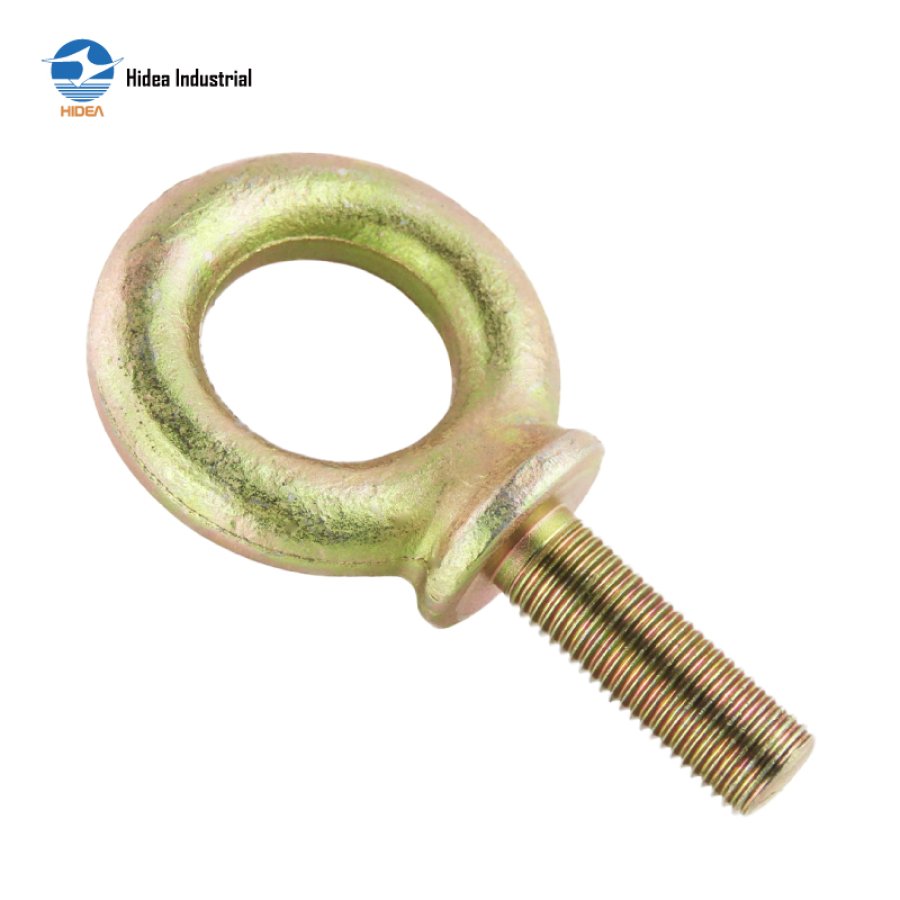

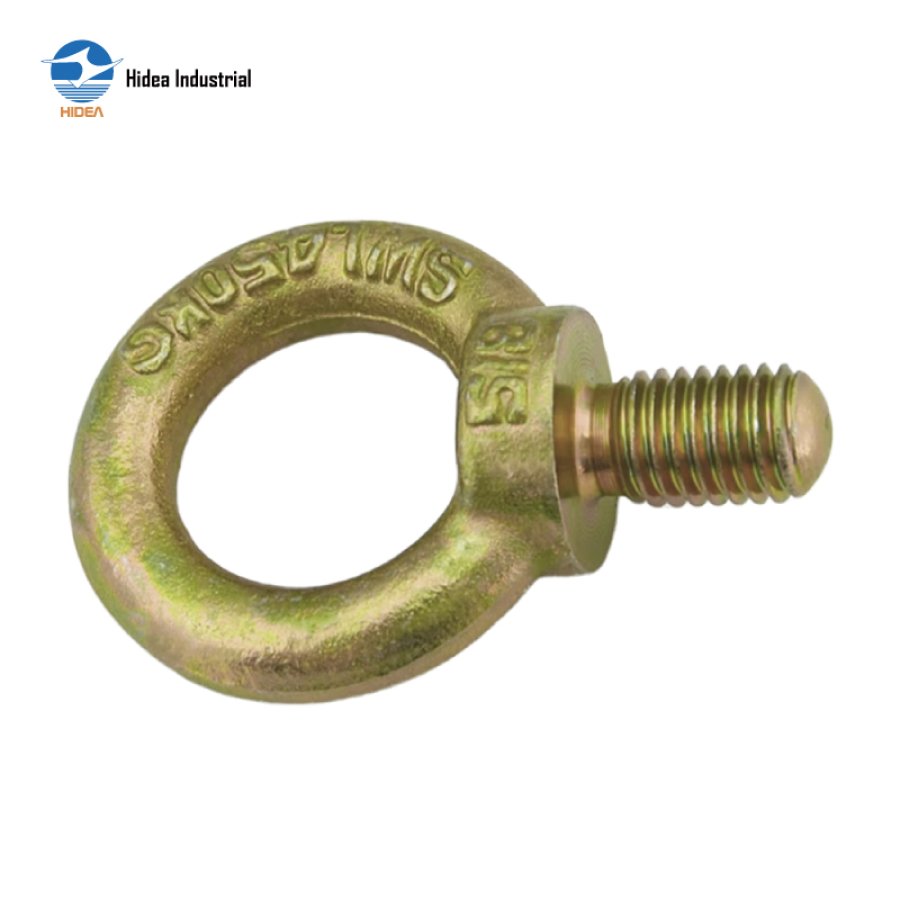

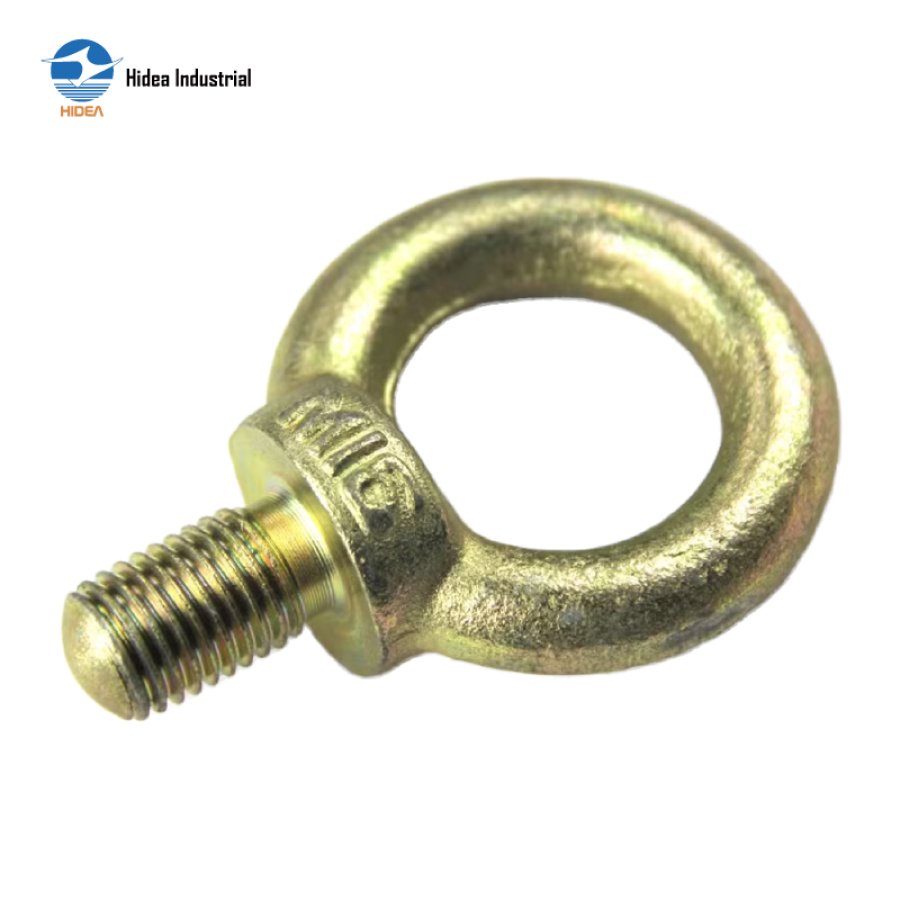

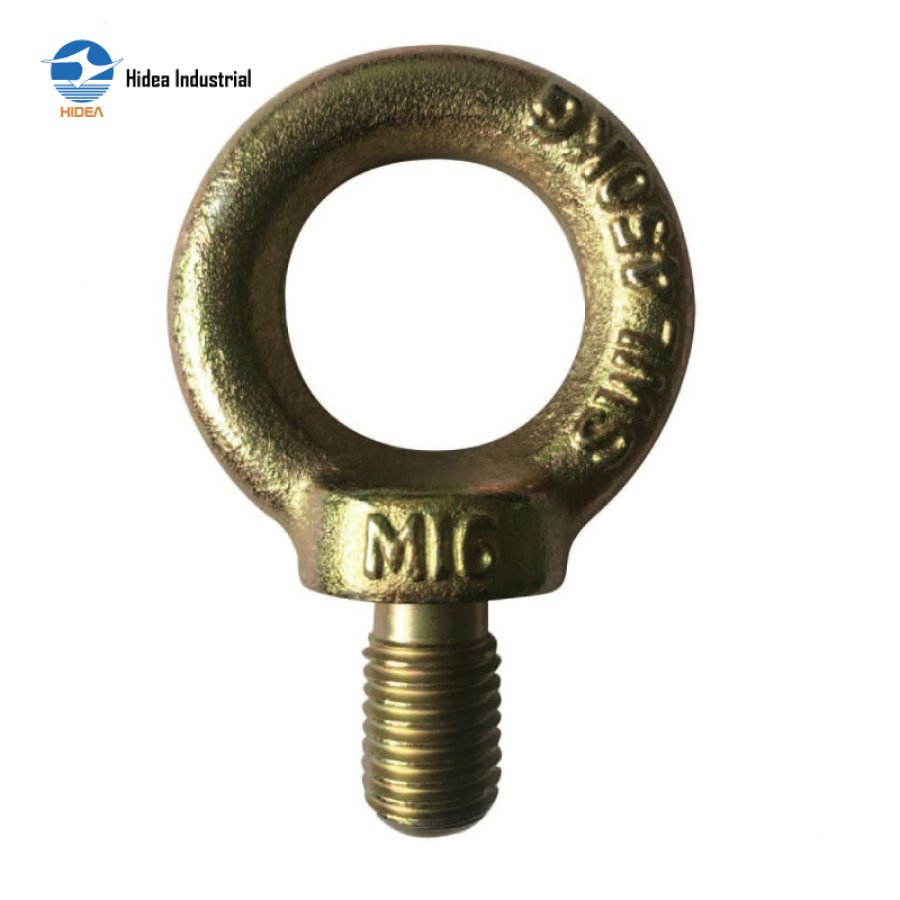

HIDEA JIS1168 Lifting Eyebolt – Engineered for Strength with Quenching, Tempering, and Proof Testing

EYE BOLTS JIS1168

Fine carbon steel
Drop forged & machined,quenched and tempered
Proof Tested & certificate available
Surface Electro Galv. / zinc plated OR as requested
JIS1168 lifting eyebolt

Inquire Now

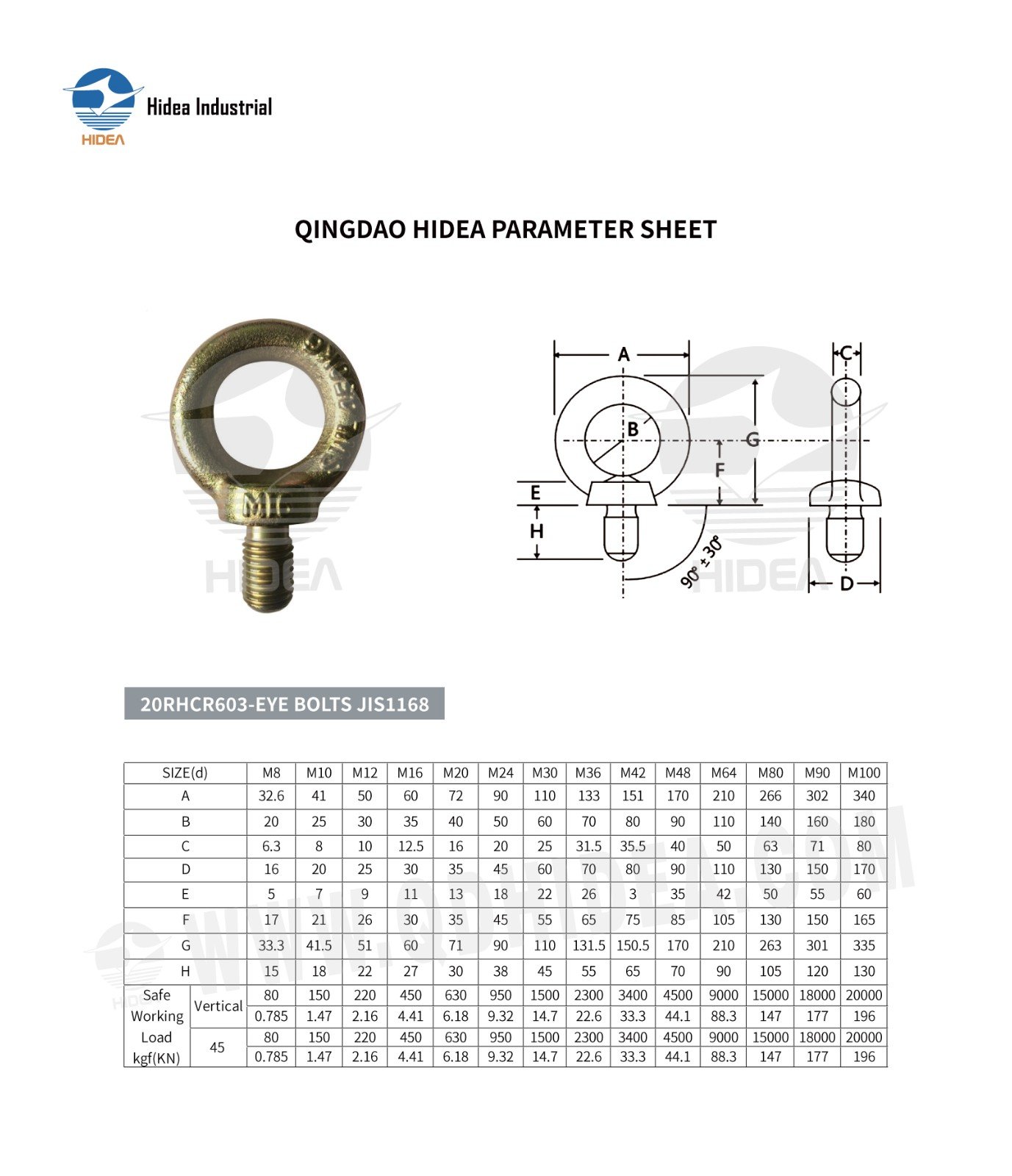

QINGDAO HIDEA PARAMETER SHEET FOR

20RHCR603-EYE BOLTS JIS1168

SIZE(d)

M8

M10

M12

M16

M20

M24

M30

M36

M42

M48

M64

M80

M90

M100

A

32.6

41

50

60

72

90

110

133

151

170

210

266

302

340

B

20

25

30

35

40

50

60

70

80

90

110

140

160

180

C

6.3

8

10

12.5

16

20

25

31.5

35.5

40

50

63

71

80

D

16

20

25

30

35

45

60

70

80

90

110

130

150

170

E

5

7

9

11

13

18

22

26

3

35

42

50

55

60

F

17

21

26

30

35

45

55

65

75

85

105

130

150

165

G

33.3

41.5

51

60

71

90

110

131.5

150.5

170

210

263

301

335

H

15

18

22

27

30

38

45

55

65

70

90

105

120

130

Safe
Working
Load
kgf(KN)

Vertical

80

150

220

450

630

950

1500

2300

3400

4500

9000

15000

18000

20000

0.785

1.47

2.16

4.41

6.18

9.32

14.7

22.6

33.3

44.1

88.3

147

177

196

45

80

150

220

450

630

950

1500

2300

3400

4500

9000

15000

18000

20000

0.785

1.47

2.16

4.41

6.18

9.32

14.7

22.6

33.3

44.1

88.3

147

177

196
