Material Super Alloy Steel SAE8620
Standard Acc. EN818-2:2008 and Meets the latest guidelines of NACM,ASTM A952/ A952M and ASTM A973/A973M for Grade 10 chain.

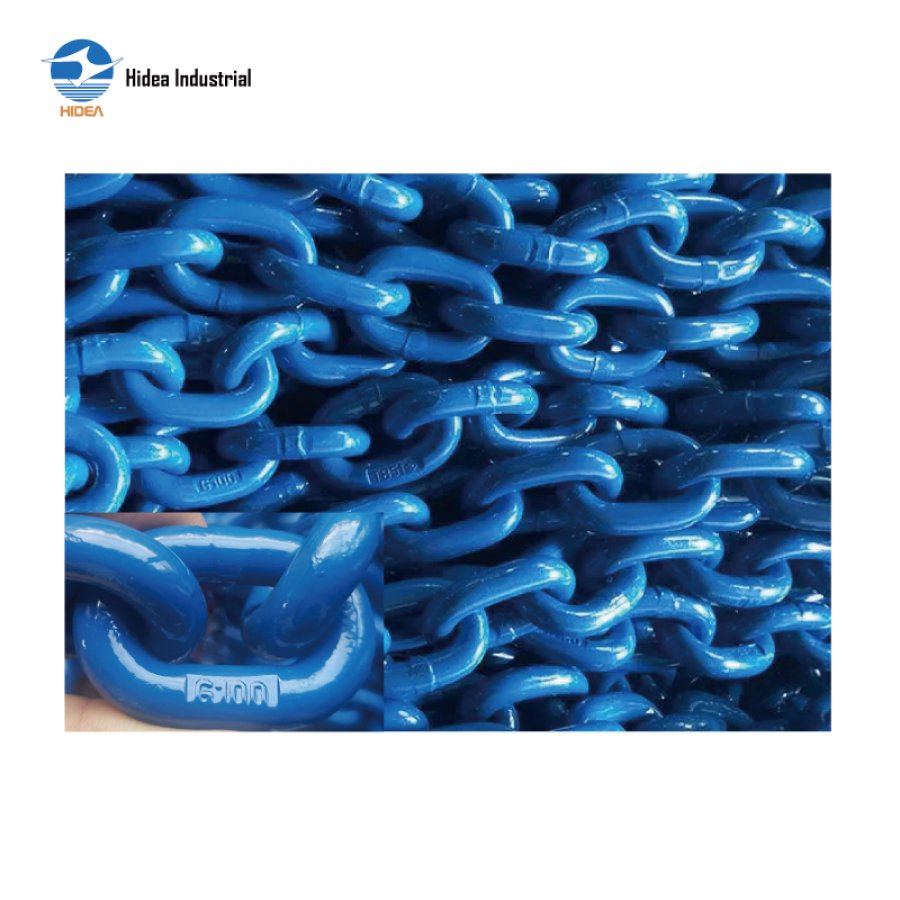

Permanently embossed with G100
Proof Tested at minimum 2.5 times and ultimate load 4 times of working load
25% stronger than Grade 80 alloy chain
QINGDAO HIDEA PARAMETER SHEET FOR
30SC101G100 Lifting Chain EN818-2:2008
| Diameter | Tolerance | Pitch | Width(mm) | Weight | WLL | B.L | |||||
| mm | mm | mm | TOLERANCE | MIN. | MAX. | kg/m | T | T | |||
| 4 | ±0.16 | 12 | ±0.4 | 5.2 | 14.8 | 0.36 | 0.63 | 2.52 | |||
| 5 | ±0.2 | 15 | ±0.5 | 6.5 | 18.5 | 0.56 | 1 | 4 | |||
| 6 | ±0.24 | 18 | ±0.5 | 7.8 | 21.6 | 0.8 | 1.4 | 5.6 | |||
| 7 | ±0.28 | 21 | ±0.6 | 9.5 | 25.2 | 1.1 | 1.9 | 7.6 | |||
| 8 | ±0.32 | 24 | ±0.7 | 10.9 | 28.8 | 1.5 | 2.5 | 10 | |||
| 10 | ±0.4 | 30 | ±0.9 | 13.5 | 36 | 2.3 | 4 | 16 | |||
| 13 | ±0.52 | 39 | ±1.2 | 17.5 | 46.8 | 3.9 | 6.7 | 26.8 | |||
| 16 | ±0.64 | 48 | ±1.4 | 21.5 | 57.6 | 5.8 | 10 | 40 | |||
| 18 | ±0.9 | 54 | ±1.6 | 23.4 | 66.6 | 7.4 | 12.5 | 50 | |||
| 19 | ±1 | 57 | ±1.7 | 25.6 | 68.4 | 8.1 | 14 | 56 | |||
| 20 | ±1 | 60 | ±1.8 | 26 | 74 | 9 | 16 | 64 | |||
| 22 | ±1.1 | 66 | ±2 | 29.5 | 79.2 | 11 | 19 | 76 | |||
| 23 | ±1.2 | 69 | ±2.1 | 29.9 | 85.1 | 12 | 20 | 80 | |||
| 26 | ±1.3 | 78 | ±2.3 | 33.8 | 96.2 | 15 | 26.5 | 106 | |||
| 32 | ±1.6 | 96 | ±2.9 | 41.6 | 118 | 22.3 | 40.2 | 160.8 | |||
| 25%stronger than G80 chain | |||||||||||
