Hidea Grade 80 Lifting Chain Sling – Superior Strength for Industrial Applications

G80 LIFTING CHAIN SLINGS

Material Super Alloy Steel
Standard Acc. BS EN 818-4:1996+A1:2008 for 1 Legs to 4 Legs
Permanently embossed on chains with G80
Proof Tested Chians at minimum 2 times the Working Load Limitwith certification
Cost-effective alloy chain slings for lifting

Inquire Now

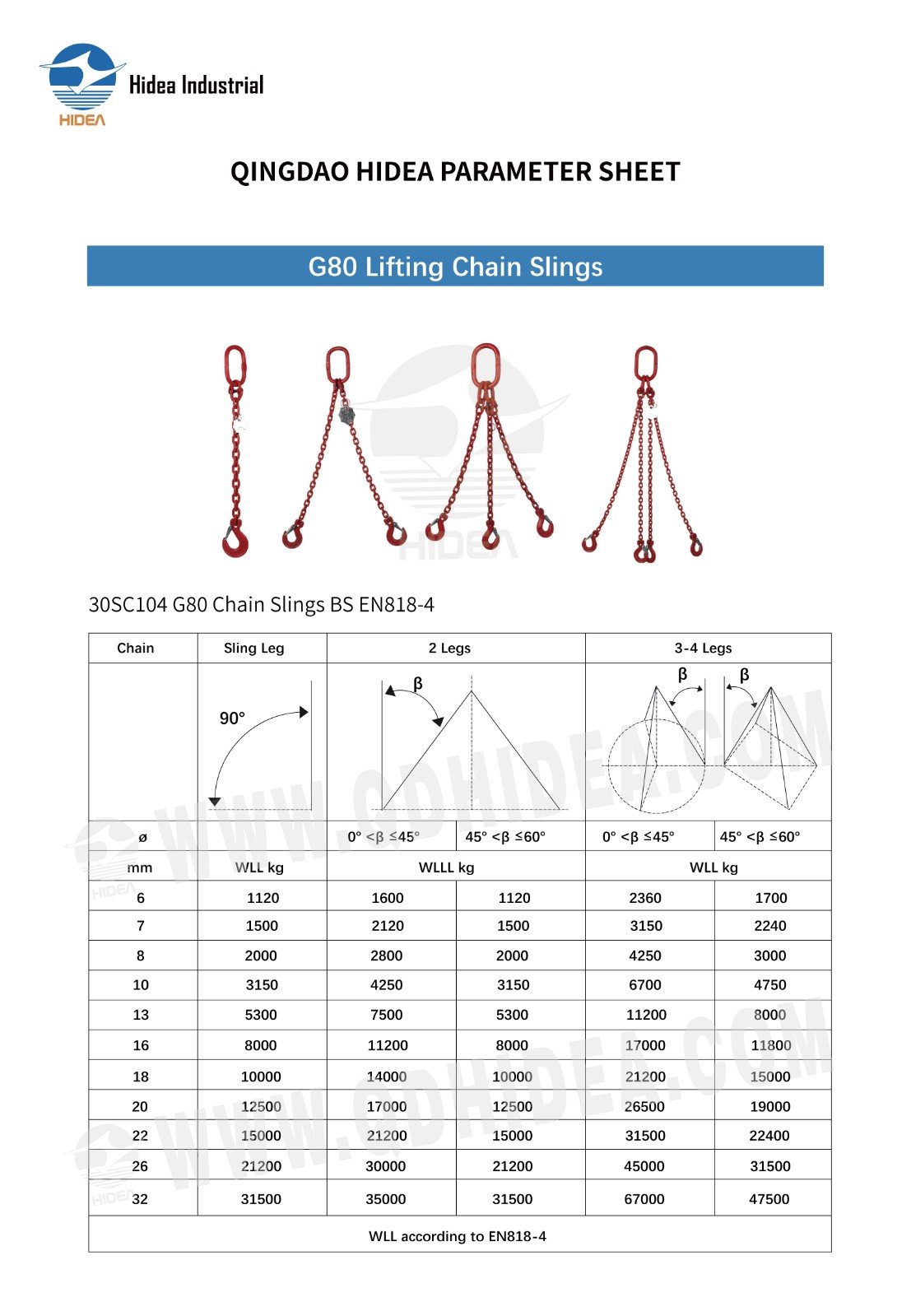

QINGDAO HIDEA PARAMETER SHEET FOR

30SC104 G80 Chain Slings BS EN818-4

Chain	Sling Leg	2 Legs		3-4 Legs
Ø		0°<β≤45°	45°<β≤60°	0°<β≤45°	45°<β≤60°
mm	WLL kg	WLLL kg		WLL kg
6	1120	1600	1120	2360	1700
7	1500	2120	1500	3150	2240
8	2000	2800	2000	4250	3000
10	3150	4250	3150	6700	4750
13	5300	7500	5300	11200	8000
16	8000	11200	8000	17000	11800
18	10000	14000	10000	21200	15000
20	12500	17000	12500	26500	19000
22	15000	21200	15000	31500	22400
26	21200	30000	21200	45000	31500
32	31500	35000	31500	67000	47500
WLL according to EN818-4
