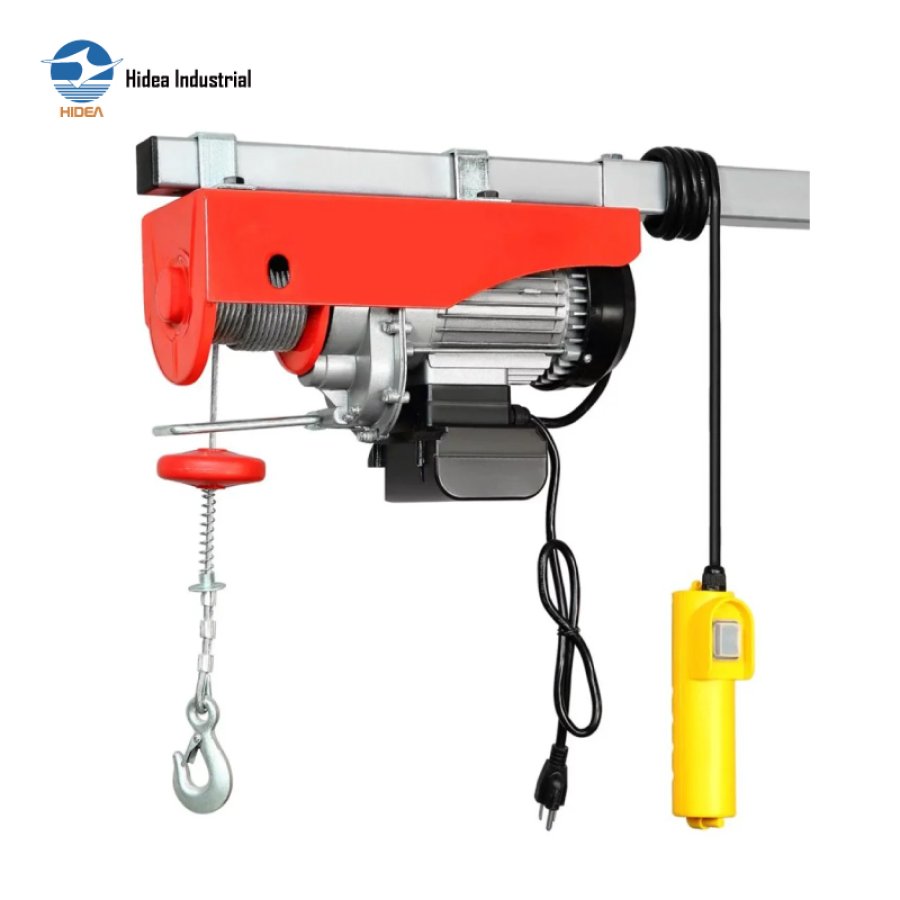

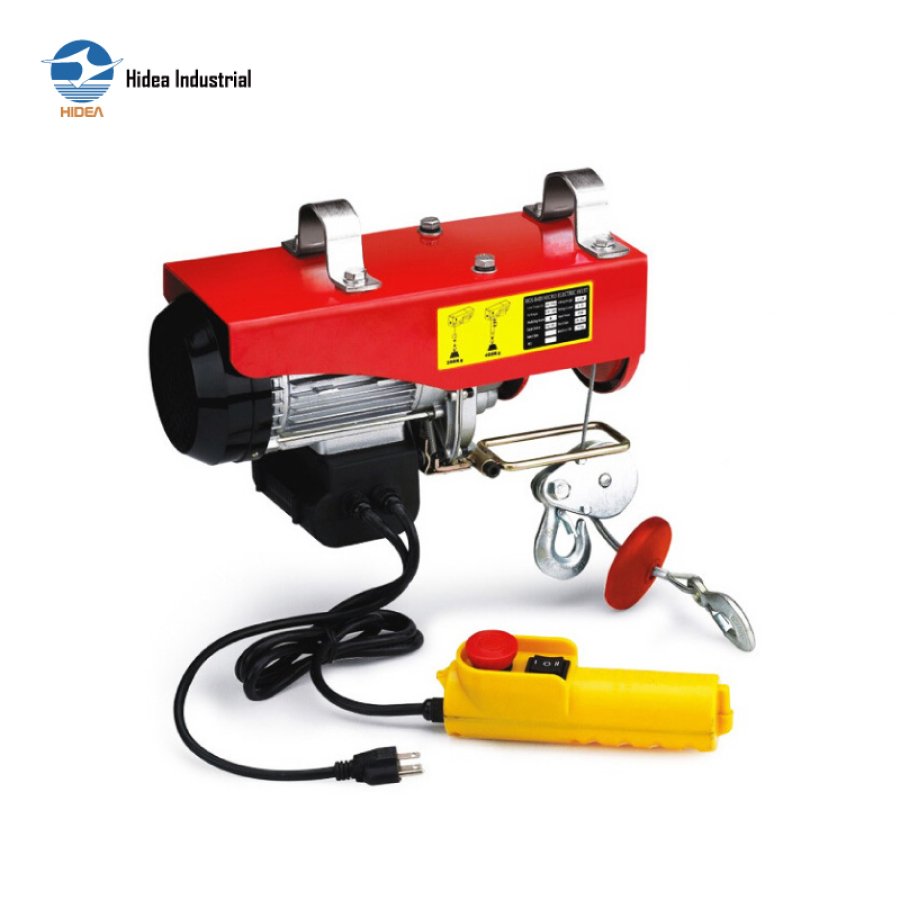

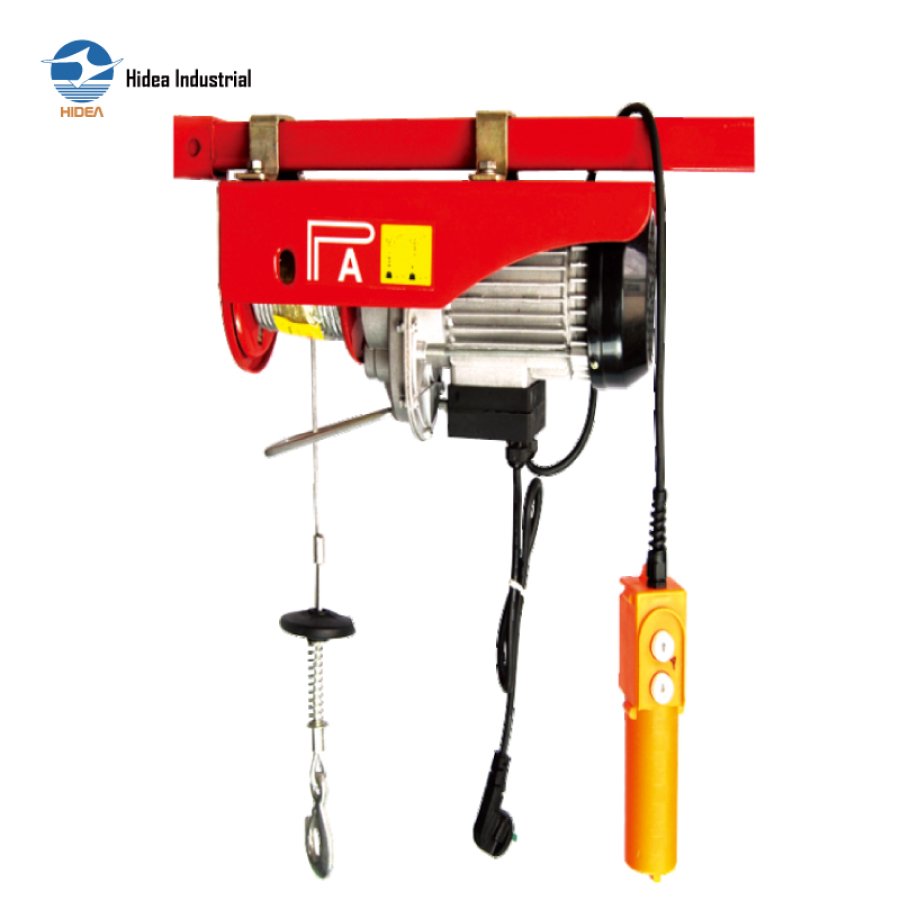

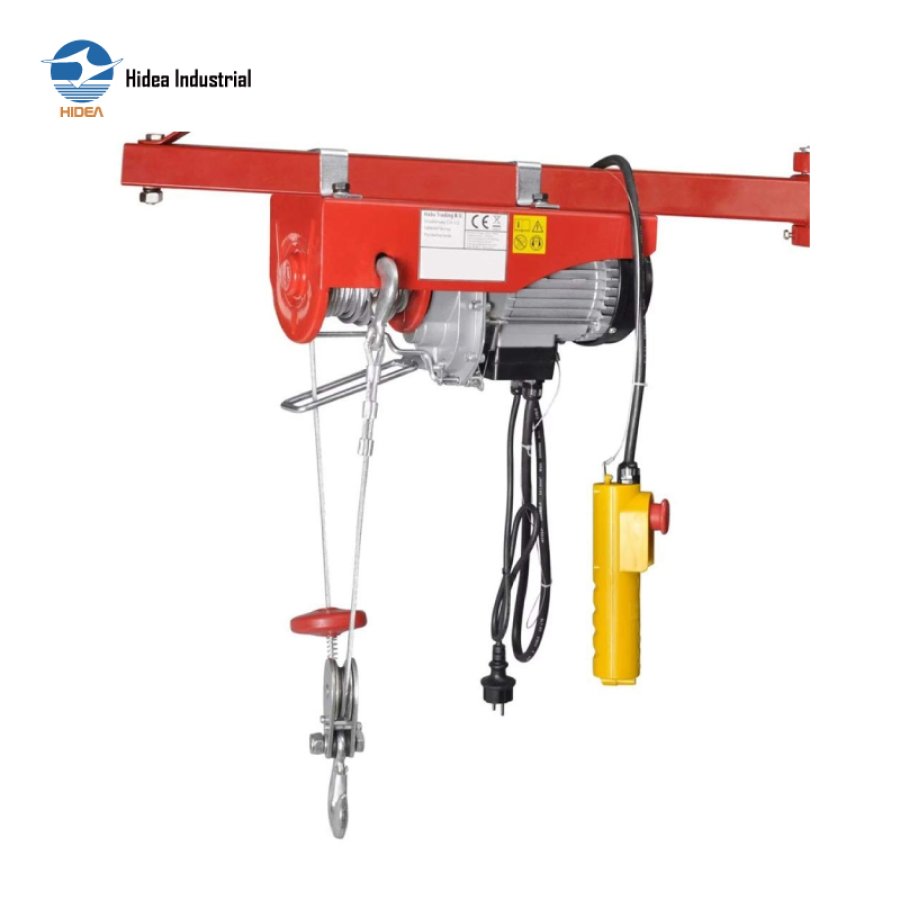

The mini electric hoists PA Series are versatile, compact and durable electric hoists designed with overload protection system to prevents over load lifting beyond its maximum rated capacity, also an emergency stop button equipped in case of emergency

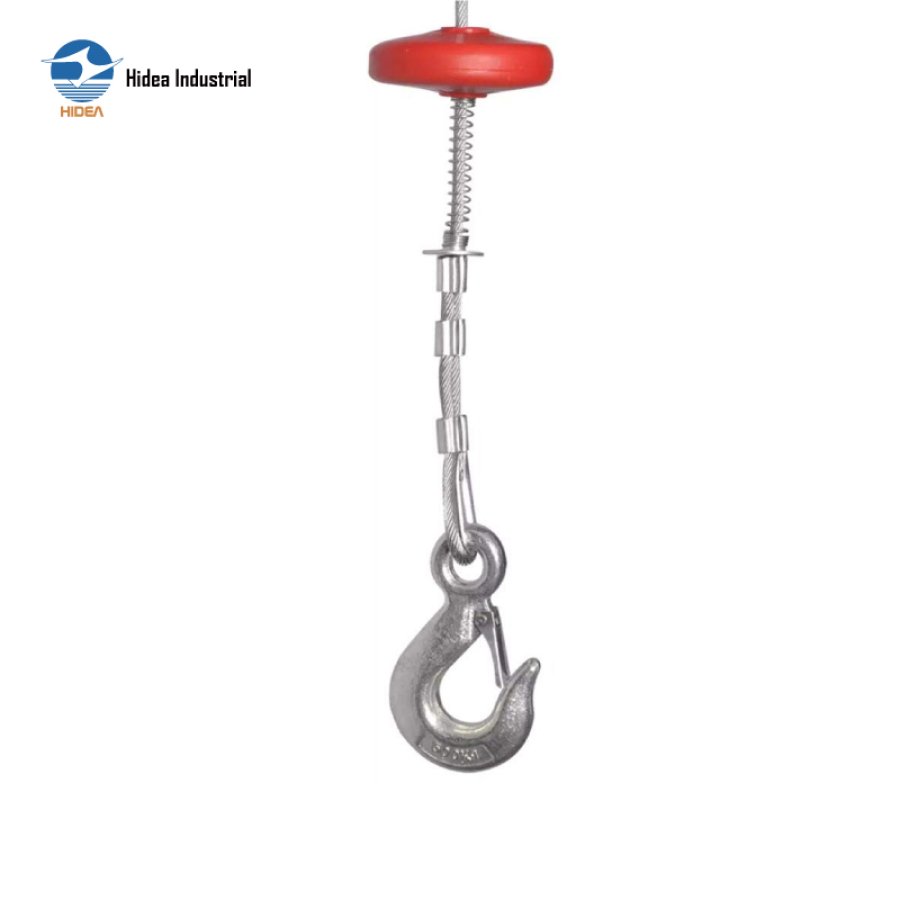

The mini electric hoists top thick-mounted fixing clamp device can facilitate the installation with extreme maneuverability; eye slip hooks for easier loading and unloading and an alloy liner bush at the load bearing area, which can absorb unbalance load and wearable
The mini electric hoists PA Series meeting standards of OSHA, ASME B30.16, ANSI/ASME HST-5M, EN14901 & EU Machinery Directives

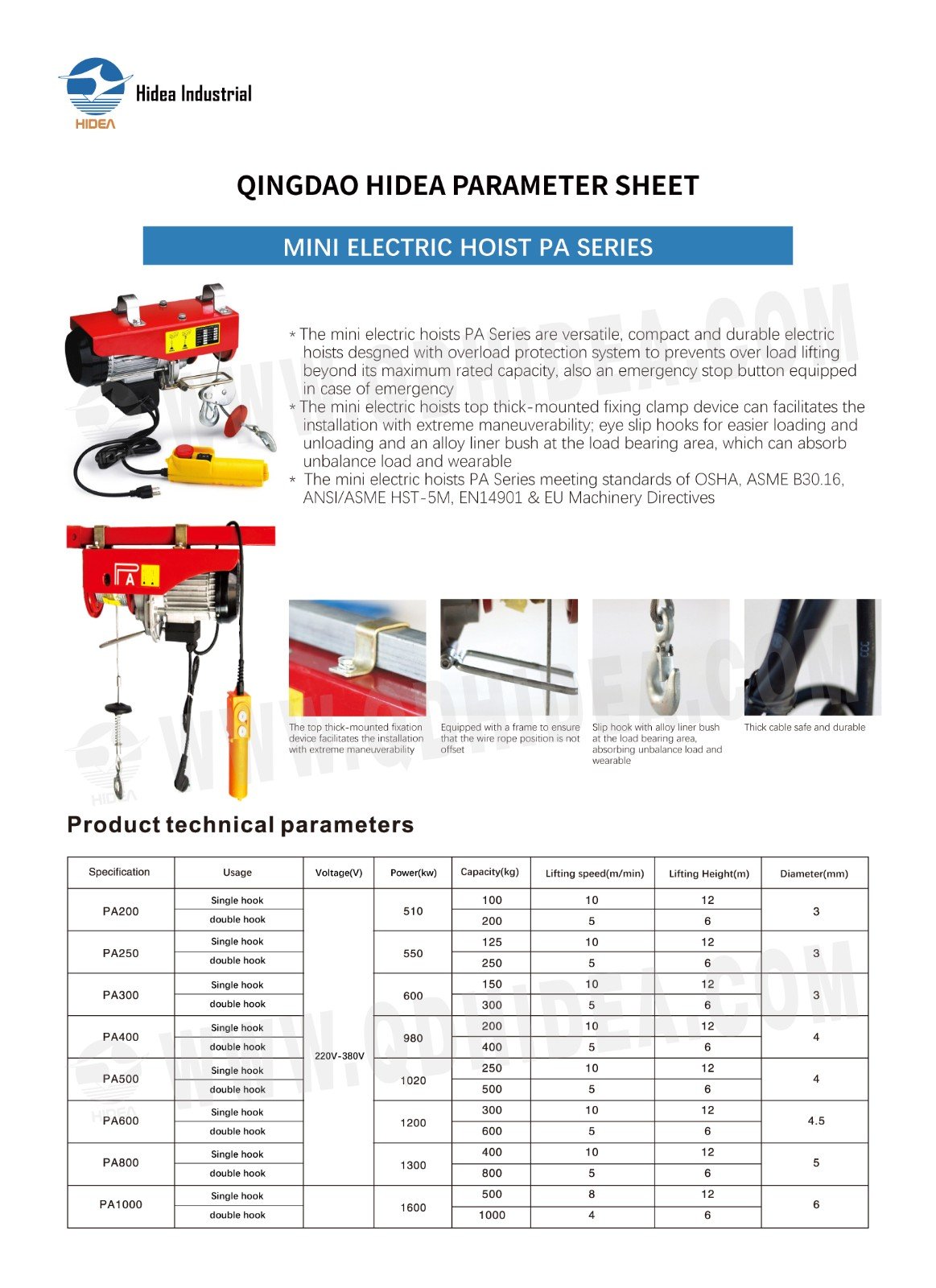

QINGDAO HIDEA PARAMETER SHEET FOR
MINI ELECTRIC HOIST PA SERIES
| Specification | Usage | Voltage(V) | Power(kw) | Capacity(kg) | Lifting speed(m/min) | Lifting Height(m) | Diameter(mm) | ||||||
| PA200 | Single hook | 220V-380V | 510 | 100 | 10 | 12 | 3 | ||||||
| double hook | 200 | 5 | 6 | ||||||||||
| PA250 | Single hook | 550 | 125 | 10 | 12 | 3 | |||||||
| double hook | 250 | 5 | 6 | ||||||||||
| PA300 | Single hook | 600 | 150 | 10 | 12 | 3 | |||||||
| double hook | 300 | 5 | 6 | ||||||||||
| PA400 | Single hook | 980 | 200 | 10 | 12 | 4 | |||||||
| double hook | 400 | 5 | 6 | ||||||||||
| PA500 | Single hook | 1020 | 250 | 10 | 12 | 4 | |||||||
| double hook | 500 | 5 | 6 | ||||||||||
| PA600 | Single hook | 1200 | 300 | 10 | 12 | 4.5 | |||||||
| double hook | 600 | 5 | 6 | ||||||||||
| PA800 | Single hook | 300 | 400 | 10 | 12 | 5 | |||||||
| double hook | 800 | 5 | 6 | ||||||||||
| PA1000 | Single hook | 1600 | 500 | 8 | 12 | 6 | |||||||
| double hook | 1000 | 4 | 6 | ||||||||||
