Hidea Stamped Double Cable Clamp – Easy to Install and Built for Long-Term Use

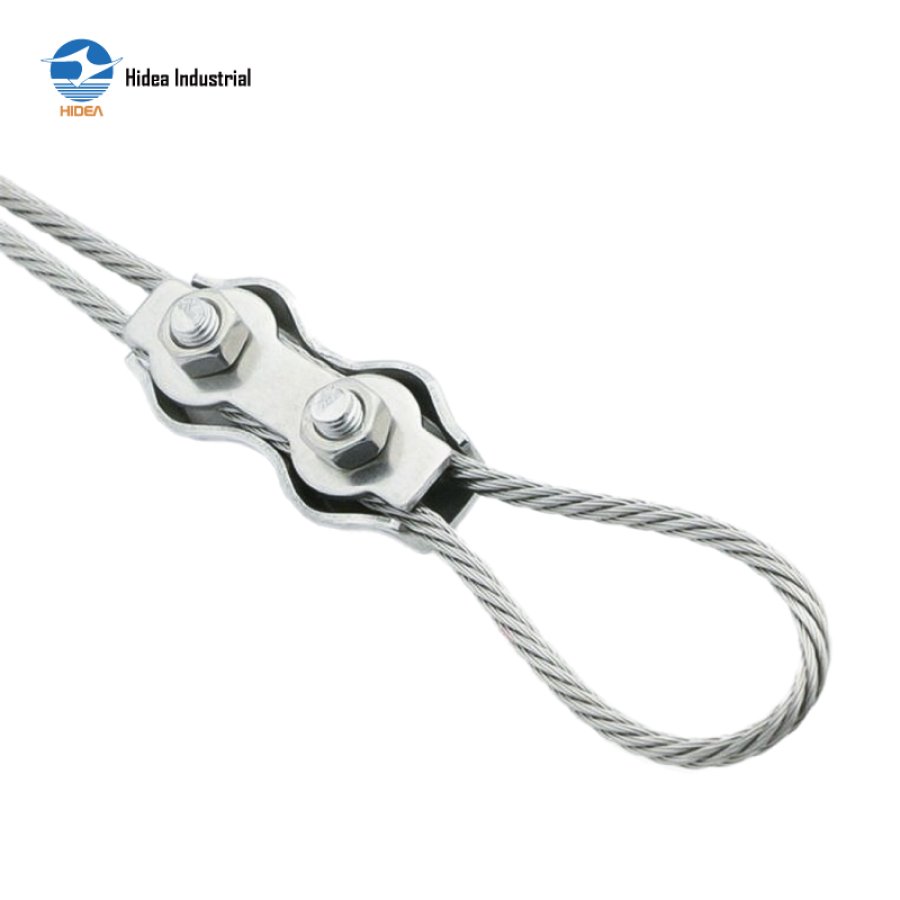

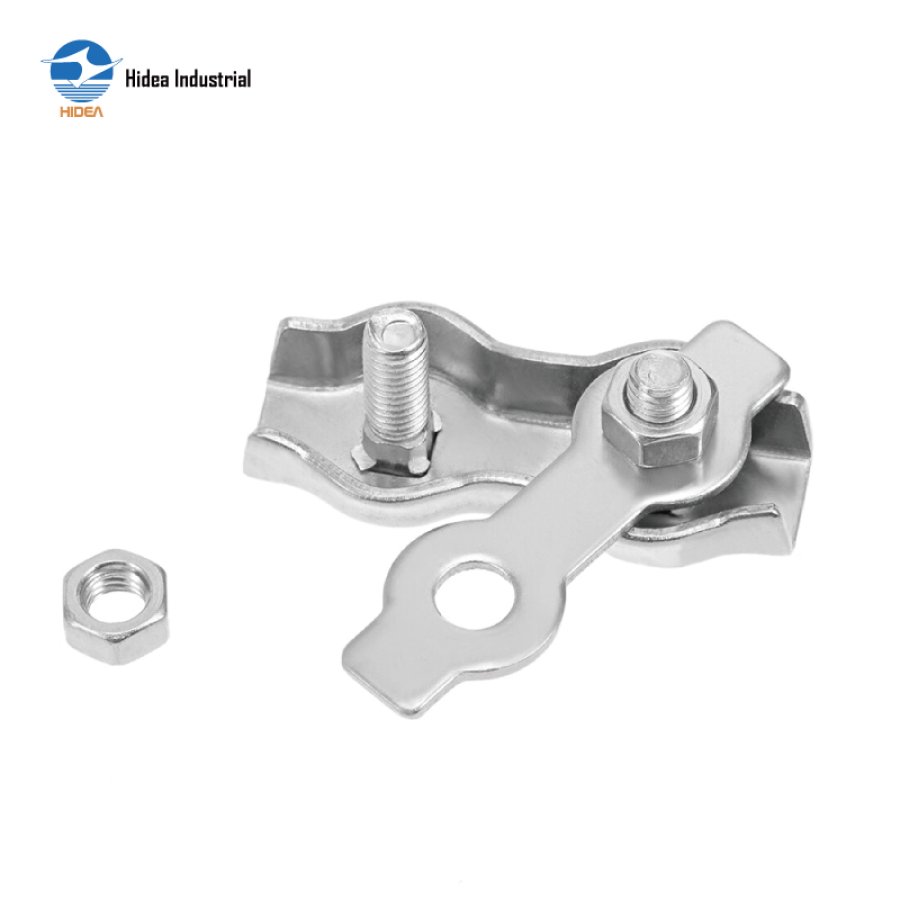

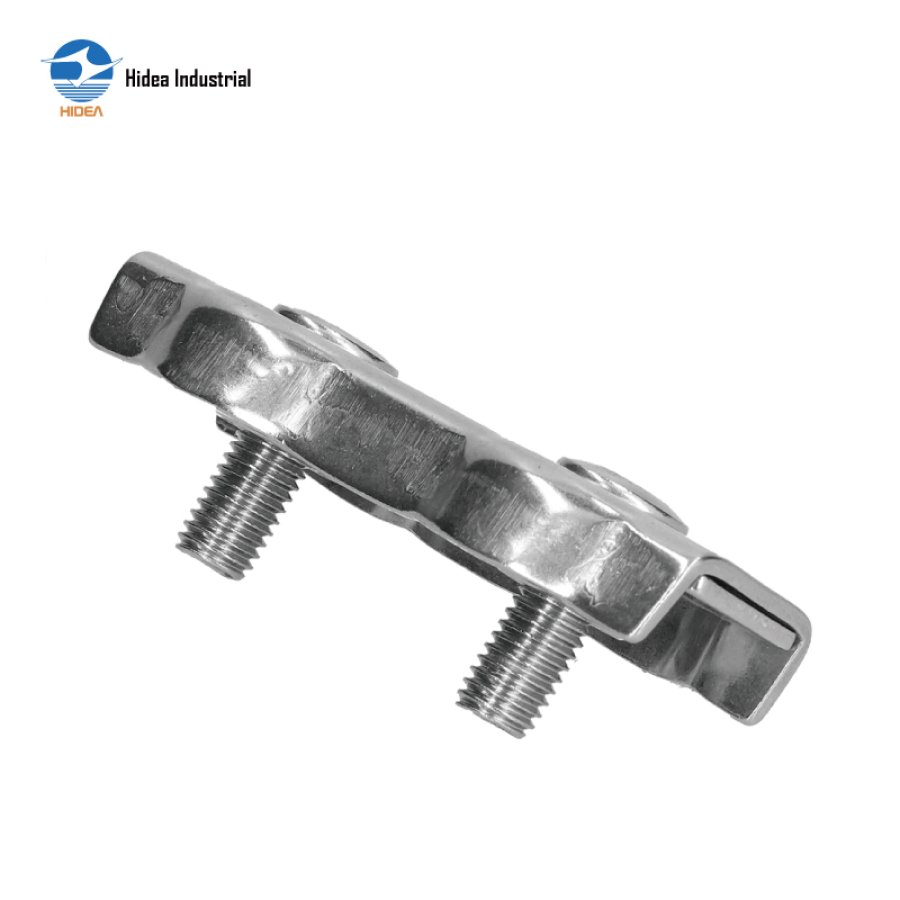

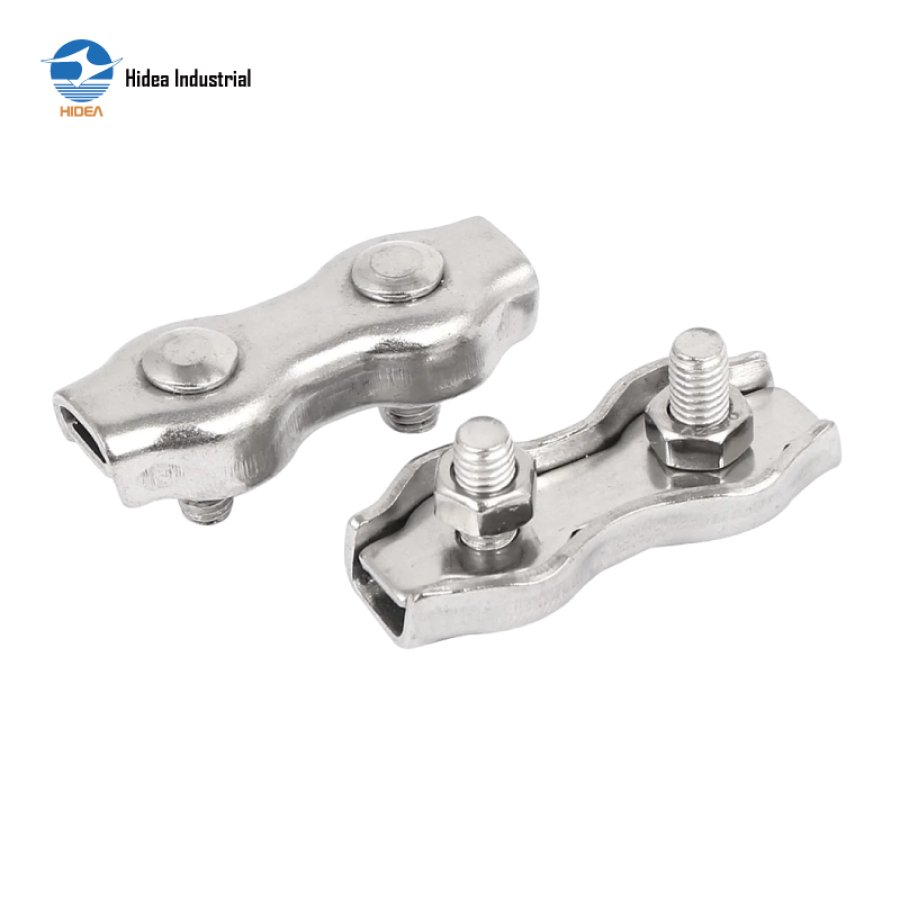

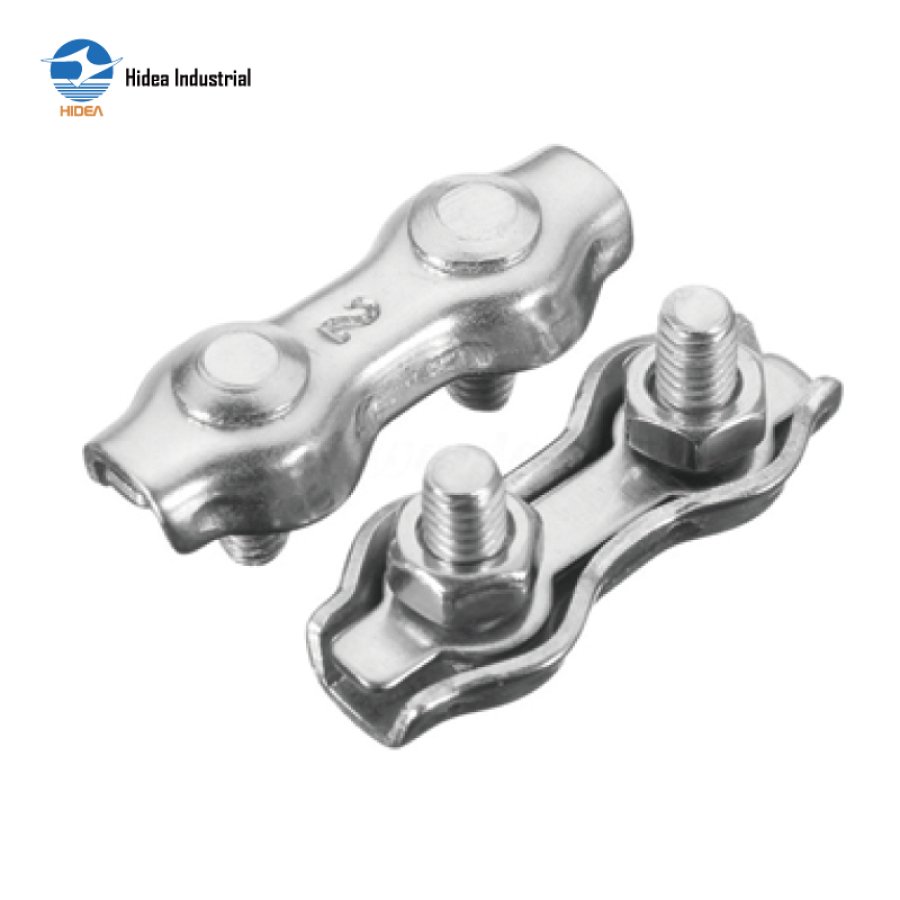

DUPLEX WIRE ROPE CLIP

Technical Data: Investment Casting/Forged
Material: AISI 304/INOX A2, AISI 316/INOX A4
Surface Treatment: Electro Polished/Passivated

Inquire Now

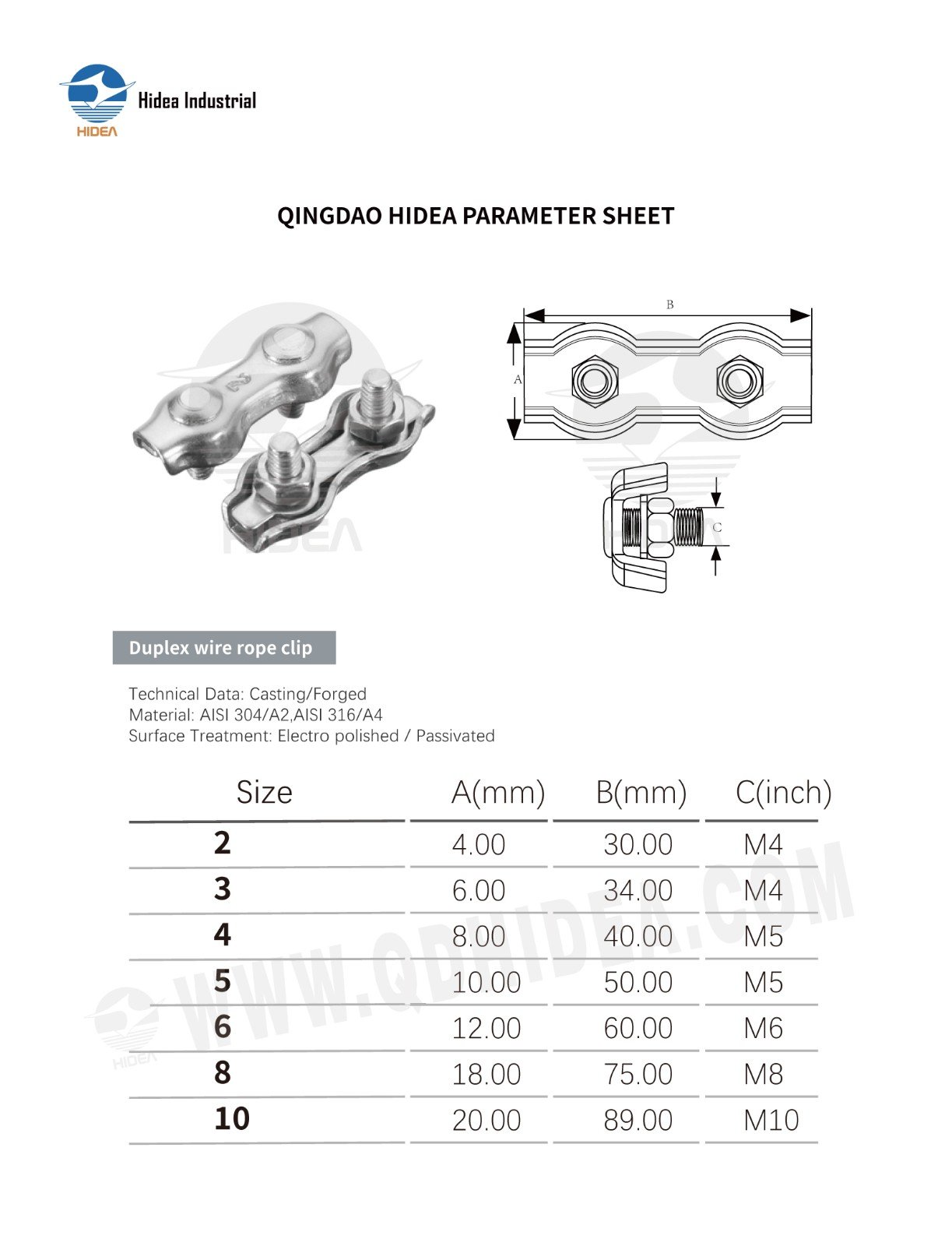

QINGDAO HIDEA PARAMETER SHEET FOR

Duplex wire rope clip

Size	A(mm)	B(mm)	C(inch)
2	4.00	30.00	M4
3	6.00	34.00	M4
4	8.00	40.00	M5
5	10.00	50.00	M5
6	12.00	60.00	M6
8	18.00	75.00	M8
10	20.00	89.00	M10
