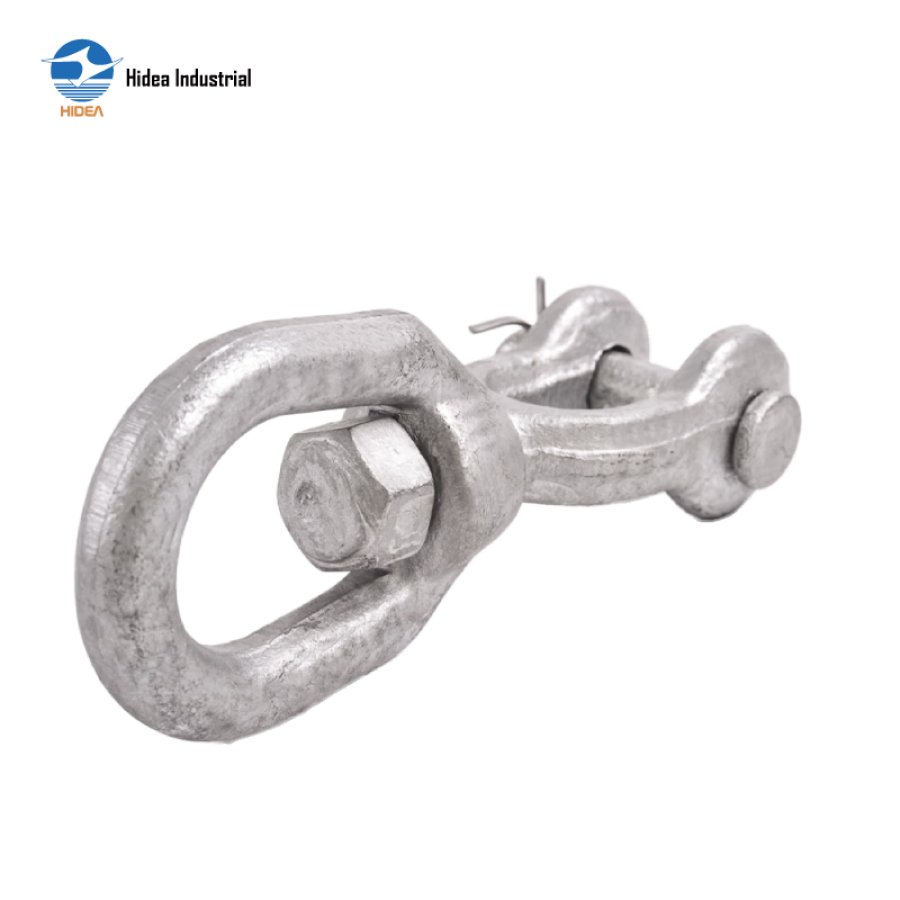

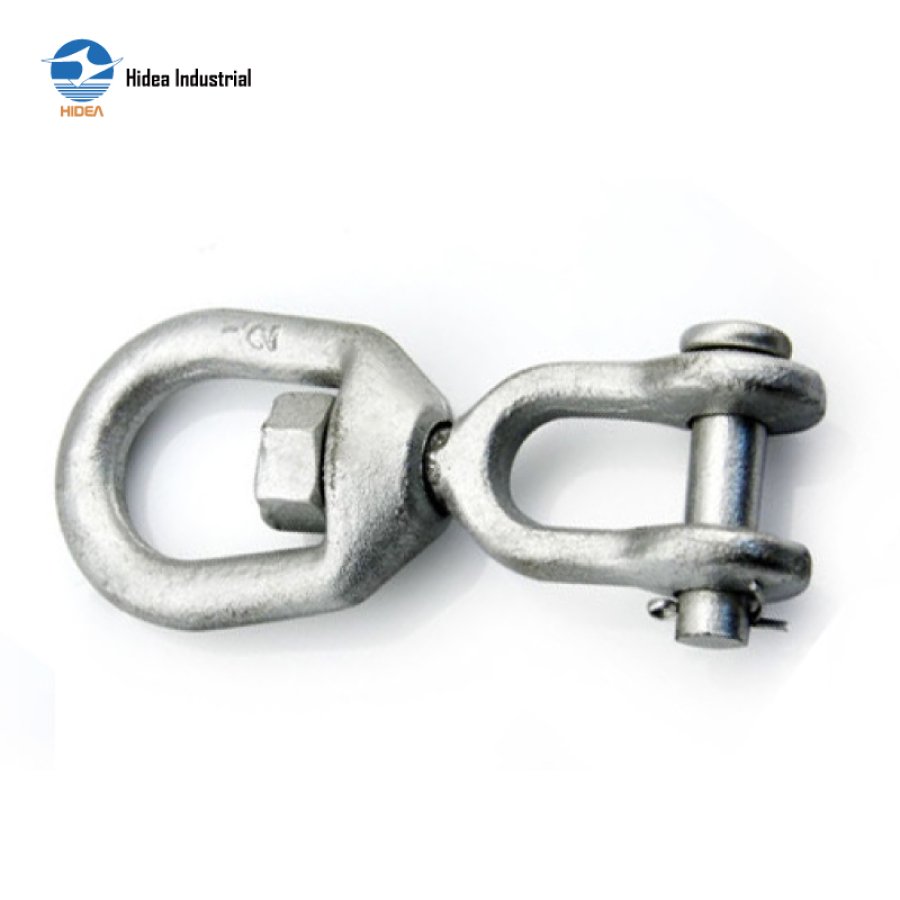

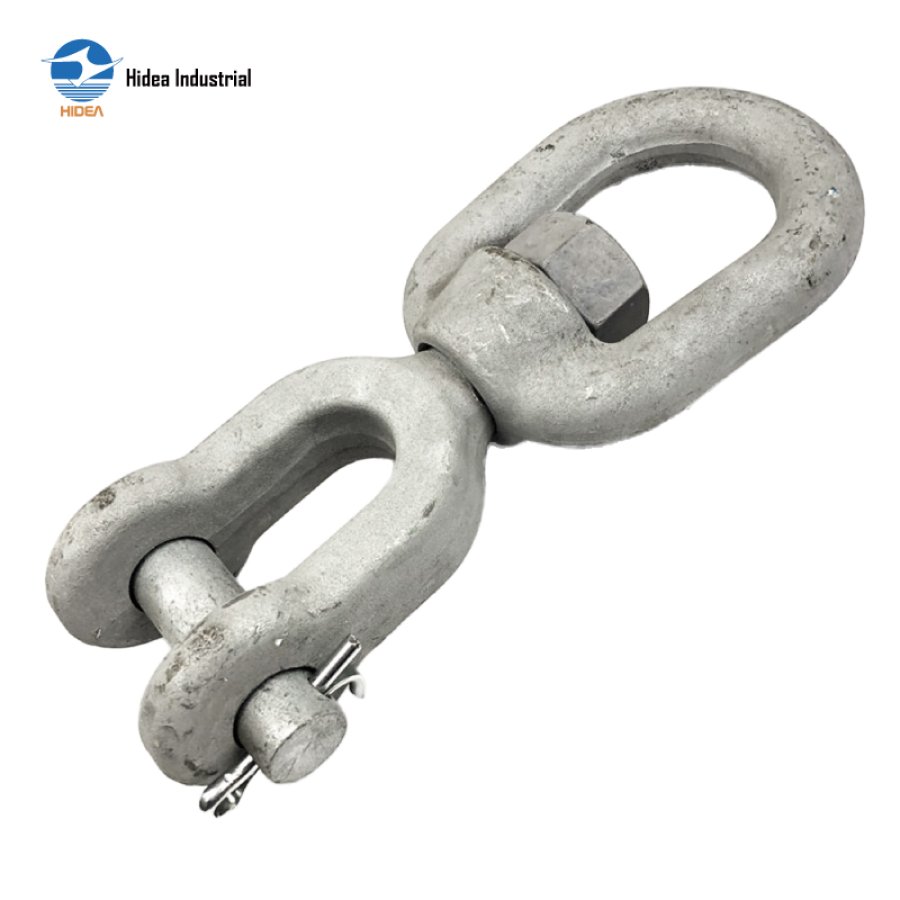

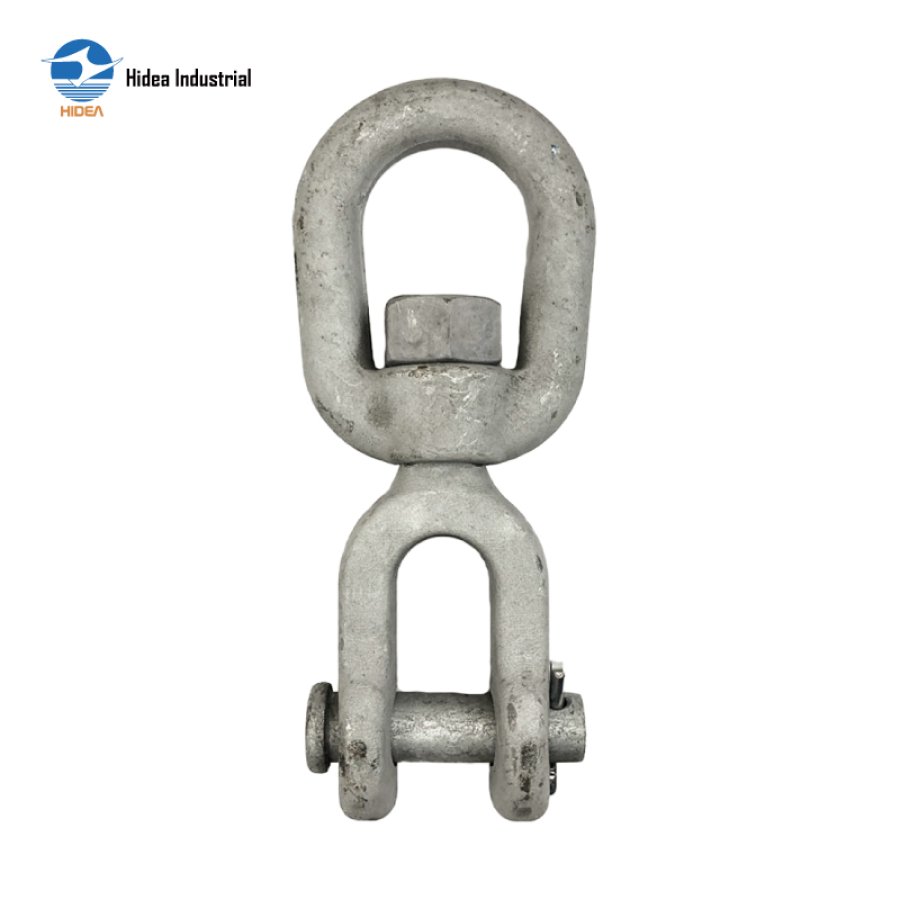

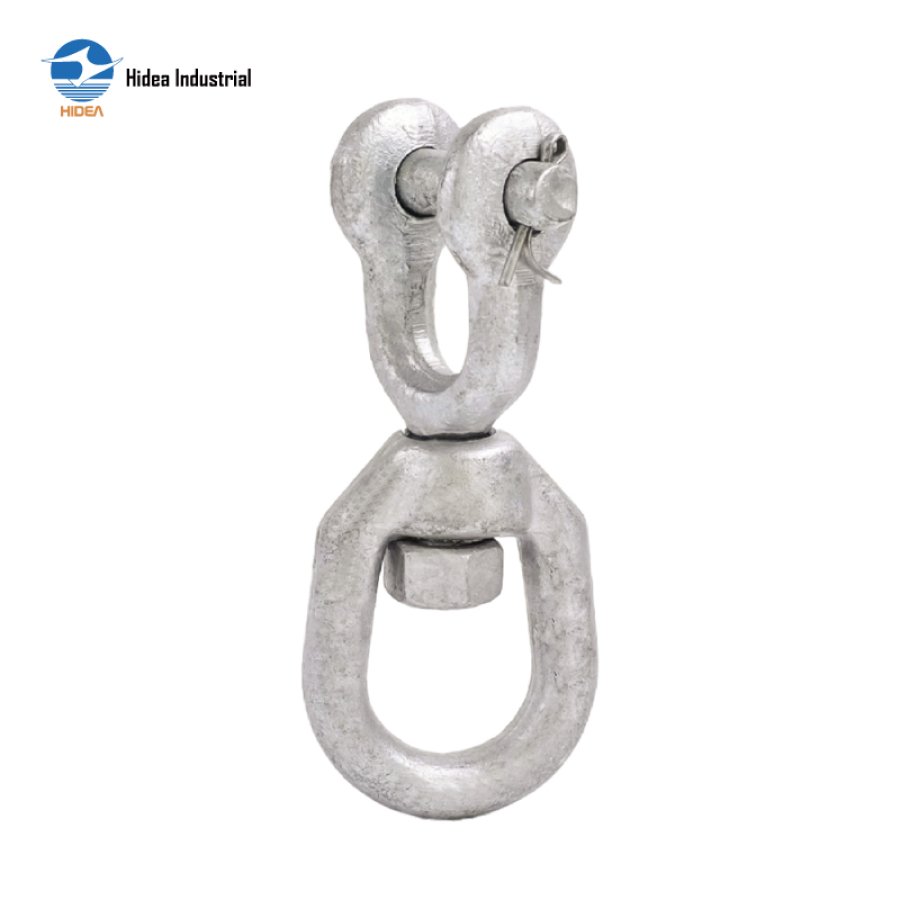

G-403 Jaw & Jaw Forged Chain Swivel

JAW END SWIVELS G-403

High tensile carbon steel
Forged, quenched & tempered
Proof tested & certificate available
Surface hot dip galvanized, Electro Galv., Electro Galv. / zinc plated OR as requested
G-403 Jaw End Swivels,meets the performance requirements of Federal Specification RR-C-271F, Type VII, Class 3

Inquire Now

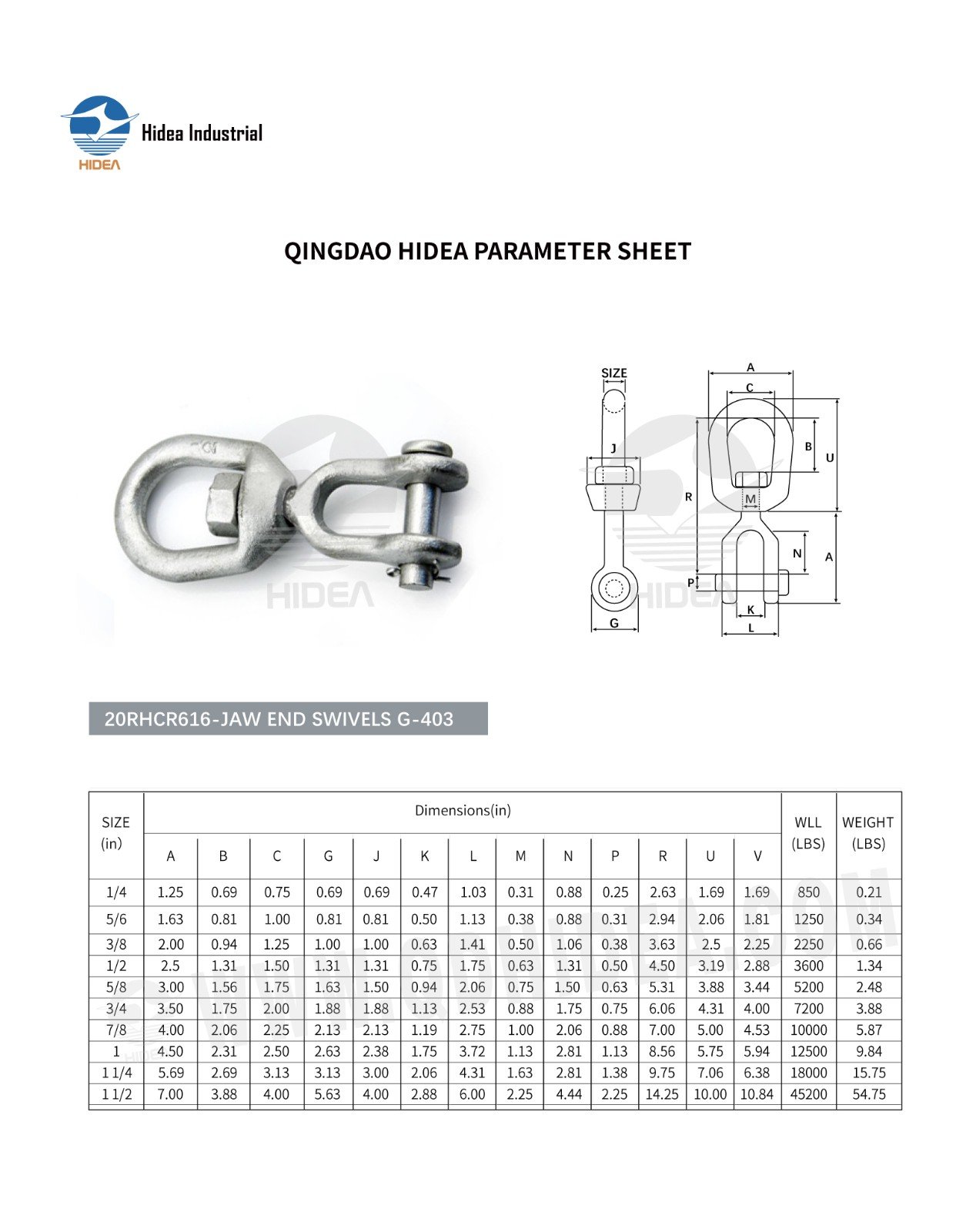

QINGDAO HIDEA PARAMETER SHEET FOR

20RHCR616-JAW END SWIVELS G-403

SIZE
(in)

Dimensions(in)

WLL
(LBS)

WEIGHT
(LBS)

1/4

1.25

0.69

0.75

0.69

0.47

1.03

0.31

0.88

0.25

2.63

1.69

850

0.21

5/6

1.63

0.81

1.00

0.81

0.50

1.13

0.38

0.88

0.31

2.94

2.06

1.81

1250

0.34

3/8

2.00

0.94

1.25

1.00

0.63

1.41

0.50

1.06

0.38

3.63

2.5

2.25

2250

0.66

1/2

2.5

1.31

1.50

1.31

0.75

1.75

0.63

1.31

0.50

4.50

3.19

2.88

3600

1.34

5/8

3.00

1.56

1.75

1.63

1.50

0.94

2.06

0.75

1.50

0.63

5.31

3.88

3.44

5200

2.48

3/4

3.50

1.75

2.00

1.88

1.13

2.53

0.88

1.75

0.75

6.06

4.31

4.00

7200

3.88

7/8

4.00

2.06

2.25

2.13

1.19

2.75

1.00

2.06

0.88

7.00

5.00

4.53

10000

5.87

4.50

2.31

2.50

2.63

2.38

1.75

3.72

1.13

2.81

1.13

8.56

5.75

5.94

12500

9.84

11/4

5.69

2.69

3.13

3.00

2.06

4.31

1.63

2.81

1.38

9.75

7.06

6.38

18000

15.75

11/2

7.00

3.88

4.00

5.63

4.00

2.88

6.00

2.25

4.44

2.25

14.25

10.00

10.84

45200

54.75
