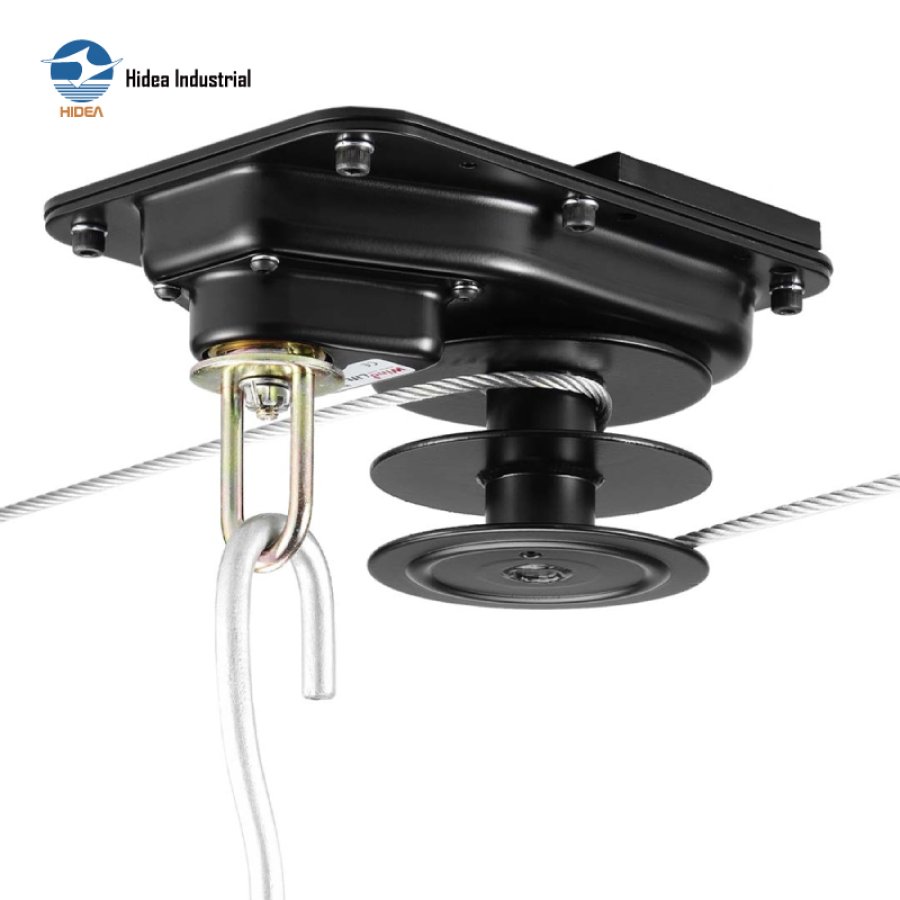

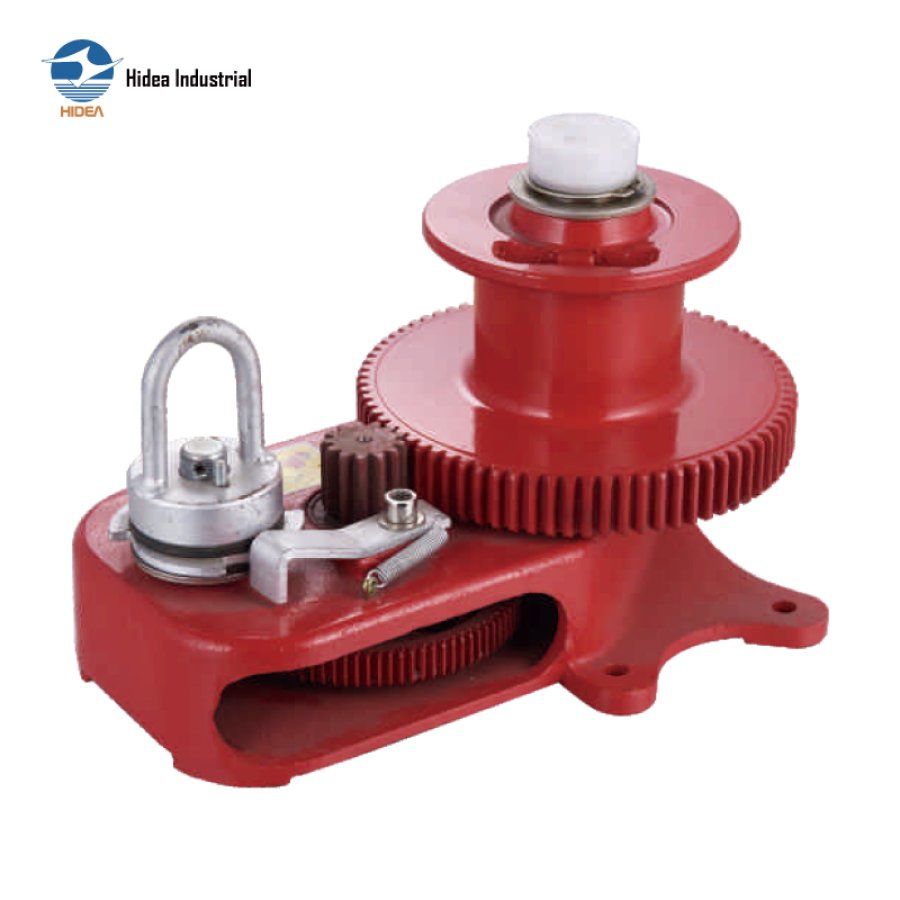

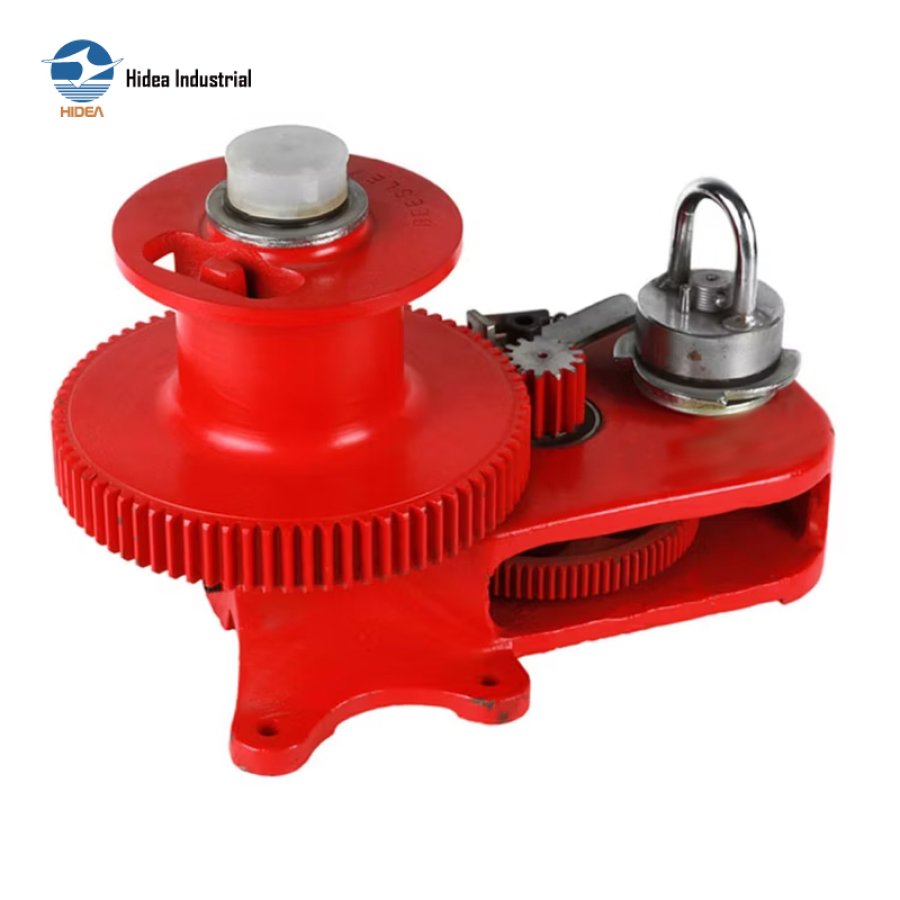

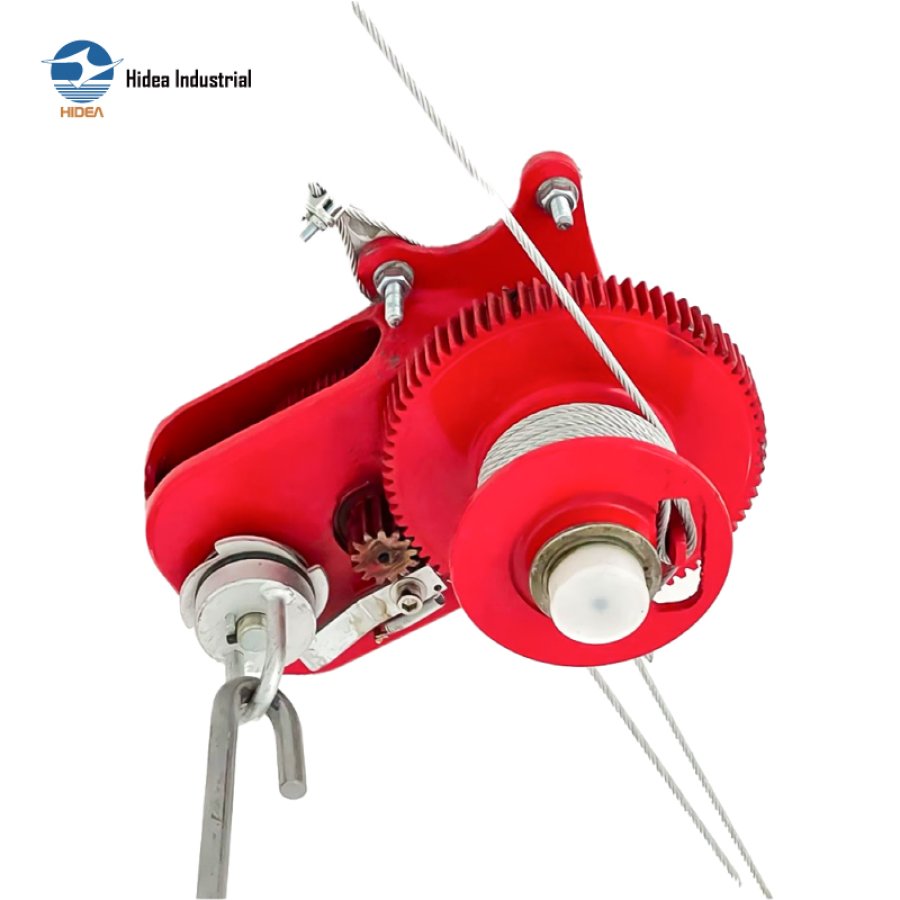

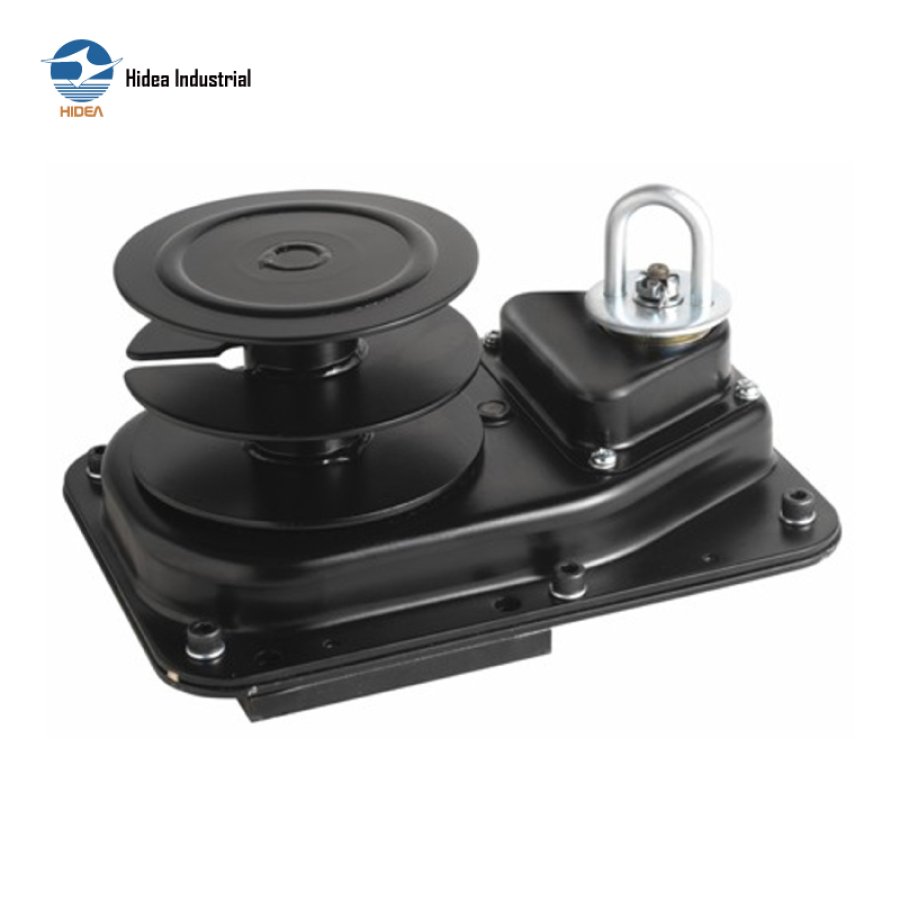

The ceiling worm gear winch or turbine winch is designed typically self-locking and with a loop ceiling mounted option, providing users with flexibility in installation and versatility in usage, allowing them to easily integrate it into various settings, including workshops, warehouses, and construction sites, and ideally used for poultry feeding lines
The ceiling worm gear winch worms and wheel gears are made of high tensile steel and properly heat treated with gear ratio from 41:1 or 90:1 and rated from 1,50Kgs to 2,300Kgs, easy to handle heavy loads with high efficiency & safety, and accurate control over the speed and direction of the loads when lifting or pulling
The ceiling worm gear hand winch are usually equipped with high quality anti-twist wire ropes cables
The ceiling worm gear hand winches meeting standards of and in conformity with ASME B30.7, OSHA regulations & EN 13157

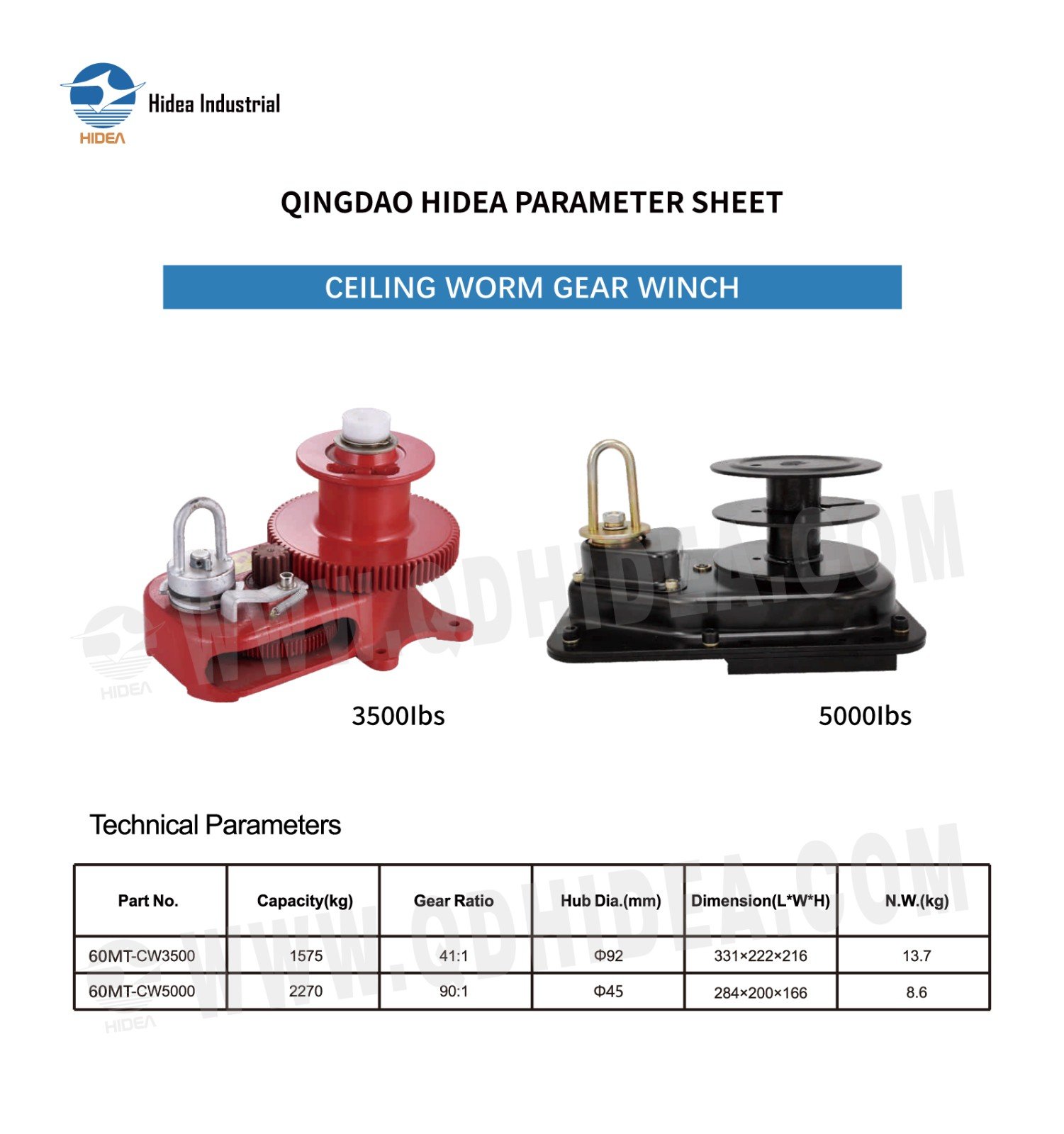

QINGDAO HIDEA PARAMETER SHEET FOR
CEILING WORM GEAR WINCH
| Part No. | Capacity(kg) | Gear Ratio | Hub Dia. (mm) | Dimension(L*W*H) | N.W. (kg) | ||||
| 60MT-CW3500 | 1575 | 41:1 | φ92 | 331×222×216 | 13.7 | ||||
| 60MT-CW5000 | 2270 | 90:1 | φ45 | 284×200×166 | 8.6 | ||||
