Governor Rope | Hoisting Rope | Compensation Rope

ELEVATOR WIRE ROPE of ISO / GB / JIS STANDARDS

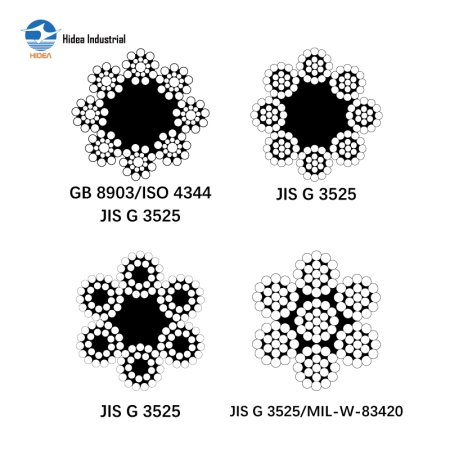

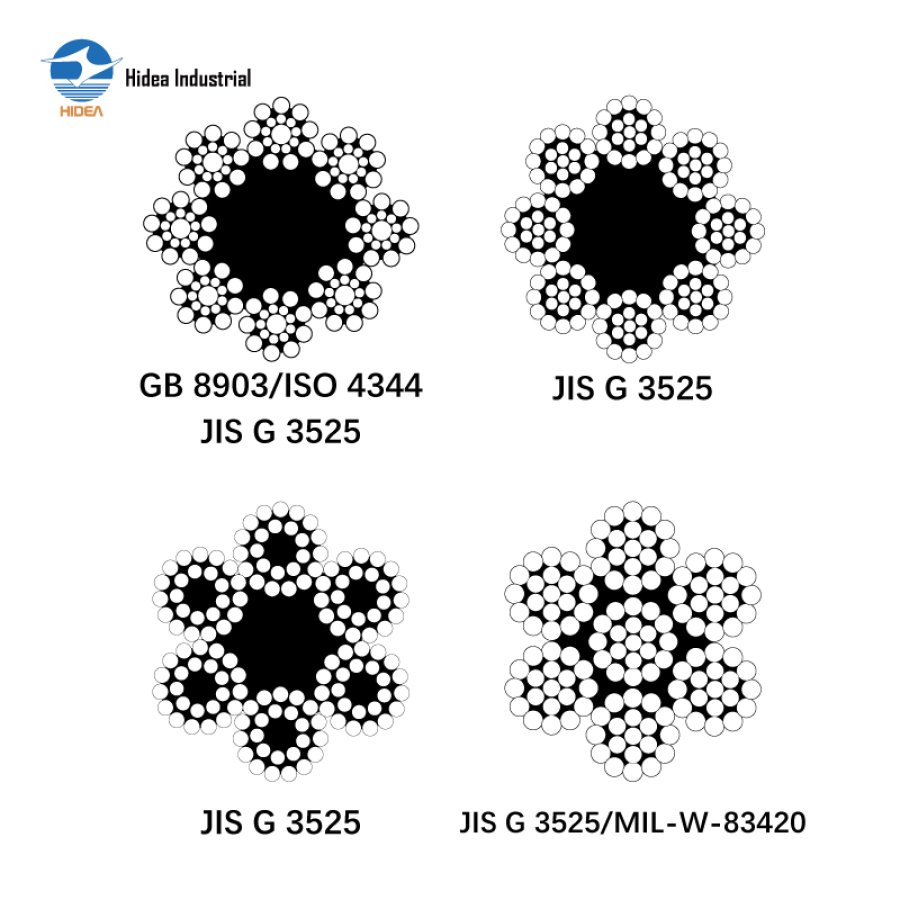

Elevator Wire Ropes of ISO / GB / JIS Standards, Strand Constructions of Filler, Seale, Warrington and Warrington-Seale
High Carbon Steel, High Tensile Strength, Good Flexibility and Low Elongation
Excellent Wear & Impact Resistance against External Wear & Impact in use when running over the traction sheave and the deflection points

Inquire Now

QINGDAO HIDEA PARAMETER SHEET FOR

ELEVATOR WIRE ROPE of ISO/GB/JIS STANDARDS

High Tensile,Good Flexibility and Low Elogation

Tensile Strength Grade(GB/T12753-2002)
Wire Diameter	Tensile Strength(MPa)
mm	Ⅰ	Ⅱ	Ⅲ	Ⅳ
0.20-0.40	2160	2260	2360	2460
>0.40~0.60	2060	2160	2260	2360
>0.60-0.90	1960	2062	2160	2260

	Spec	Construction &Size		Balance of Diamete (%)	Tension Strength (Mpa)	Minimum Breaking Load (KN)
Hoisting Rope	GB8903 /ISO 4344		8×S(19)+FC-8mm	2-6	1370/1770	28.1
			8×S(19)+FC-10mm	2-6	1370/1770	44.0
			8×S(19)+FC-11mm	2-5	1370/1770	53.2
			8×S(19)+FC-13mm	2-5	1370/1770	74.3
			8×S(19)+FC-16mm	2-5	1370/1770	113.0
	JISG3525		8×S(19)+FC-12mm	00-5	Grade E	58.5
			8×S(19)+FC-14mm	00-5	Grade E	79.6
			8×S(19)+FC-20mm	00-5	Grade E	162.0
Governor Rope	GB 8903 /ISO 4344		6×S(19)+FC-6mm	2-6	1370/1770	21.0
			8×S(19)+FC-8mm	2-6	1370/1770	33.2
			8×S(19)+FC-10mm	2-6	1370/1770	51.9
	JIS G3525		6×Fi(25)+FC-8mm	00-10	Grade E	28.6
			8×S(19)+FC-12mm	00-7	Grade E	58.5
			8×Fi(25)+FC-10mm	00-7	Grade E	40.6
			8×Fi(25)+FC-12mm	00-7	Grade E	58.5
Compensation Rope	JIS G 3525		6×24+FC-8mm	00-10	Grade A	31.6
			6×24+FC-10mm	00-7	Grade A	49.3
			6×24+FC-12mm	00-7	Grade A	71.0
			6×37+FC-14mm	00-7	Grade A	104.0
			6×37+FC-16mm	00-7	Grade A	136.0
			6×37+FC-18mm	00-7	Grade A	172.0
			8×Fi(25)+FC-16mm	00-7	Grade A	123.0
Door Rope	JIS G3535 /MIL-W- 83420		6×19+1WS-3.18mm	0/+0.36mm	/	8.9
Door Rope	JIS G3535 /MIL-W- 83420		6×19+IWS-4.0mm	0/+0.41mm	/	12.5
