Hidea European Type Jaw & Eye Rigging Screw – Ideal for Marine and Offshore Applications

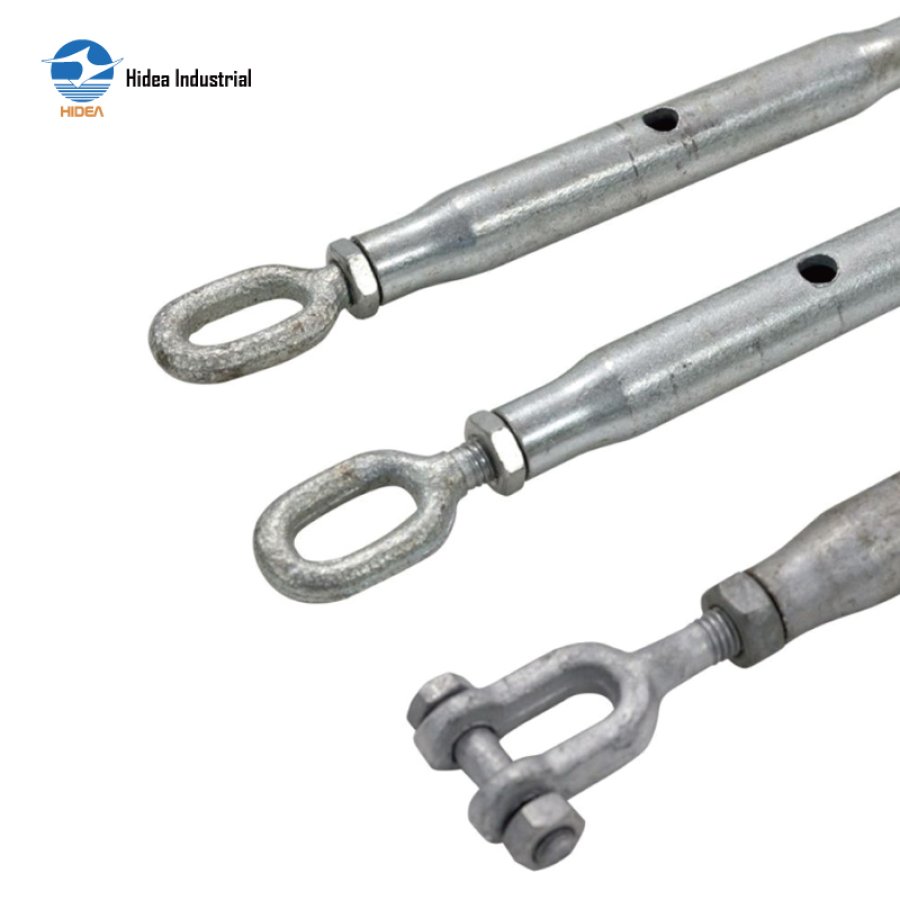

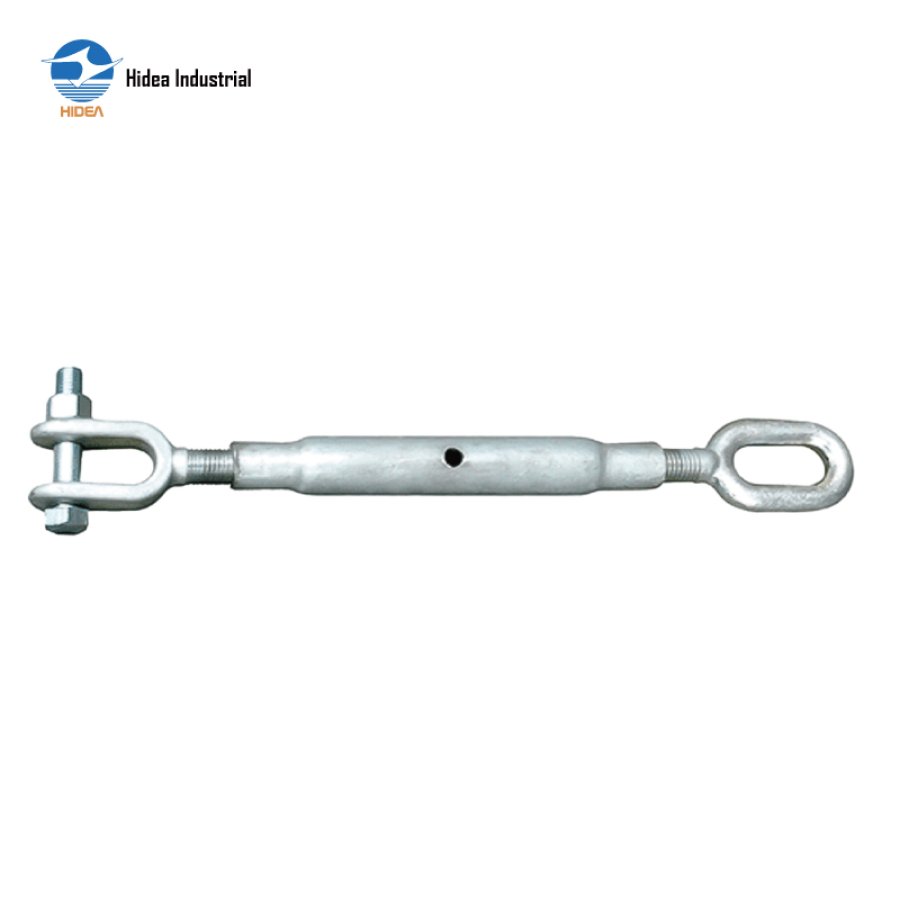

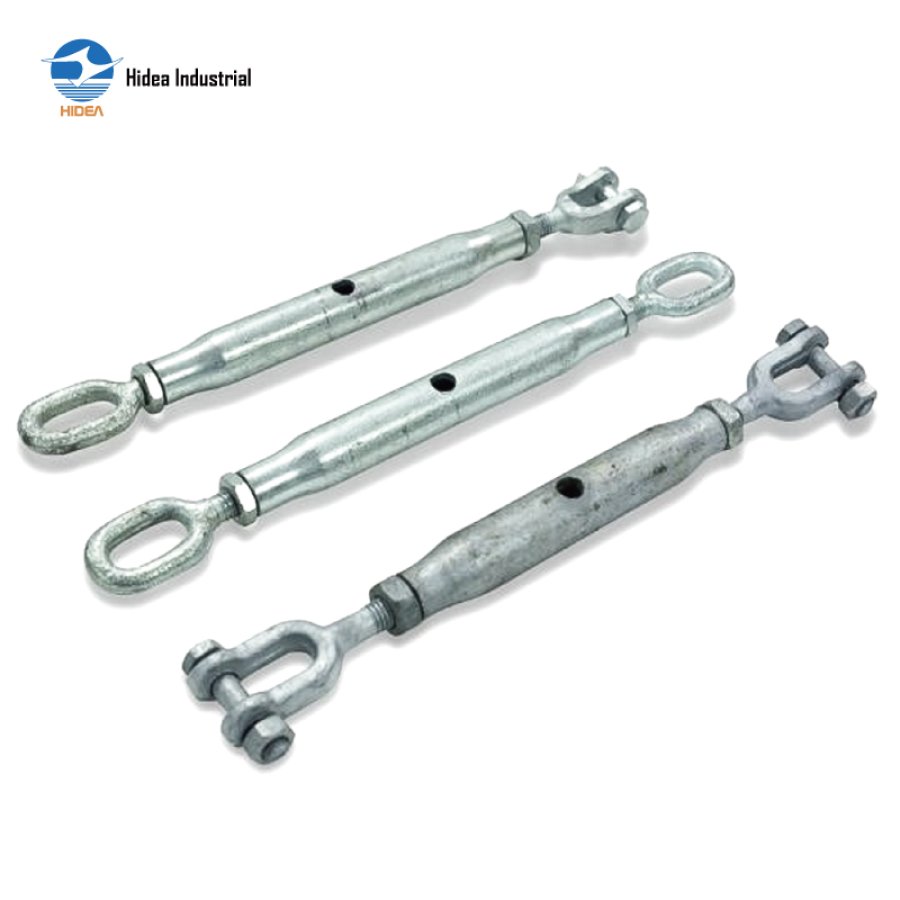

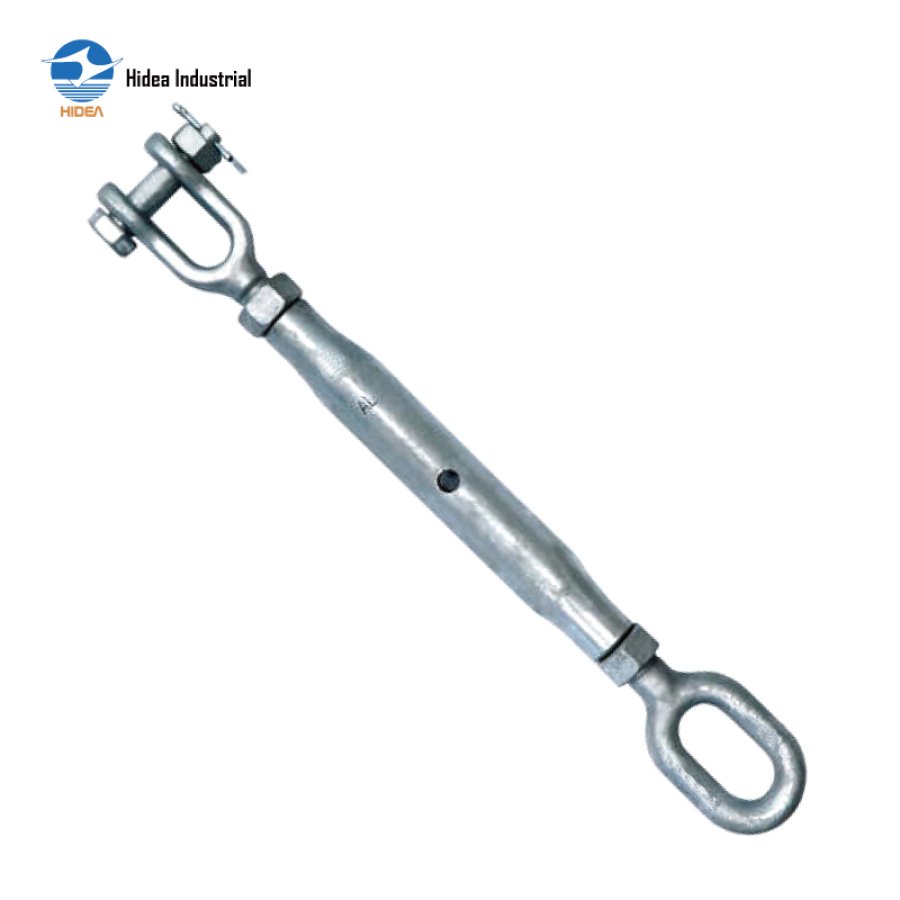

EUROPEAN TYPE CLOSED BODY TUBULAR TURNBUCKLES JAW & EYE

Material: High tensile seamless steel tube body
Contracted pipe both ends & forged end fittings, quenched & tempered
Proof tested individually & certificate available
Surface hot dip galvanized, electro galv. / zinc plated OR as requested
European Type tublar rigging screws closed body turnbuckles pipe turnbuckles jaw & eye SF=5:1

Inquire Now

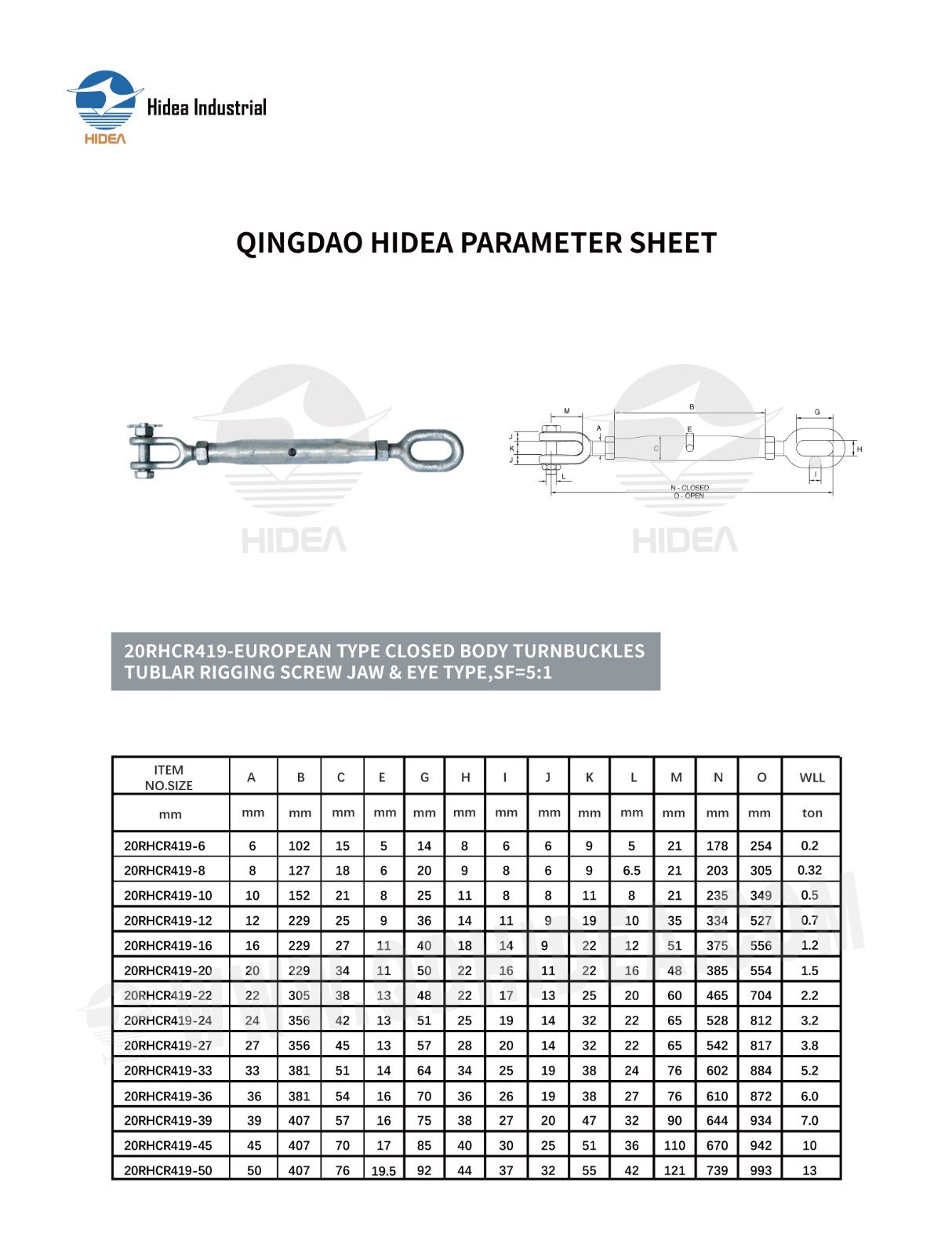

QINGDAO HIDEA PARAMETER SHEET FOR

20RHCR419-EUROPEAN TYPE CLOSED BODY TURNBUCKLES

TUBLAR RIGGING SCREW JAW&EYE TYPE,SF=5:1

ITEM NO.SIZE	A	B	C	E	G	H		1	J	K	L	M	N	0	WLL
mm	mm	mm	mm	mm	mm	mm		mm	mm	mm	mm	mm	mm	mm	ton
20RHCR419-6	6	102	15	5	14	8		6	6	9	5	21	178	254	0.2
20RHCR419-8	8	127	18	6	20	9		8	6	9	6.5	21	203	305	0.32
20RHCR419-10	10	152	21	8	25	11		8	8	11	8	21	235	349	0.5
20RHCR419-12	12	229	25	9	36	14		11	9	19	10	35	334	527	0.7
20RHCR419-16	16	229	27	11	40	18		14	9	22	12	51	375	556	12
20RHCR419-20	20	229	34	11	50	22		16	11	22	16	48	385	554	1.5
20RHCR419-22	22	305	38	13	48	22		17	13	25	20	60	465	704	2.2
20RHCR419-24	24	356	42	13	51	25		19	14	32	22	65	528	812	3.2
20RHCR419-27	27	356	45	13	57	28		20	14	32	22	65	542	817	3.8
20RHCR419-33	33	381	51	14	64	34		25	19	38	24	76	602	884	5.2
20RHCR419-36	36	381	54	16	70	36		26	19	38	27	76	610	872	6.0
20RHCR419-39	39	407	57	16	75	38		27	20	47	32	90	644	934	7.0
20RHCR419-45	45	407	70	17	85	40		30	25	51	36	110	670	942	10
20RHCR419-50	50	407	76	19.5	92	44		37	32	55	42	121	739	993	13
