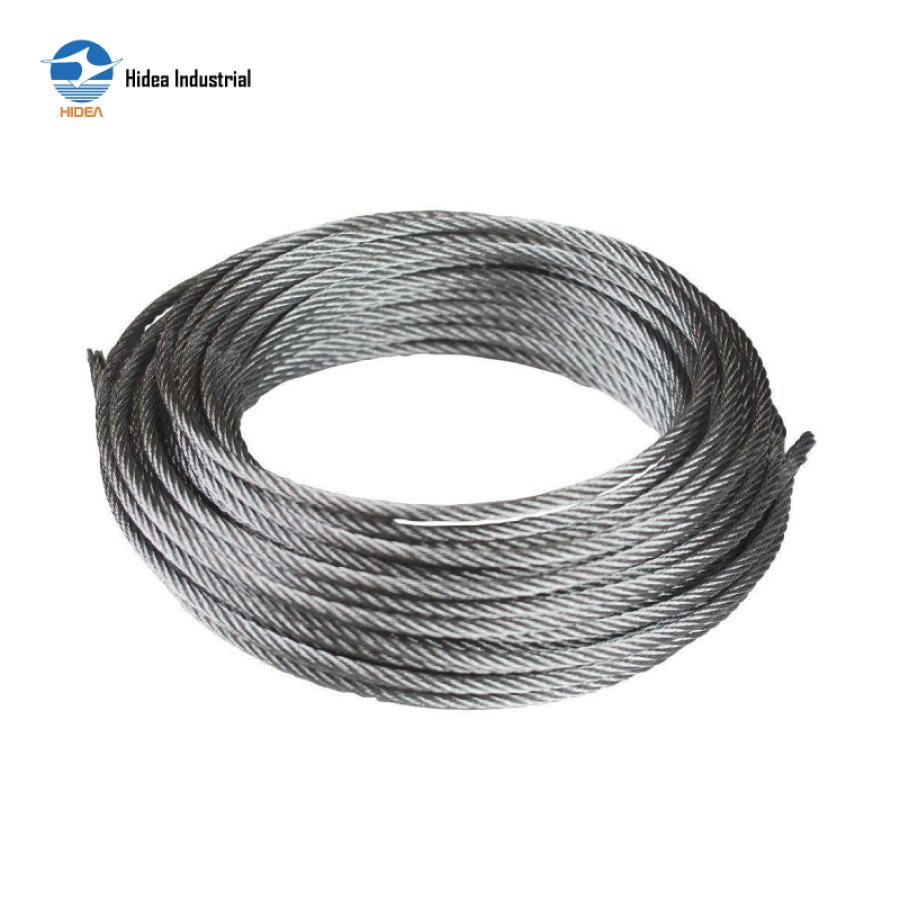

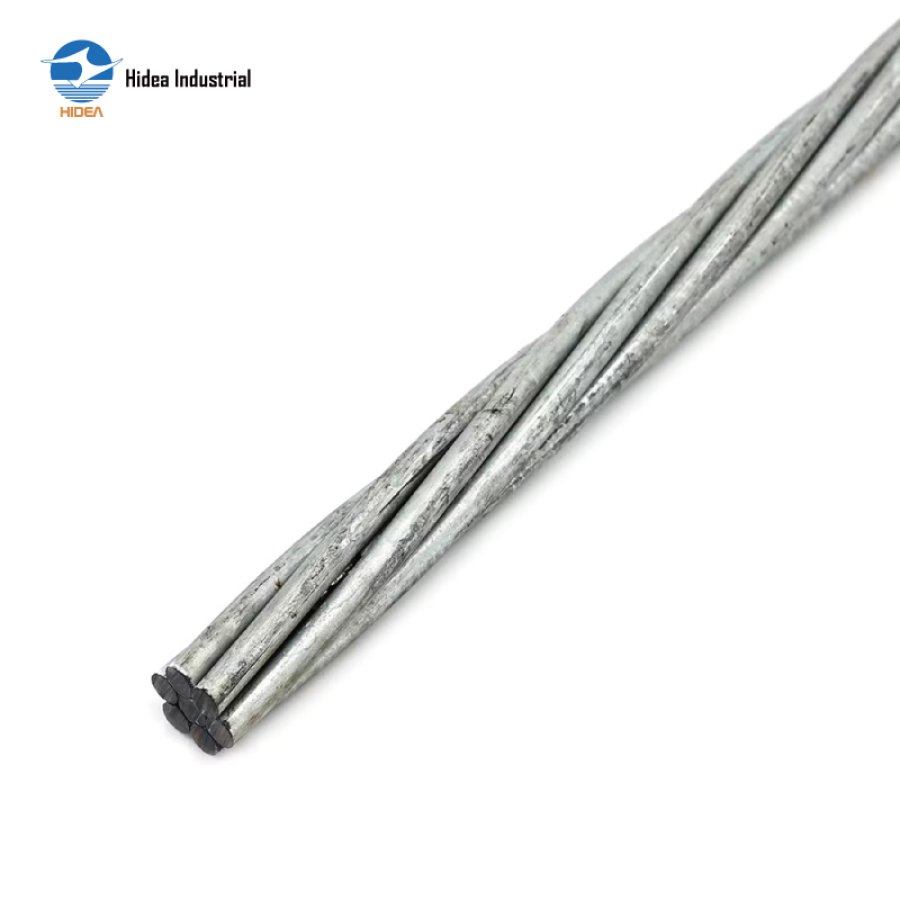

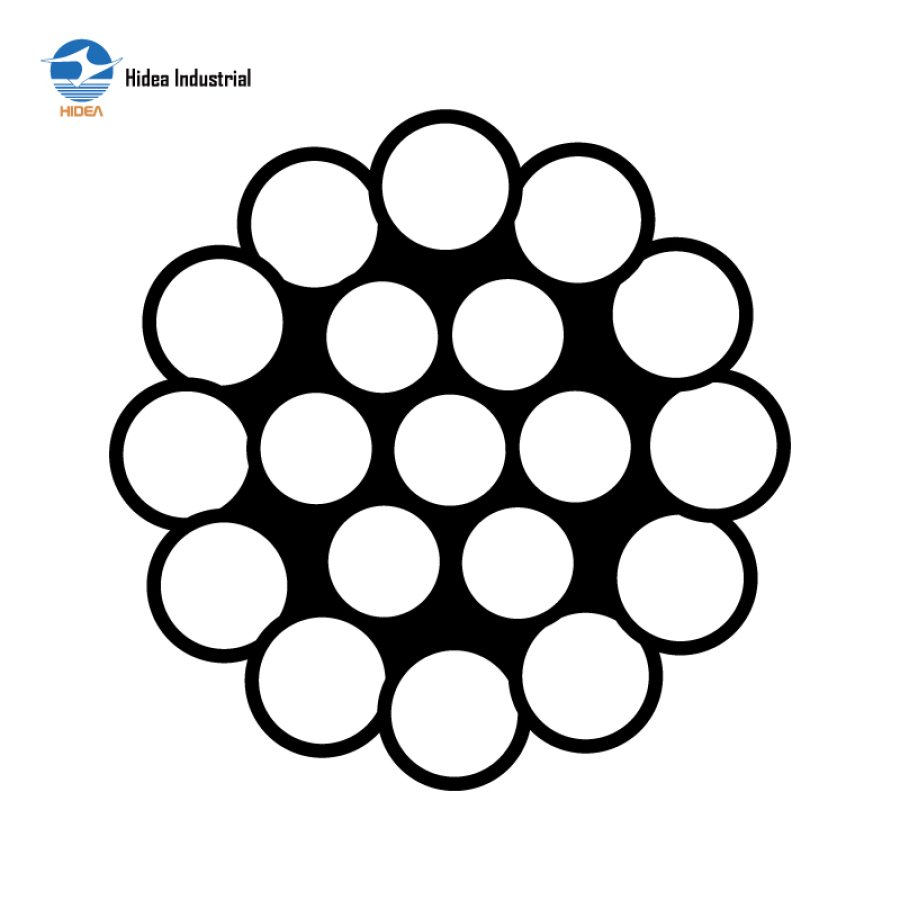

1x19 Galvanized Guy Strand Cable

GALVANIZED GUY STRAND

Galvanized Guy Strand
Applied in overhead & underground cable engineering for electric power and telecommunications fields; also pre-stressed / precast concrete parts especially for bridge constructions & buildings

Inquire Now

QINGDAO HIDEA PARAMETER SHEET FOR

GALVANIZED GUY STRAND

Diameter inch	No.of Wire	(inch)	Min.Breaking Load(Ibf)					Approx.Wei ght (Lb/100ft)
Diameter inch	No.of Wire	(inch)	General Grade	Common Grade	Open Hearth Grade	High Grade	Enhance Grade	Approx.Wei ght (Lb/100ft)
1/8	7	0.041	---	540	910	1330	1830	3.20
5/32	7	0.052	---	870	1470	2140	2940	5.10
3/16	7	0.062	--	1150	1900	2850	3990	7.30
3/16	7	0.065	2400	-	---	---	---	8.00
7/32	3	0.104	--	1400	2340	3500	4900	8.80
7/32	7	0.072	---	1540	2560	3850	5400	9.80
1/4	3	0.120	3150	1860	3040	4730	6740	11.70
1/4	3	0.120	4500	---	---	---	---	11.70
1/4	7	0.080	---	1900	3150	4750	6650	12.10
9/32	3	0.130	---	2080	3380	5260	7500	13.70
9/32	7	0.093	4600	2570	4250	6400	8950	16.40
5/16	3	0.145	6500	2490	4090	6350	9100	17.10
5/16	7	0.104	---	3200	5350	8000	11200	20.50
5/16	7	0.109	6000	---	---	---	---	22.50
3/8	3	0.165	8500	3330	5560	8360	11800	22.00
3/8	7	0.120	11500	4250	6950	10800	15400	27.30
7/16	7	0.145	18000	5700	9350	14500	20800	39.90
1/2	7	0.165	25000	7400	12100	18800	26900	51.70
1/2	19	0.100	---	7620	12700	19100	26700	50.40
9/16	7	0.188	---	9600	15700	24500	35000	67.10
9/16	19	0.113	---	9640	16100	24100	33700	63.70
5/8	7	0.207	---	11600	19100	29600	42400	81.30
5/8	19	0.125	---	11000	18100	28100	40200	79.60
