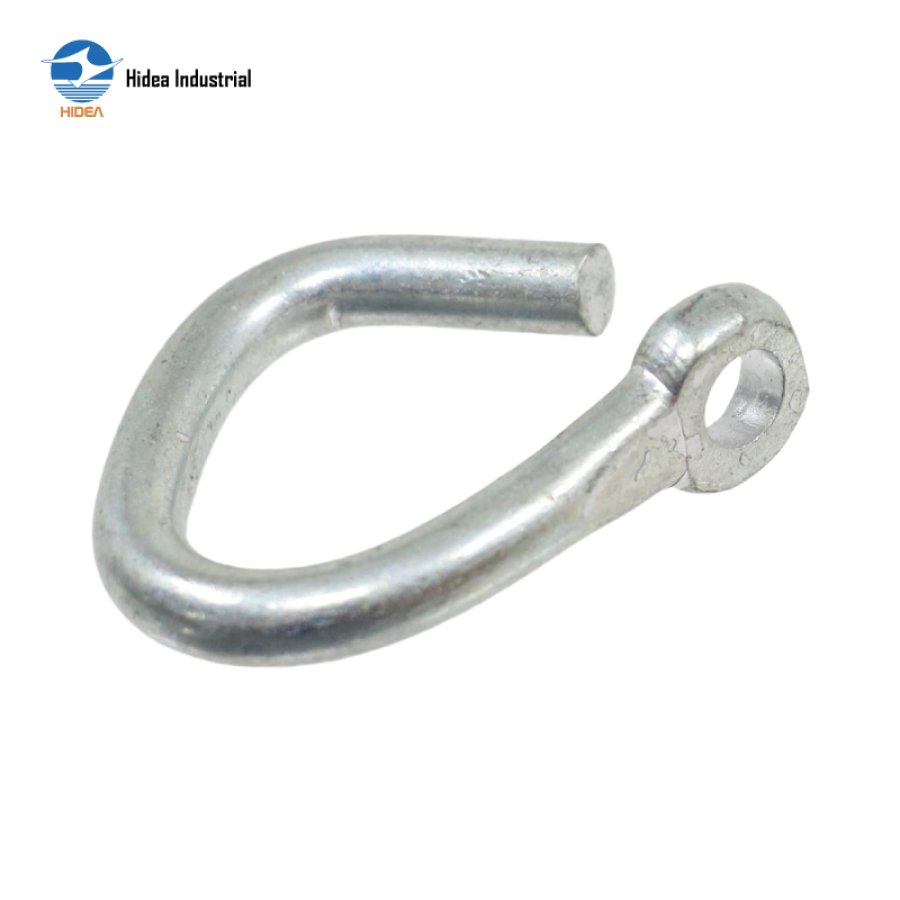

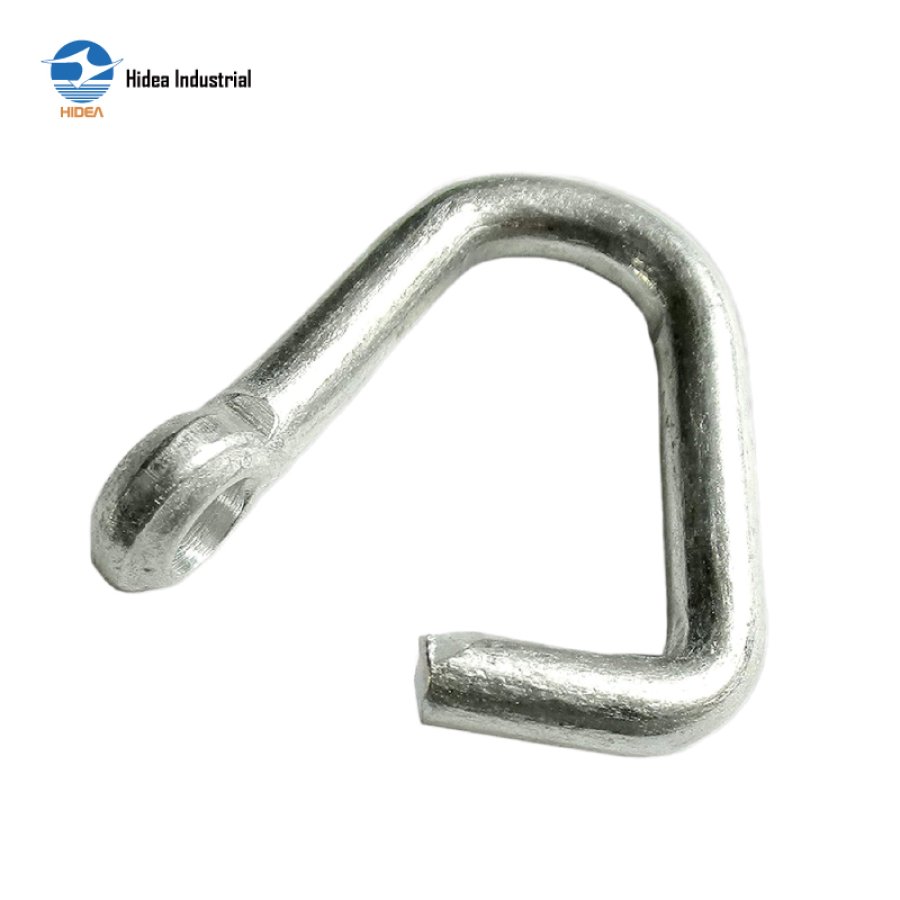

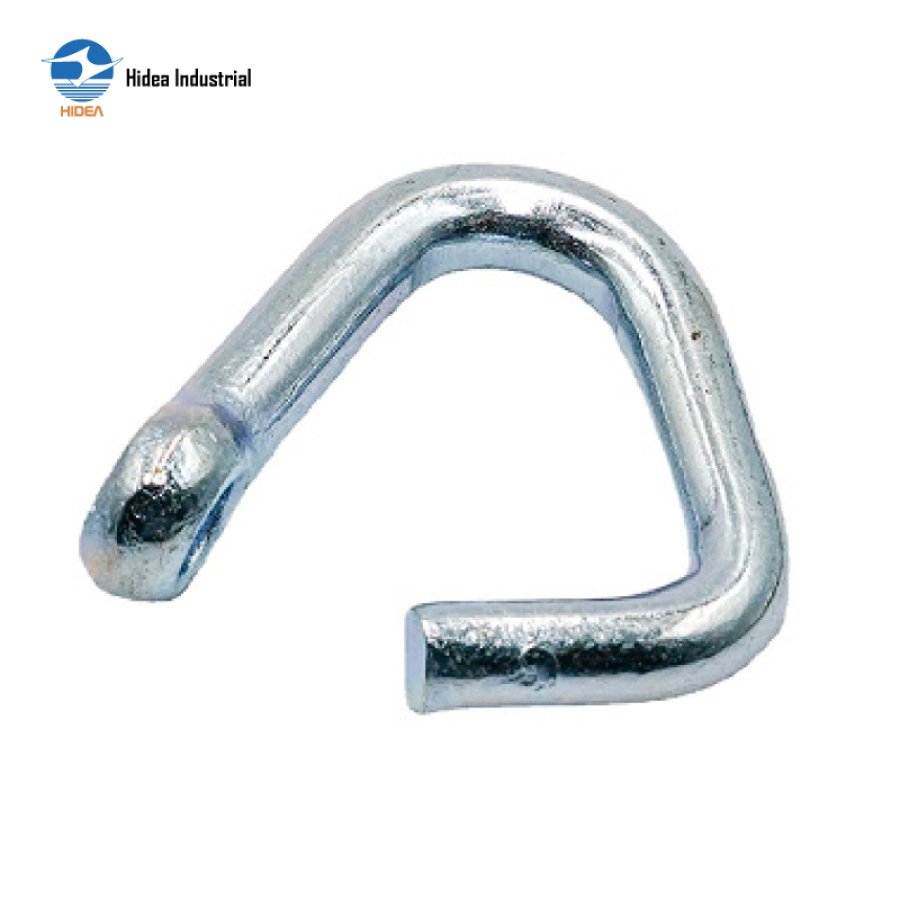

Reliable HIDEA Forged Cold Shut Link: High-Tensile Steel for Chain Repair

COLD SHUT CHAIN REPAIR LINK

High tensile carbon steel
Forged, quenched & tempered
Surface hot dip galvanized, Electro Galv. / zinc plated OR as requested

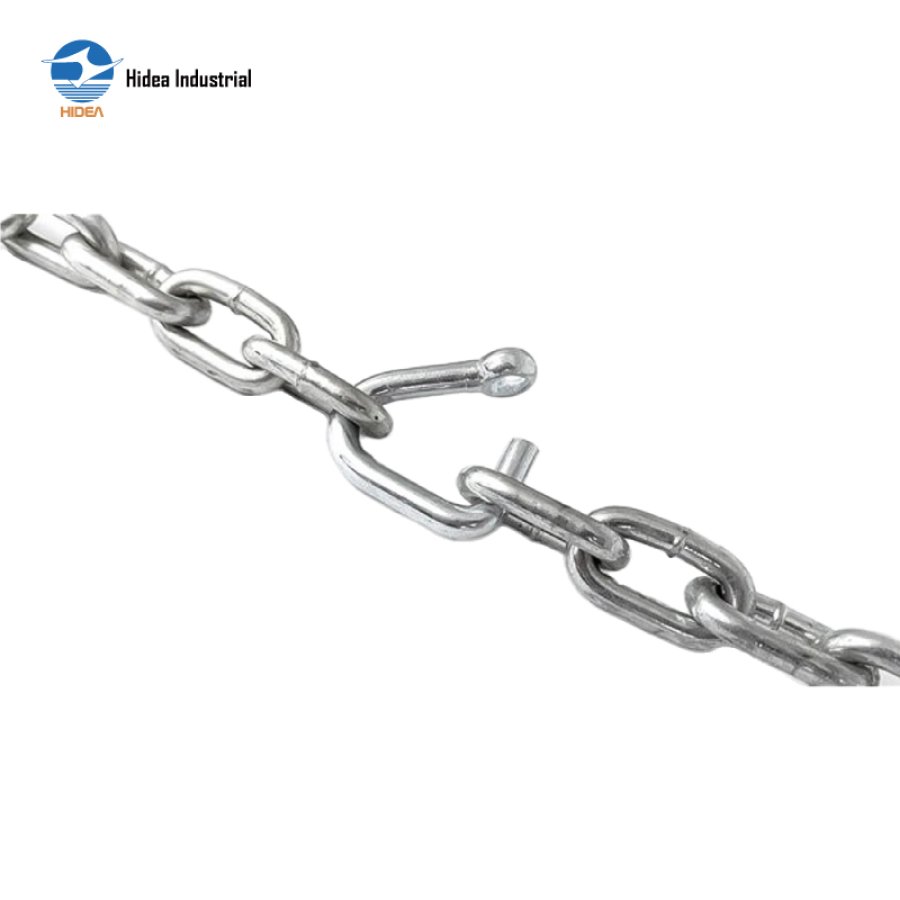

Cold Shut Chain Repair Link to be shut with tools without heating by compressing the free end into the eye and fixed

Inquire Now

QINGDAO HIDEA PARAMETER SHEET FOR

20RHCR624-Cold Shut Chain Repair Link

SIZE	W.L.L.	O.L	N.W.
inch	lbs	mm	kg/100pcs
3/16	1320	22	3.00
1/4	2200	25	4.00
5/16	3300	30	7.00
3/8	5500	33	9.00
9/16	6600	38	10.00
1/2	8800	40	18.00
