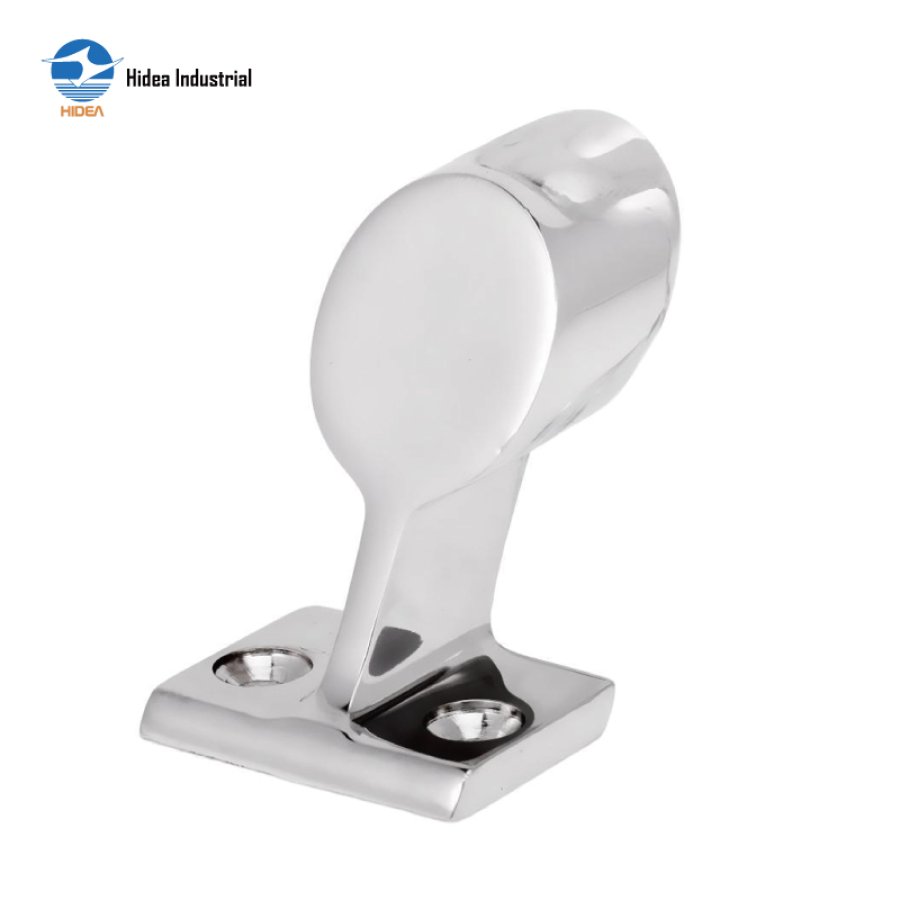

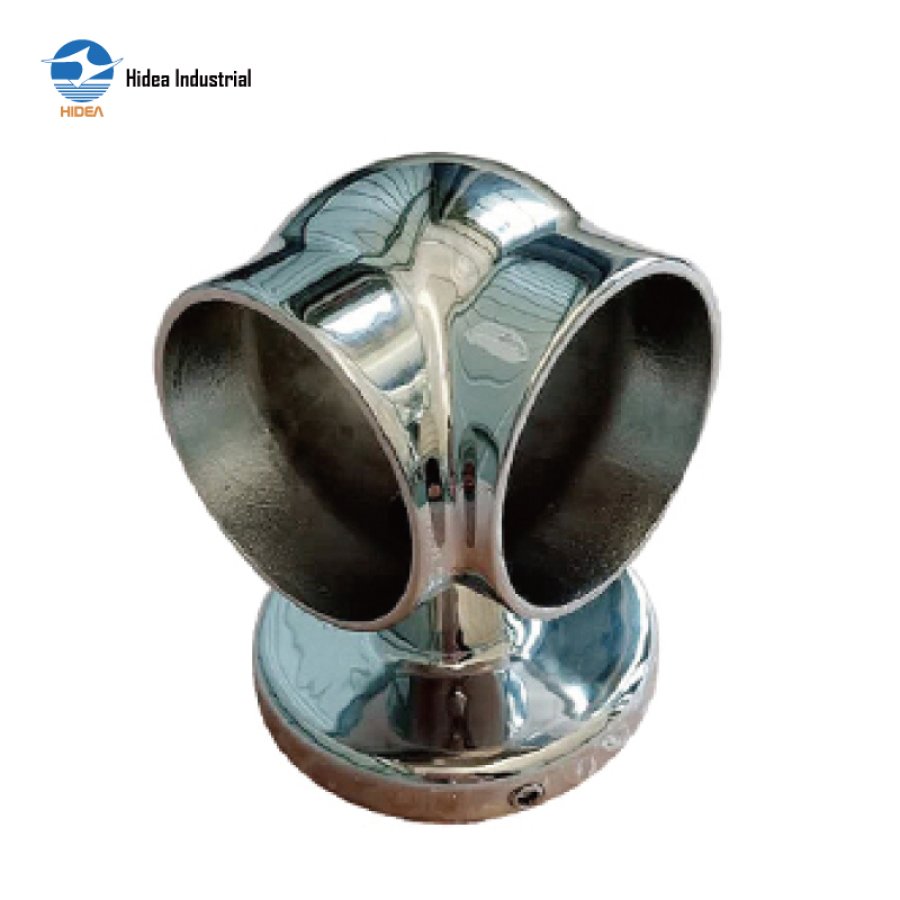

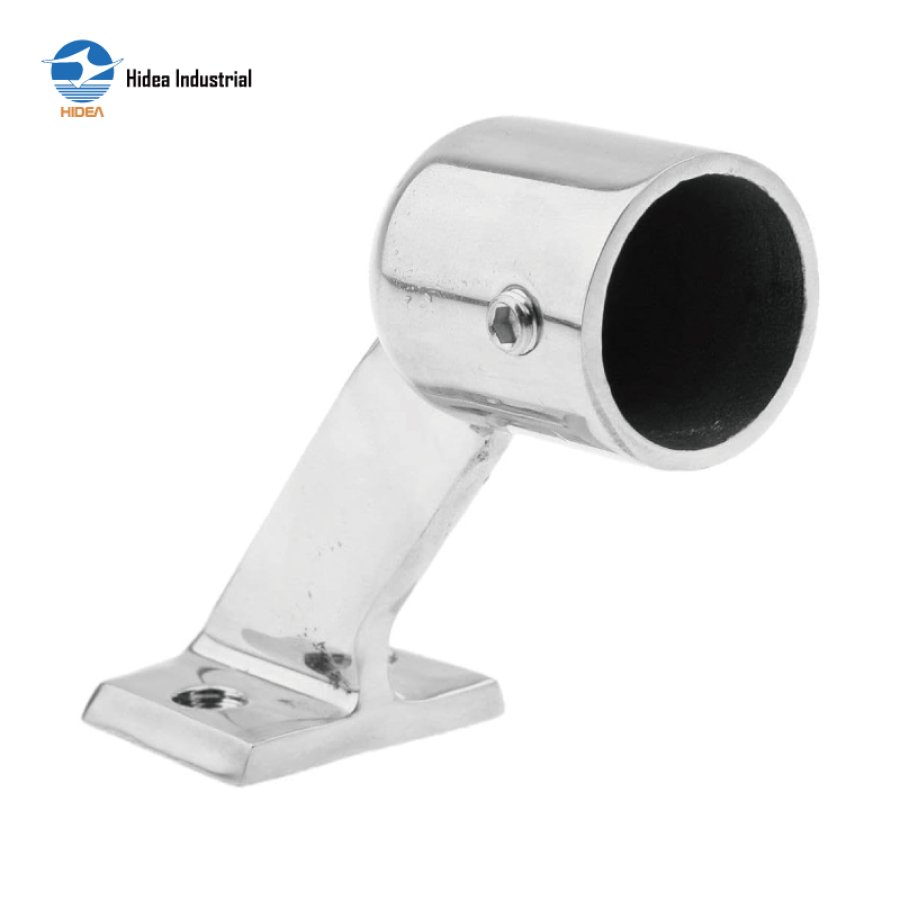

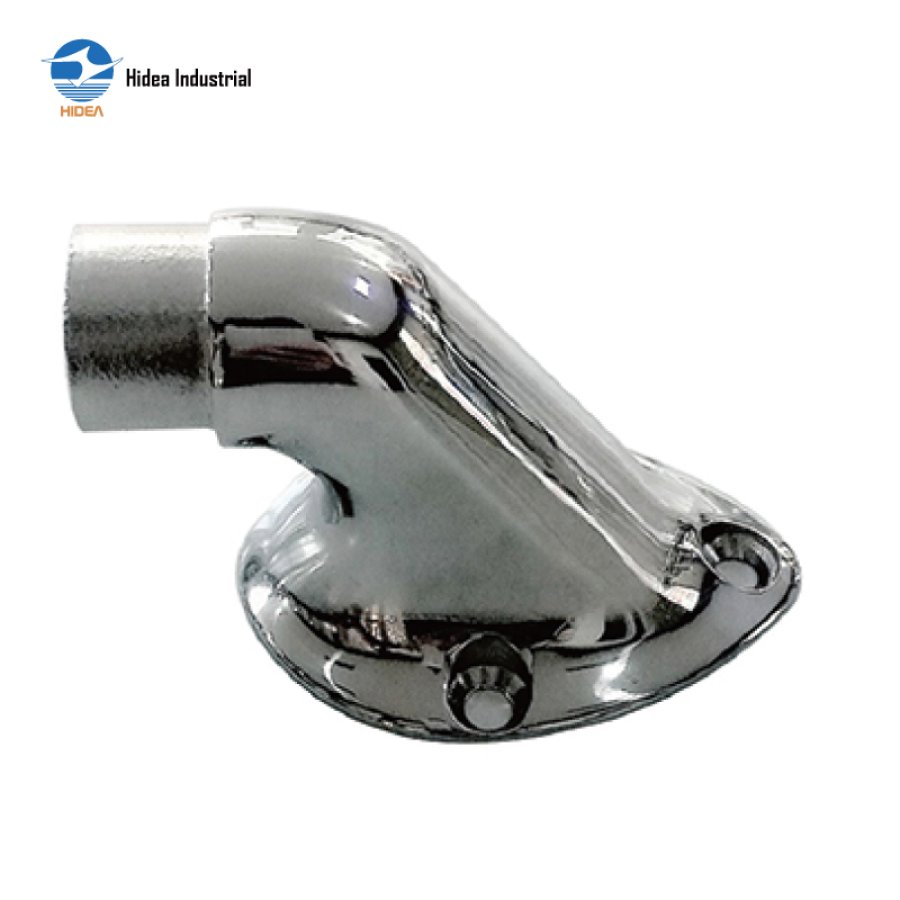

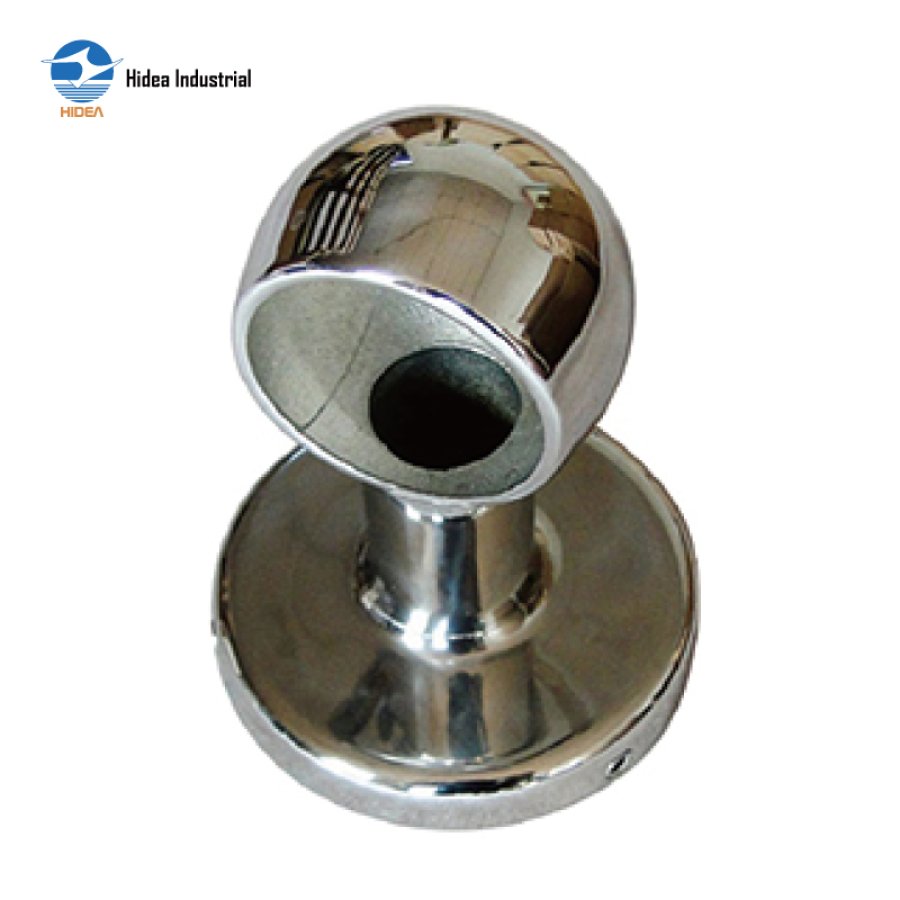

HANDRAIL FITTING

HANDRAIL FITTING

Technical Data: Investment Casting
Material: AISI 304/INOX A2, AISI 316/INOX A4
Surface Treatment: Mirror Polished

Inquire Now

QINGDAO HIDEA PARAMETER SHEET FOR

Handrail Fitting

		Handrail Fitiing
Art.No.	A(mm)	B(mm)	C(mm)	D(mm)	E(mm)
20RHS-2641-1/2”	76.5	50	99	38.1	13
20RHS-2651-1/2”	76.5	50	170	38.1	13
20RHS-2662”	76.5	65.2	100	50.8	13
20RHS-2672”	76.5	65.2	170	50.8	13
20RHS-2682”	76.5	65.2	237	50.8	13
20RHS-0225A7/8”	22.22	35	65	*Φ5.22**
20RHS-0226A1”	25.4	34	55.88	*Φ5.22**
