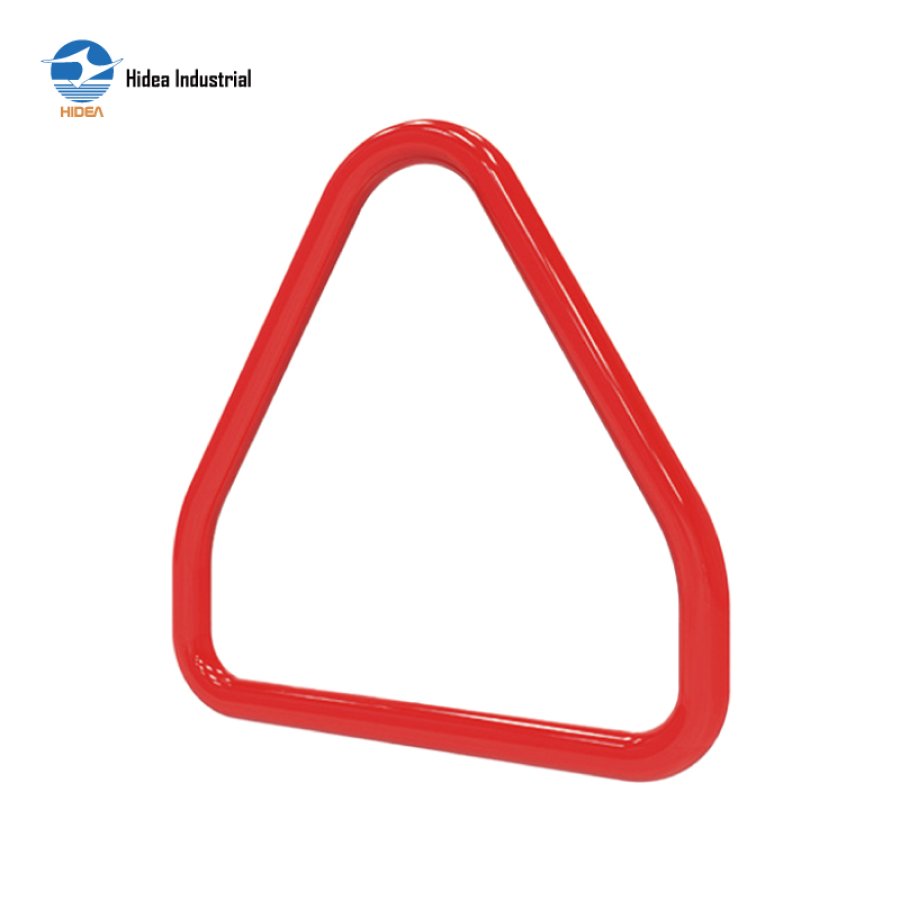

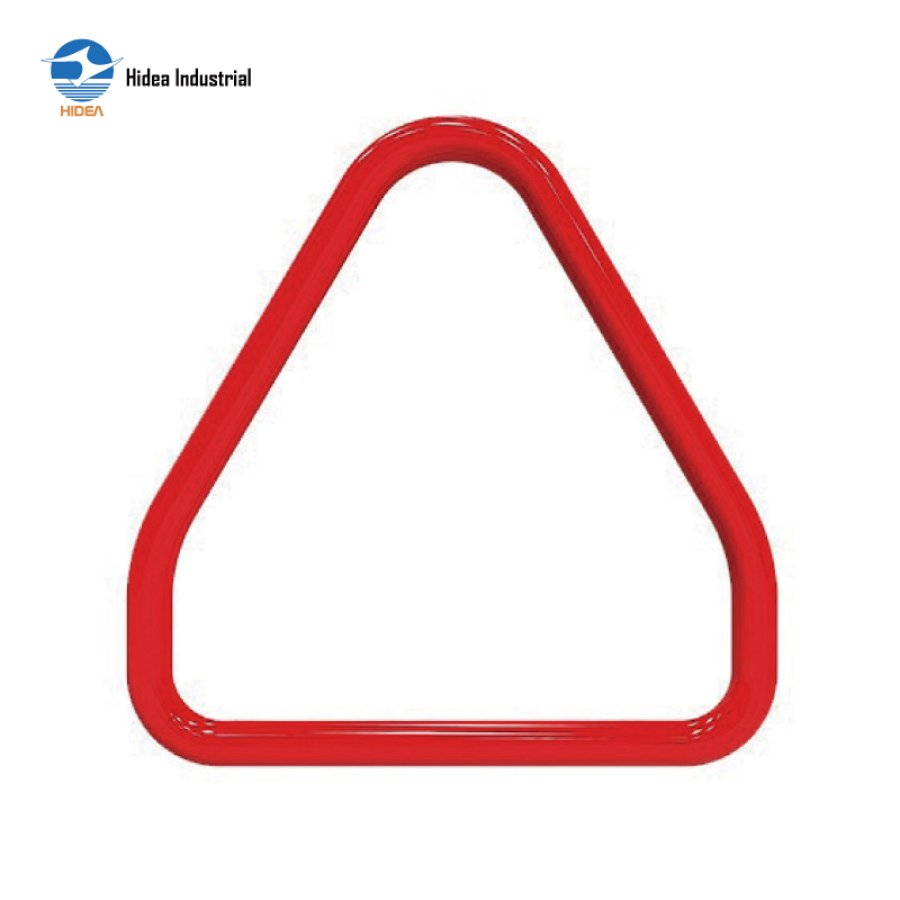

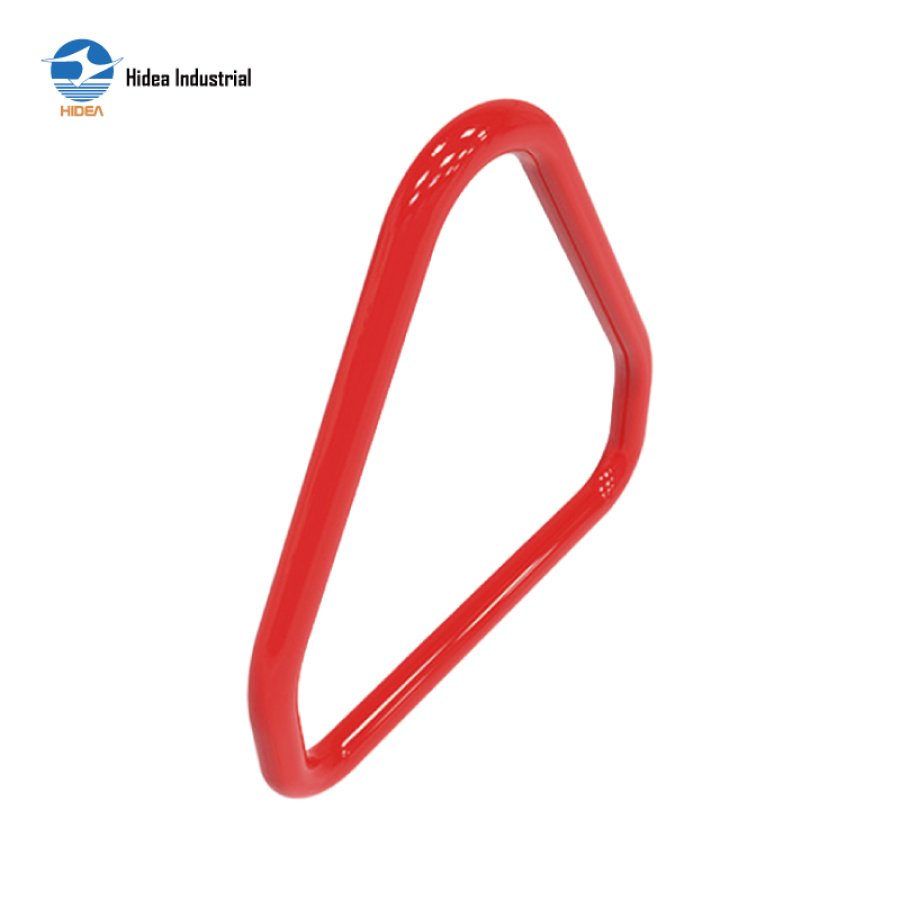

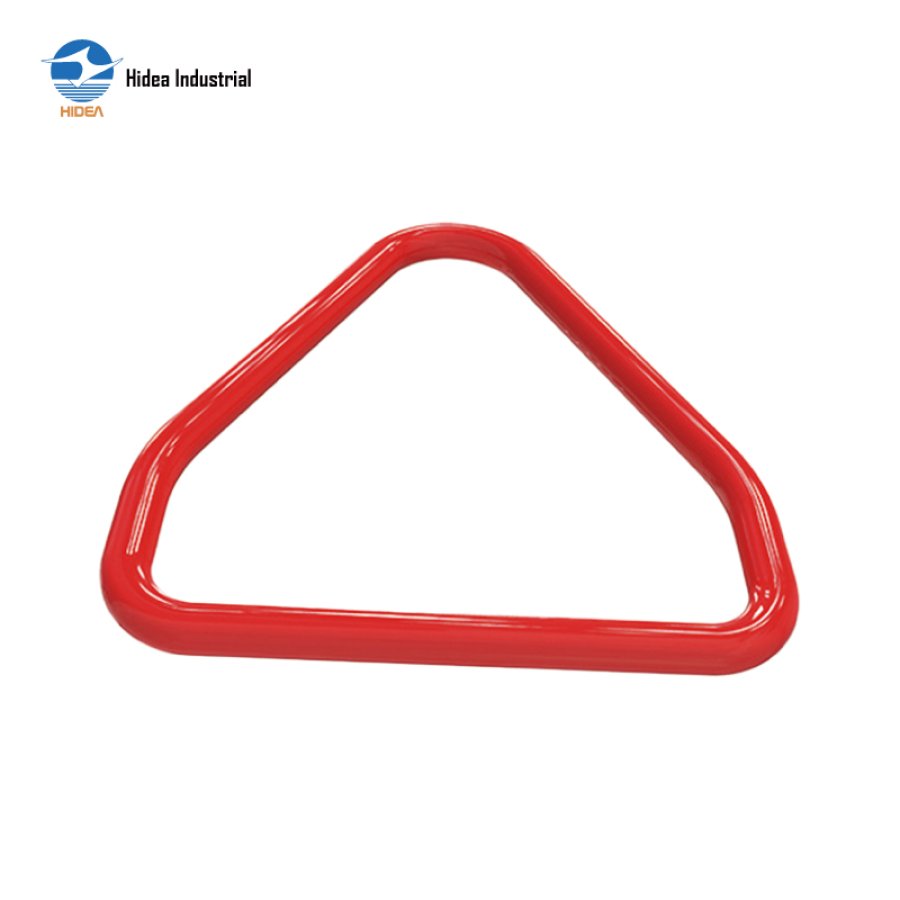

G80 Alloy Triangle Ring for Web Sling Rigging

ALLOY TRIANGLE RING FOR WEB SLING

Super alloy steel-Quenched and Tempered
Breakage test
100% magnaflux crack detection
Surface finish: powder plastifed
Colour code: Red RAL3020/Yellow RAL1003

Inquire Now

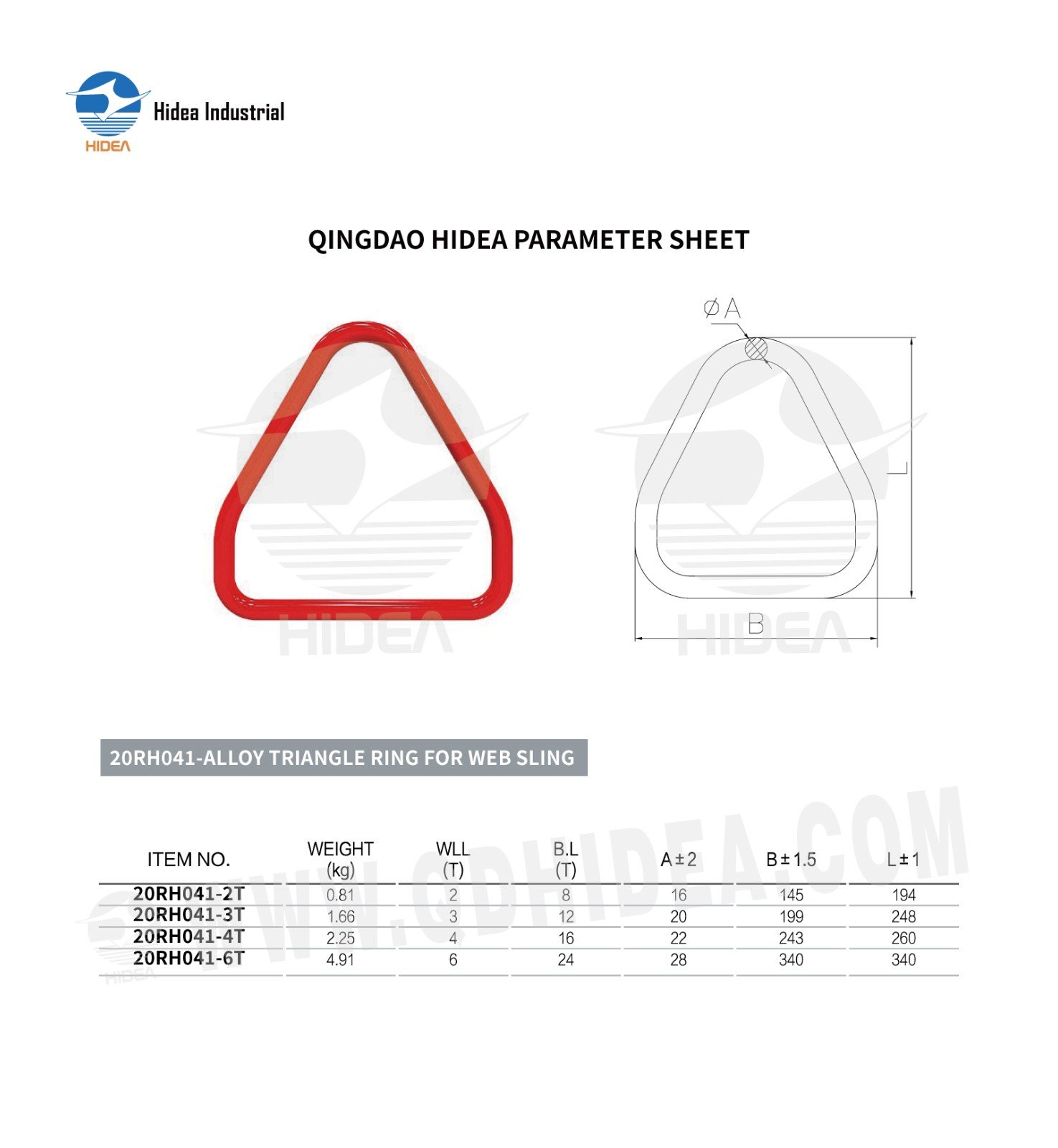

QINGDAO HIDEA PARAMETER SHEET FOR

20RH041-ALLOY TRIANGLE RING FOR WEB SLING

ITEM NO.	WEIGHT (kg)	WLL (T)	B.L (T)	A±2	B±1.5	L±1
20RH041-2T	0.81	2	8	16	145	194
20RH041-3T	1.66	3	12	20	199	248
20RH041-4T	2.25	4	16	22	243	260
20RH041-6T	4.91	6	24	28	340	340
