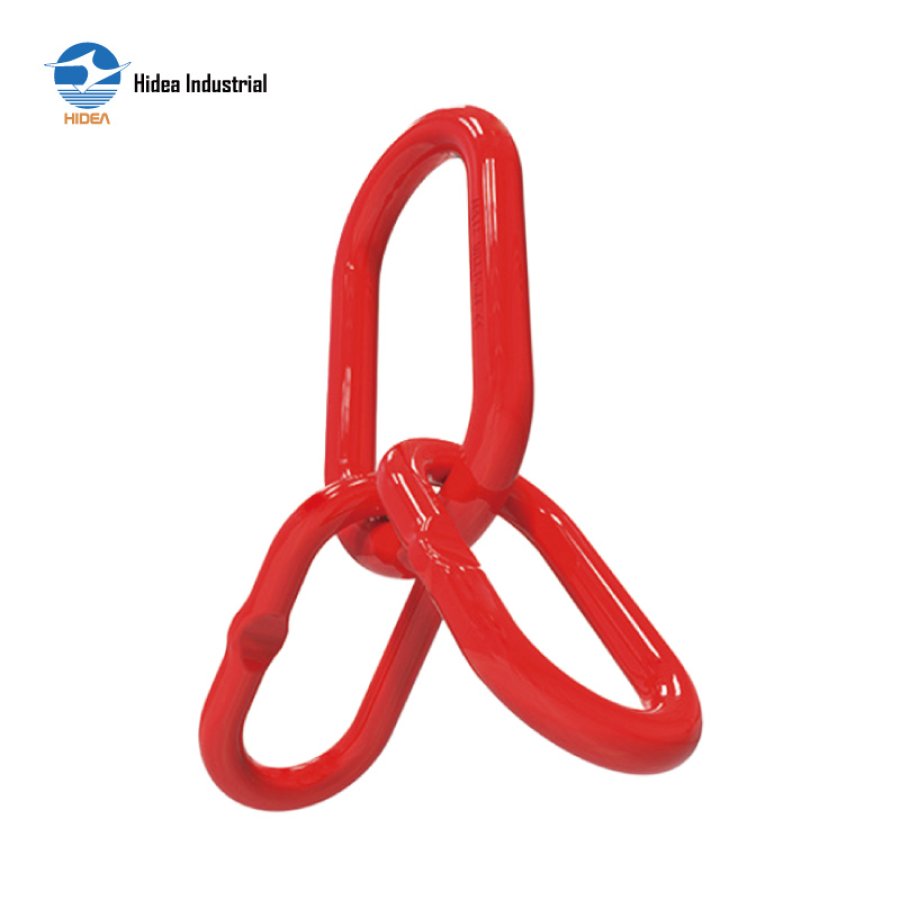

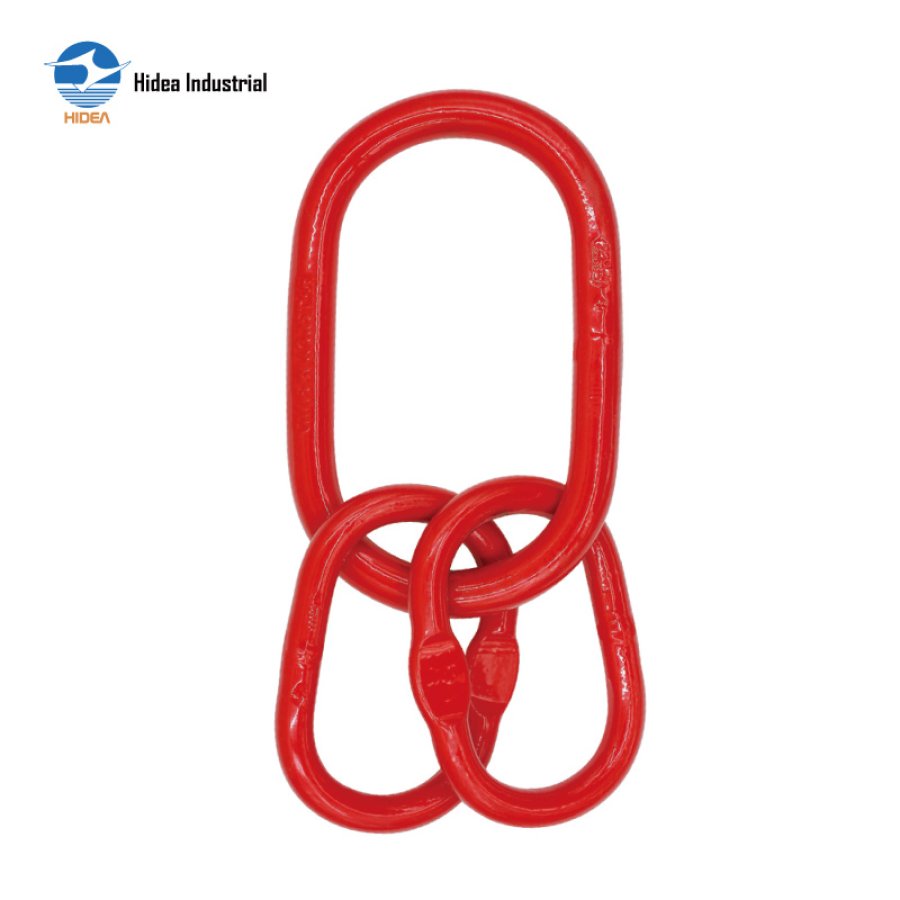

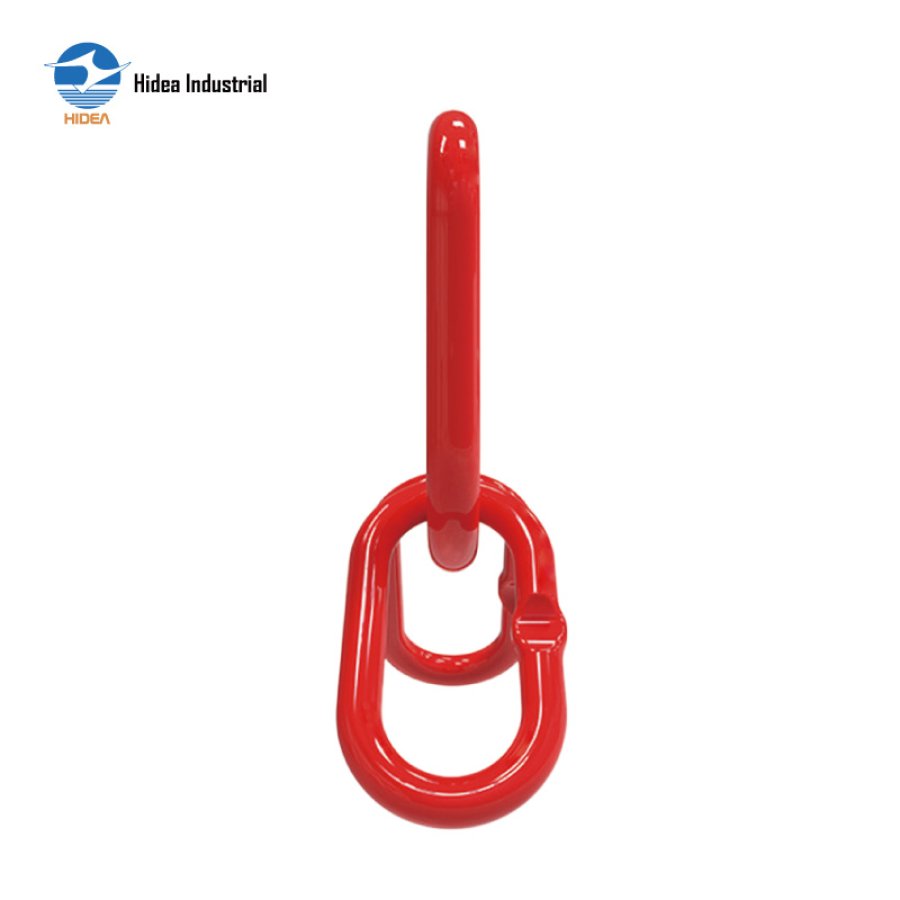

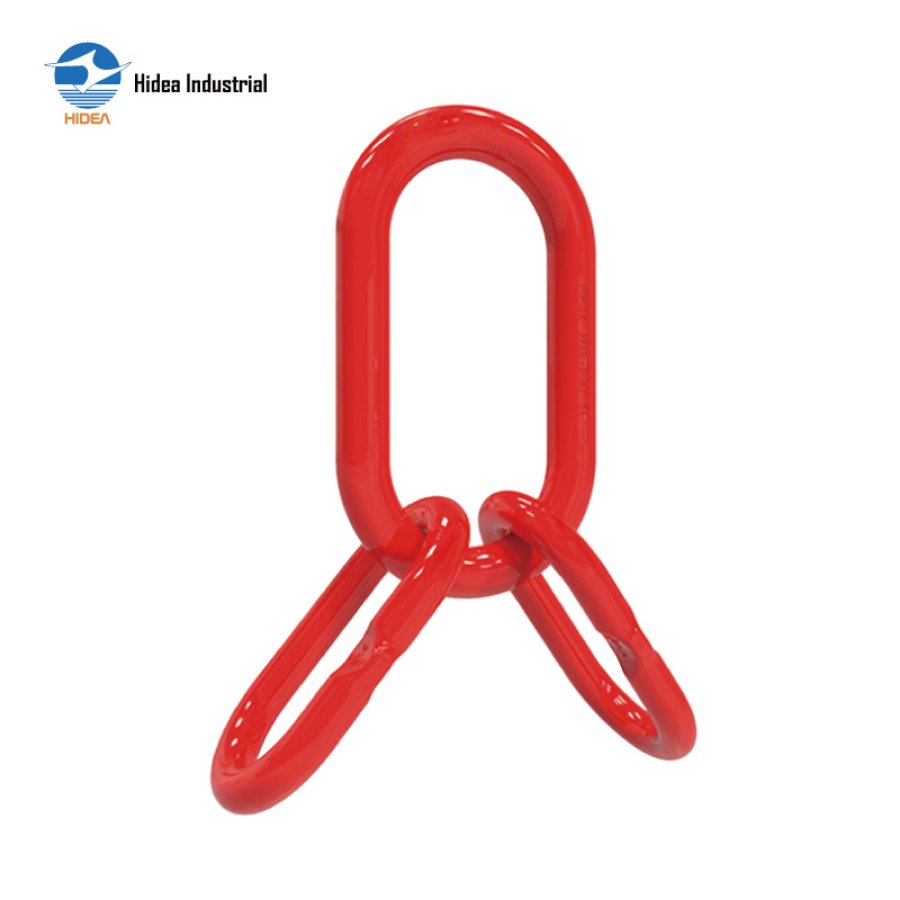

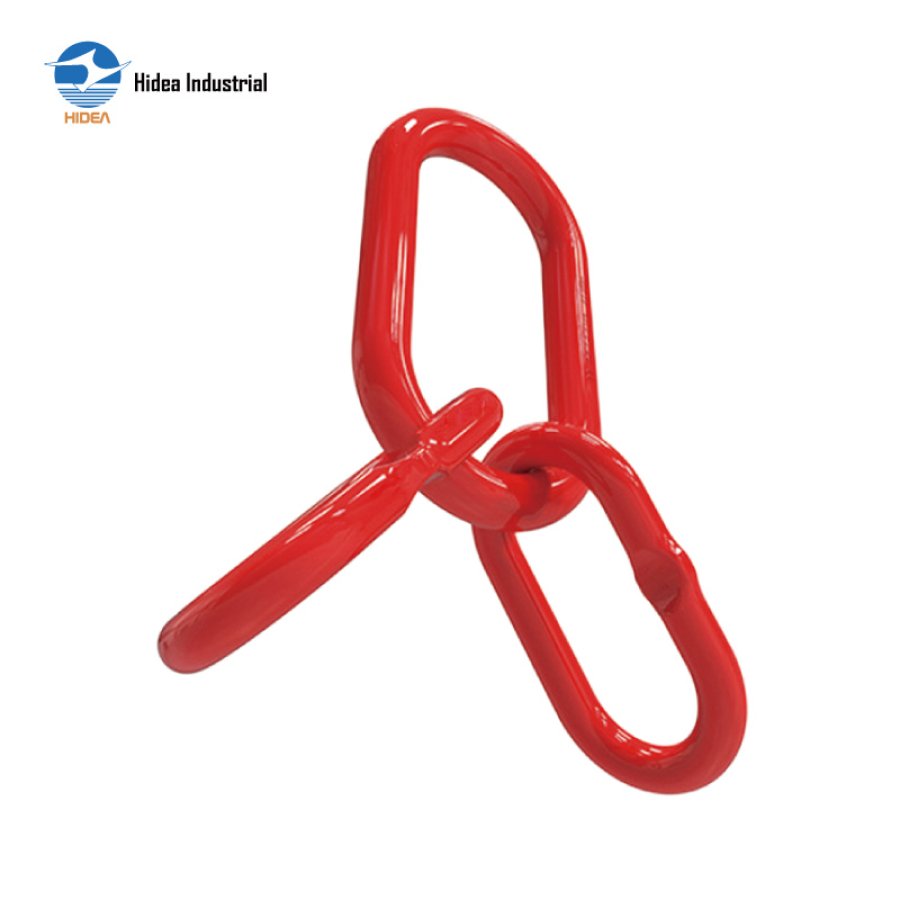

G80 Welded Master Link Assembly with Engineered Flat

G80 MASTER LINK ASSEMBLY WITH FLAT

Made of super alloy steel-Quenched and Tempered
Individually proof test at MPF
Breakage test
100% magnaflux crack detection
Surface finish: powder plastifed

Inquire Now

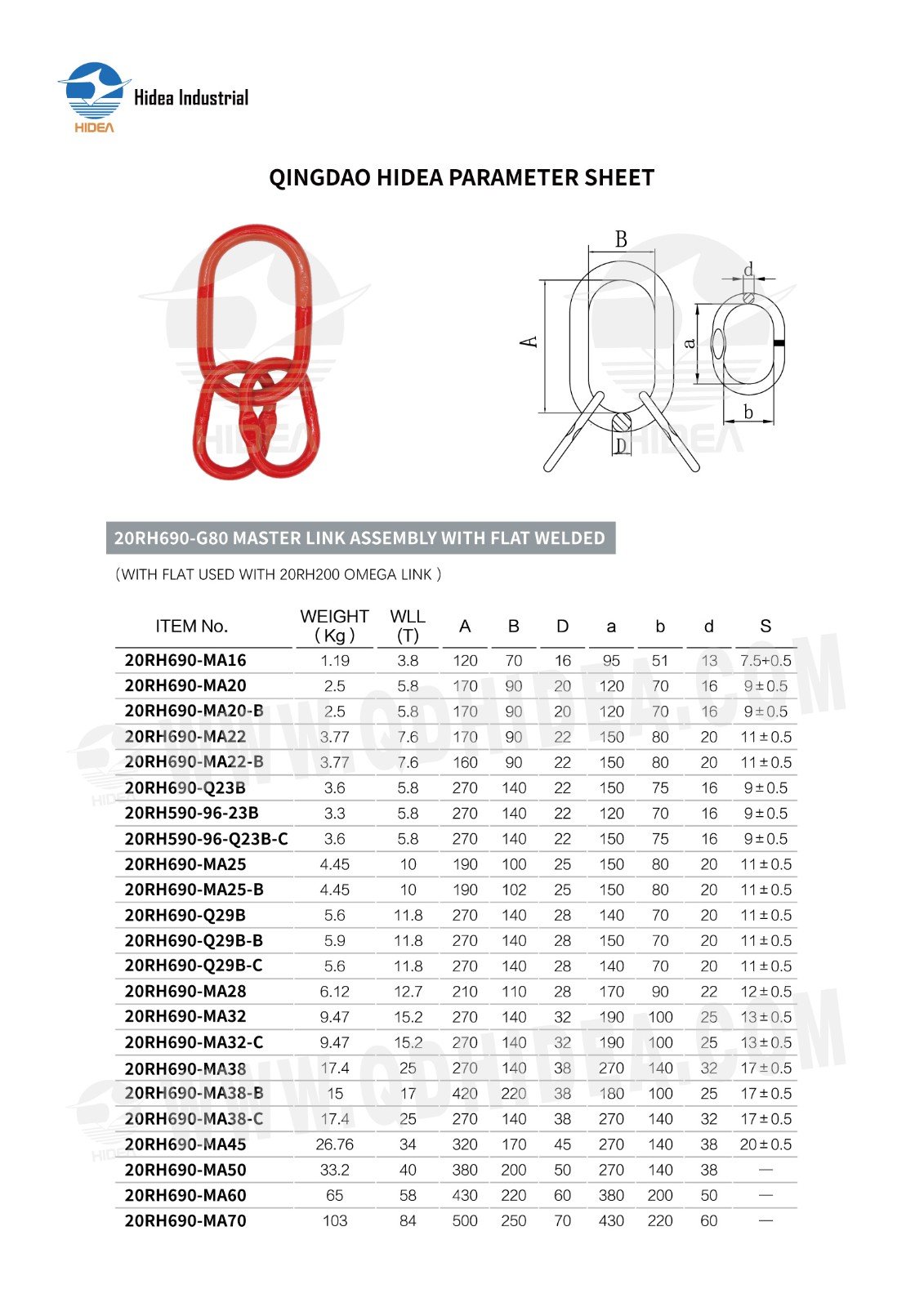

QINGDAO HIDEA PARAMETER SHEET FOR

20RH690-G80 MASTER LINK ASSEMBLY WITH FLAT WELDED

ITEM No.	WEIGHT (Kg)	WLL (T)	A	B	D	a	b	d	S
20RH690-MA16	1.19	3.8	120	70	16	95	51	13	7.5+0.5
20RH690-MA20	2.5	5.8	170	90	20	120	70	16	9±0.5
20RH690-MA20-B	2.5	5.8	170	90	20	120	70	16	9±0.5
20RH690-MA22	3.77	7.6	170	90	22	150	80	20	11±0.5
20RH690-MA22-B	3.77	7.6	160	90	22	150	80	20	11±0.5
20RH690-Q23B	3.6	5.8	270	140	22	150	75	16	9±0.5
20RH590-96-23B	3.3	5.8	270	140	22	120	70	16	9±0.5
20RH590-96-Q23B-C	3.6	5.8	270	140	22	150	75	16	9±0.5
20RH690-MA25	4.45	10	190	100	25	150	80	20	11±0.5
20RH690-MA25-B	4.45	10	190	102	25	150	80	20	11±0.5
20RH690-Q29B	5.6	11.8	270	140	28	140	70	20	11±0.5
20RH690-Q29B-B	5.9	11.8	270	140	28	150	70	20	11±0.5
20RH690-Q29B-C	5.6	11.8	270	140	28	140	70	20	11±0.5
20RH690-MA28	6.12	12.7	210	110	28	170	90	22	12±0.5
20RH690-MA32	9.47	15.2	270	140	32	190	100	25	13±0.5
20RH690-MA32-C	9.47	15.2	270	140	32	190	100	25	13±0.5
20RH690-MA38	17.4	25	270	140	38	270	140	32	17±0.5
20RH690-MA38-B	15	17	420	220	38	180	100	25	17±0.5
20RH690-MA38-C	17.4	25	270	140	38	270	140	32	17±0.5
20RH690-MA45	26.76	34	320	170	45	270	140	38	20±0.5
20RH690-MA50	33.2	40	380	200	50	270	140	38	—
20RH690-MA60	65	58	430	220	60	380	200	50	一
20RH690-MA70	103	84	500	250	70	430	220	60	—
