Material: High tensile carbon steel ASTM(AISI)1045
Drop forged, quenched & tempered
Proof tested individually & certificate available
Surface Hot Dip Galv. OR as requested
Meets the performance requirements of Federal Specifications FF-T-791b,Type 1, Form 1 & ASTM F-1145; Meets or exceeds all requirements of ASME B30.26

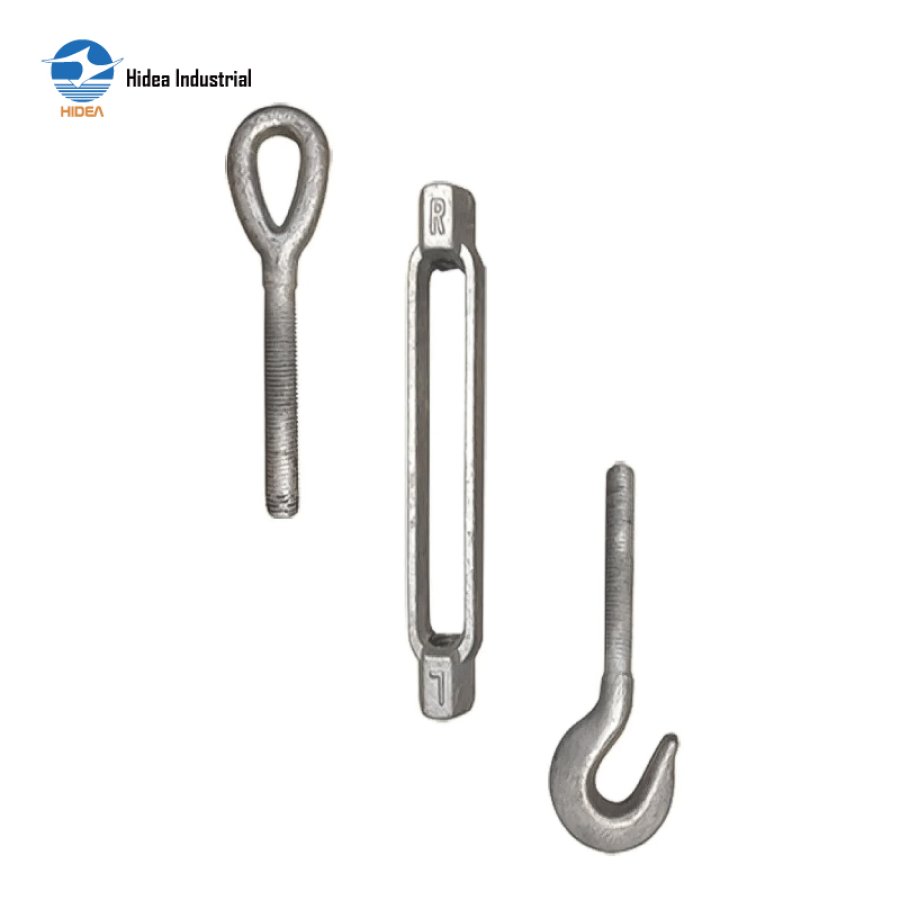

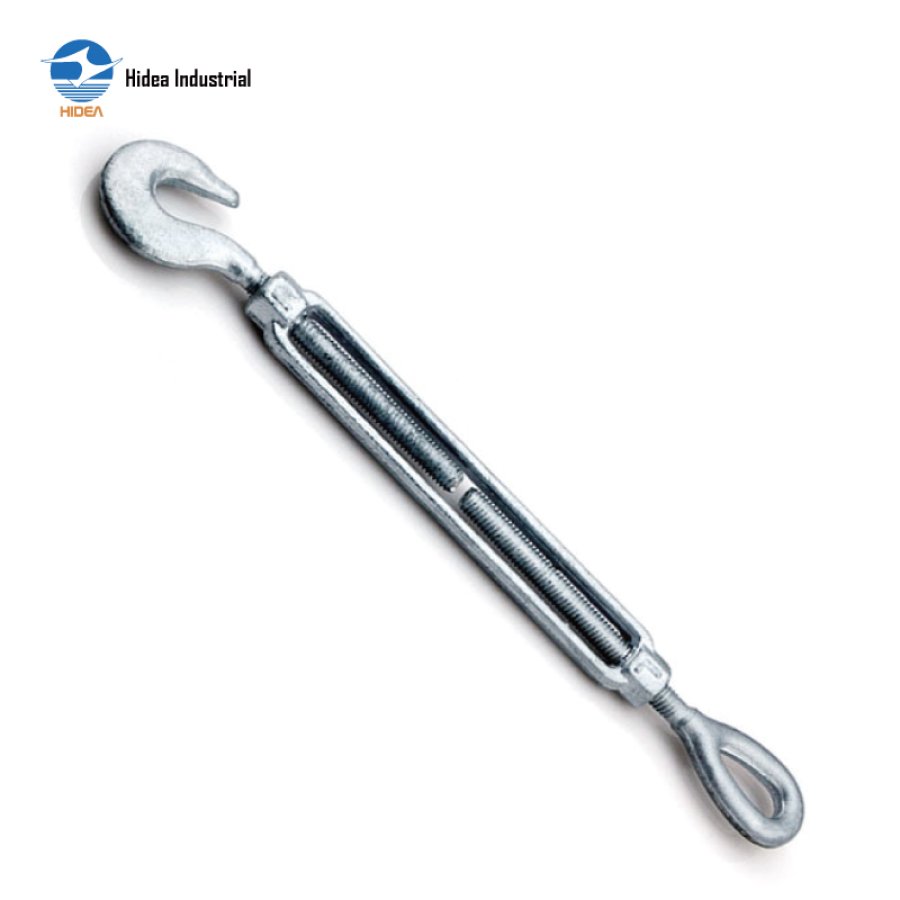

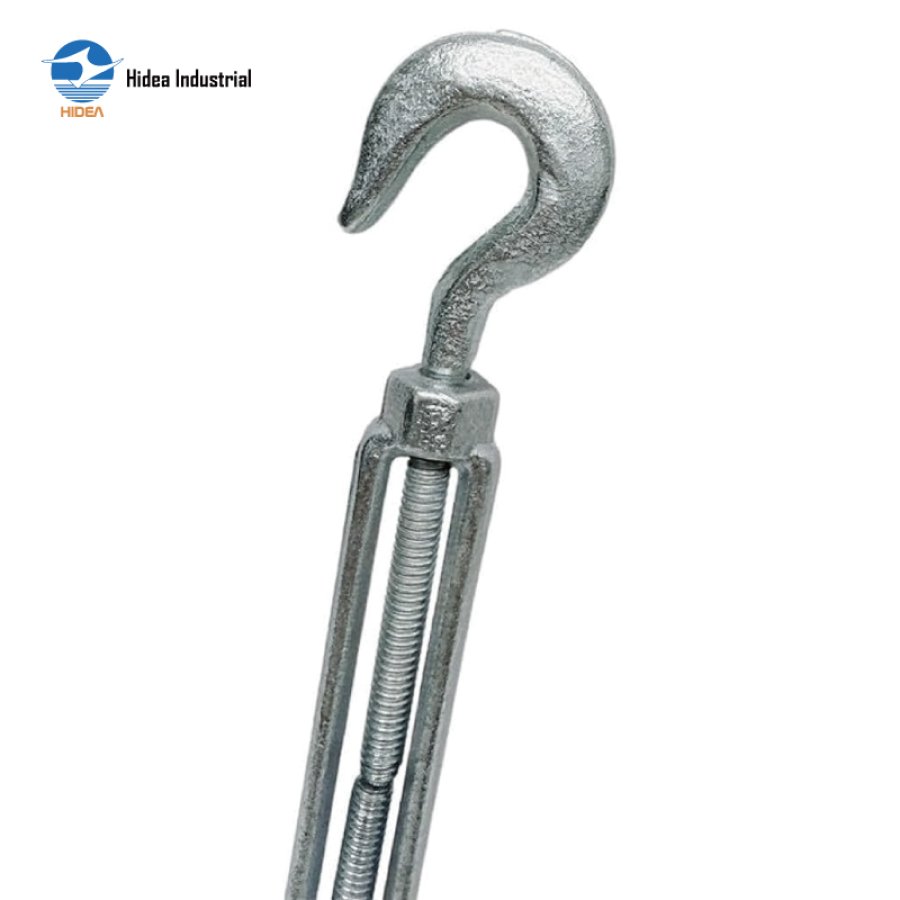

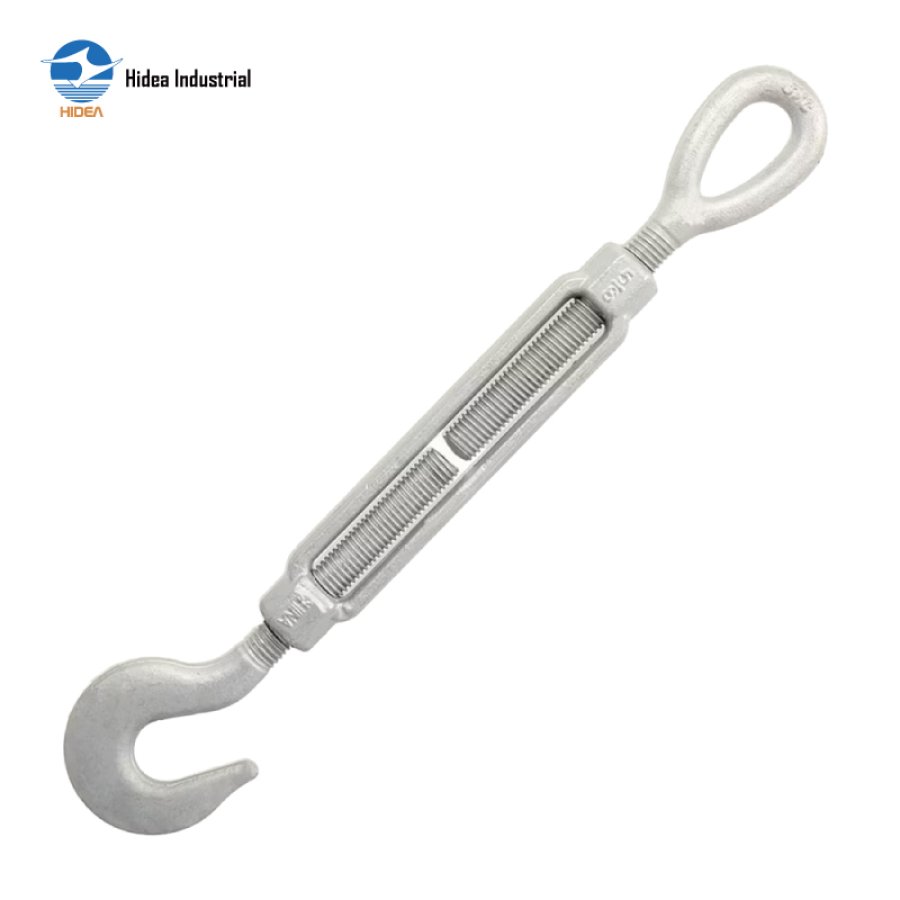

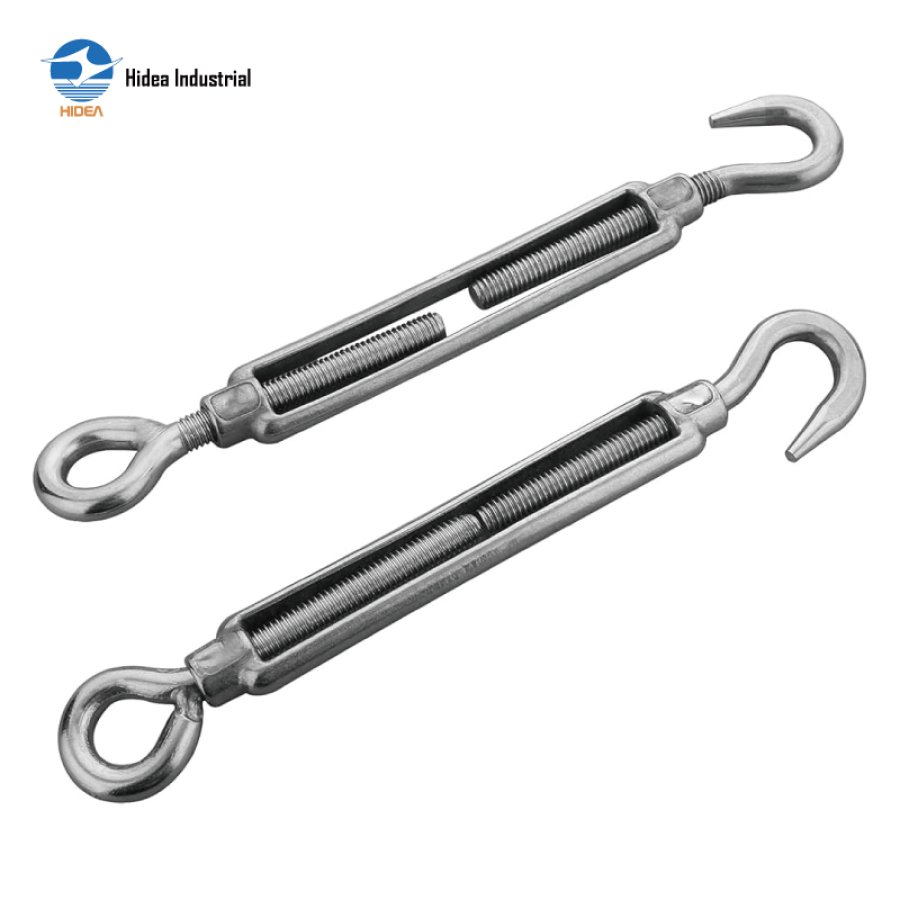

HG-225 US type drop forged turnbucle Hook & Eye type

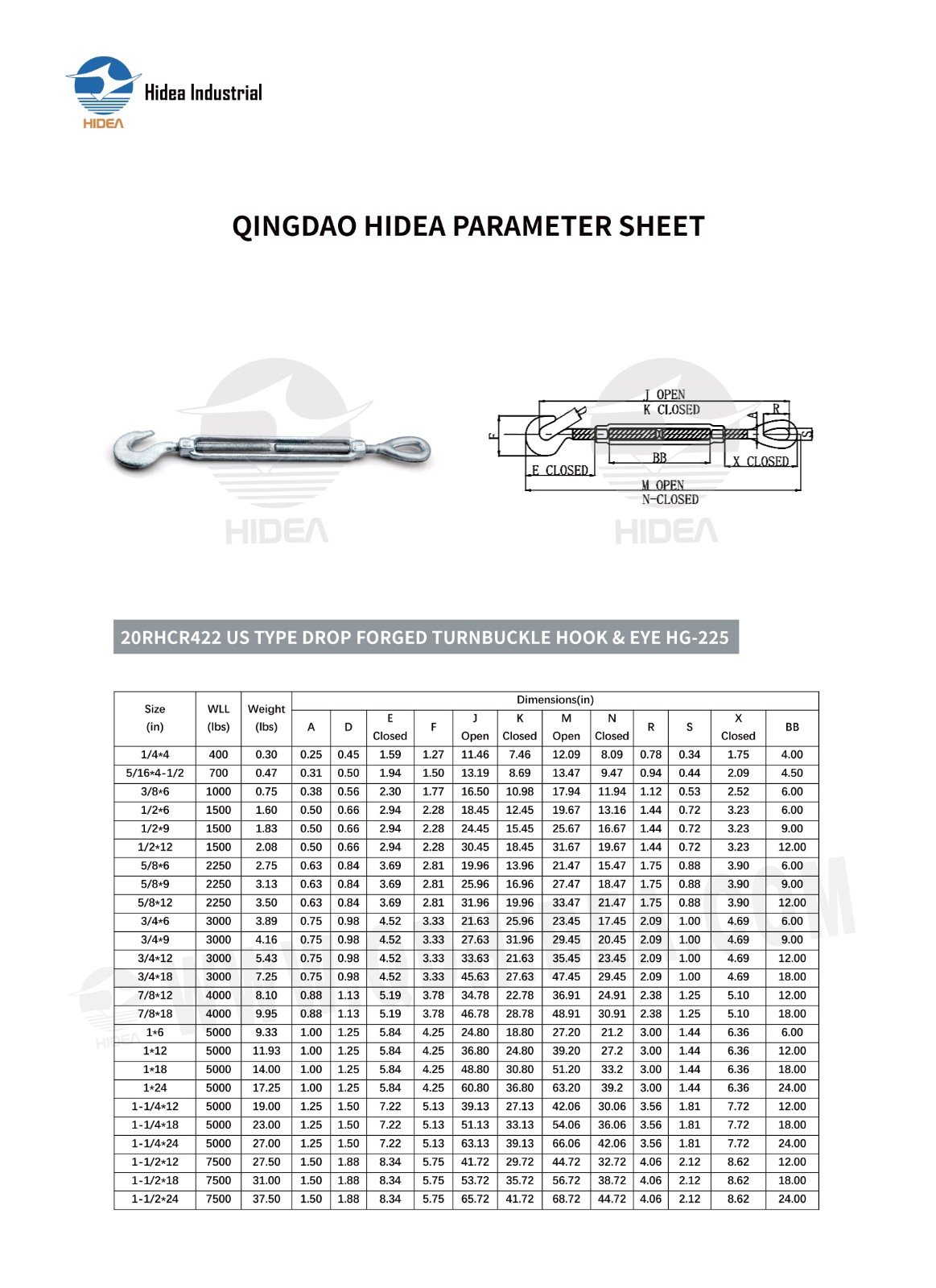

QINGDAO HIDEA PARAMETER SHEET FOR
20RHCR422 US TYPE DROP FORGED TURNBUCKLE HOOK&EYE HG-225
| Size (in) | WLL (Ibs) | Weight (Ibs) | Dimensions(in) | ||||||||||||
| A | D | E Closed | F | J Open | K Closed | M Open | N Closed | R | S | X Closed | BB | ||||
| 1/4*4 | 400 | 0.30 | 0.25 | 0.45 | 1.59 | 1.27 | 11.46 | 7.46 | 12.09 | 8.09 | 0.78 | 0.34 | 1.75 | 4.00 | |
| 5/16*4-1/2 | 700 | 0.47 | 0.31 | 0.50 | 1.94 | 1.50 | 13.19 | 8.69 | 13.47 | 9.47 | 0.94 | 0.44 | 2.09 | 4.50 | |
| 3/8*6 | 1000 | 0.75 | 0.38 | 0.56 | 2.30 | 1.77 | 16.50 | 10.98 | 17.94 | 11.94 | 1.12 | 0.53 | 2.52 | 6.00 | |
| 1/2*6 | 1500 | 1.60 | 0.50 | 0.66 | 2.94 | 2.28 | 18.45 | 12.45 | 19.67 | 13.16 | 1.44 | 0.72 | 3.23 | 6.00 | |
| 1/2*9 | 1500 | 1.83 | 0.50 | 0.66 | 2.94 | 2.28 | 24.45 | 15.45 | 25.67 | 16.67 | 1.44 | 0.72 | 3.23 | 9.00 | |
| 1/2*12 | 1500 | 2.08 | 0.50 | 0.66 | 2.94 | 2.28 | 30.45 | 18.45 | 31.67 | 19.67 | 1.44 | 0.72 | 3.23 | 12.00 | |
| 5/8*6 | 2250 | 2.75 | 0.63 | 0.84 | 3.69 | 2.81 | 19.96 | 13.96 | 21.47 | 15.47 | 1.75 | 0.88 | 3.90 | 6.00 | |
| 5/8*9 | 2250 | 3.13 | 0.63 | 0.84 | 3.69 | 2.81 | 25.96 | 16.96 | 27.47 | 18.47 | 1.75 | 0.88 | 3.90 | 9.00 | |
| 5/8*12 | 2250 | 3.50 | 0.63 | 0.84 | 3.69 | 2.81 | 31.96 | 19.96 | 33.47 | 21.47 | 1.75 | 0.88 | 3.90 | 12.00 | |
| 3/4*6 | 3000 | 3.89 | 0.75 | 0.98 | 4.52 | 3.33 | 21.63 | 25.96 | 23.45 | 17.45 | 2.09 | 1.00 | 4.69 | 6.00 | |
| 3/4*9 | 3000 | 4.16 | 0.75 | 0.98 | 4.52 | 3.33 | 27.63 | 31.96 | 29.45 | 20.45 | 2.09 | 1.00 | 4.69 | 9.00 | |
| 3/4*12 | 3000 | 5.43 | 0.75 | 0.98 | 4.52 | 3.33 | 33.63 | 21.63 | 35.45 | 23.45 | 2.09 | 1.00 | 4.69 | 12.00 | |
| 3/4*18 | 3000 | 7.25 | 0.75 | 0.98 | 4.52 | 3.33 | 45.63 | 27.63 | 47.45 | 29.45 | 2.09 | 1.00 | 4.69 | 18.00 | |
| 7/8*12 | 4000 | 8.10 | 0.88 | 1.13 | 5.19 | 3.78 | 34.78 | 22.78 | 36.91 | 24.91 | 2.38 | 1.25 | 5.10 | 12.00 | |
| 7/8*18 | 4000 | 9.95 | 0.88 | 1.13 | 5.19 | 3.78 | 46.78 | 28.78 | 48.91 | 30.91 | 2.38 | 1.25 | 5.10 | 18.00 | |
| 1*6 | 5000 | 9.33 | 1.00 | 1.25 | 5.84 | 4.25 | 24.80 | 18.80 | 27.20 | 21.2 | 3.00 | 1.44 | 6.36 | 6.00 | |
| 1*12 | 5000 | 11.93 | 1.00 | 1.25 | 5.84 | 4.25 | 36.80 | 24.80 | 39.20 | 27.2 | 3.00 | 1.44 | 6.36 | 12.00 | |
| 1*18 | 5000 | 14.00 | 1.00 | 1.25 | 5.84 | 4.25 | 48.80 | 30.80 | 51.20 | 33.2 | 3.00 | 1.44 | 6.36 | 18.00 | |
| 1*24 | 5000 | 17.25 | 1.00 | 1.25 | 5.84 | 4.25 | 60.80 | 36.80 | 63.20 | 39.2 | 3.00 | 1.44 | 6.36 | 24.00 | |
| 1-1/4*12 | 5000 | 19.00 | 1.25 | 1.50 | 7.22 | 5.13 | 39.13 | 27.13 | 42.06 | 30.06 | 3.56 | 1.81 | 7.72 | 12.00 | |
| 1-1/4*18 | 5000 | 23.00 | 1.25 | 1.50 | 7.22 | 5.13 | 51.13 | 33.13 | 54.06 | 36.06 | 3.56 | 1.81 | 7.72 | 18.00 | |
| 1-1/4*24 | 5000 | 27.00 | 1.25 | 1.50 | 7.22 | 5.13 | 63.13 | 39.13 | 66.06 | 42.06 | 3.56 | 1.81 | 7.72 | 24.00 | |
| 1-1/2*12 | 7500 | 27.50 | 1.50 | 1.88 | 8.34 | 5.75 | 41.72 | 29.72 | 44.72 | 32.72 | 4.06 | 2.12 | 8.62 | 12.00 | |
| 1-1/2*18 | 7500 | 31.00 | 1.50 | 1.88 | 8.34 | 5.75 | 53.72 | 35.72 | 56.72 | 38.72 | 4.06 | 2.12 | 8.62 | 18.00 | |
| 1-1/2*24 | 7500 | 37.50 | 1.50 | 1.88 | 8.34 | 5.75 | 65.72 | 41.72 | 68.72 | 44.72 | 4.06 | 2.12 | 8.62 | 24.00 | |
