Enhance Safety and Durability with Hidea G80 Light Type Weld-On Hook

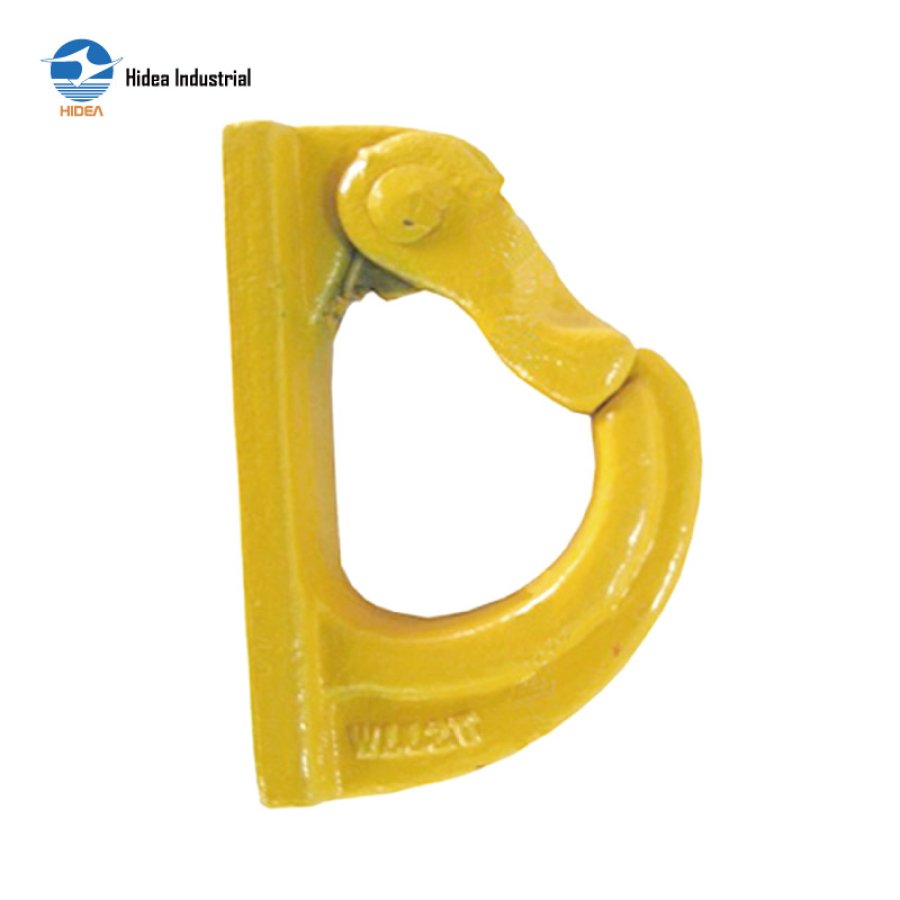

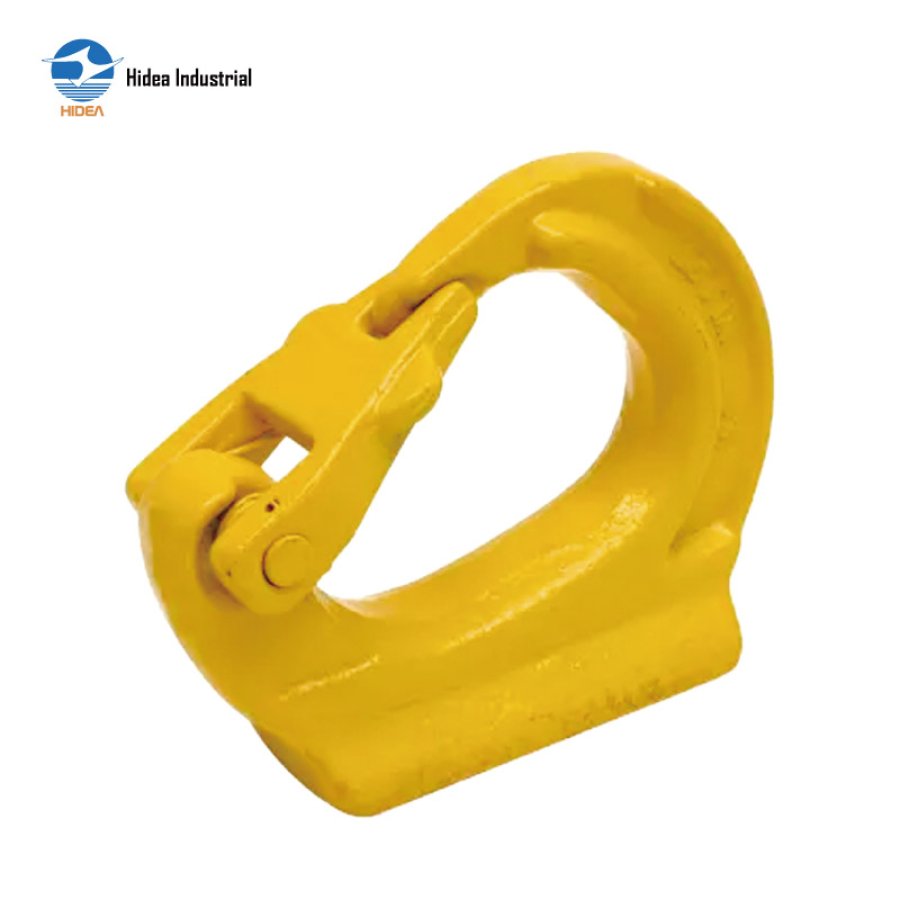

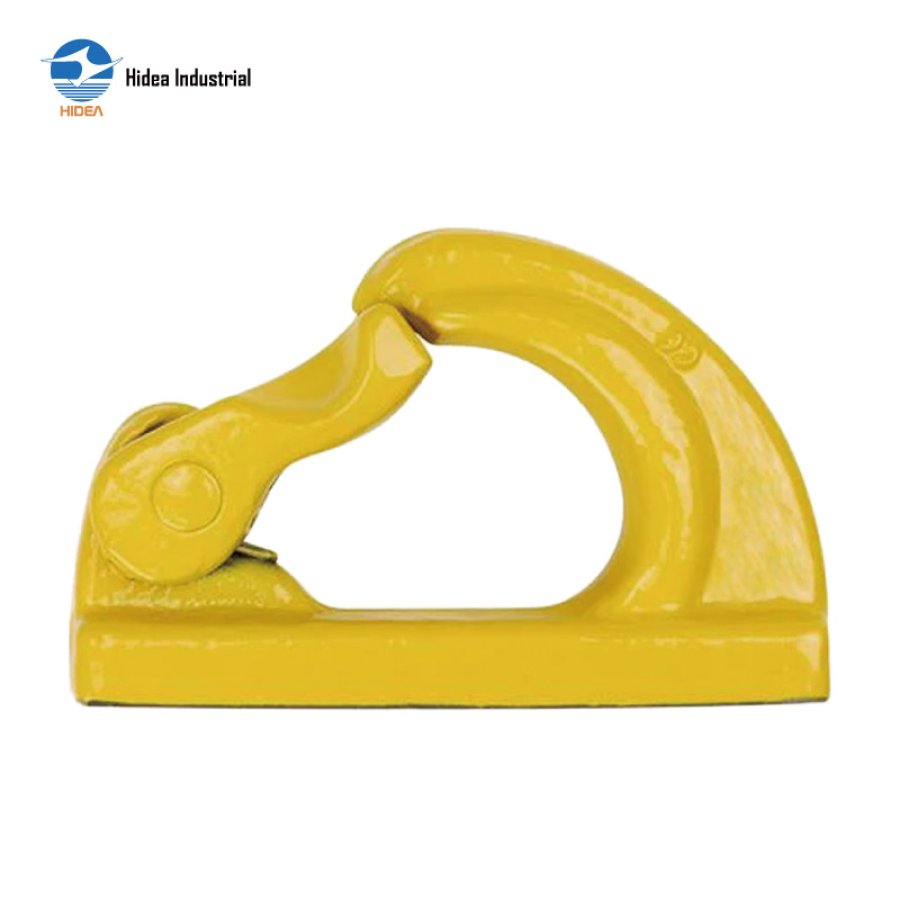

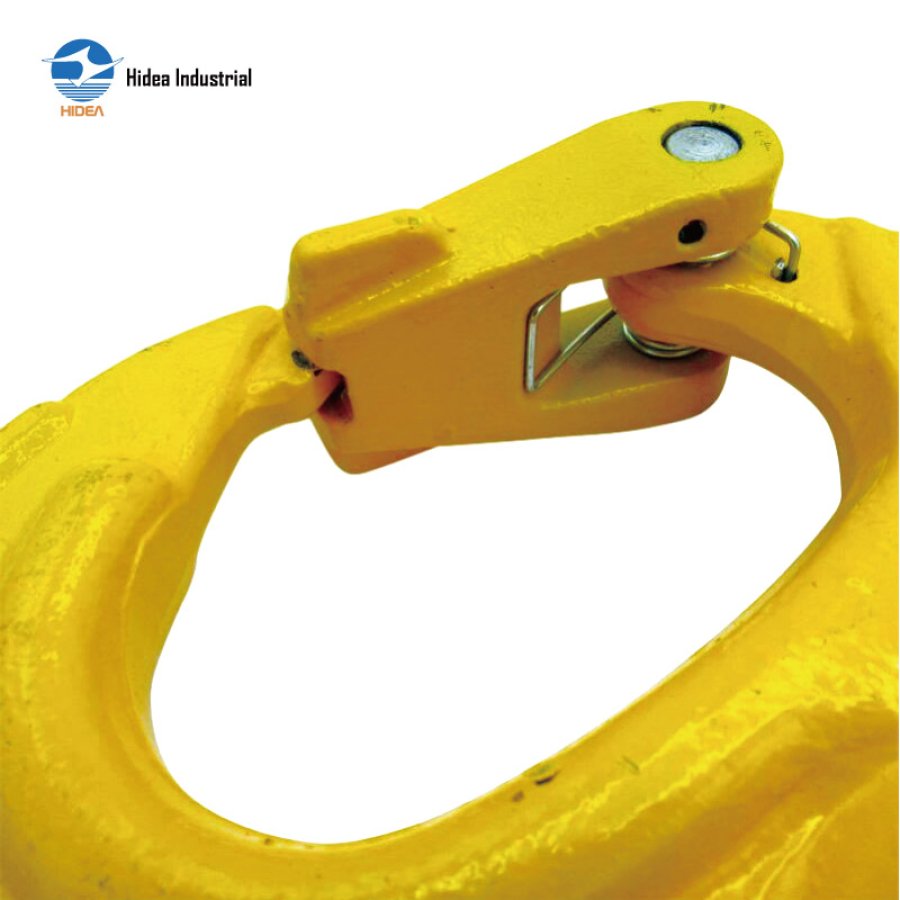

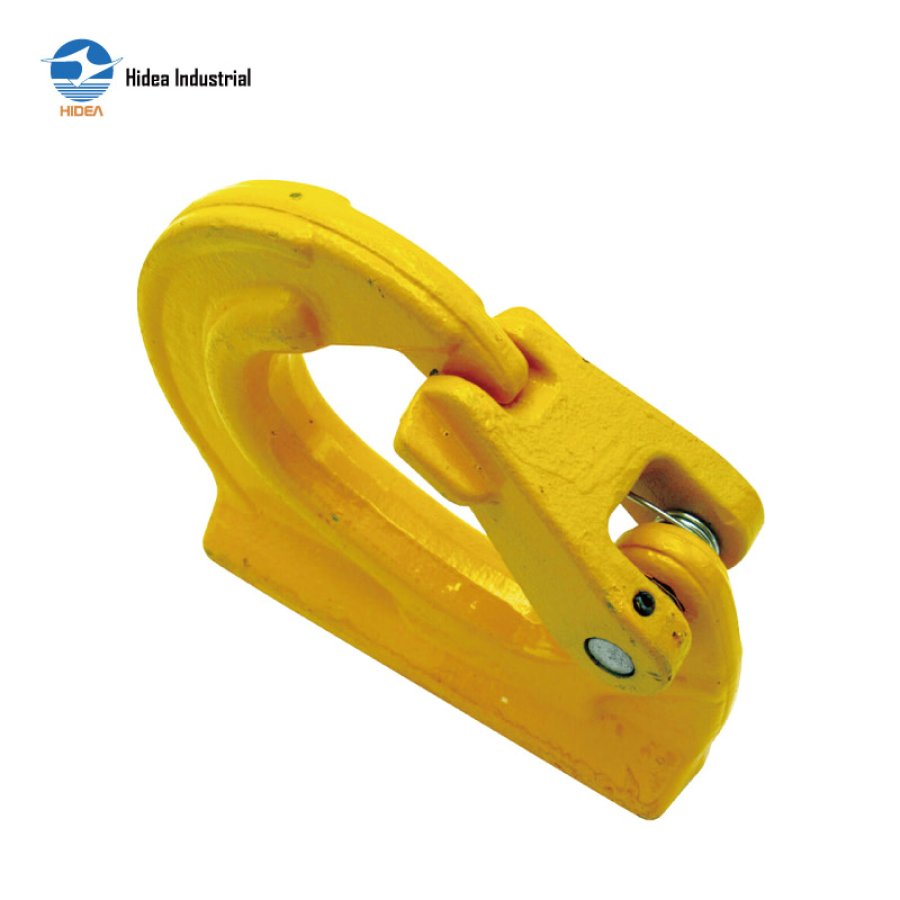

G80 WELD ON HOOK LIGHT TYPE

Inquire Now

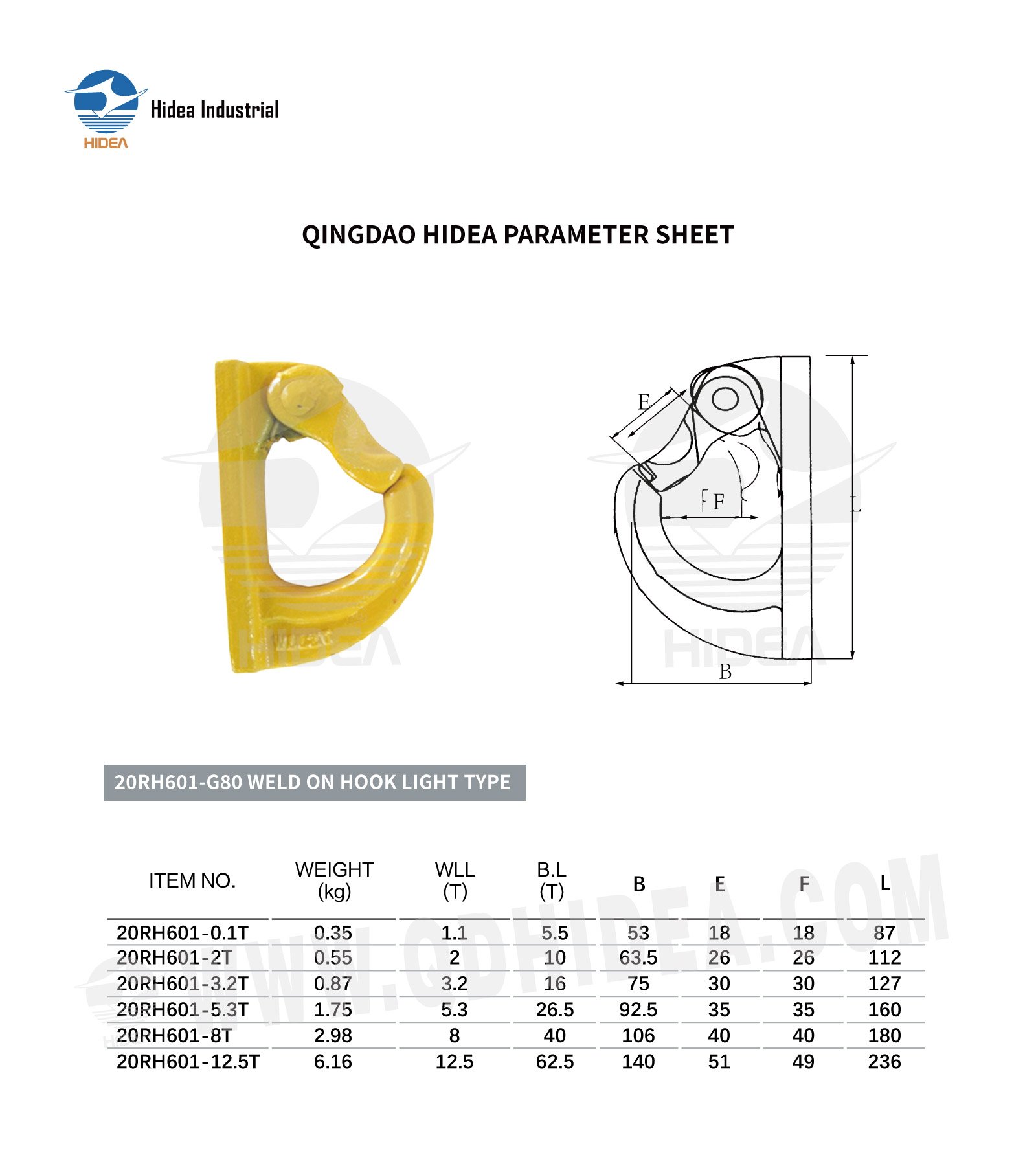

QINGDAO HIDEA PARAMETER SHEET FOR

20RH601-G80 WELD ON HOOK LIGHT TYPE

ITEM NO.	WEIGHT (kg)	WLL (T)	B.L (T)	B	E	F	L
20RH601-0.1T	0.35	1.1	5.5	53	18	18	87
20RH601-2T	0.55	2	10	63.5	26	26	112
20RH601-3.2T	0.87	3.2	16	75	30	30	127
20RH601-5.3T	1.75	5.3	26.5	92.5	35	35	160
20RH601-8T	2.98	8	40	106	40	40	180
20RH601-12.5T	6.16	12.5	62.5	140	51	49	236
