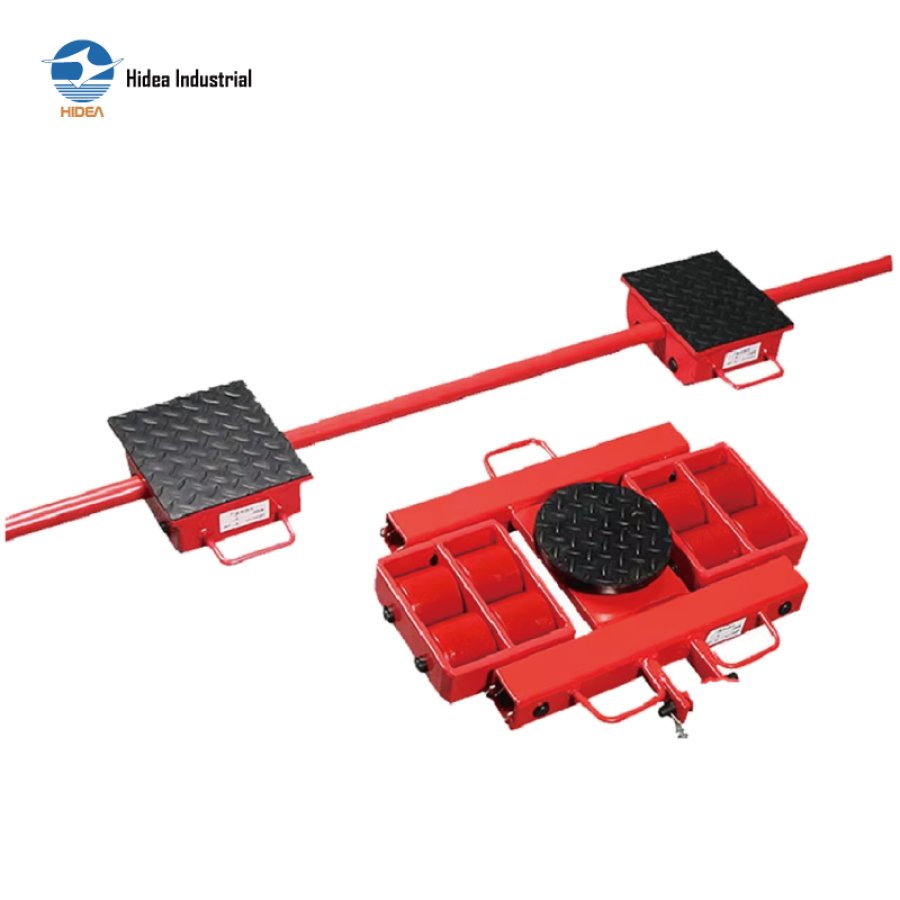

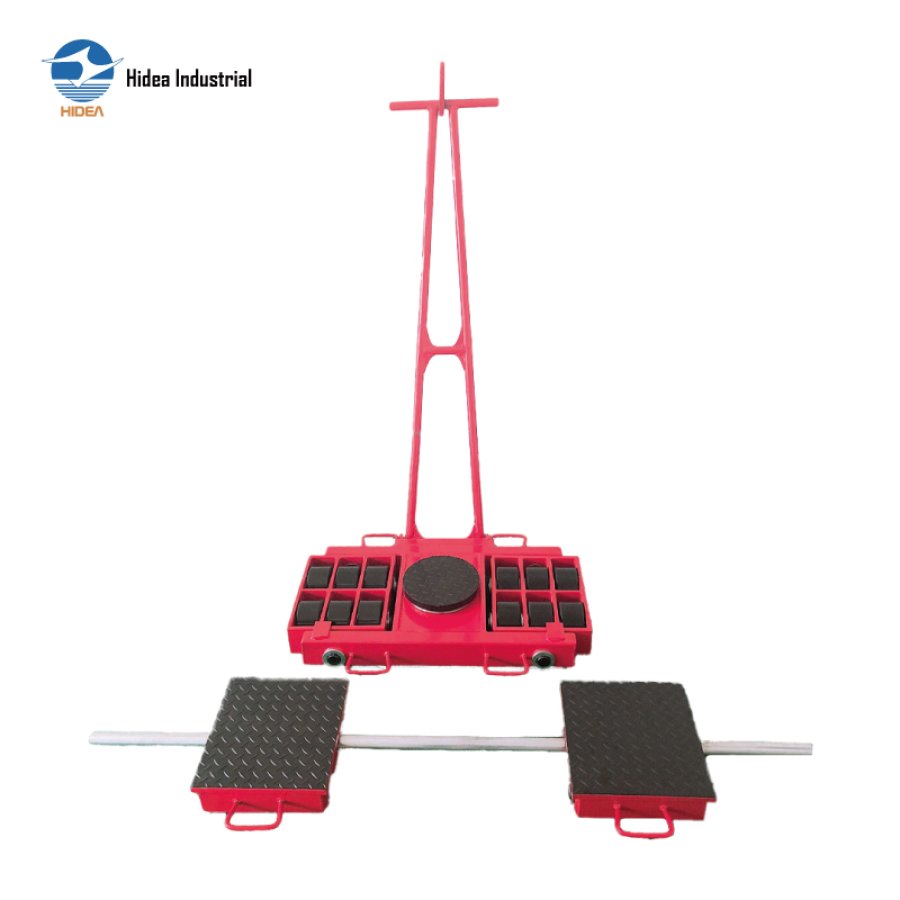

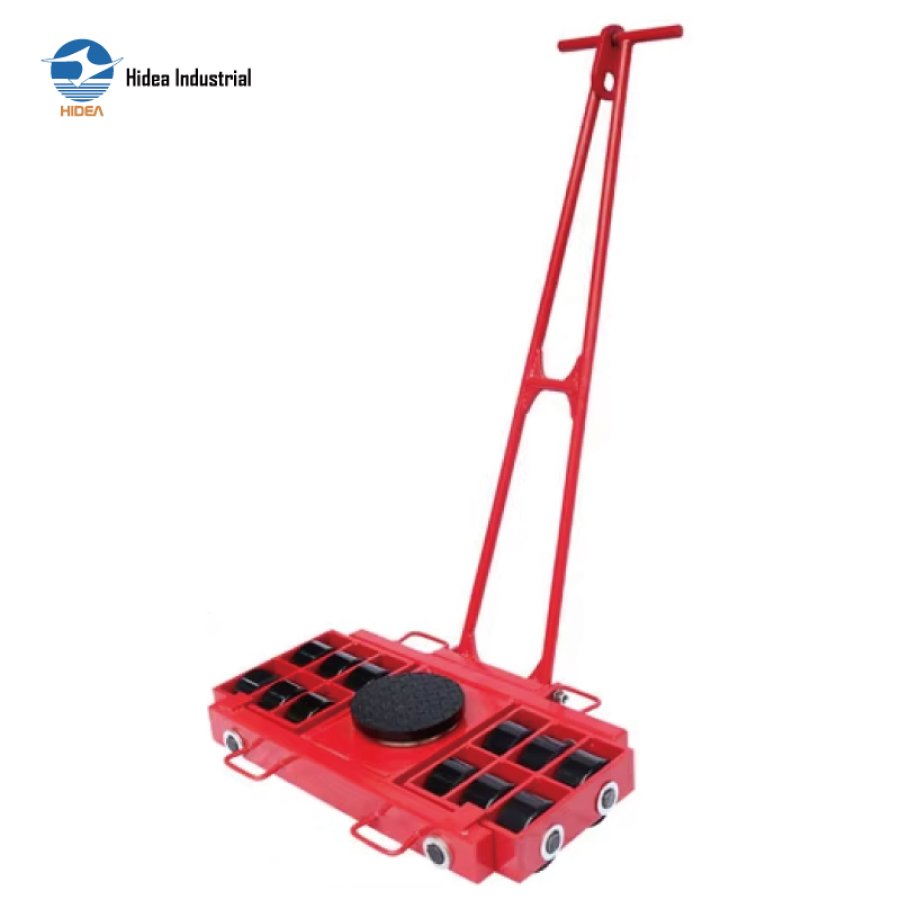

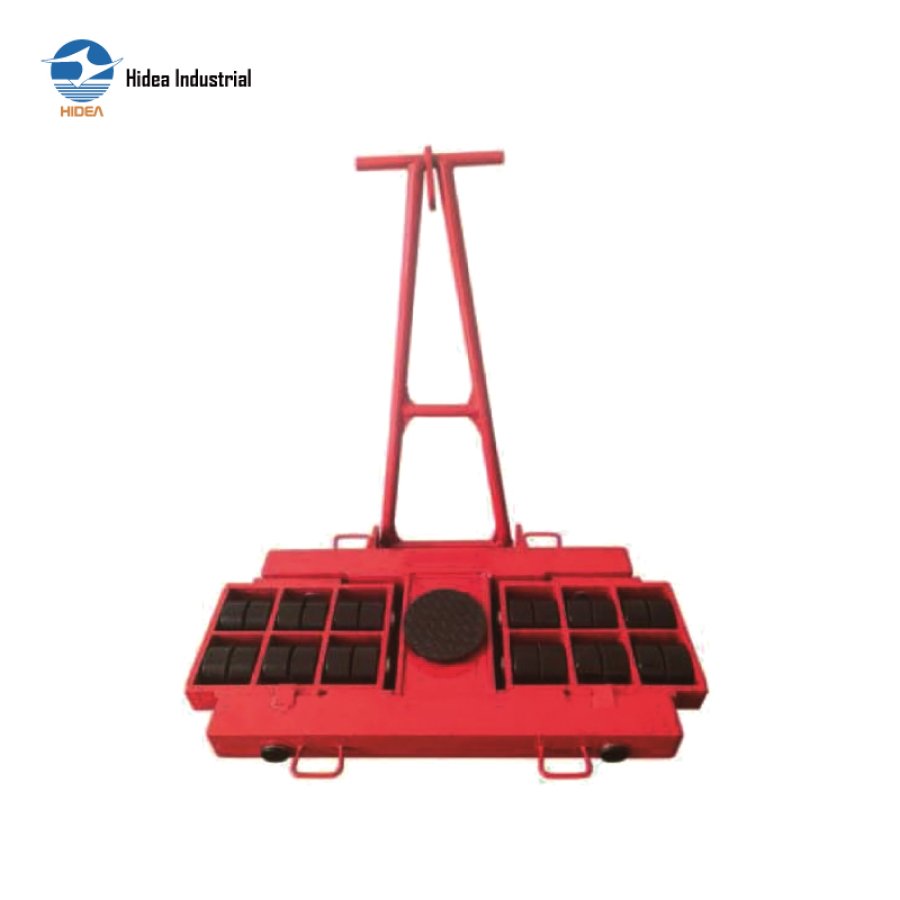

The AK + BK combined floor tanks, with the front AK hauling part tank, it can provide automatic adjustment and keep balance of loads on uneven grounds with super stability, durability, flexibility and more convenience
The rear part of the tanks can be positioned with a flexible distance from the front, and the 2 tank units width of rear part BK can be adjusted, so as to adapt to the size of the load
The hauling handles are flexible and user friendly for gripping and load hauling for easier and smooth cargo movement
The AK+BK combination of floor tanks can transport much heavier loads, with free and flexible combinations of AK8 + BK8 to AK32 + BK32 tank wheels

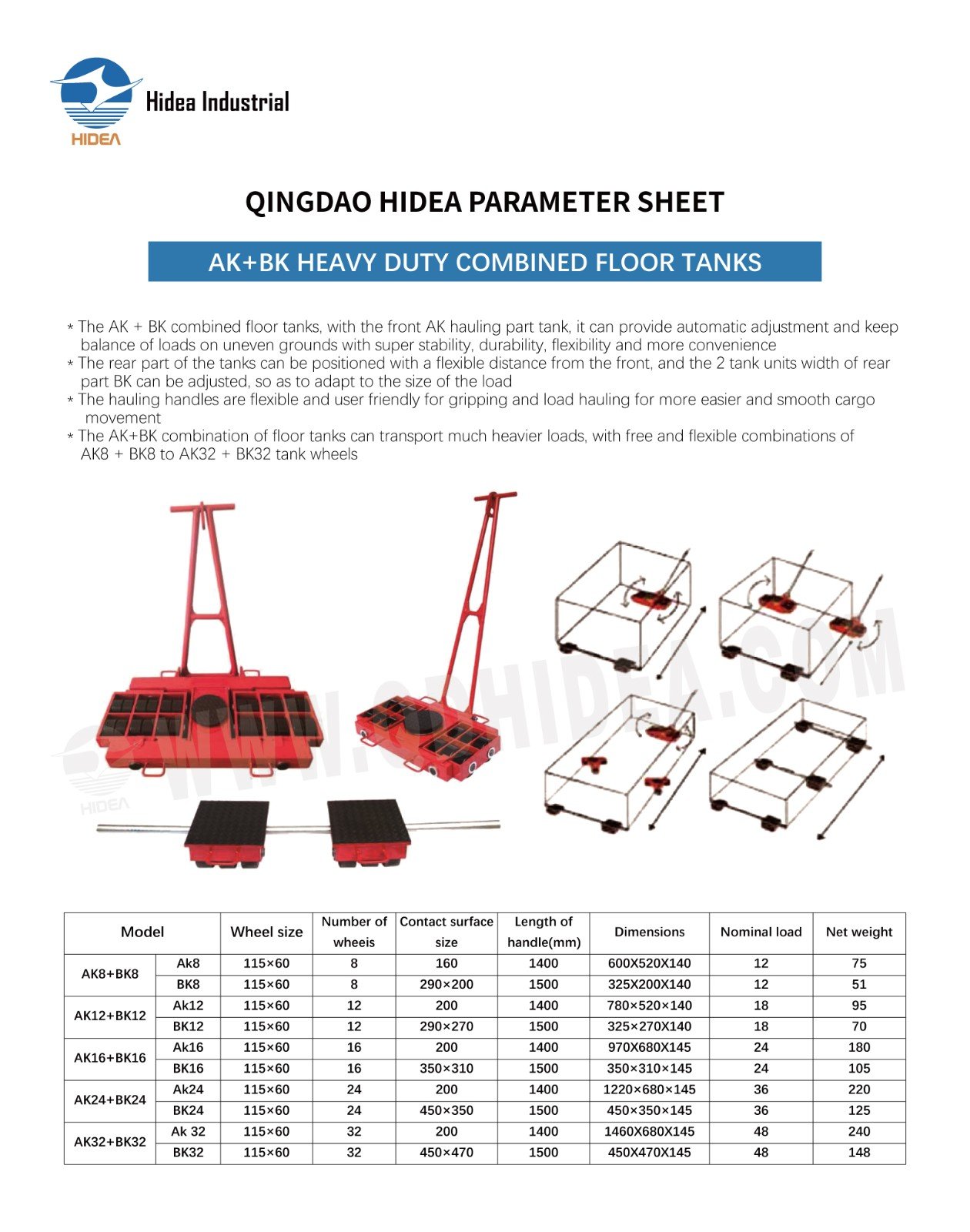

QINGDAO HIDEA PARAMETER SHEET
AK+BK HEAVY DUTY COMBINED FLOOR TANKS
| Model | Wheel size | Number of wheeis | Contact surface size | Length of handle(mm) | Dimensions | Nominal load | Net weight | ||
| AK8+BK8 | Ak8 | 115×60 | 8 | 160 | 1400 | 600X520X140 | 12 | 75 | |
| BK8 | 115×60 | 8 | 290×200 | 1500 | 325X200X140 | 12 | 51 | ||
| AK12+BK12 | Ak12 | 115×60 | 12 | 200 | 1400 | 780×520×140 | 18 | 95 | |
| BK12 | 115×60 | 12 | 290×270 | 1500 | 325×270X140 | 18 | 70 | ||
| AK16+BK16 | Ak16 | 115×60 | 16 | 200 | 1400 | 970X680X145 | 24 | 180 | |
| BK16 | 115×60 | 16 | 350×310 | 1500 | 350×310×145 | 24 | 105 | ||
| AK24+BK24 | Ak24 | 115×60 | 24 | 200 | 1400 | 1220×680×145 | 36 | 220 | |
| BK24 | 115×60 | 24 | 450×350 | 1500 | 450×350×145 | 36 | 125 | ||
| AK32+BK32 | Ak 32 | 115×60 | 32 | 200 | 1400 | 1460X680X145 | 48 | 240 | |
| BK32 | 115×60 | 32 | 450×470 | 1500 | 450X470X145 | 48 | 148 | ||
