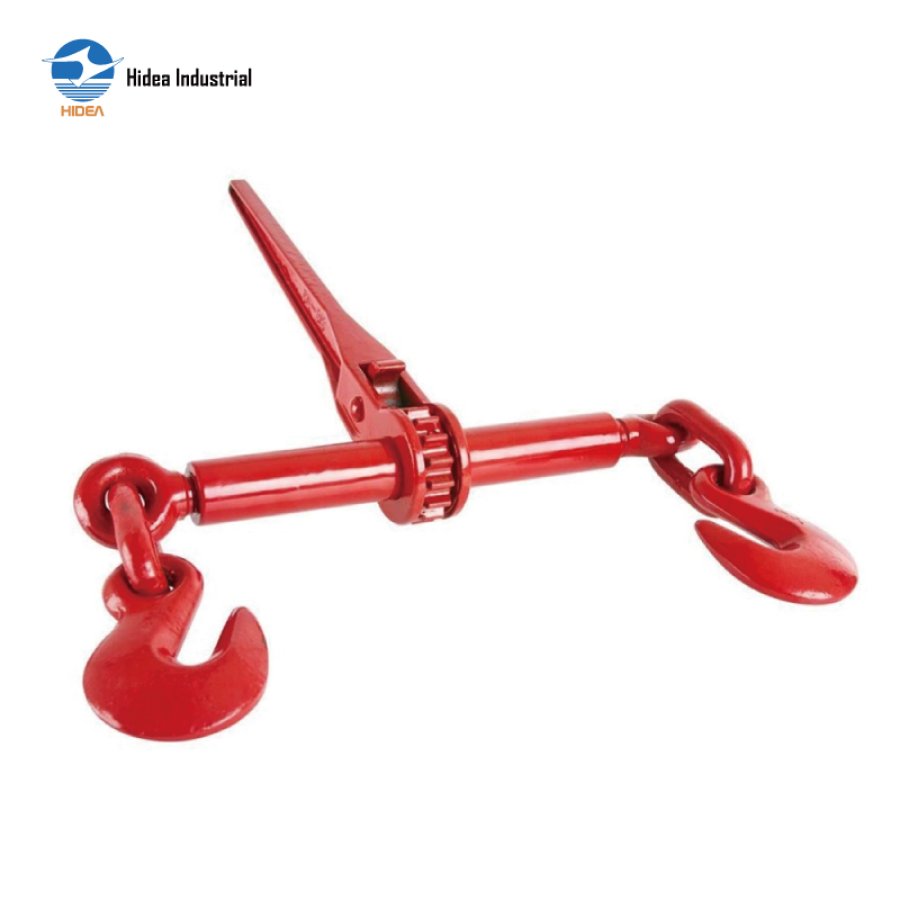

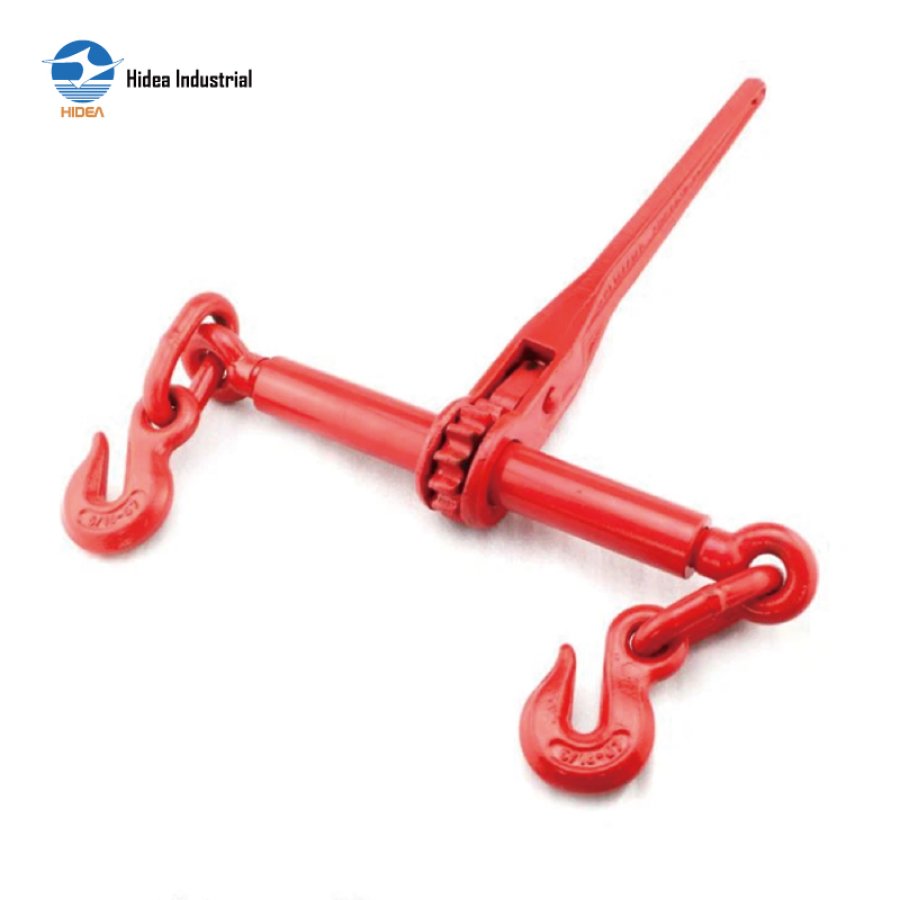

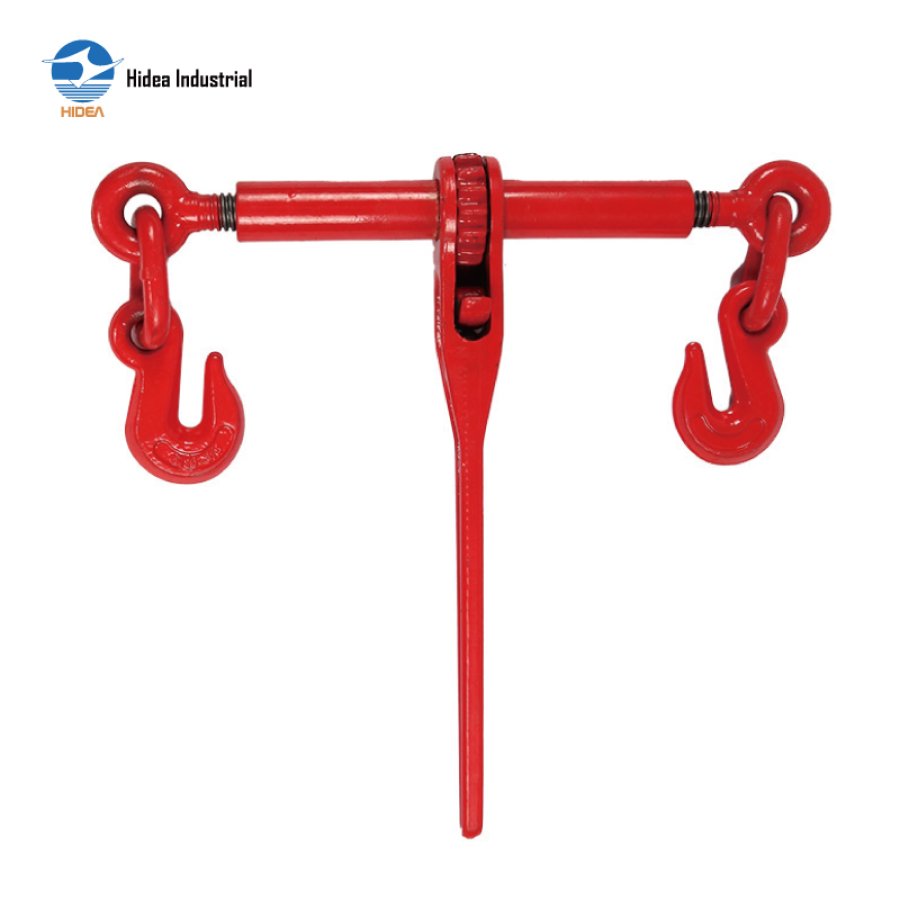

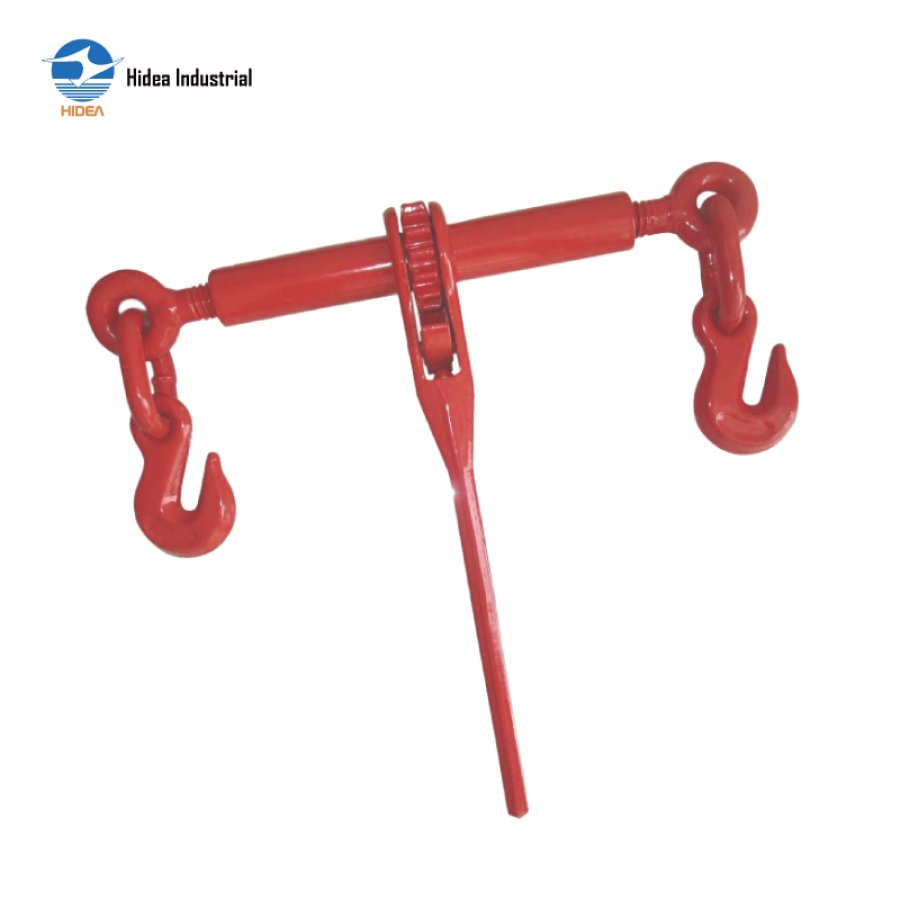

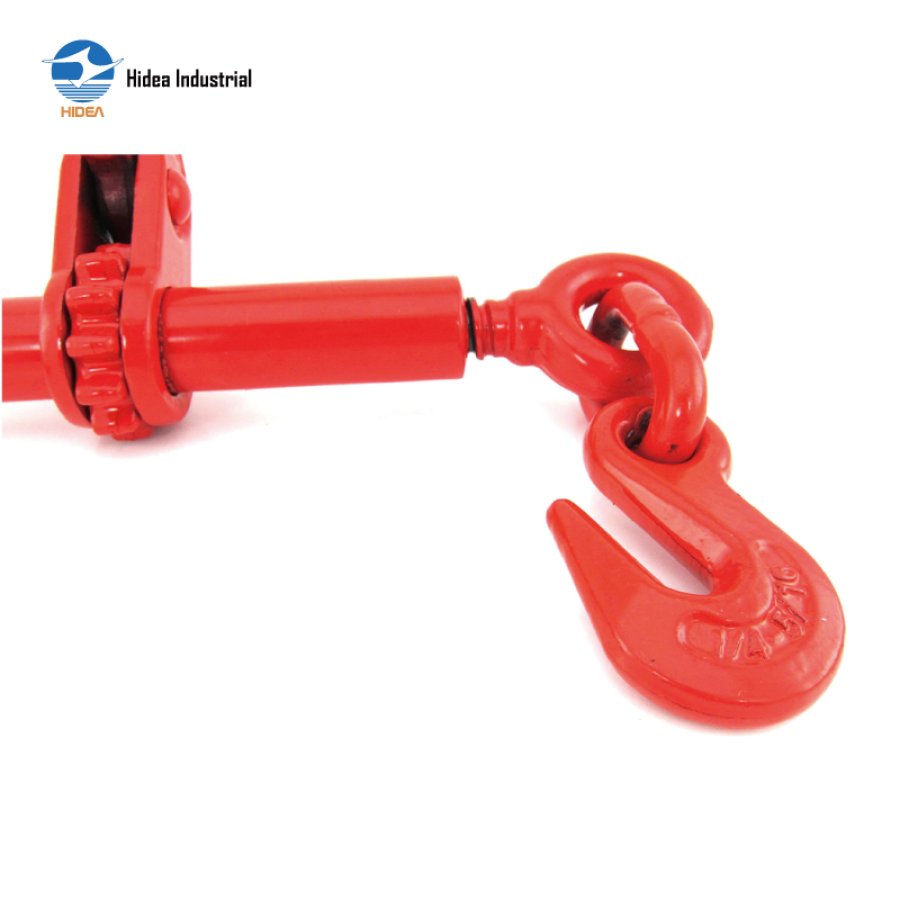

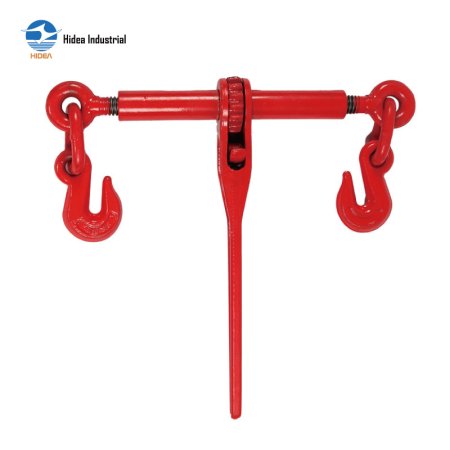

Hidea G70 Ratchet Type Load Binder for Heavy Loads

DROP FORGED RATCHET TYPE LOAD BINDER

High tensile steel rated G70+
Drop forged, quenched & tempered
Proof tested individually
Surface: Powder coated OR as requested
Meets or exceeds requirements of US DOT FMGSA Part 393 Subpart I

Inquire Now

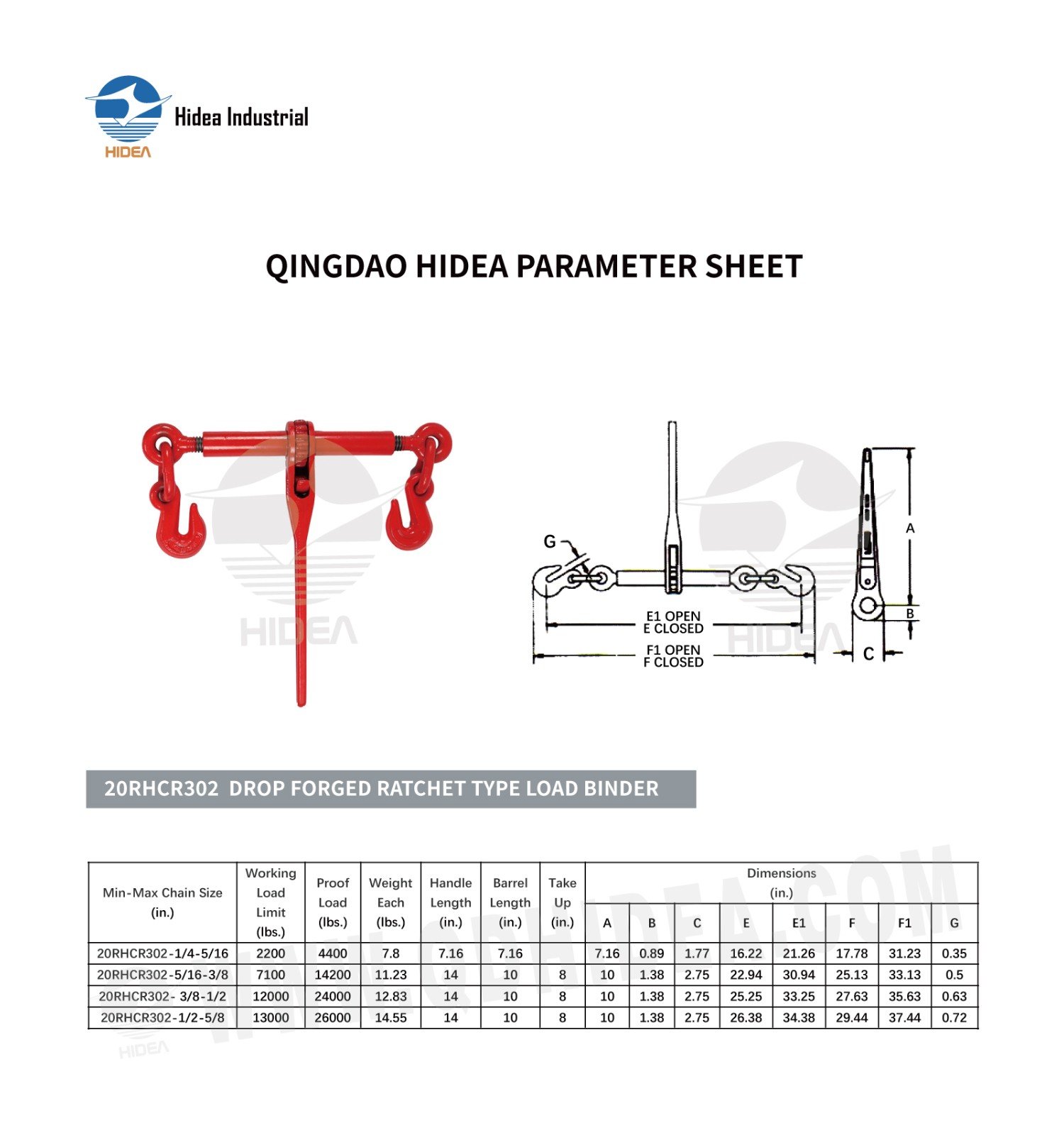

QINGDAO HIDEA PARAMETER SHEET FOR

20RHCR302 DROP FORGED RATCHET TYPE LOAD BINDER

Min-Max Chain Size
(in.)

Working
Load
Limit
(Ibs.)

Proof
Load
(Ibs.)

Weight
Each
(Ibs.)

Handle
Length
(in.)

Barrel
Length
(in.)

Take
Up
(in.)

Dimensions
(in.)

A

B

C

E

E1

F

F1

G

20RHCR302-1/4-5/16

2200

4400

7.8

7.16

7.16

7.16

0.89

1.77

16.22

21.26

17.78

31.23

0.35

20RHCR302-5/16-3/8

7100

14200

11.23

14

10

8

10

1.38

2.75

22.94

30.94

25.13

33.13

0.5

20RHCR302-3/8-1/2

12000

24000

12.83

14

10

8

10

1.38

2.75

25.25

33.25

27.63

35.63

0.63

20RHCR302-1/2-5/8

13000

26000

14.55

14

10

8

10

1.38

2.75

26.38

34.38

29.44

37.44

0.72
