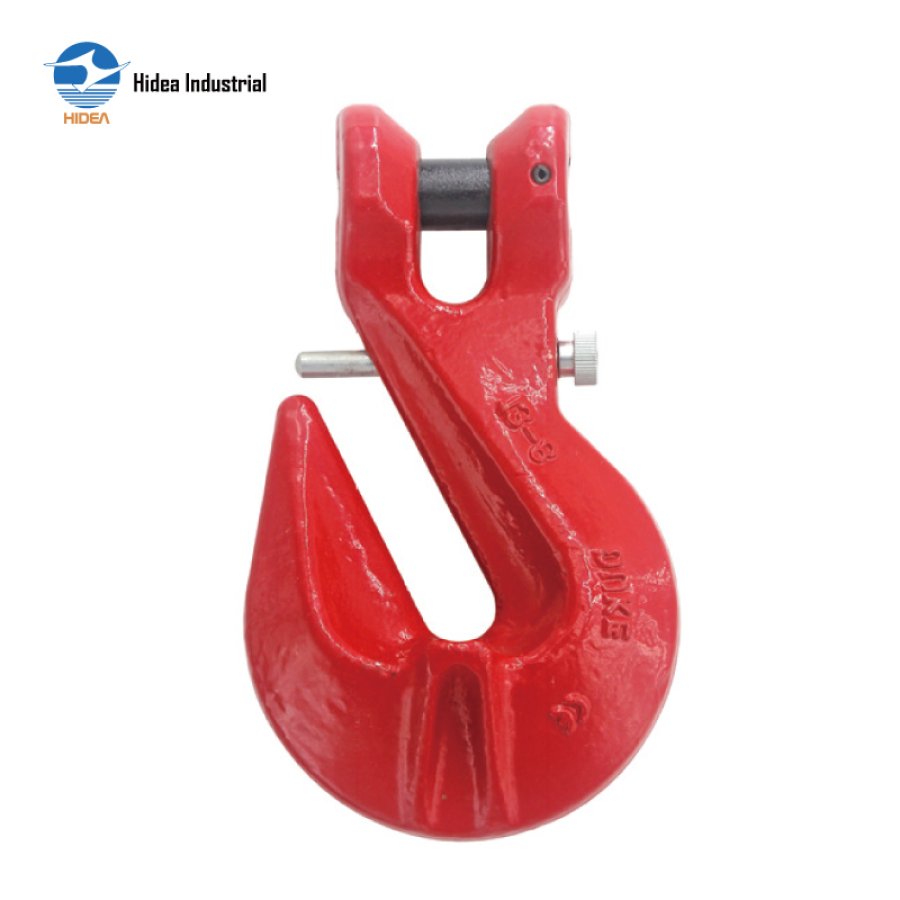

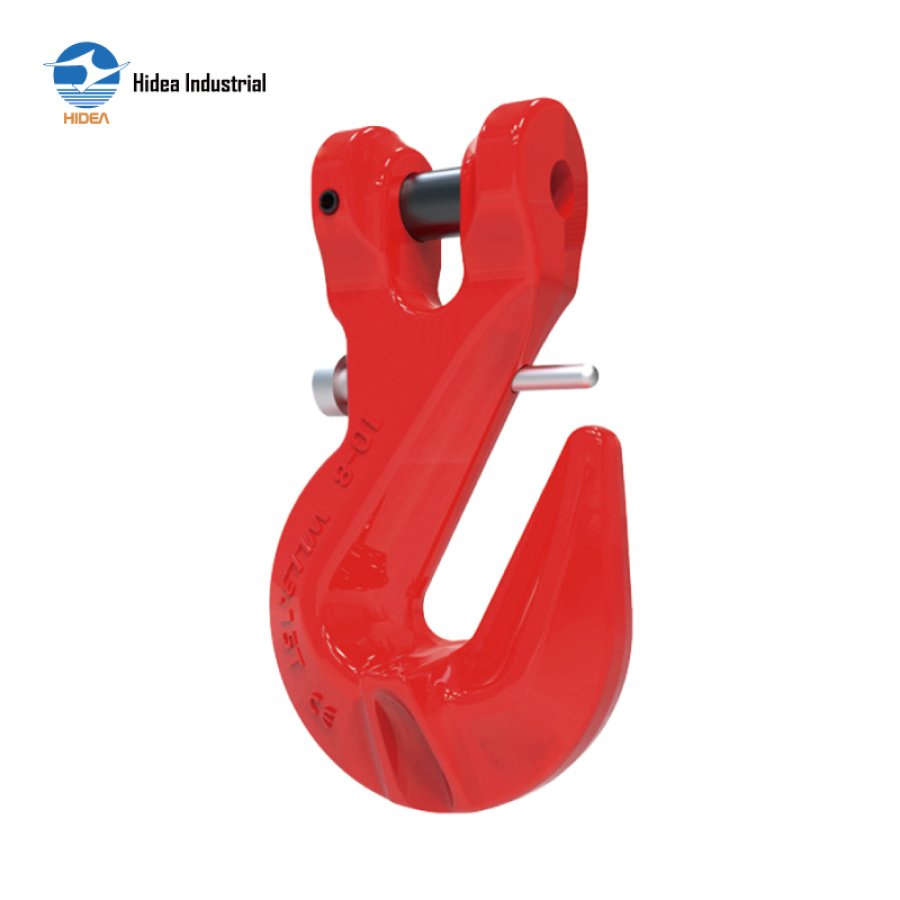

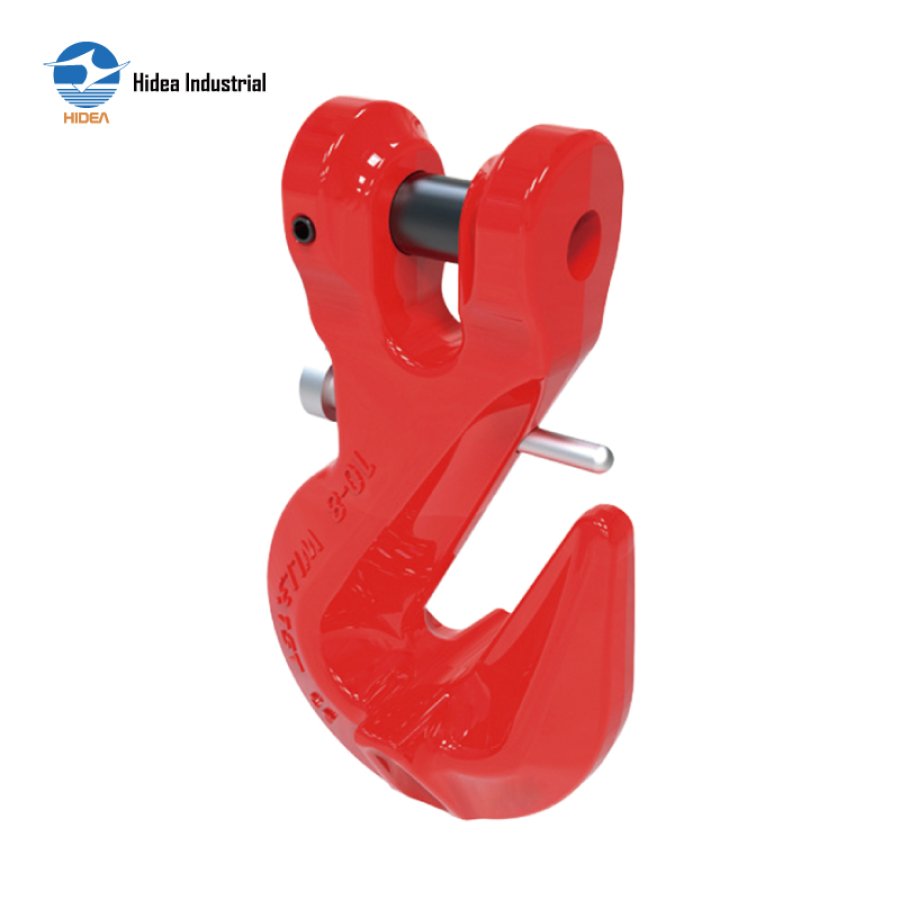

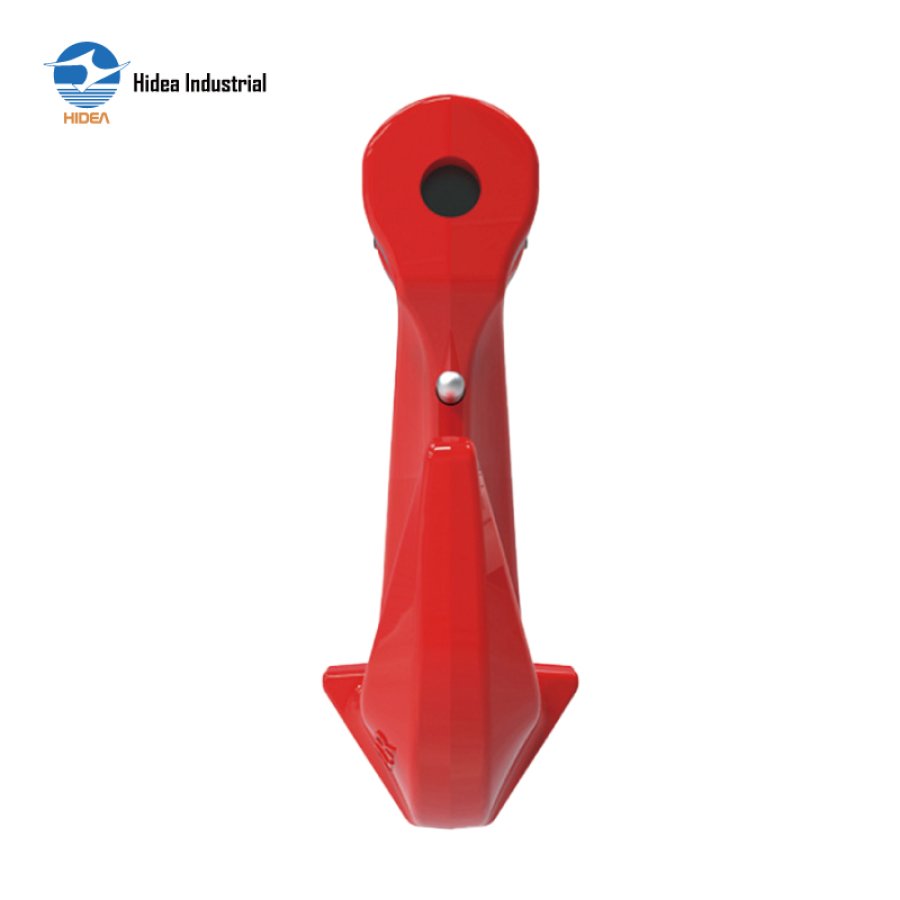

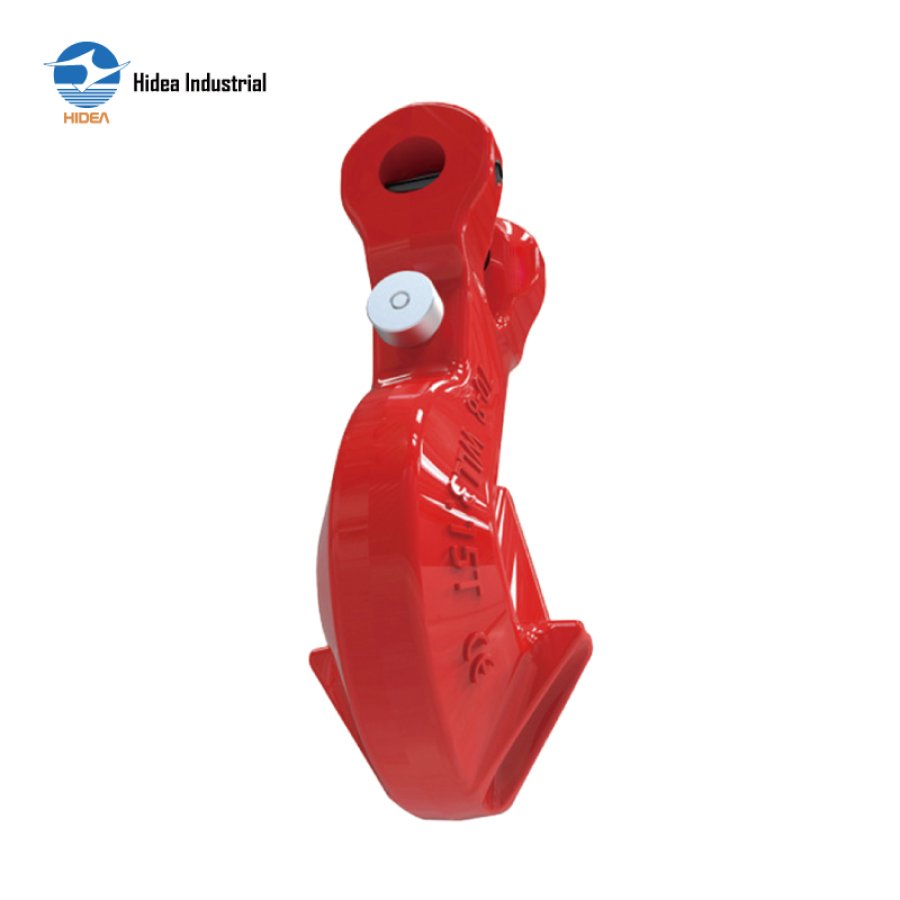

Sturdy and Safe Hidea G80 Clevis Grab Hook with Safety Pin

G80 CLEVIS GRAB HOOK WITH SAFETY PIN

All load pins are 100% individually inspected and tested
Surface finish: Powder plastified
Colour code: Red RAL3020/Yellow RAL1003

Inquire Now

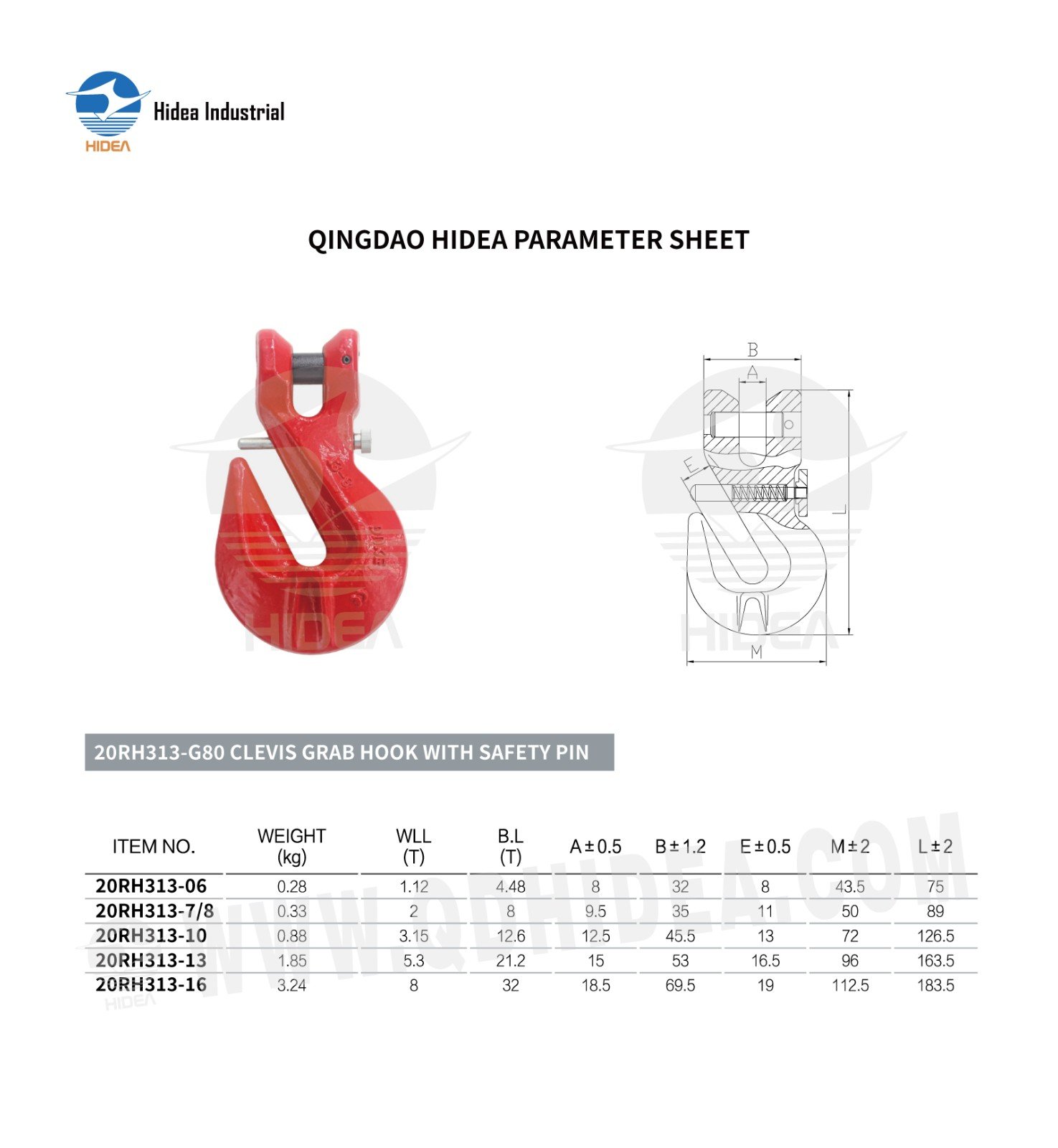

QINGDAO HIDEA PARAMETER SHEET FOR

20RH313-G80 CLEVIS GRAB HOOK WITH SAFETY PIN

ITEM NO.	WEIGHT (kg)	WLL (T)	B.L (T)	A±0.5	B±1.2	E±0.5	M±2	L±2
20RH313-06	0.28	1.12	4.48	8	32	8	43.5	75
20RH313-7/8	0.33	2	8	9.5	35	11	50	89
20RH313-10	0.88	3.15	12.6	12.5	45.5	13	72	126.5
20RH313-13	1.85	5.3	21.2	15	53	16.5	96	163.5
20RH313-16	3.24	8	32	18.5	69.5	19	112.5	183.5
