QINGDAO HIDEA PARAMETER SHEET FOR
20RHS059-Plate Dee Shackle
| NO | A mm | B mm | C mm | D mm | E mm | F mm | WLL T |
| 20RHSO59-04 | 17 | 10 | 9.5 | 4 | 1.5 | 5.7 | 0.01 |
| 20RHS059-05 | 20 | 12.5 | 12 | 5 | 2 | 7 | 0.04 |
| 20RHS059-06 | 24 | 15 | 14.5 | 6 | 3 | 8 | 0.06 |
| 20RHS059-08 | 44 | 26 | 18 | 8 | 4 | 10 | 0.10 |
PARAMETER

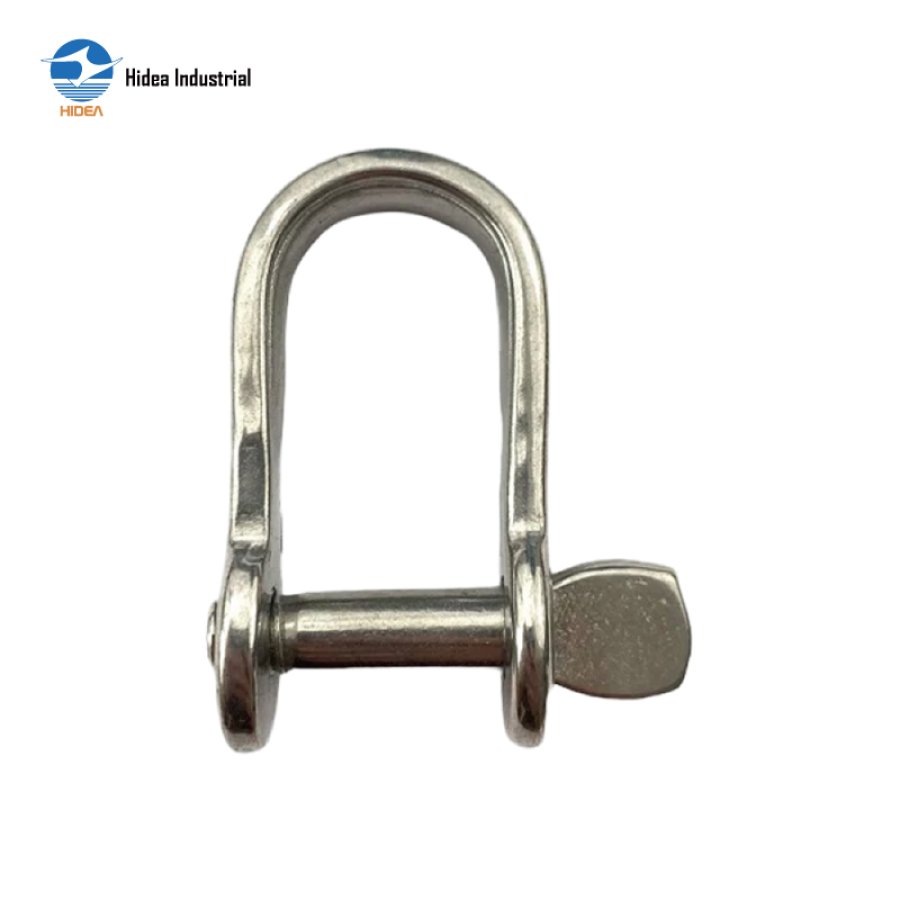

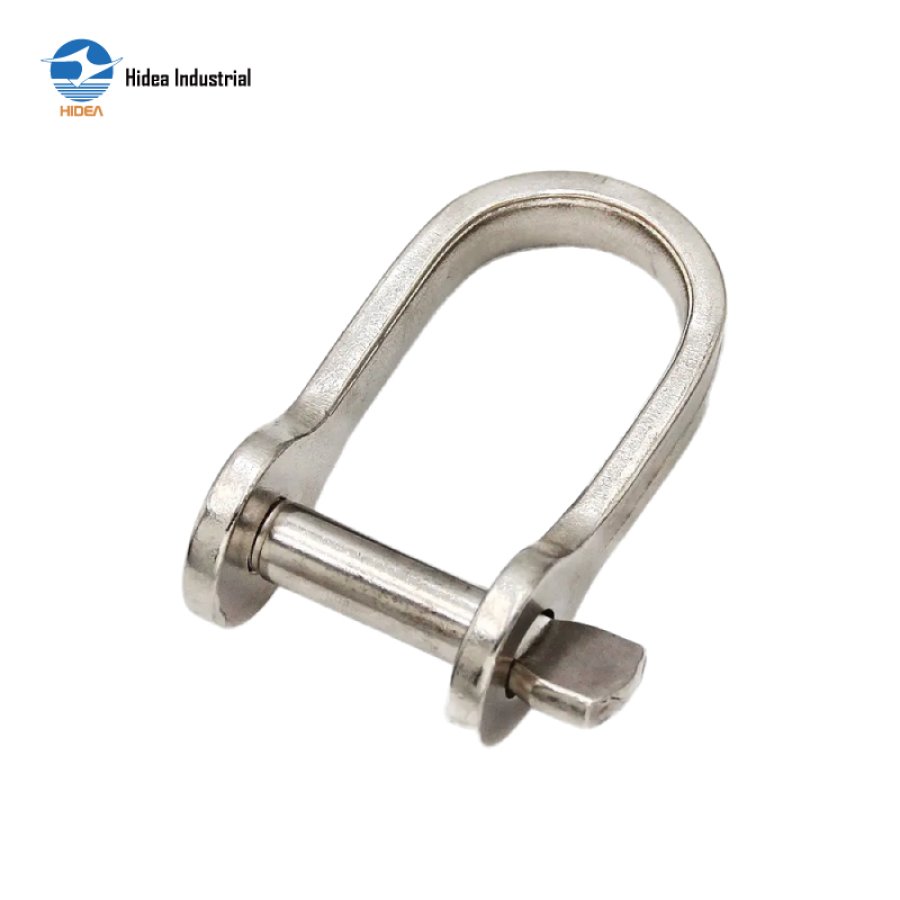

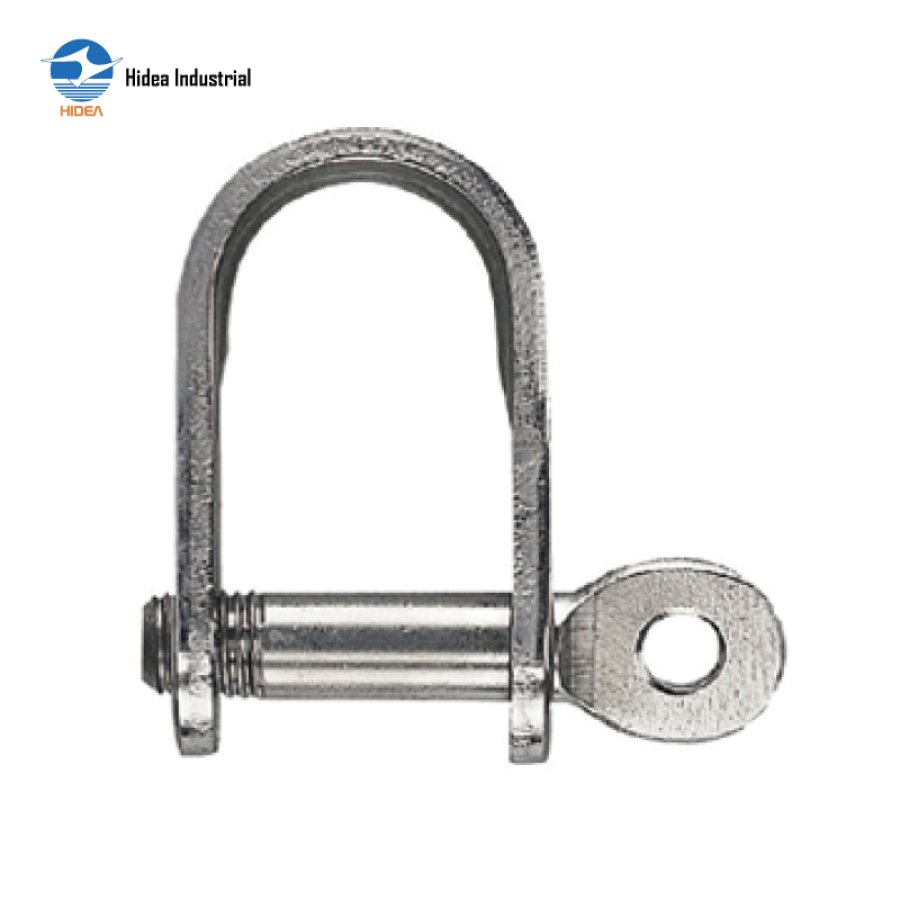

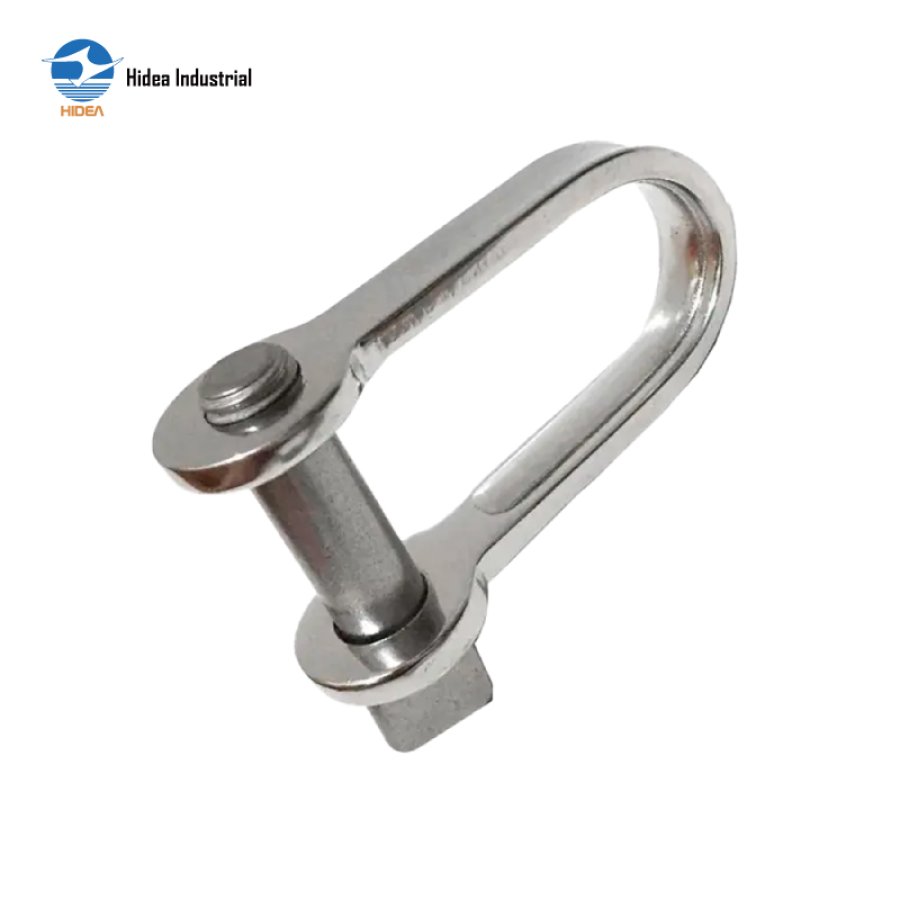

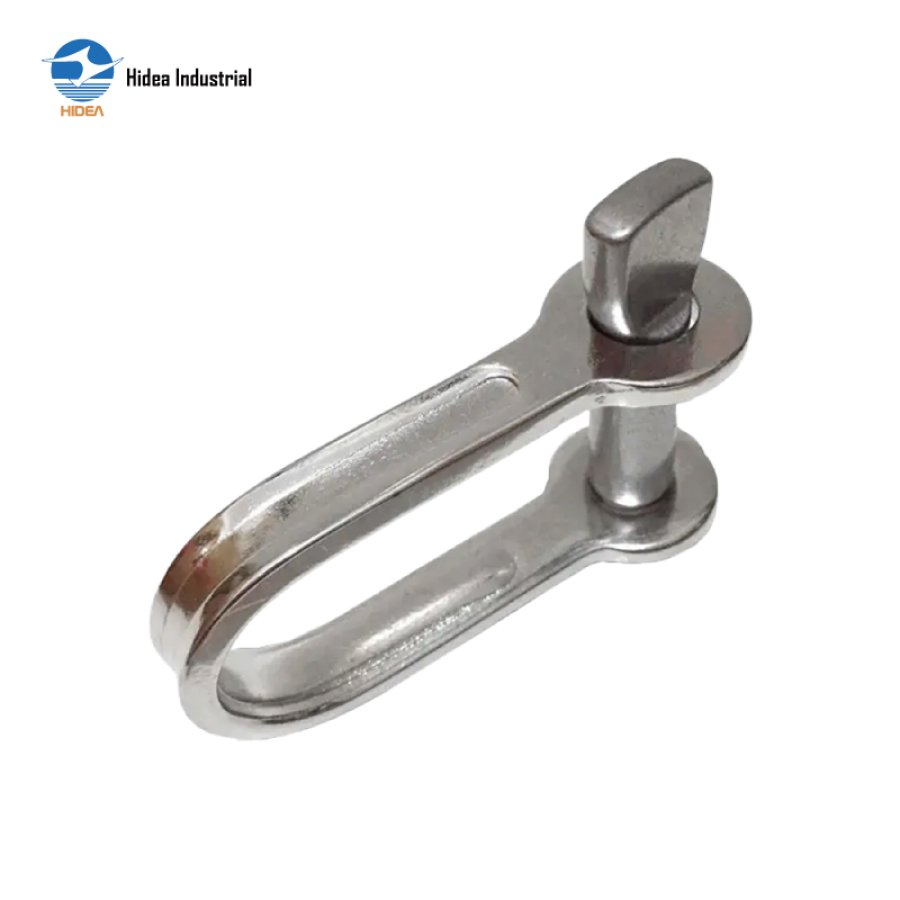

HIDEA Marine Grade Stainless Steel Plate Dee Shackle
| ITEM NO. | A(mm) | B(mm) | C(mm) | D(mm) | E(mm) | F(mm) | WLL(t) |
| 20RHS059-04 | 17 | 10 | 9.5 | 4 | 1.5 | 5.7 | 0.01 |
| 20RHS059-05 | 20 | 12.5 | 12 | 5 | 2 | 7 | 0.04 |
| 20RHS059-06 | 24 | 15 | 14.5 | 6 | 3 | 8 | 0.06 |
| 20RHS059-08 | 44 | 26 | 18 | 8 | 4 | 10 | 0.10 |
