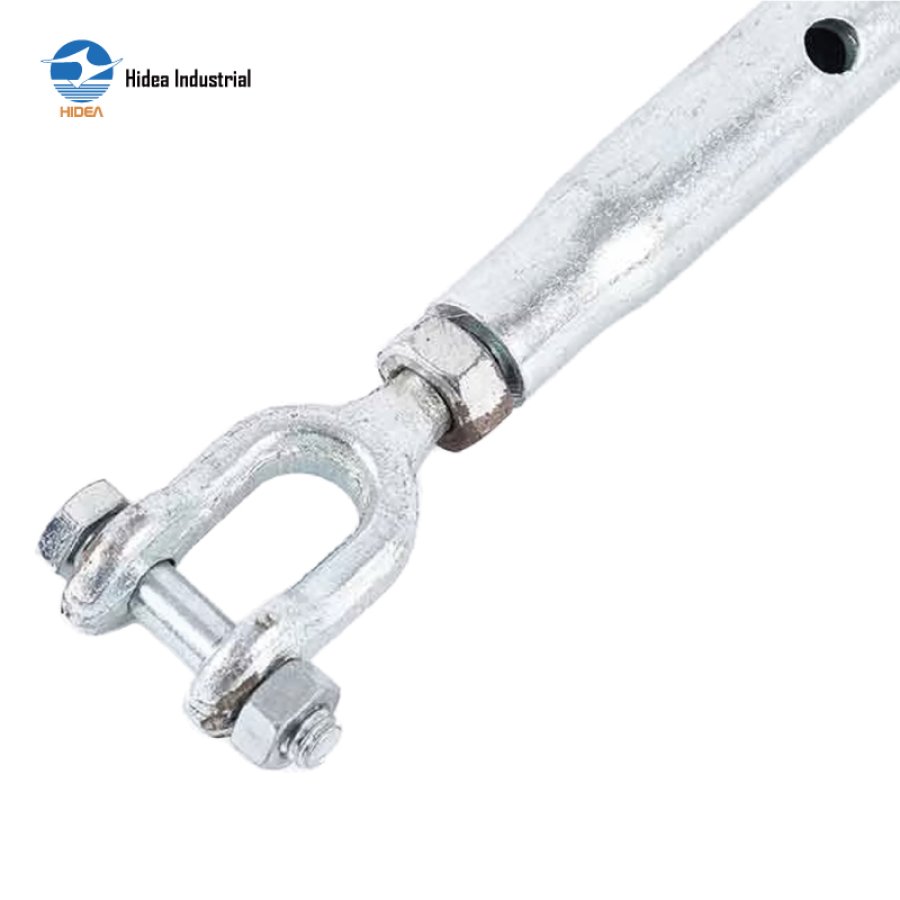

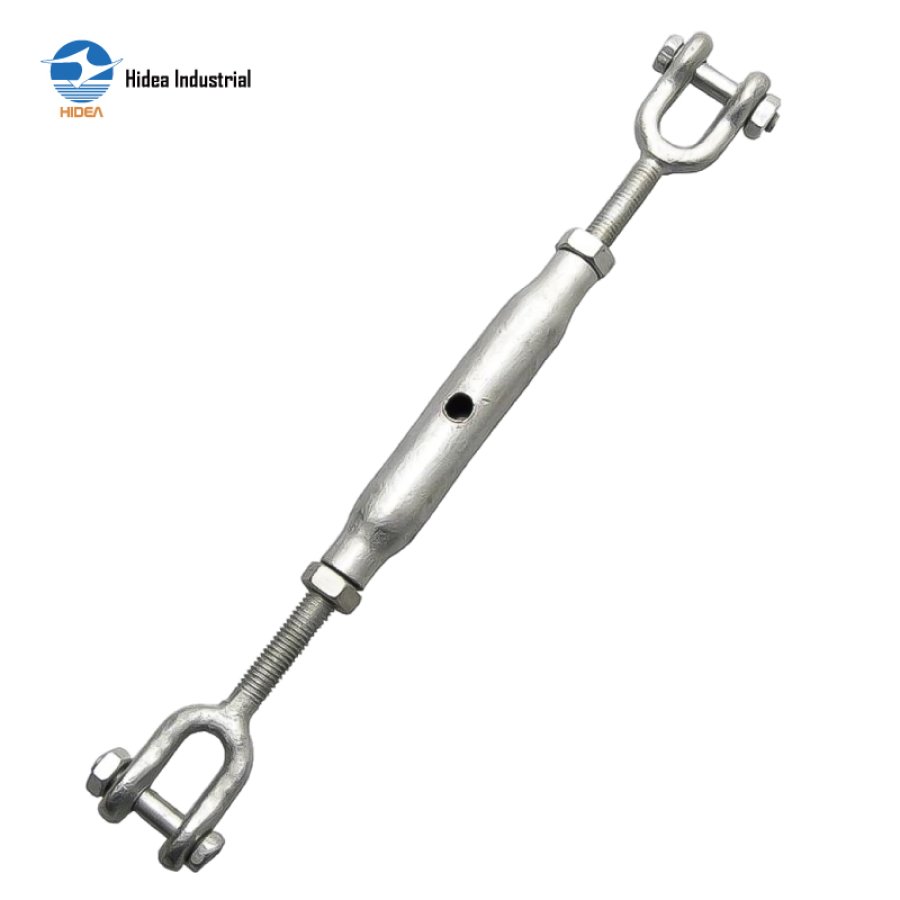

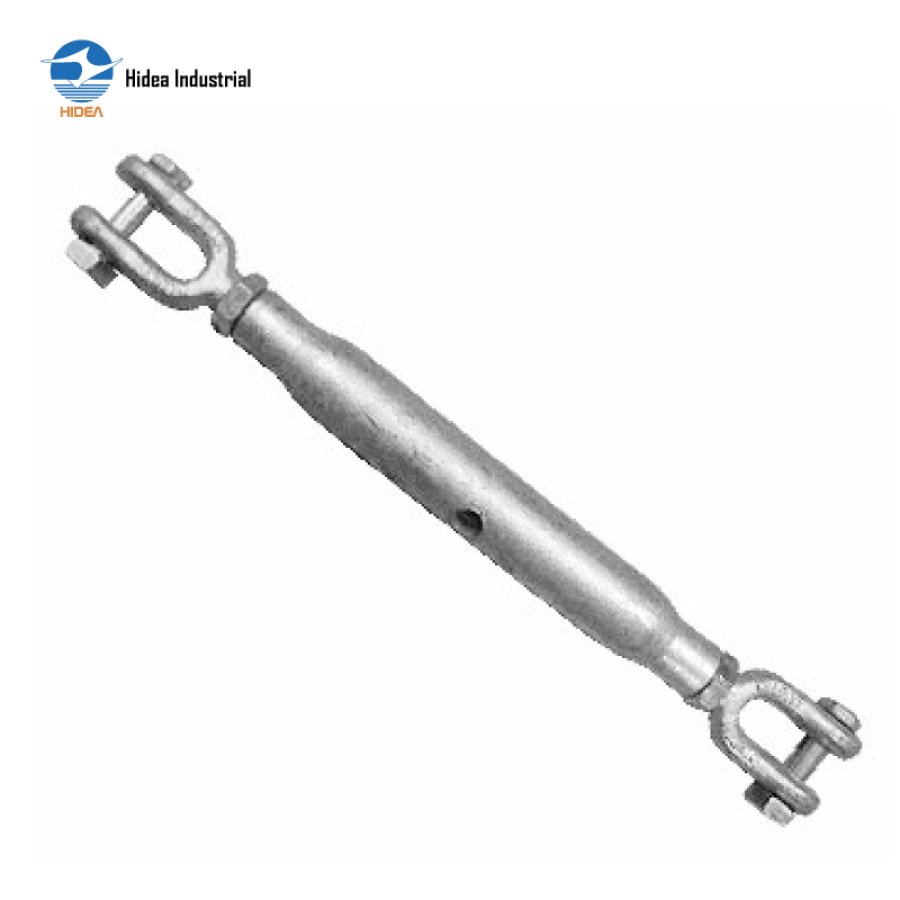

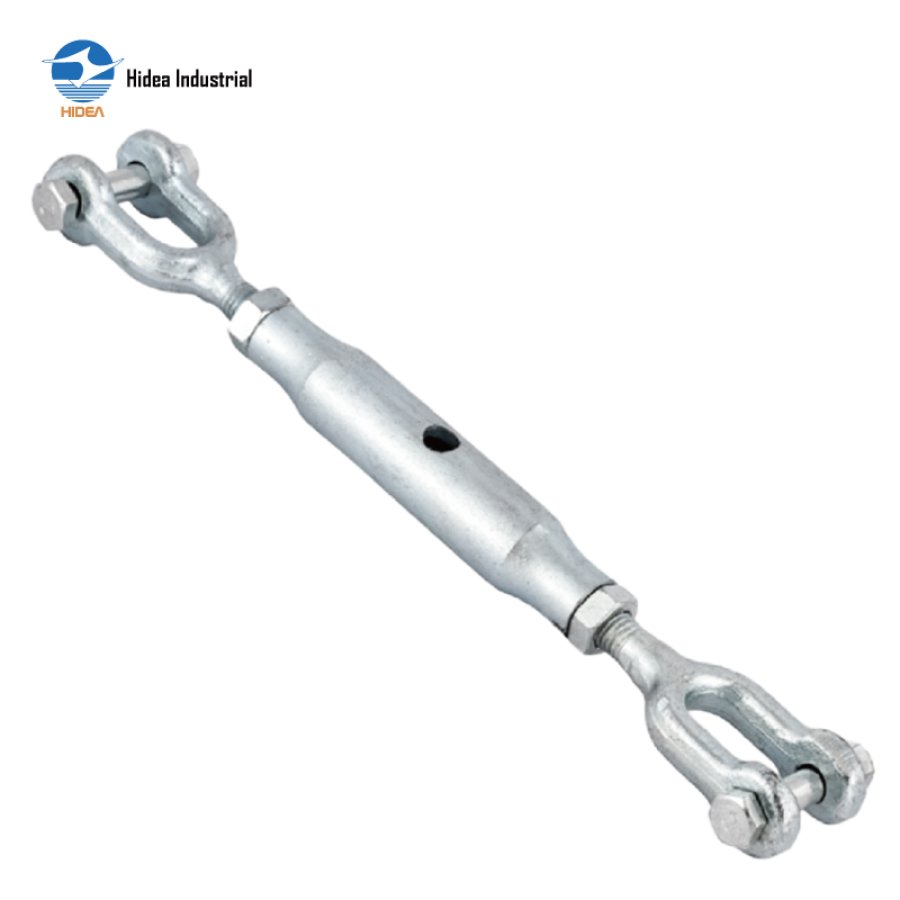

Heavy-Duty Hidea DIN1478 Jaw & Jaw Pipe Body Turnbuckle for Structural Tensioning

DIN1478 TUBULAR TURNBUCKLE JAW & JAW

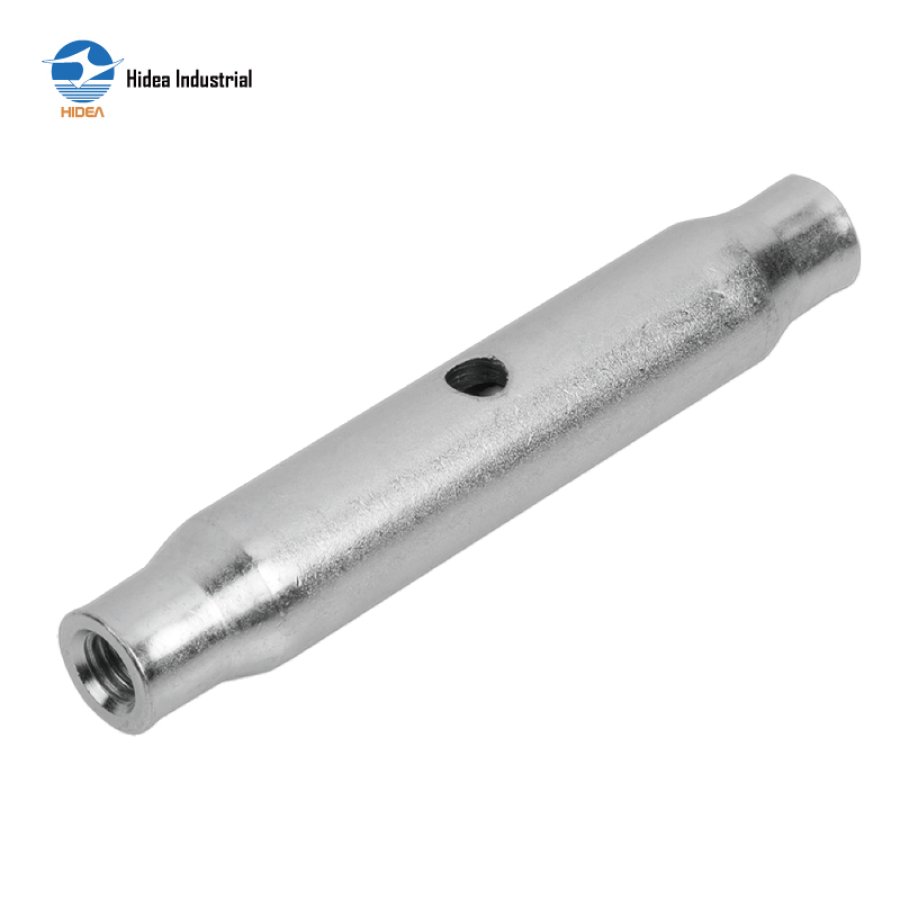

Material: High tensile seamless steel tube body
Contracted pipe both ends & forged end fittings, quenched & tempered
Proof tested individually & certificate available
Surface hot dip galvanized, electro galv. / zinc plated OR as requested
Din1478 tublar rigging screws tublar / pipe turnbuckles jaw & jaw type

Inquire Now

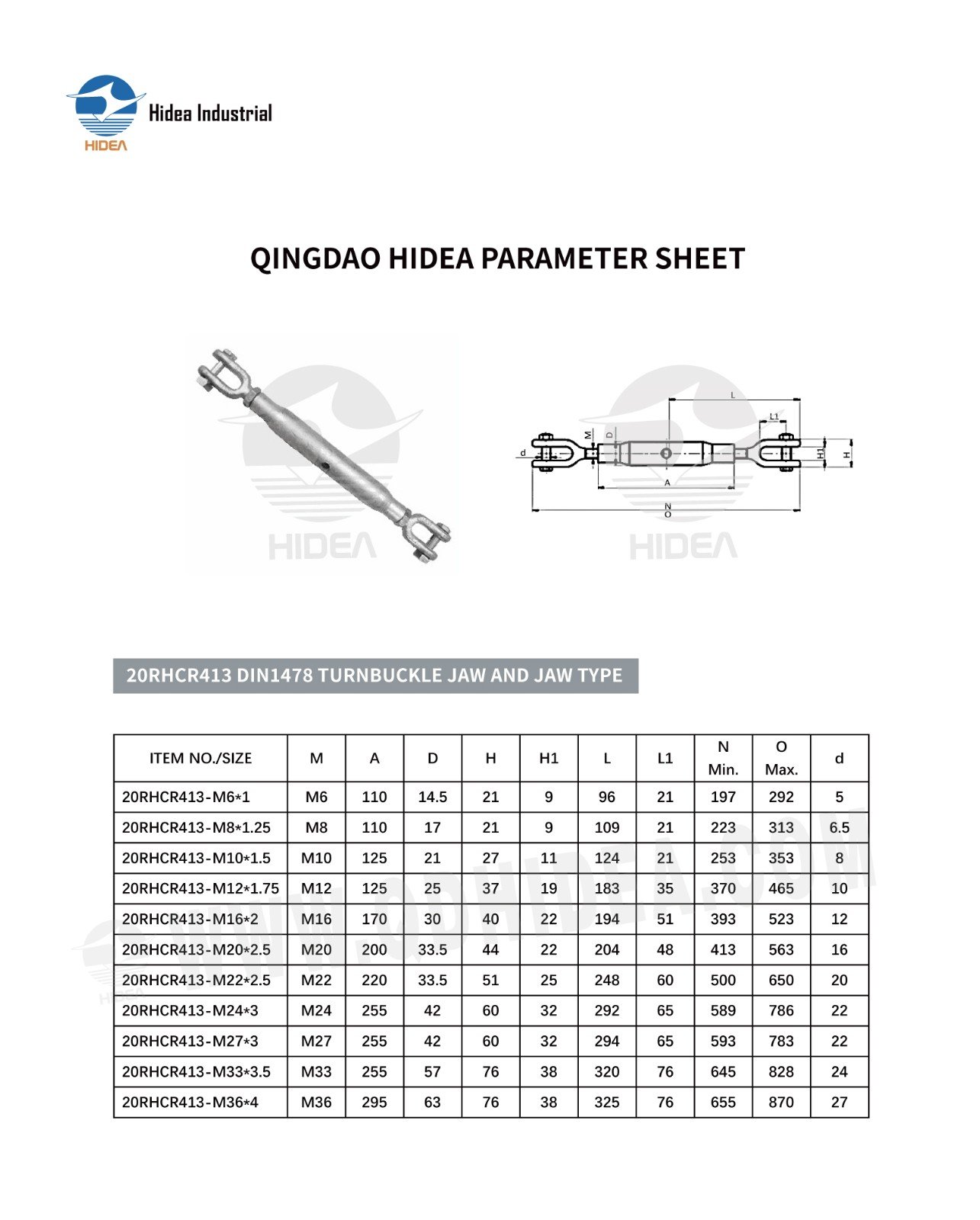

QINGDAO HIDEA PARAMETER SHEET FOR

20RHCR413 DIN1478 TURNBUCKLE JAW AND JAW TYPE

ITEM NO./SIZE	M	A	D	H	H1	L	L1	N Min.	0 Max.	d
*20RHCR413-M61**	M6	110	14.5	21	9	96	21	197	292	5
*20RHCR413-M81.25**	M8	110	17	21	9	109	21	223	313	6.5
*20RHCR413-M101.5**	M10	125	21	27	11	124	21	253	353	8
*20RHCR413-M121.75**	M12	125	25	37	19	183	35	370	465	10
*20RHCR413-M162**	M16	170	30	40	22	194	51	393	523	12
*20RHCR413-M202.5**	M20	200	33.5	44	22	204	48	413	563	16
*20RHCR413-M222.5**	M22	220	33.5	51	25	248	60	500	650	20
*20RHCR413-M243**	M24	255	42	60	32	292	65	589	786	22
*20RHCR413-M273**	M27	255	42	60	32	294	65	593	783	22
*20RHCR413-M333.5**	M33	255	57	76	38	320	76	645	828	24
*20RHCR413-M364**	M36	295	63	76	38	325	76	655	870	27
