Robust DIN1478 Hook & Eye Pipe Body Turnbuckle – Reliable Solution for Tensioning

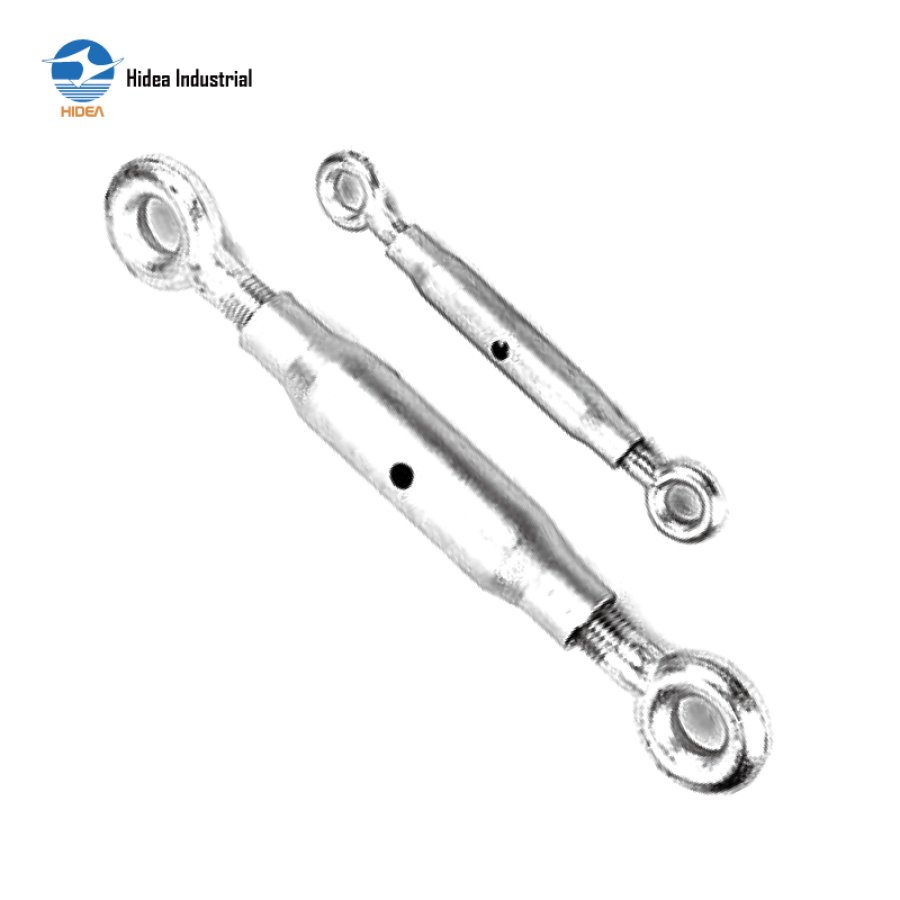

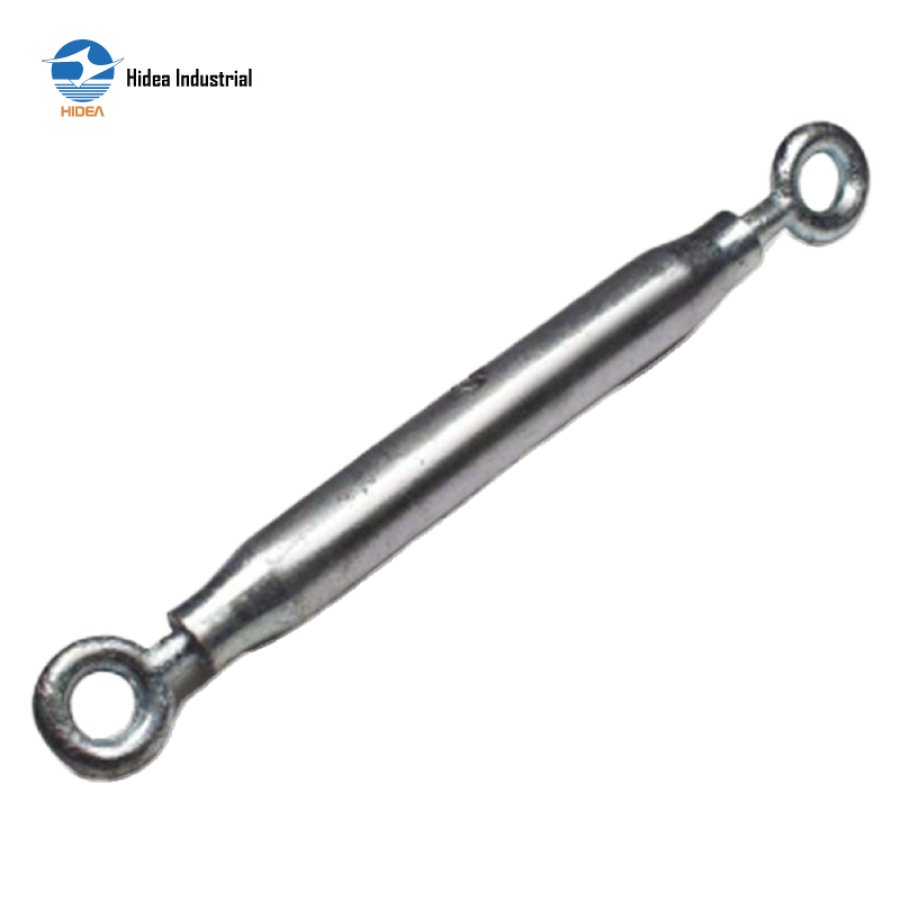

DIN1478 TUBULAR TURNBUCKLE EYE & EYE

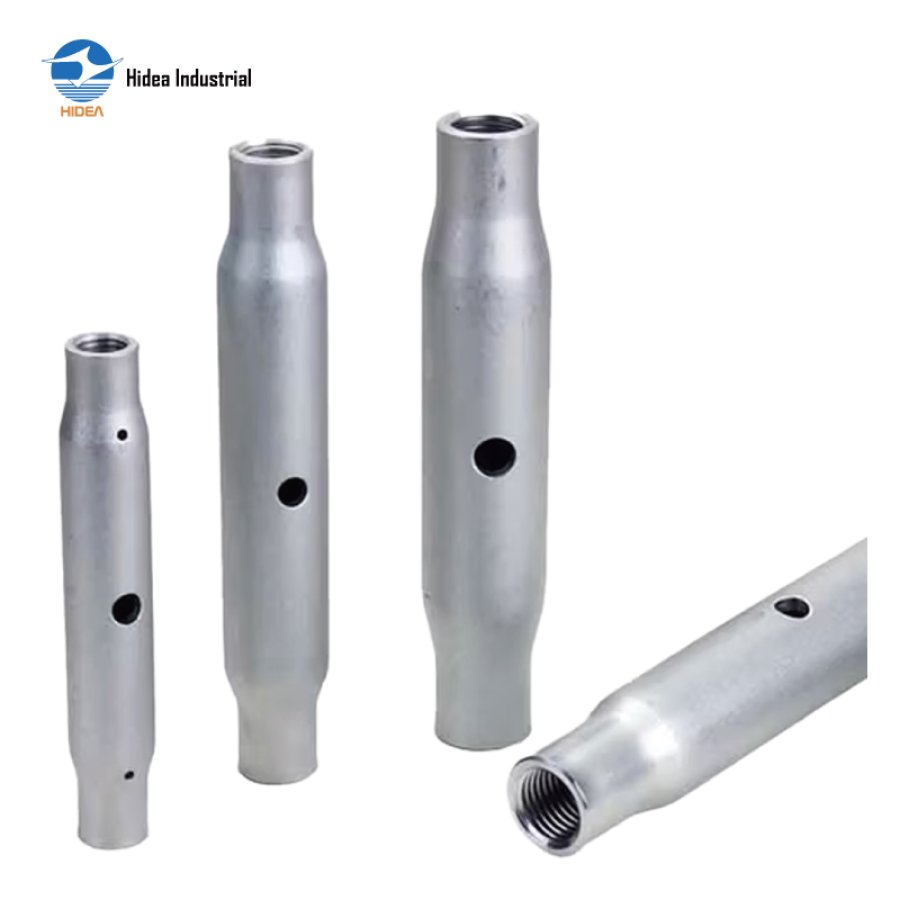

Material: High tensile seamless steel tube body
Contracted pipe both ends & forged end fittings, quenched & tempered
Proof tested individually & certificate available
Surface hot dip galvanized, electro galv. / zinc plated OR as requested
Din1478 tublar rigging screws tublar / pipe turnbuckles eye & eye type

Inquire Now

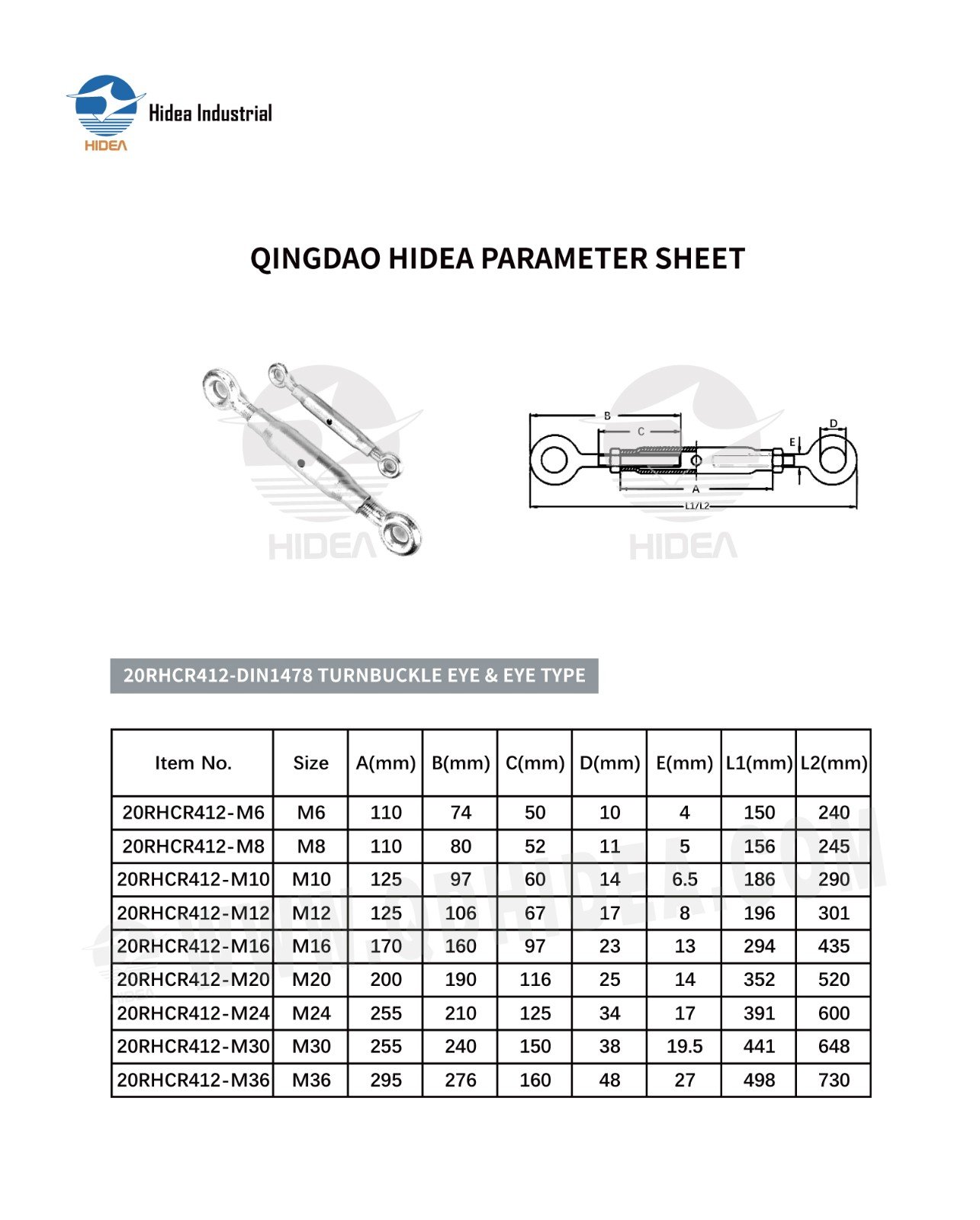

QINGDAO HIDEA PARAMETER SHEET FOR

20RHCR412-DIN1478 TURNBUCKLE EYE&EYE TYPE

Item No.	Size	A(mm)	B(mm)	C(mm)	D(mm)	E(mm)	L1(mm)	L2(mm)
20RHCR412-M6	M6	110	74	50	10	4	150	240
20RHCR412-M8	M8	110	80	52	11	5	156	245
20RHCR412-M10	M10	125	97	60	14	6.5	186	290
20RHCR412-M12	M12	125	106	67	17	8	196	301
20RHCR412-M16	M16	170	160	97	23	13	294	435
20RHCR412-M20	M20	200	190	116	25	14	352	520
20RHCR412-M24	M24	255	210	125	34	17	391	600
20RHCR412-M30	M30	255	240	150	38	19.5	441	648
20RHCR412-M36	M36	295	276	160	48	27	498	730
