Maximize Safety and Performance with the Hidea G80 FN Type Webbing Hook

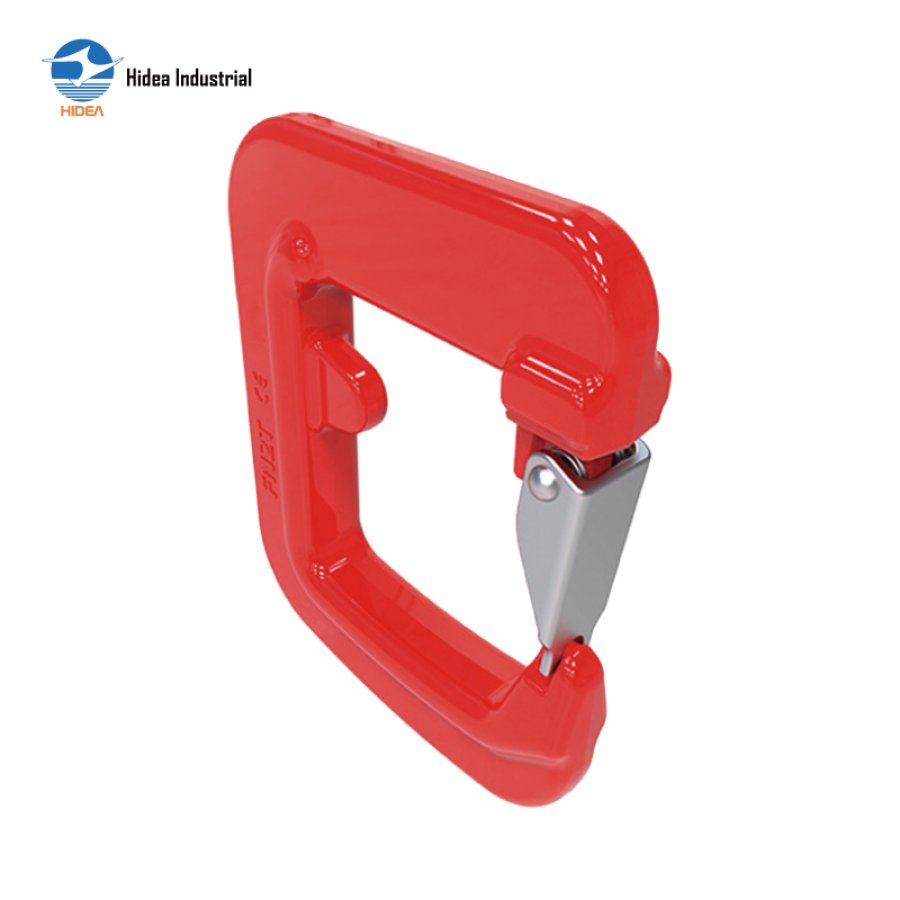

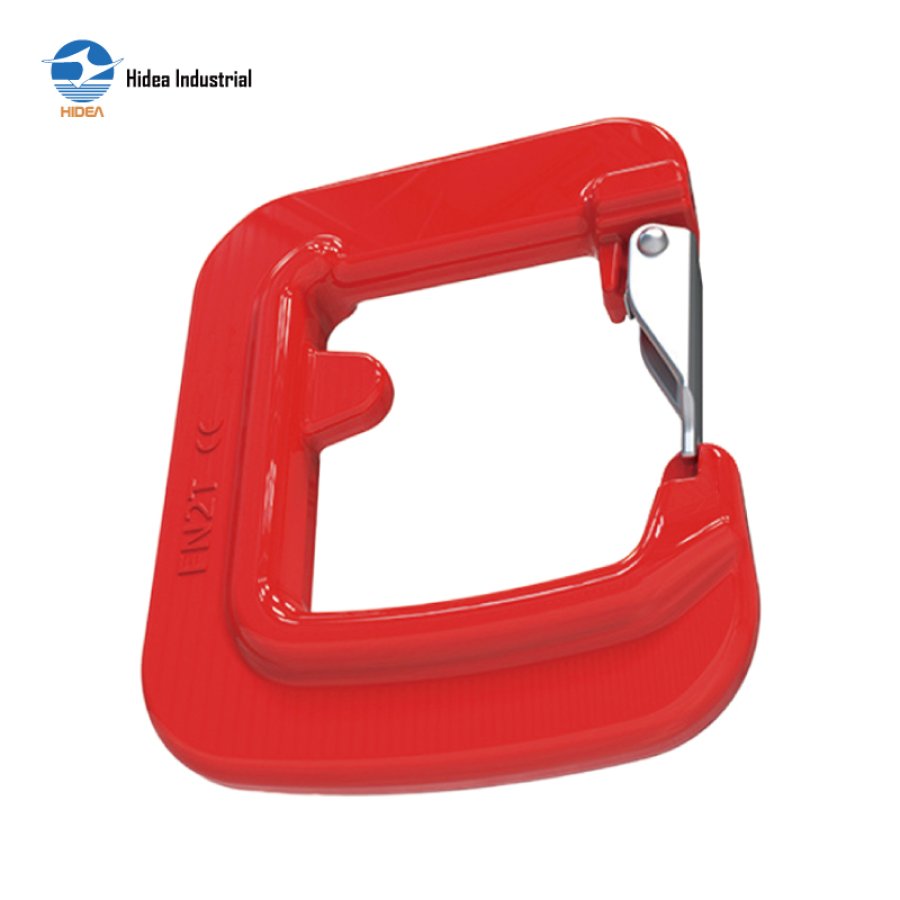

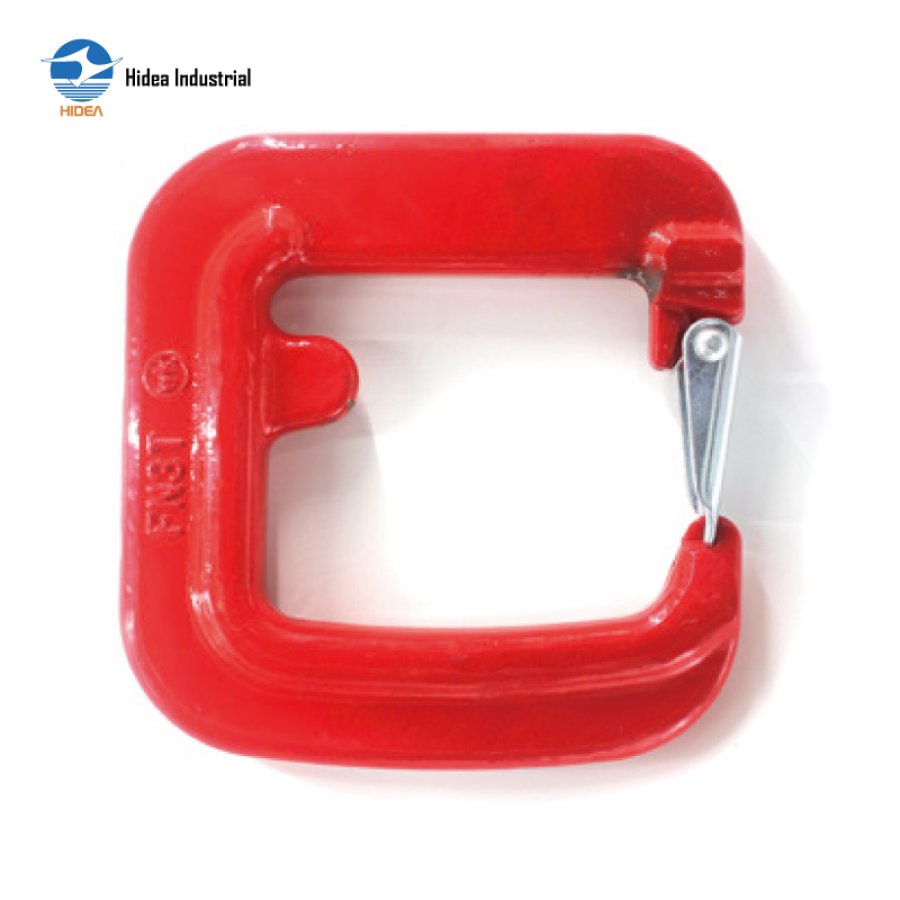

G80 FN TYPE WEBBING HOOK

Forged super alloy steel-Quenched and Tempered
Individually proof test at 2.5 times Working Load Limit
Fatigue tested at 1.5 times Working Load Limit for 20000 cycles
Breakage test
100% magnaflux crack detection

Inquire Now

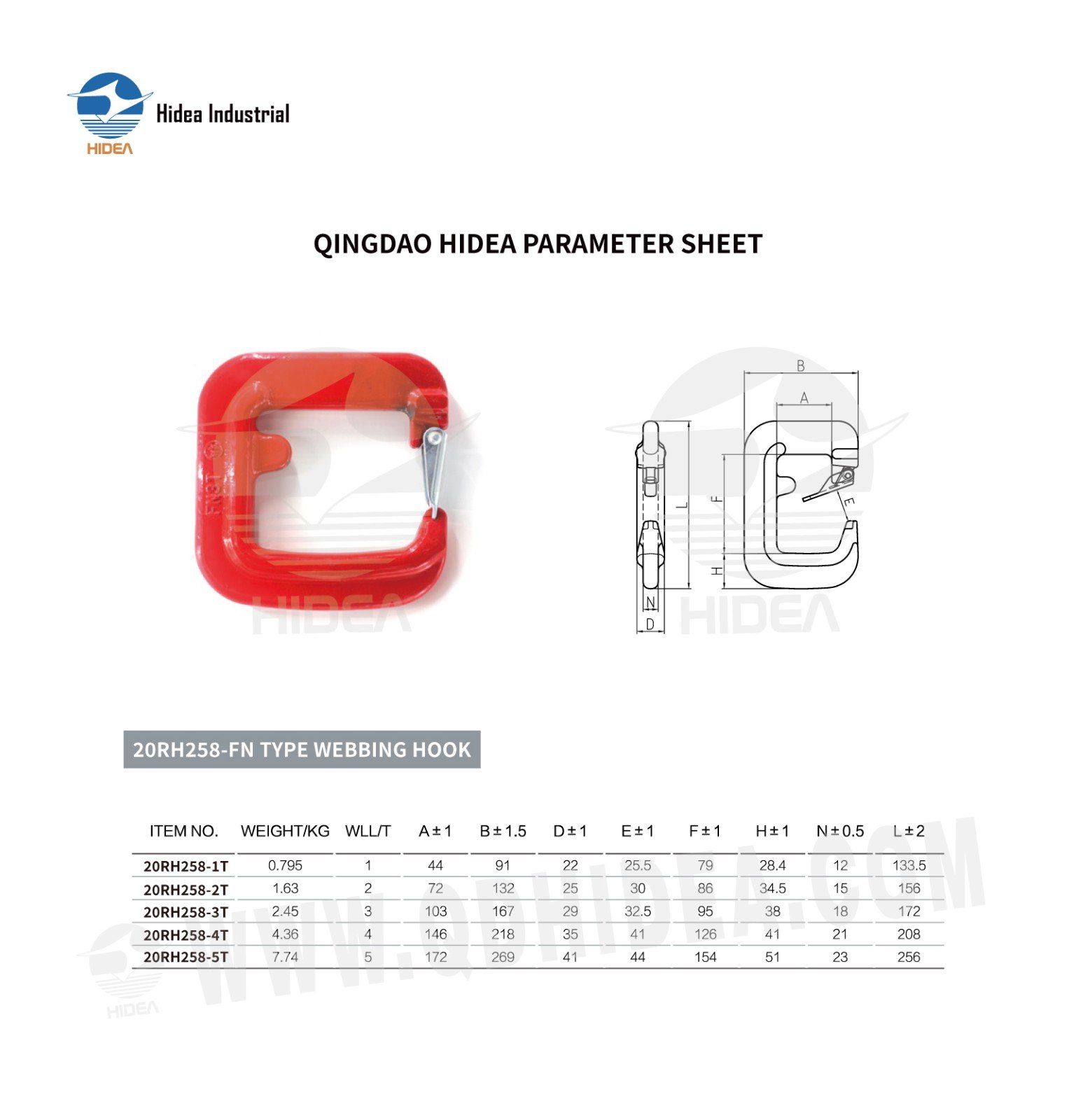

QINGDAO HIDEA PARAMETER SHEET FOR

20RH258-FN TYPE WEBBING HOOK

ITEM NO.	WEIGHT/KG	WLL/T	A±1	B±1.5	D±1	E±1	F±1	H±1	N±0.5	L±2
20RH258-1T	0.795	1	44	91	22	25.5	79	28.4	12	133.5
20RH258-2T	1.63	2	72	132	25	30	86	34.5	15	156
20RH258-3T	2.45	3	103	167	29	32.5	95	38	18	172
20RH258-4T	4.36	4	146	218	35	41	126	41	21	208
20RH258-5T	7.74	5	172	269	41	44	154	51	23	256
