Reliable Hidea G80 Weld-On Pivoting D Link with Pad for Secure Hoisting and Rigging Systems

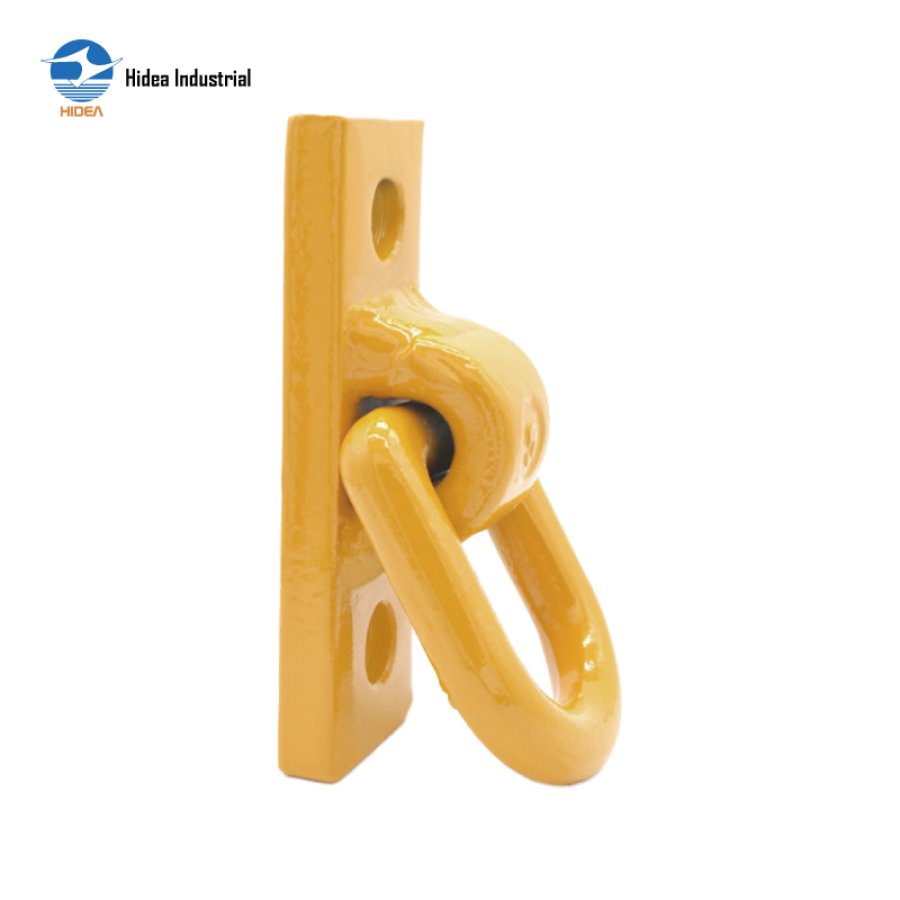

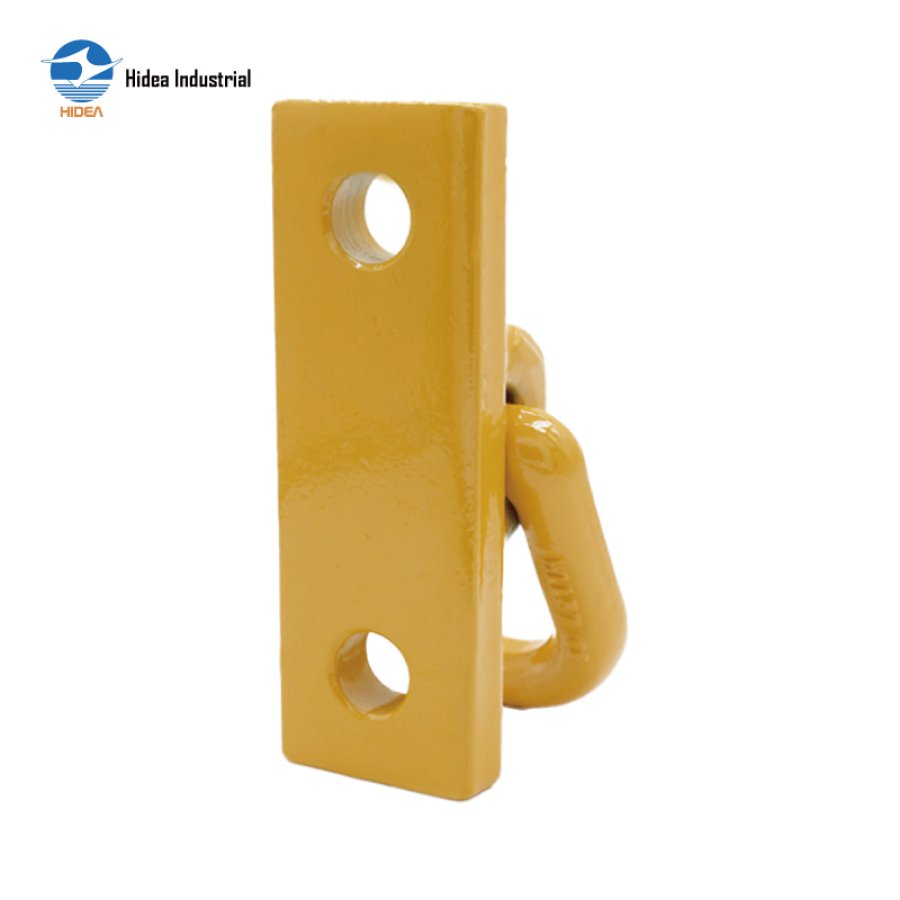

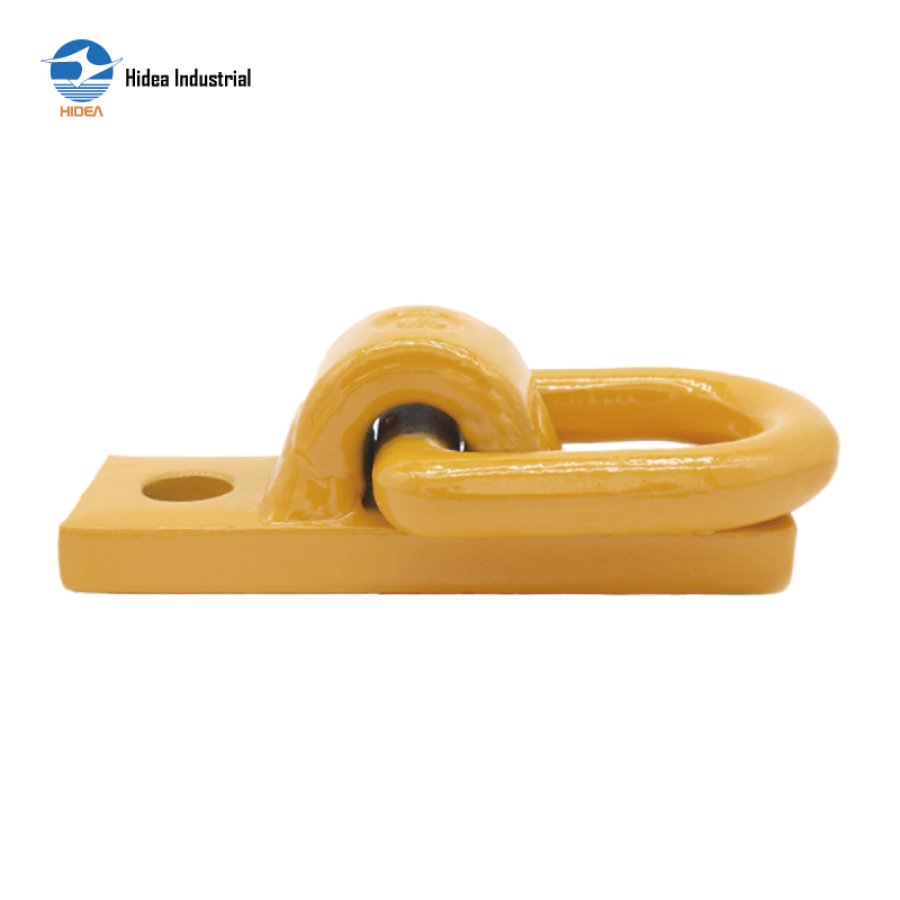

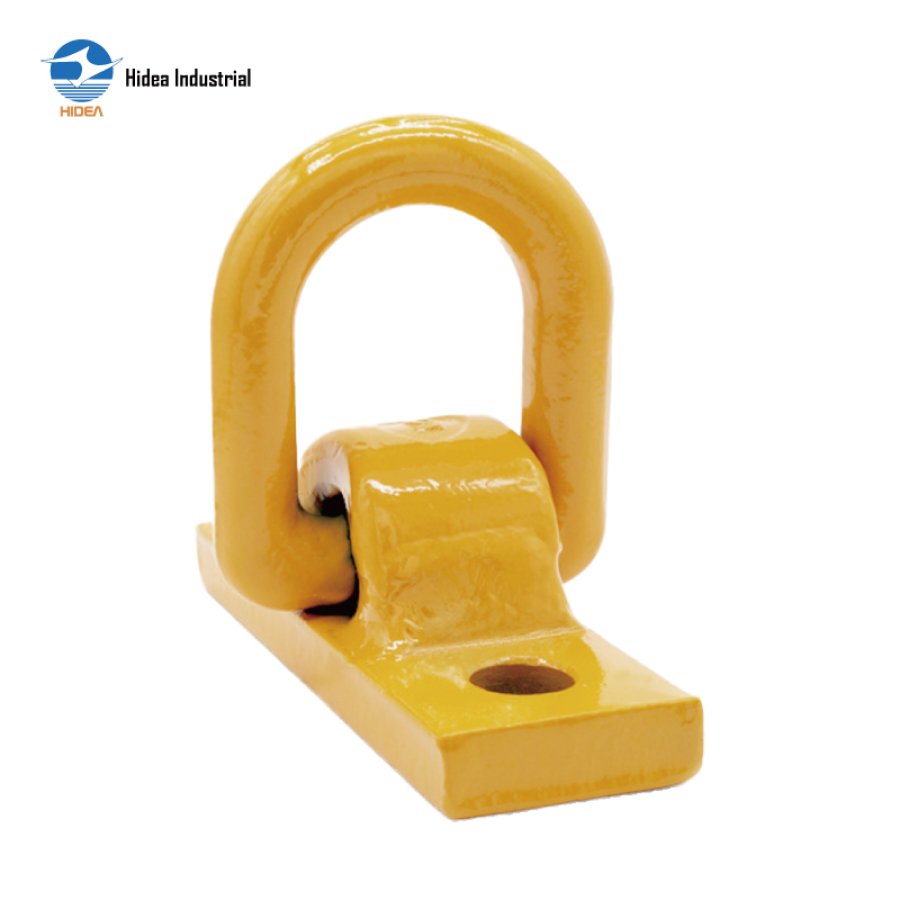

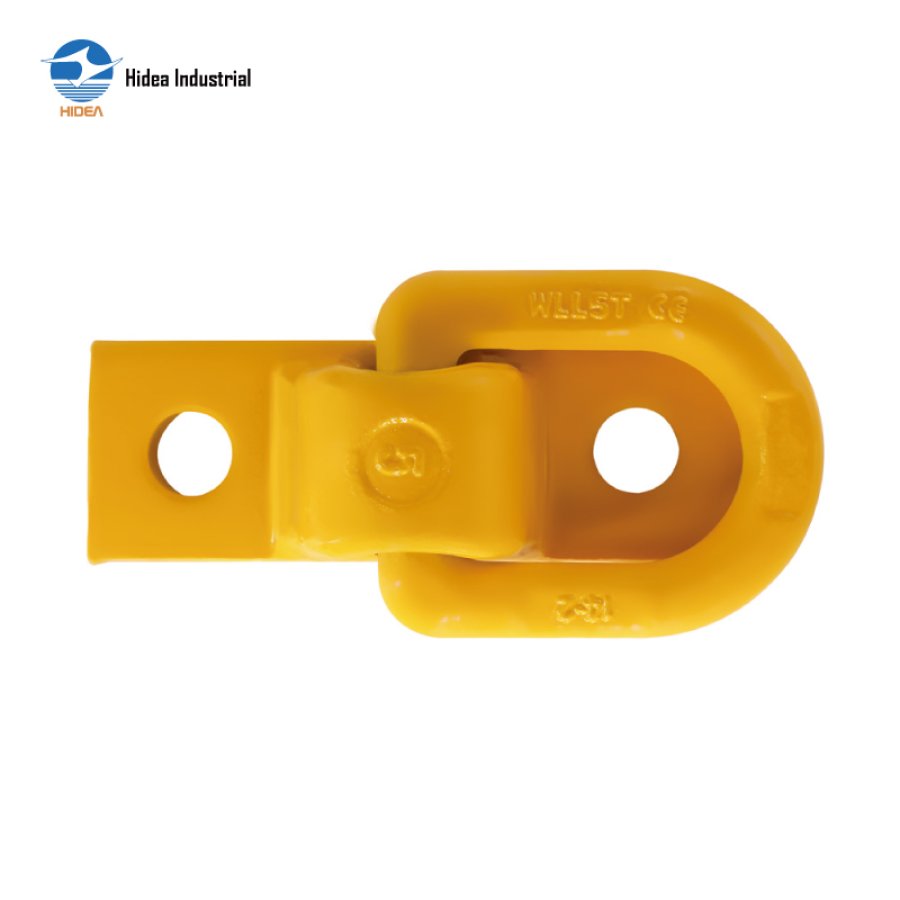

G80 WELD ON PIVOTING D LINK WITH PAD

Forged super alloy steel-Quenched and Tempered
Individually proof test at 2.5 times Working Load Limit
Fatigue tested at 1.5 times Working Load Limit for 20000 cycles
Breakage test
100% magnaflux crack detection
Surface finish: powder plastifed
Colour code: Red RAL3020/Yellow RAL1003

Inquire Now

QINGDAO HIDEA PARAMETER SHEET FOR

20RH055-G80 WELD ON PIVOTINGD LINK WITH PAD

ITEM NO.	WEIGHT (kg)	WLL (T)	B.L (T)	A±0.5	B	D±1	M±0.2	L±2
20RH055-1T	1.09	1	4	78	40	12	12.5	155
20RH055-2T	1.24	2	8	80.5	40	14	14.5	155
20RH055-3T	1.56	3	12	94	46.5	16	16.5	155
20RH055-5T	2.59	5	20	118	60	20	22.5	180
20RH055-8T	4.92	8	32	141	70.5	26	26.5	220
