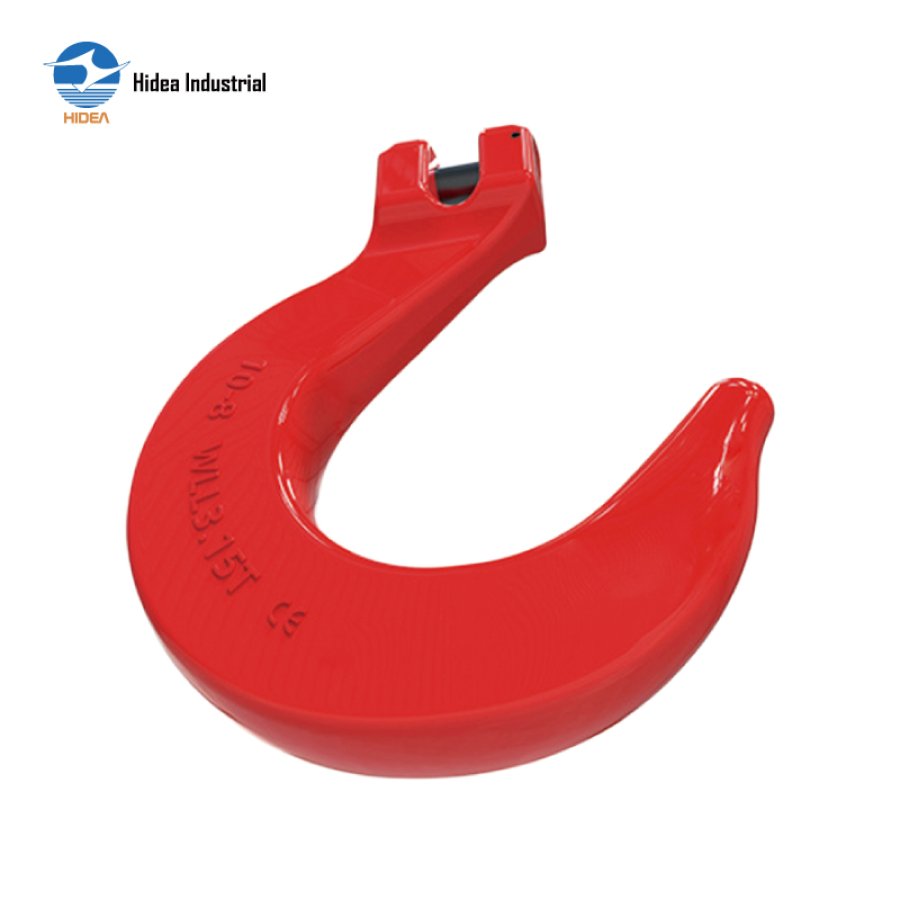

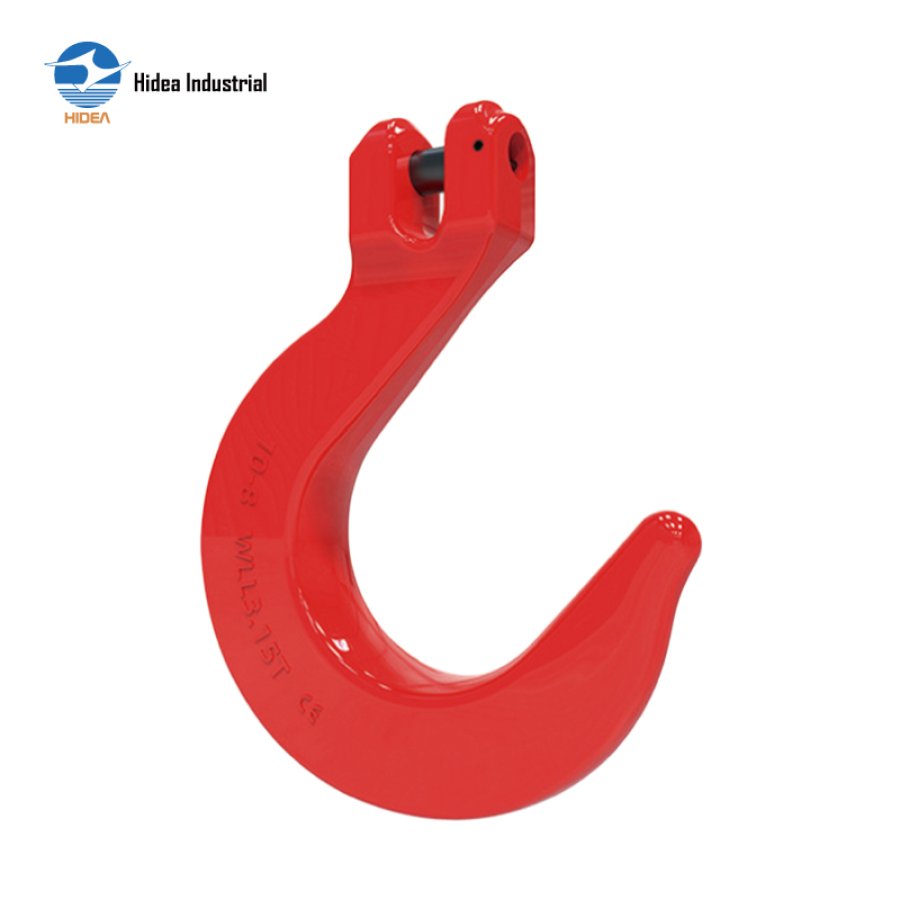

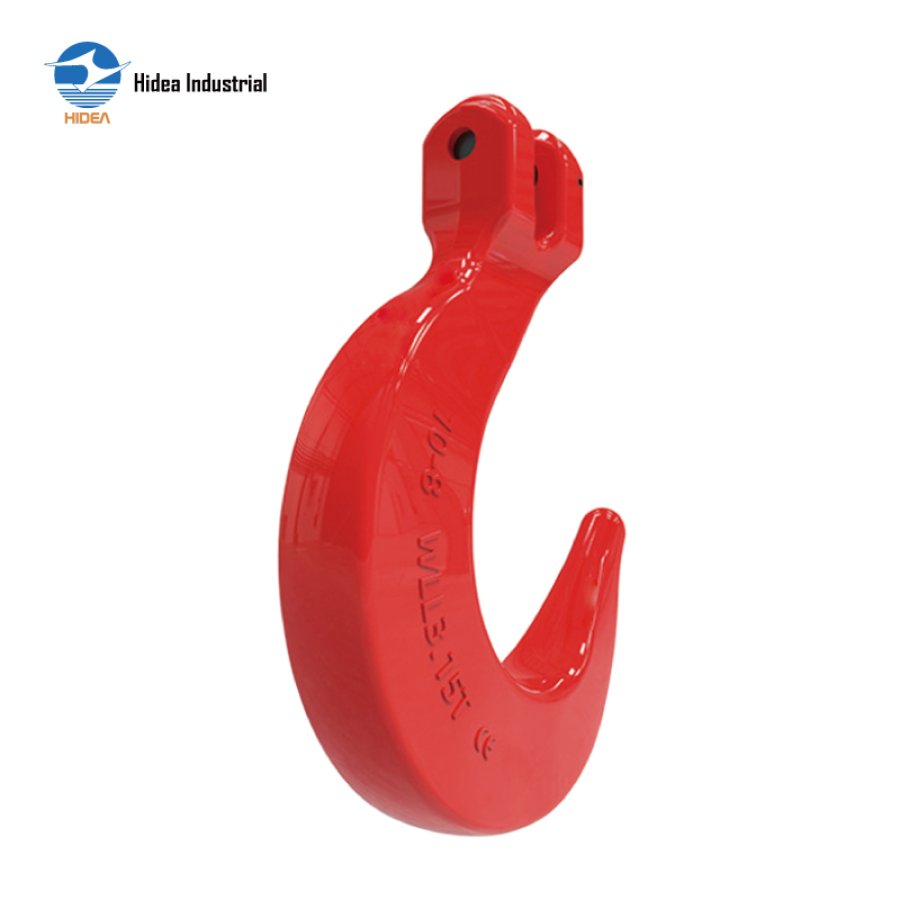

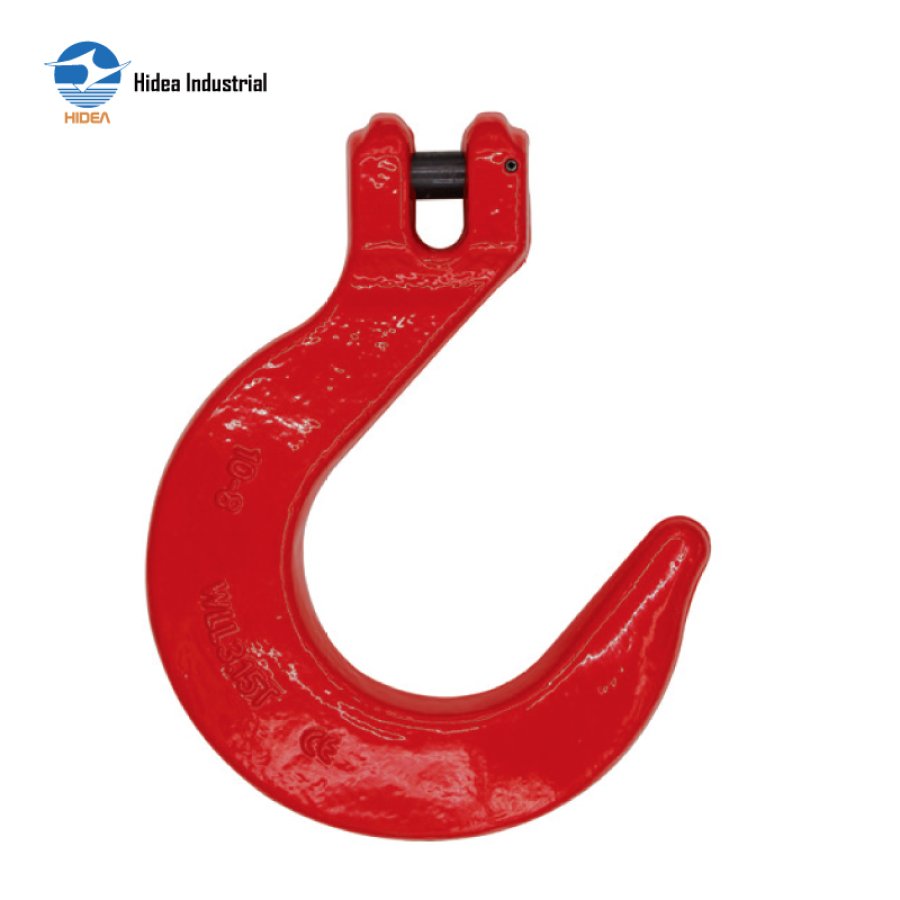

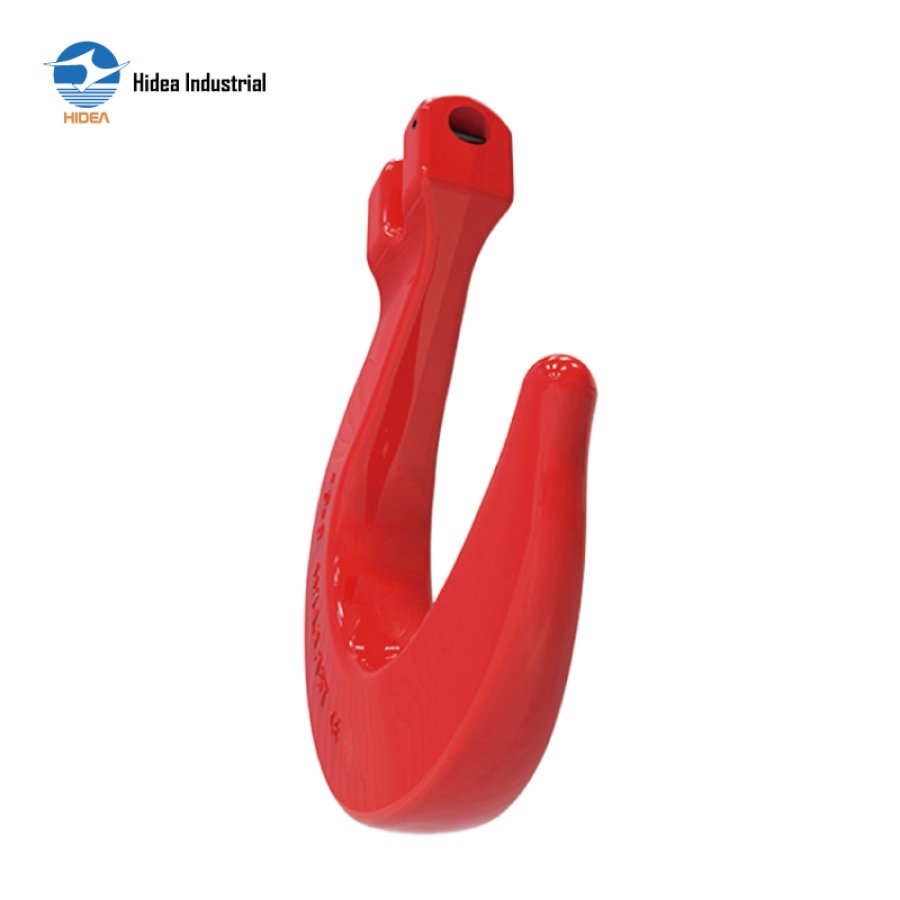

Durable Hidea G80 Clevis Foundry Hook for Heavy-Duty Applications

G80 CLEVIS FOUNDRY HOOK

Forged super alloy steel-Quenched and Tempered
Suitable for EN818-2 G80 chain
100% magnaflux crack detection
All load pins are 100% individually inspected and tested
Surface finish: Powder plastified
Colour code: Red RAL3020/Yellow RAL1003

Inquire Now

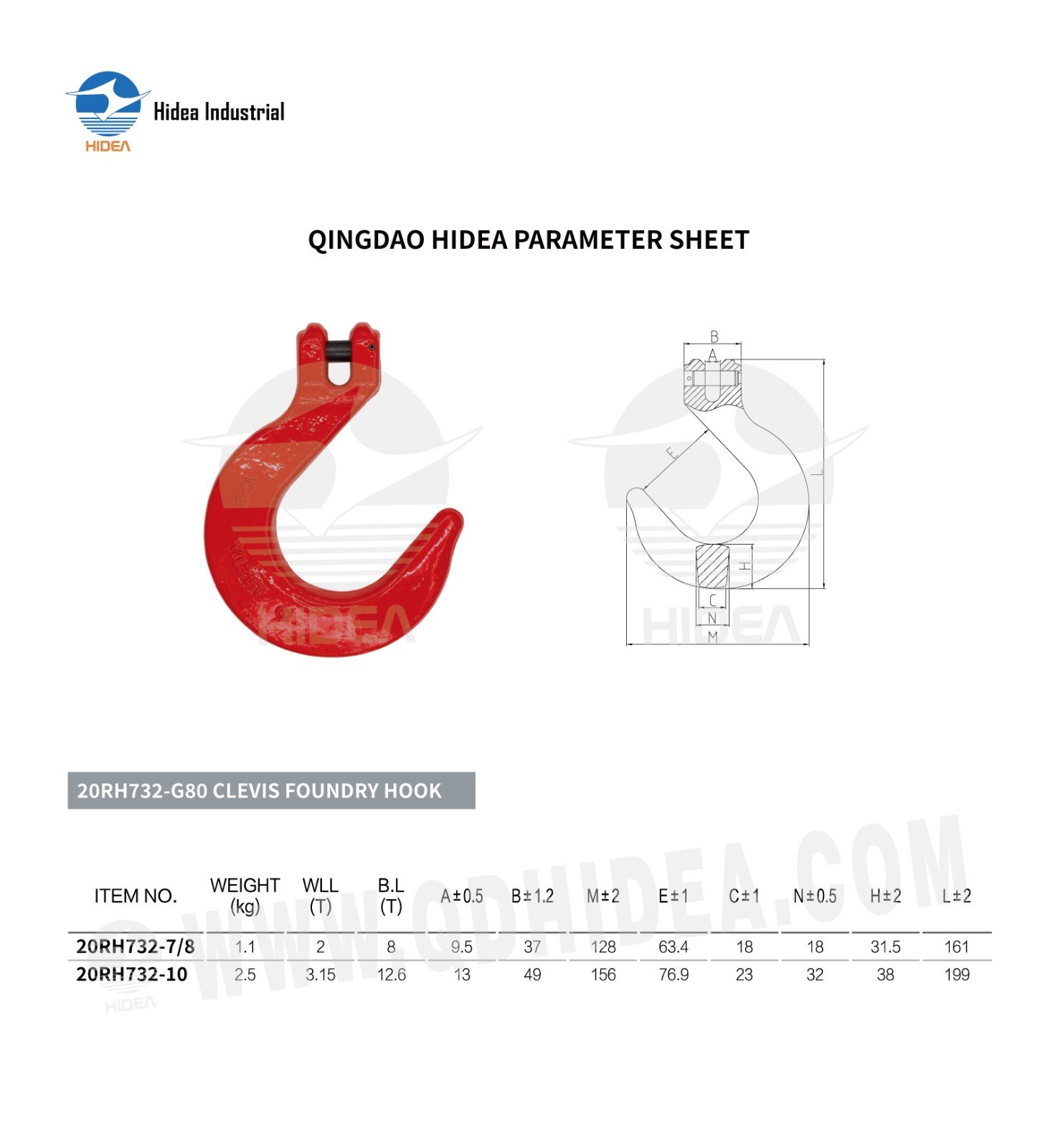

QINGDAO HIDEA PARAMETER SHEET FOR

20RH732-G80 CLEVIS FOUNDRY HOOK

ITEM NO.

WEIGHT (kg)

WLL (T)

B.L

A±0.5

B±1.2

M±2

E±1

C±1

N±0.5

H±2

L±2

(T)

20RH732-7/8

1.1

2

8

9.5

37

128

63.4

18

18

31.5

161

20RH732-10

2.5

3.15

12.6

13

49

156

76.9

23

32

38

199
