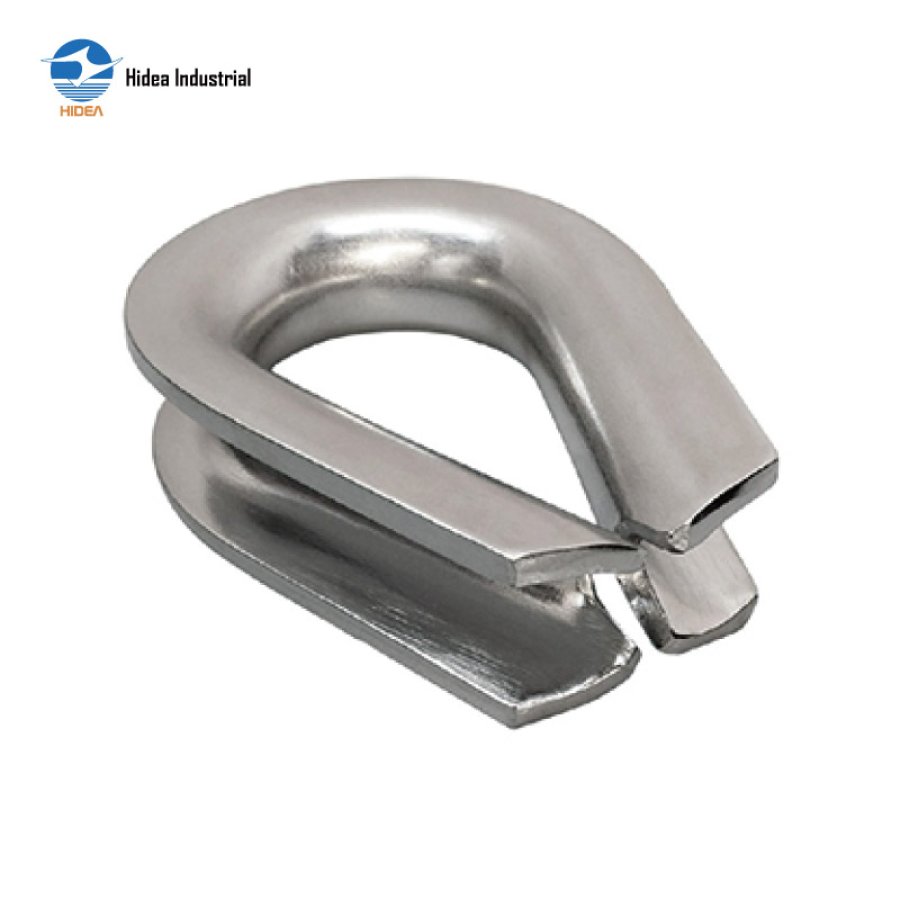

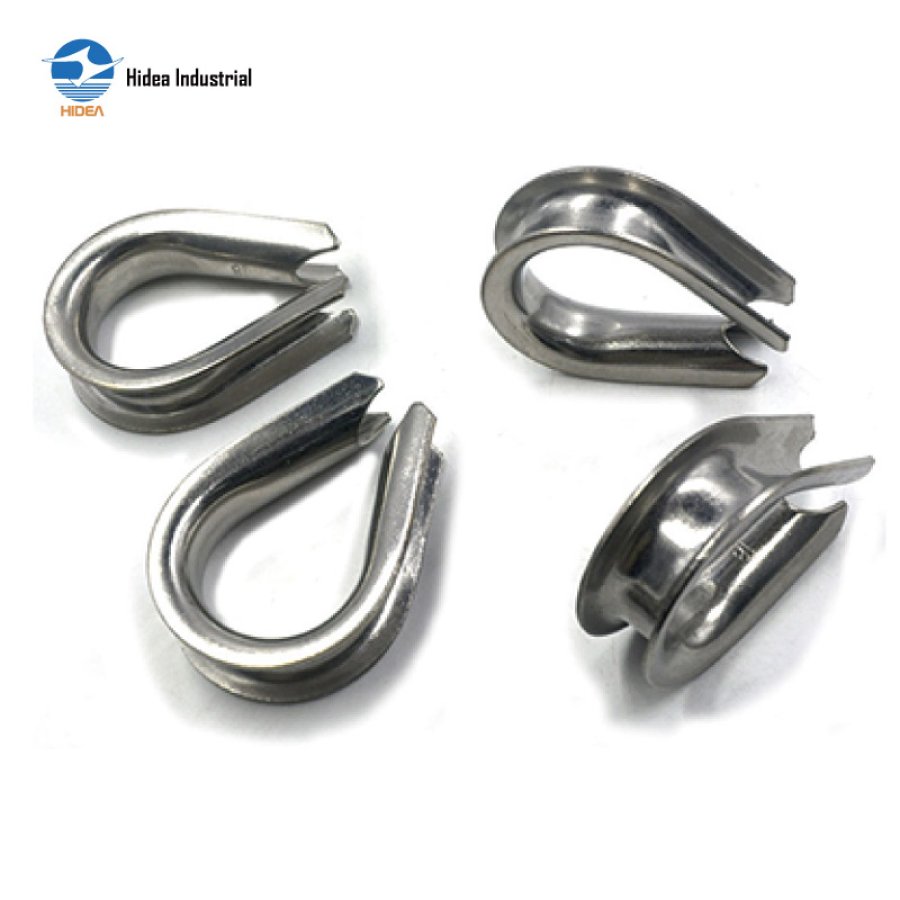

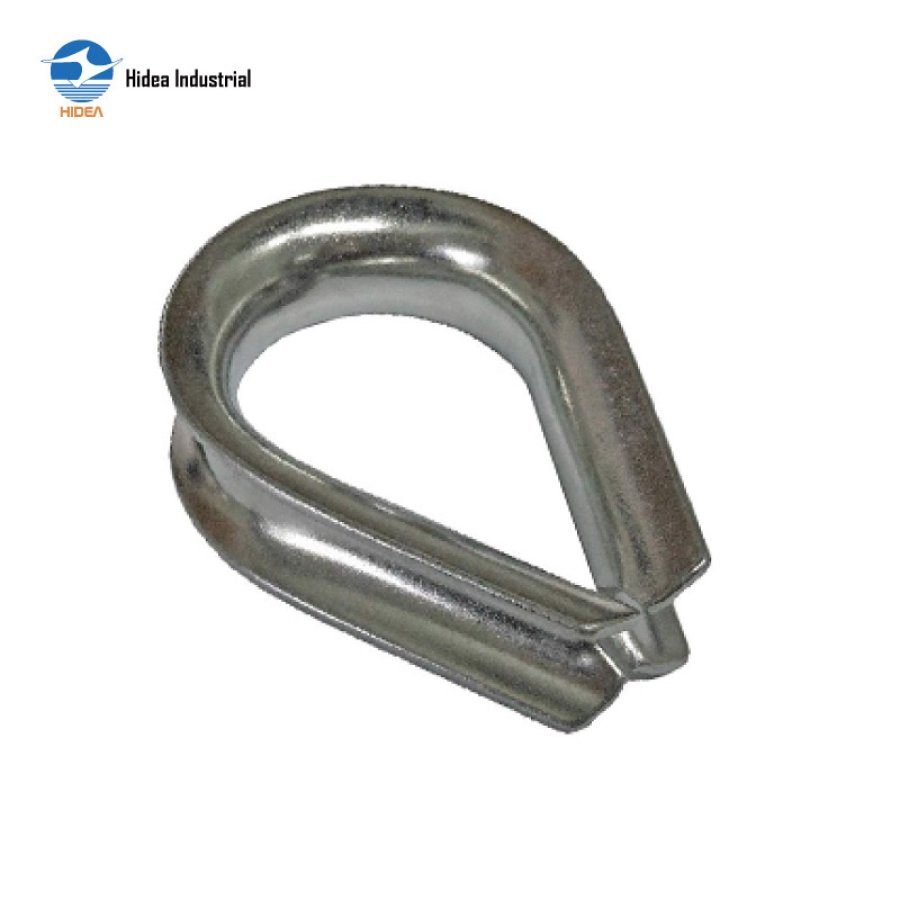

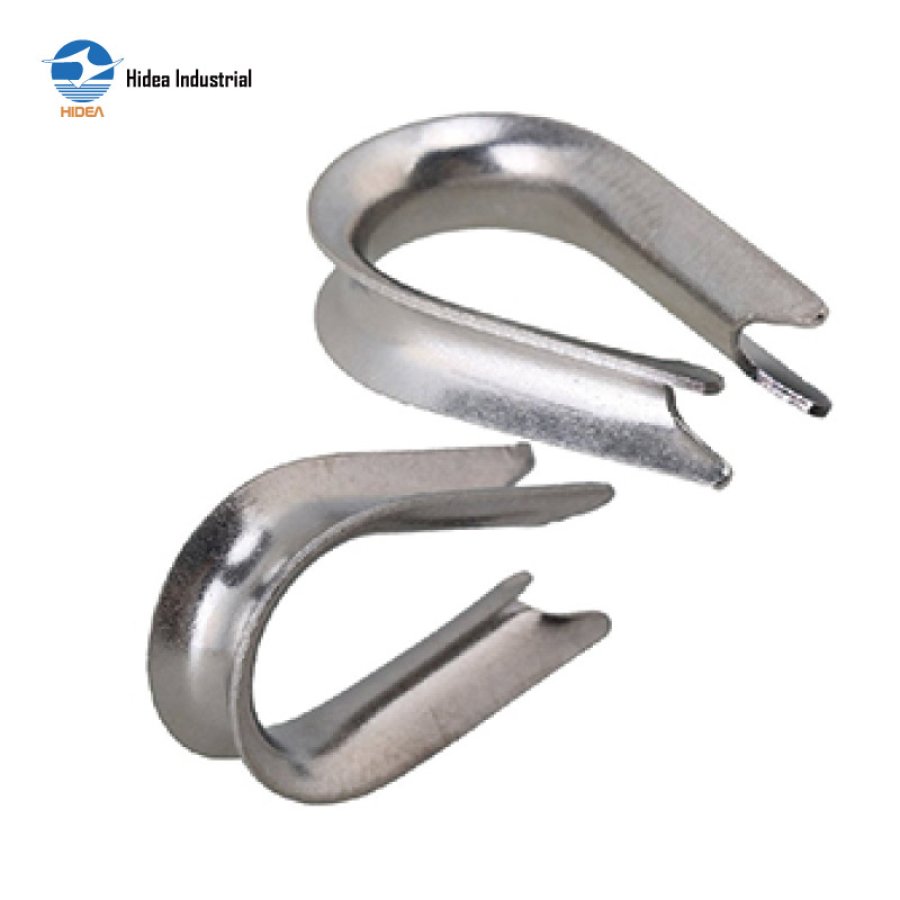

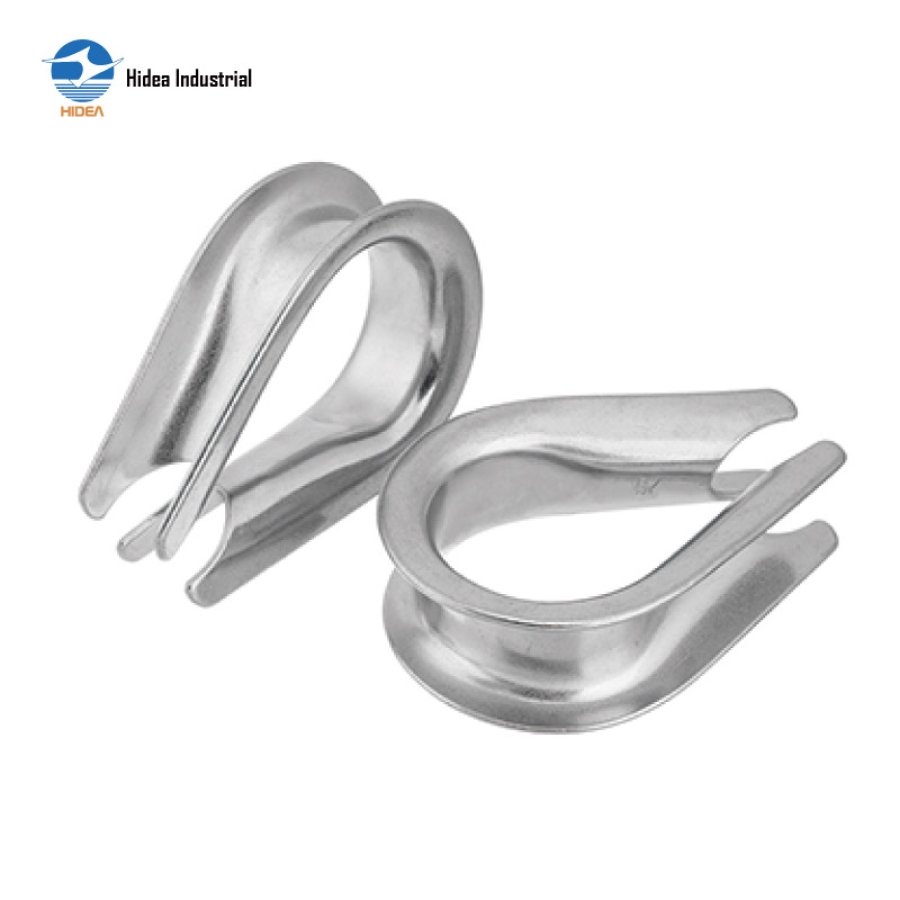

Top-Grade Stainless Steel European Type Thimble for Wire Rope Protection

EU TYPE THIMBLE

Technical Data: Investment Casting/Forged
Material: AISI 304/INOX A2, AISI 316/INOX A4
Surface Treatment: Electro Polished/Passivated

Inquire Now

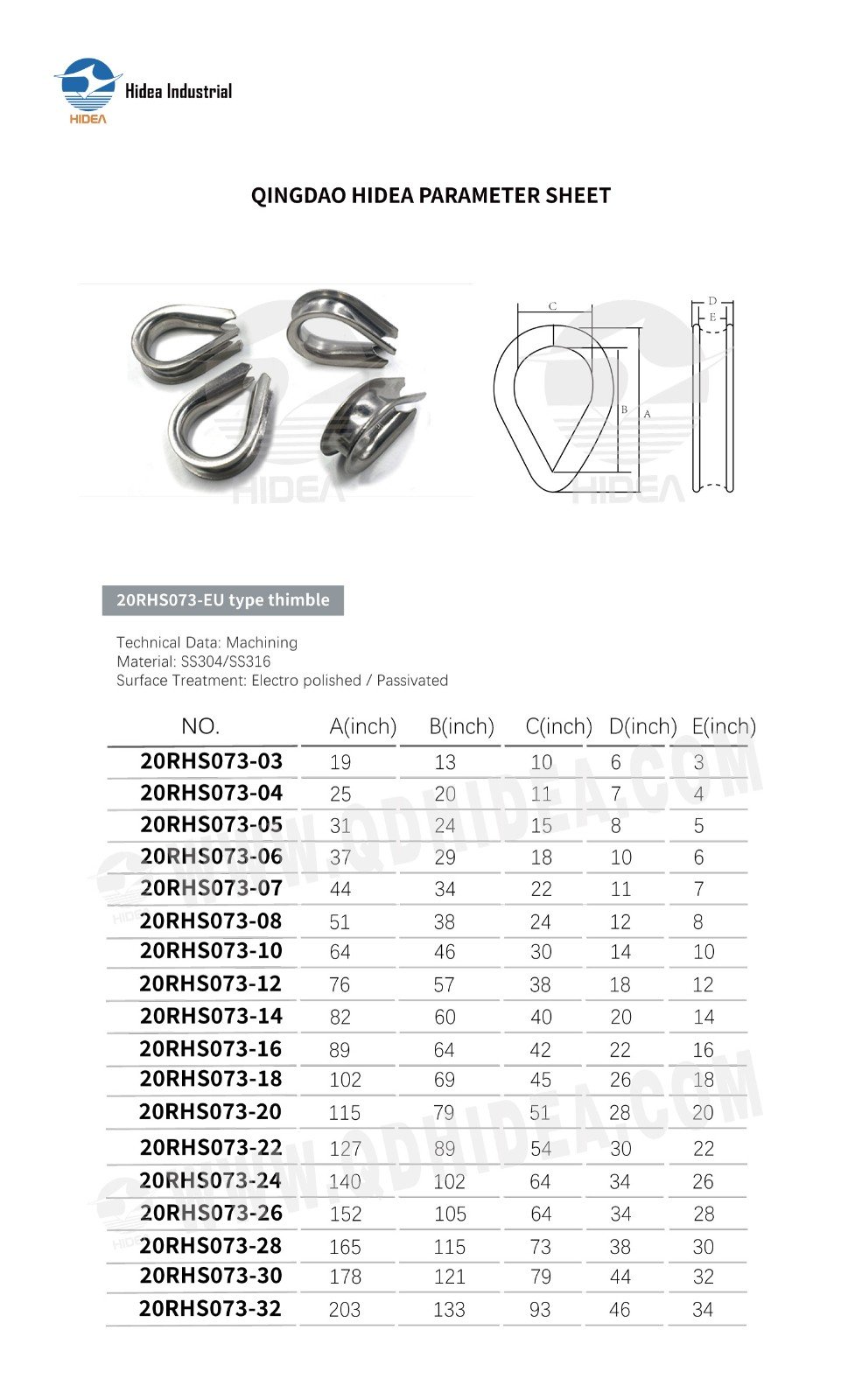

QINGDAO HIDEA PARAMETER SHEET FOR

20RHS073-EU type thimble

NO.	A(inch)	B(inch)	C(inch)	D(inch)	E(inch)
20RHS073-03	19	13	10	6	3
20RHS073-04	25	20	11	7	4
20RHS073-05	31	24	15	8	5
20RHS073-06	37	29	18	10	6
20RHS073-07	44	34	22	11	7
20RHS073-08	51	38	24	12	8
20RHS073-10	64	46	30	14	10
20RHS073-12	76	57	38	18	12
20RHS073-14	82	60	40	20	14
20RHS073-16	89	64	42	22	16
20RHS073-18	102	69	45	26	18
20RHS073-20	115	79	51	28	20
20RHS073-22	127	89	54	30	22
20RHS073-24	140	102	64	34	26
20RHS073-26	152	105	64	34	28
20RHS073-28	165	115	73	38	30
20RHS073-30	178	121	79	44	32
20RHS073-32	203	133	93	46	34
