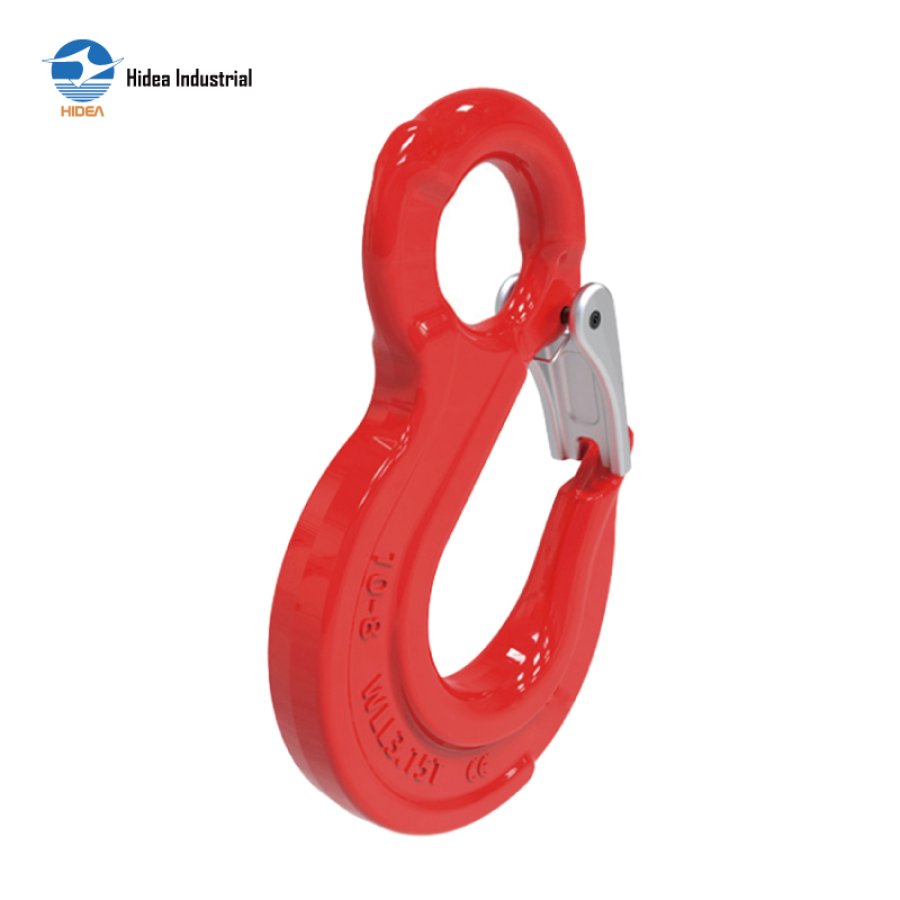

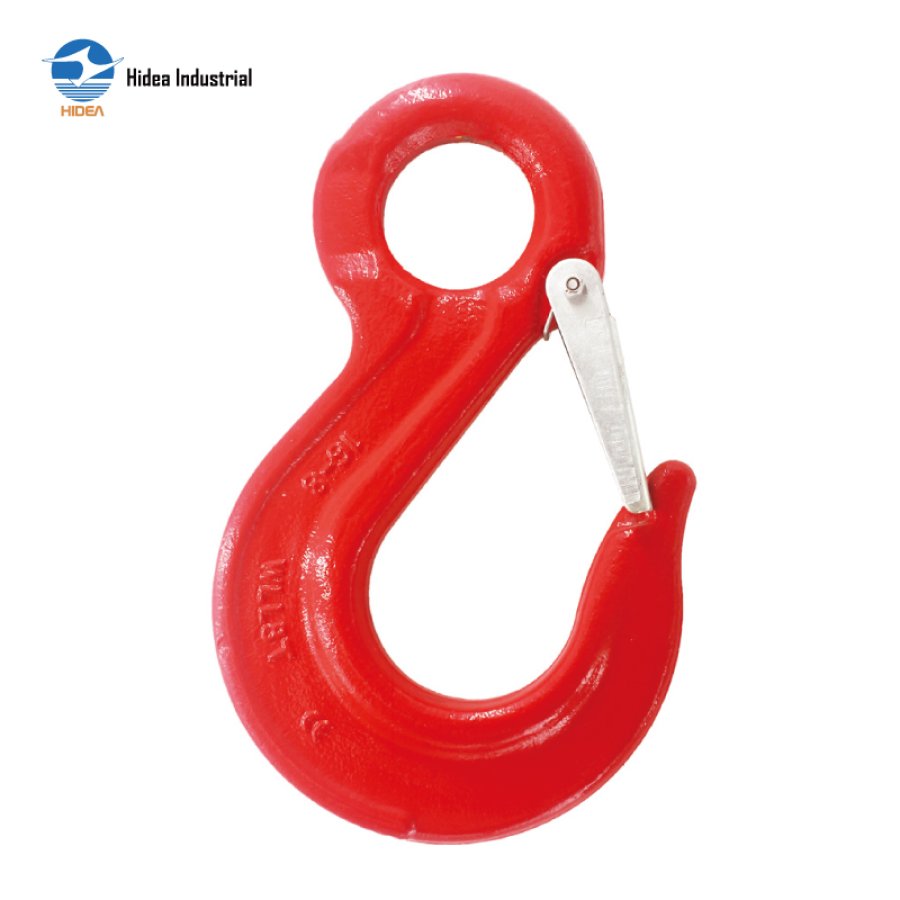

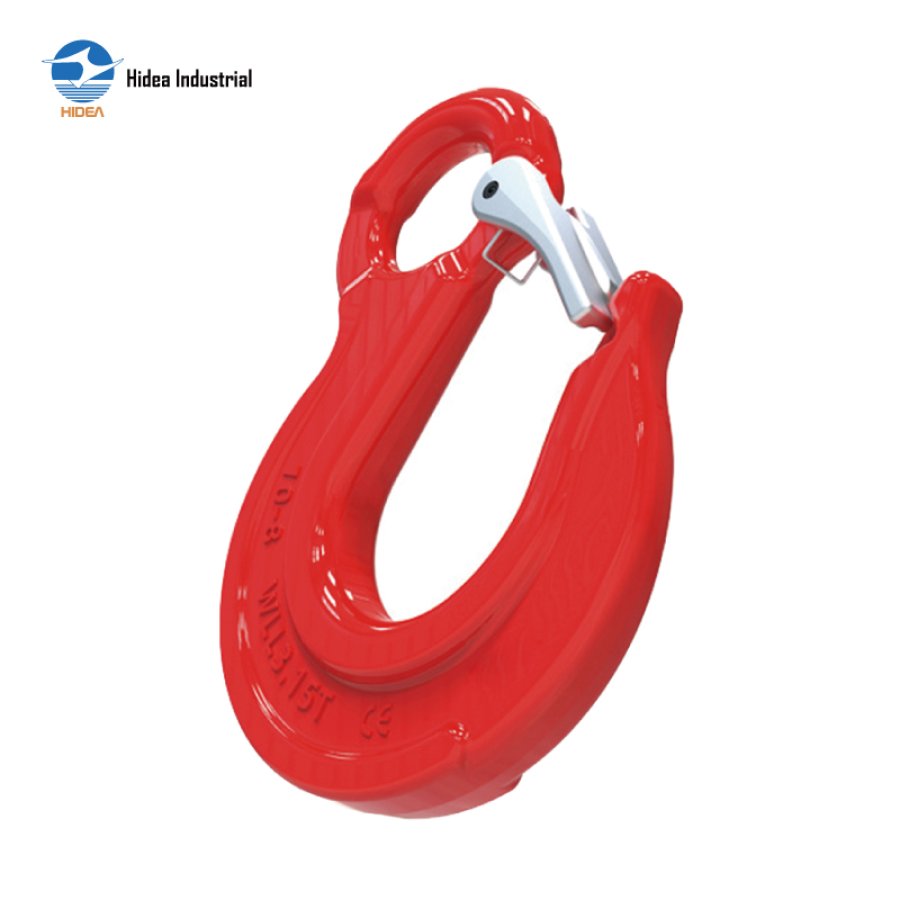

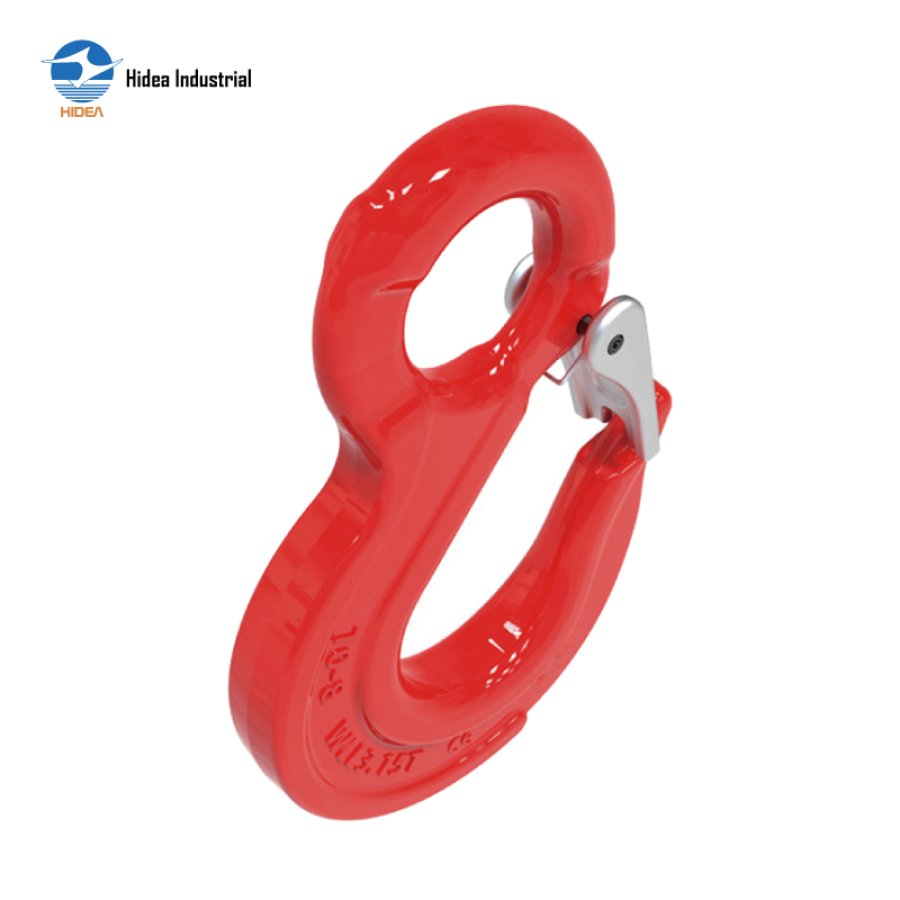

Durable Hidea Grade 80 Eye Sling Hook with Latch for Rigging & Hoisting

G80 EUROPEAN TYPE EYE SLING HOOK WITH LATCH

Forged super alloy steel-Quenched and Tempered
Suitable for EN818-2 G80 chain
Individually proof test at 2.5 times Working Load Limit
Fatigue tested at 1.5 times Working Load Limit for 20000 cycles
Breakage test
100% magnaflux crack detection
With cast latch
Surface finish: Powder plastified
Colour code: Red RAL3020/Yellow RAL1003

Inquire Now

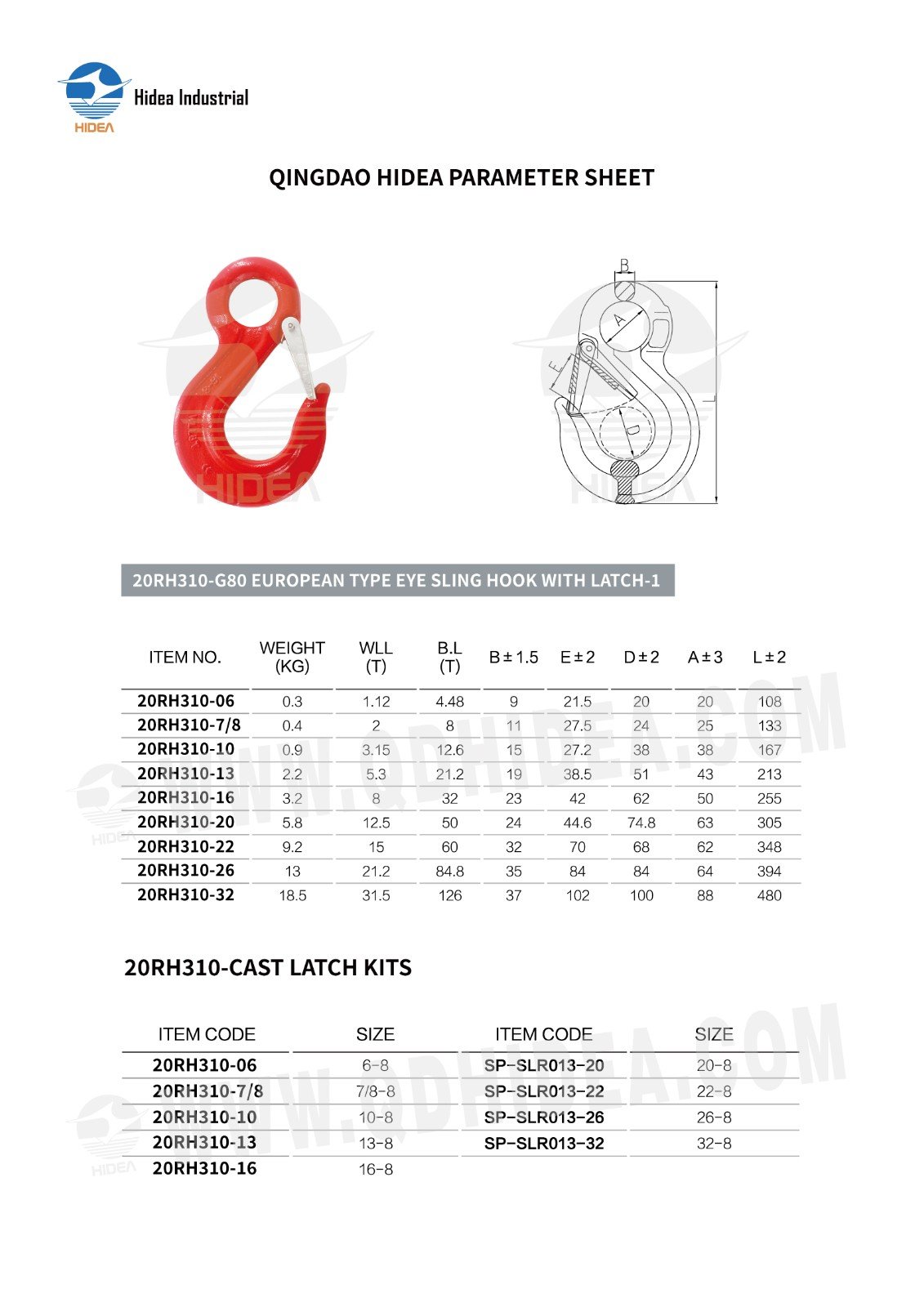

QINGDAO HIDEA PARAMETER SHEET FOR

20RH310-G80 EUROPEAN TYPE EYE SLING HOOK WITH LATCH-1

ITEM NO.	WEIGHT (KG)	WLL (T)	B.L (T)	B±1.5	E±2	D±2	A±3	L±2
20RH310-06	0.3	1.12	4.48	9	21.5	20	20	108
20RH310-7/8	0.4	2	8	11	27.5	24	25	133
20RH310-10	0.9	3.15	12.6	15	27.2	38	38	167
20RH310-13	2.2	5.3	21.2	19	38.5	51	43	213
20RH310-16	3.2	8	32	23	42	62	50	255
20RH310-20	5.8	12.5	50	24	44.6	74.8	63	305
20RH310-22	9.2	15	60	32	70	68	62	348
20RH310-26	13	21.2	84.8	35	84	84	64	394
20RH310-32	18.5	31.5	126	37	102	100	88	480
