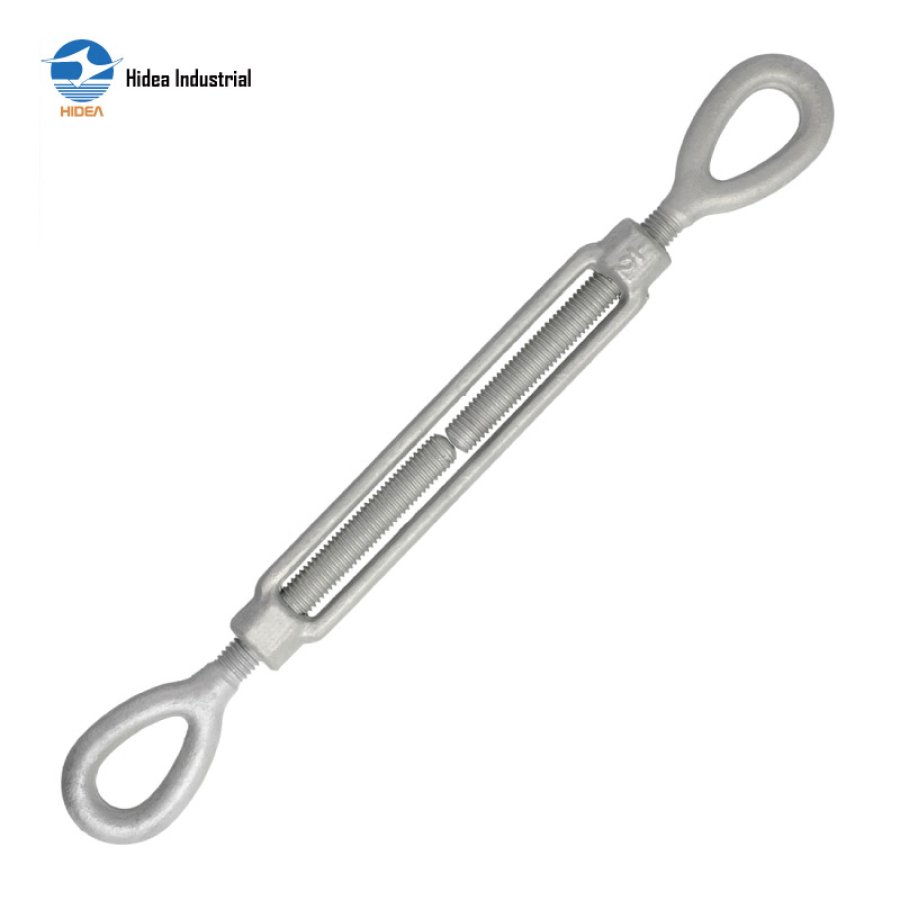

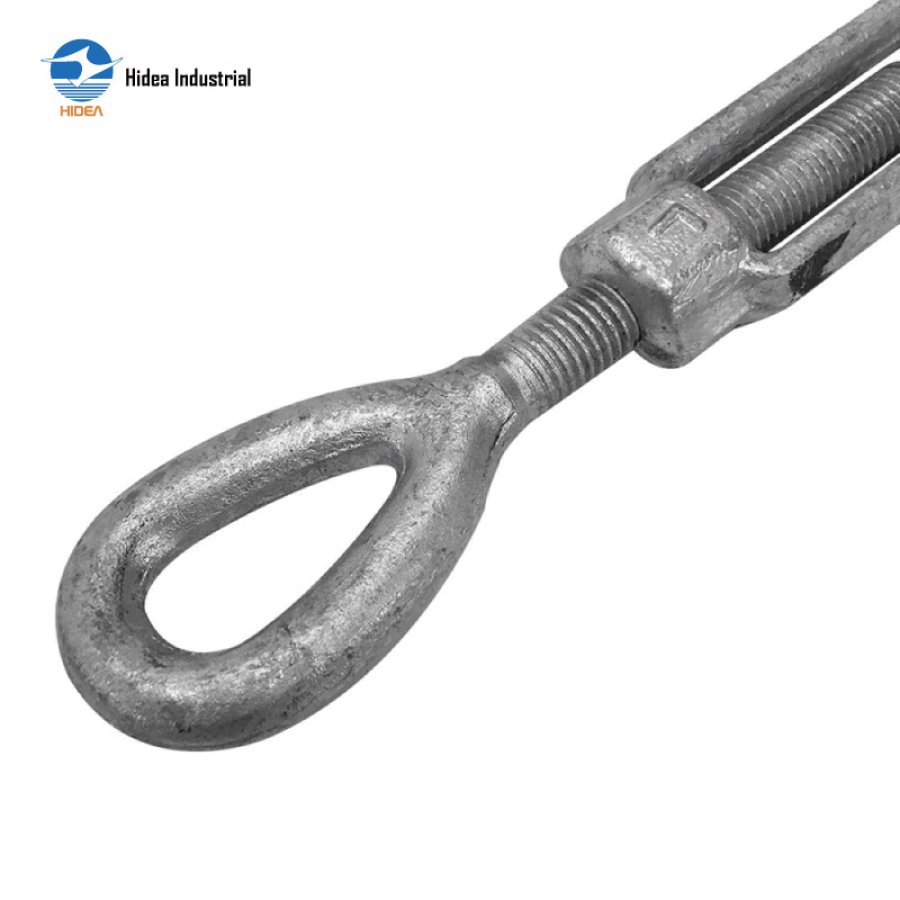

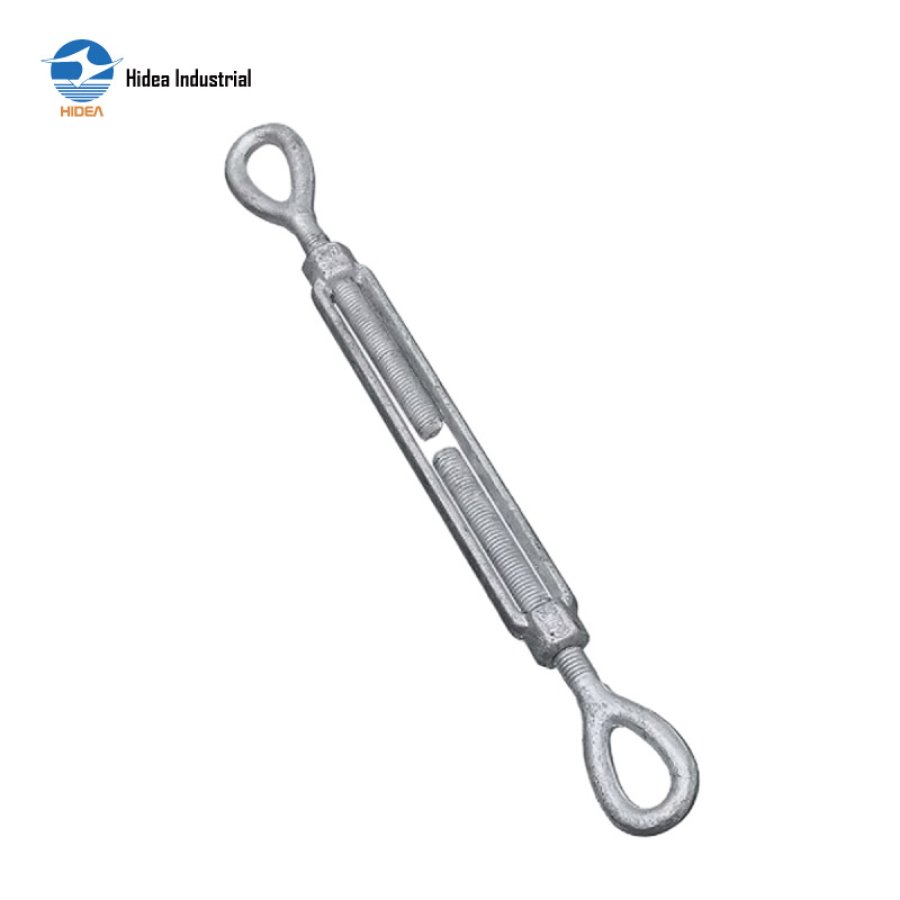

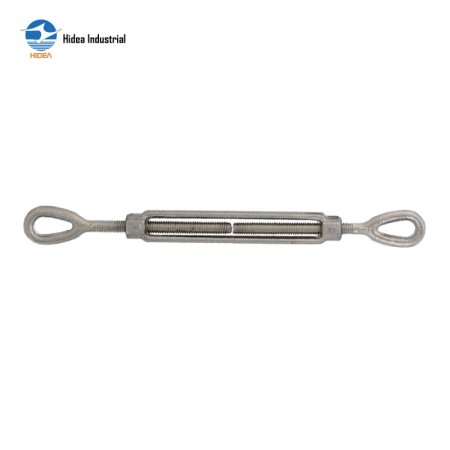

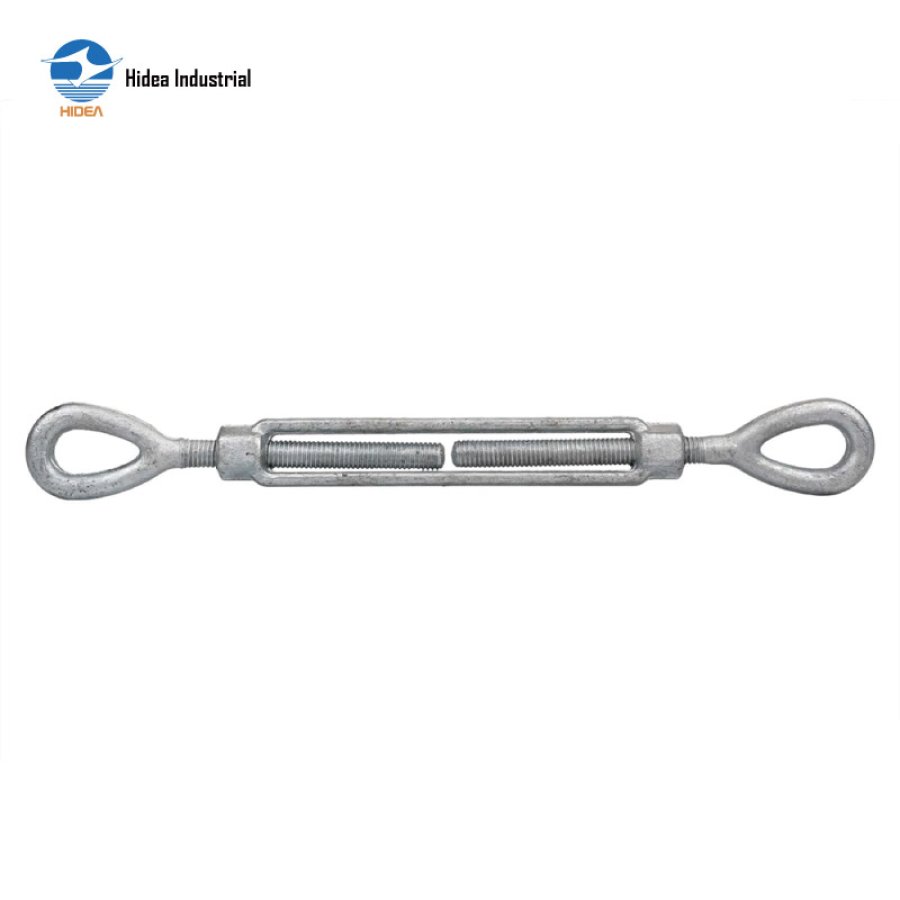

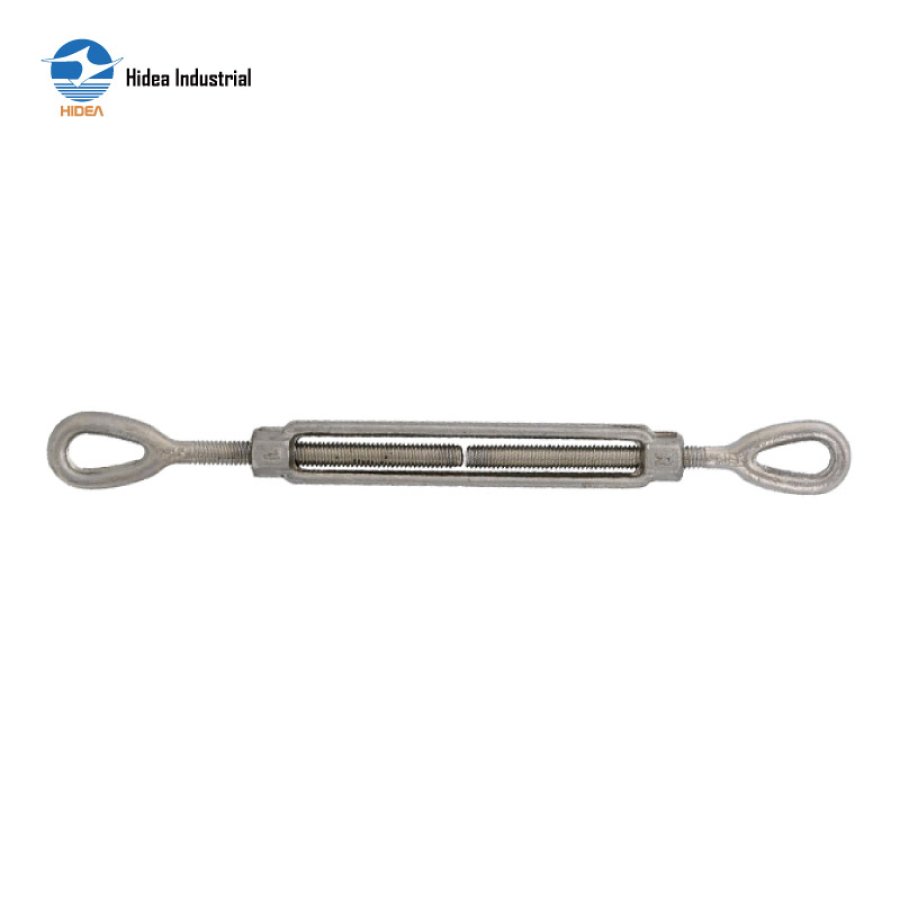

Forged Eye & Eye Stainless Steel Turnbuckle

US TYPE TURNBUCKLE (EYE AND EYE)

Technical Data: Investment Casting/Forged
Material: AISI 304/INOX A2, AISI 316/INOX A4
Surface Treatment: Electro Polished/Passivated

Inquire Now

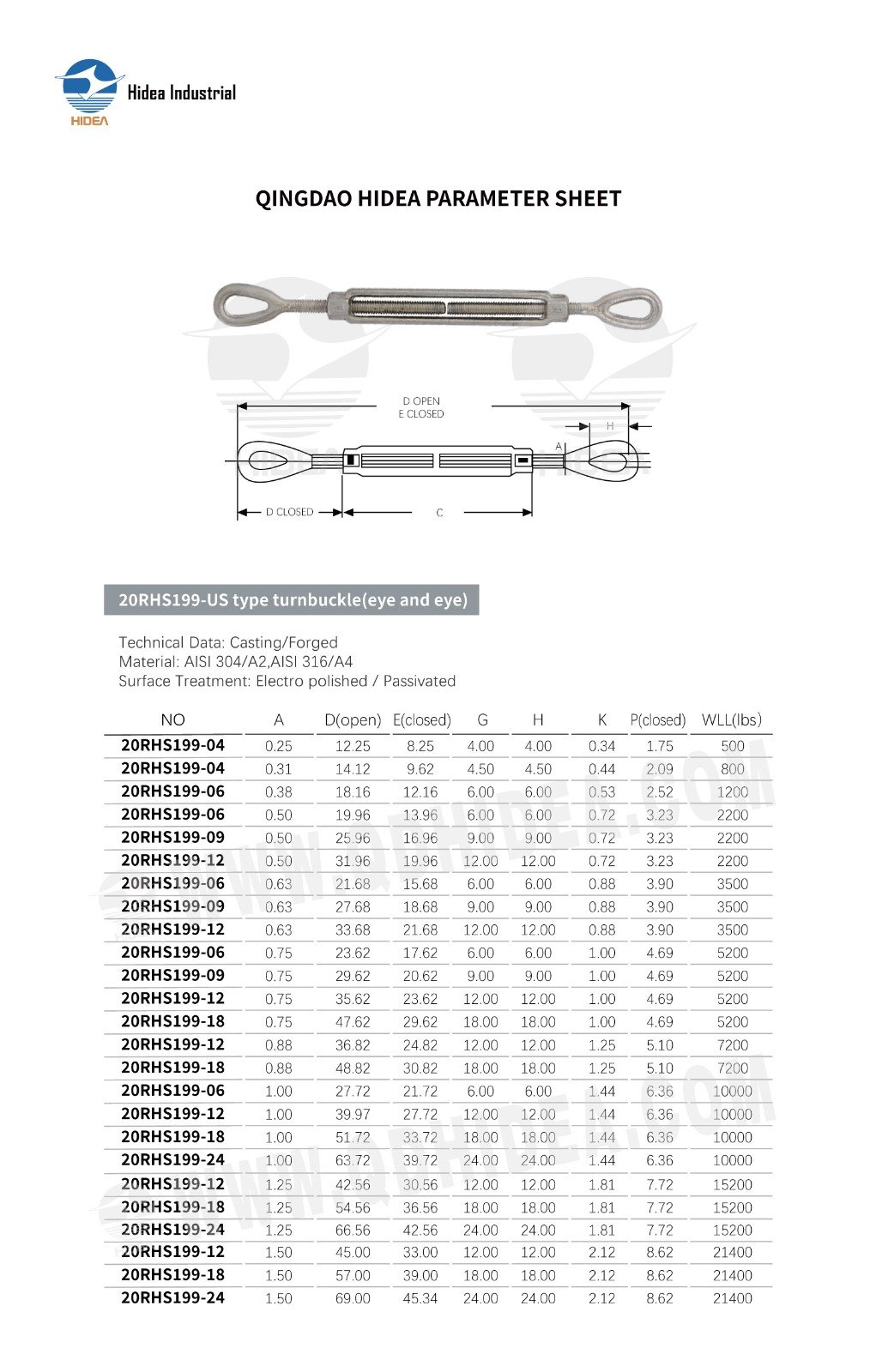

QINGDAO HIDEA PARAMETER SHEET FOR

20RHS199-US type turnbuckle(eye and eye)

NO	A(mm)	D(open)	E(closed)G		H	K	P(closed)WLL(Ibs)
20RHS199-04	0.25	12.25	8.25	4.00	4.00	0.34	1.75	500
20RHS199-04	0.31	14.12	9.62	4.50	4.50	0.44	2.09	800
20RHS199-06	0.38	18.16	12.16	6.00	6.00	0.53	2.52	1200
20RHS199-06	0.50	19.96	13.96	6.00	6.00	0.72	3.23	2200
20RHS199-09	0.50	25.96	16.96	9.00	9.00	0.72	3.23	2200
20RHS199-12	050	31.96	19.96	12.00	12.00	0.72	3.23	2200
20RHS199-06	0.63	21.68	15.68	6.00	6.00	0.88	390	3500
20RHS199-09	0.63	27.68	18.68	9.00	9.00	0.88	3.90	3500
20RHS199-12	0.63	33.68	21.68	12.00	12.00	0.88	3.90	3500
20RHS199-18	0.75	23.62	17.62	6.00	6.00	1.00	4.69	5200
20RHS199-12	0.75	29.62	20.62	9.00	9.00	1.00	4.69	5200
20RHS199-18	0.75	35.62	23.62	12.00	12.00	1.00	4.69	5200
20RHS199-06	0.75	47.62	29.62	18.00	18.00	1.00	4.69	5200
20RHS199-12	0.88	36.82	24.82	916.69	1.75	1.25	5.10	7200
20RHS199-18	0.88	48.82	30.82	1221.5	1.75	1.25	5.10	7200
20RHS199-24	1.00	27.72	21.72	6.00	6.00	1.44	6.36	10000
20RHS199-12	1.00	39.97	27.72	12.00	12.00	1.44	6.36	10000
20RHS199-18	1.00	51.72	33.72	18.00	18.00	1.44	6.36	10000
20RHS199-24	100	63.72	39.72	24.00	24.00	1.44	6.36	10000
20RHS199-12	1.25	42.56	30.56	12.00	12.00	1.81	7.72	15200
20RHS199-18	1.25	54.56	36.56	18.00	18.00	1.81	7.72	15200
20RHS199-24	1.25	66.56	42.56	24.00	24.00	1.81	7.72	15200
20RHS199-12	1.50	45.00	33.00	669.04	12.00	2.12	8.62	21400
20RHS199-18	150	57.00	39.00	973.84	18.00	2.12	8.62	21400
20RHS199-24	1.50	69.00	45.34	1278.6	24.00	2.12	8.62	21400
