Hidea DIN 580 Lifting Eye Bolt – Superior Rust and Oxidation Resistance for Marine and Industrial Use

banner

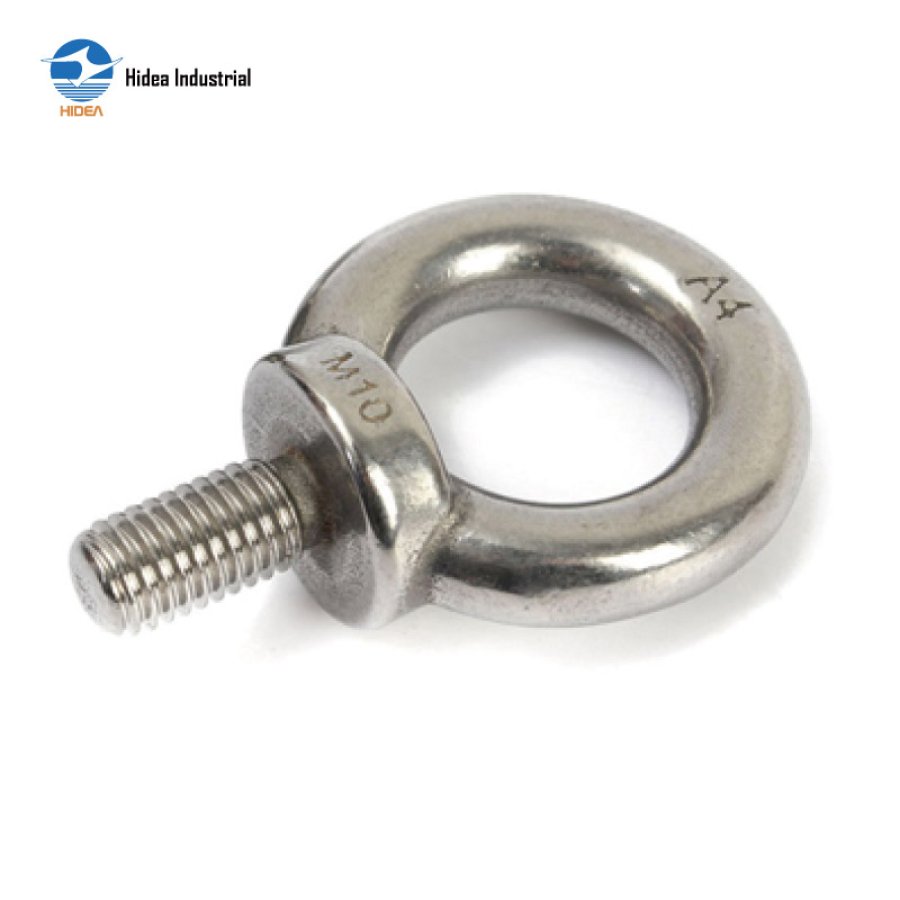

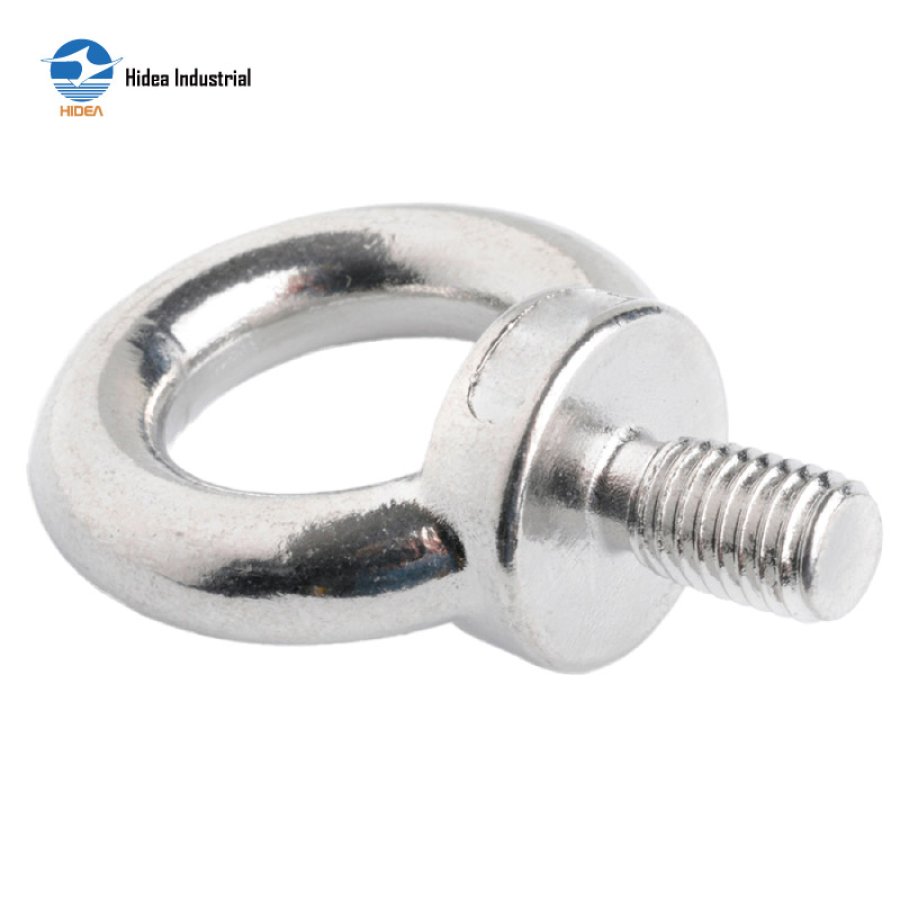

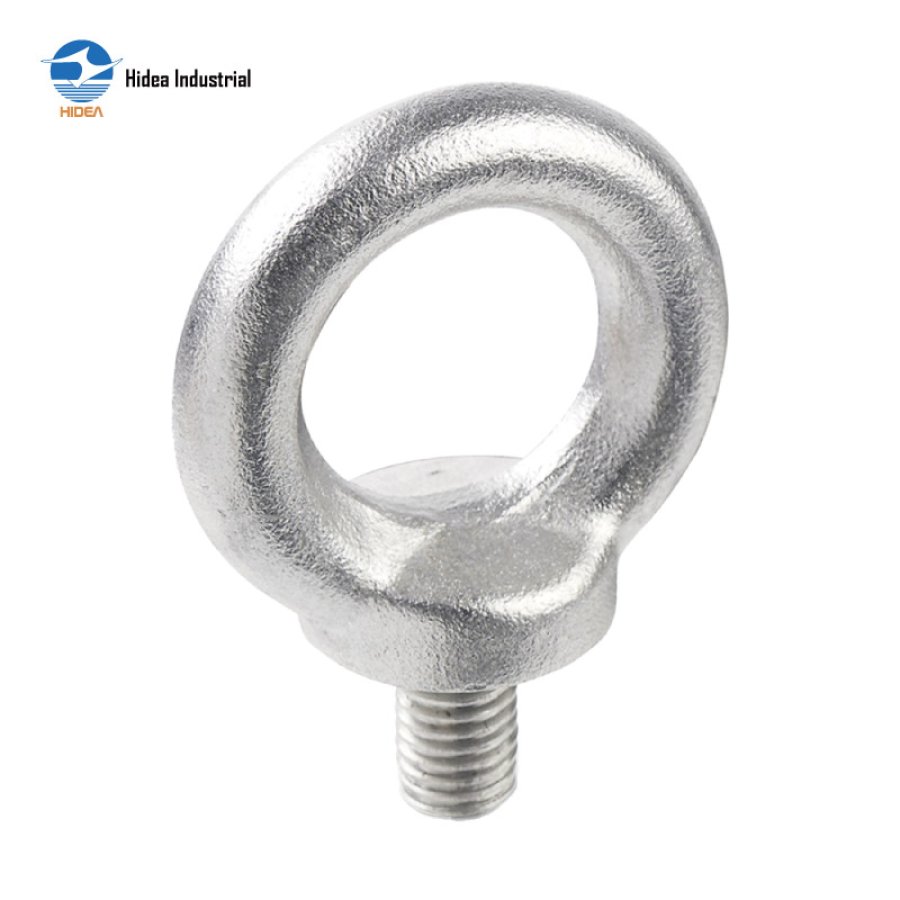

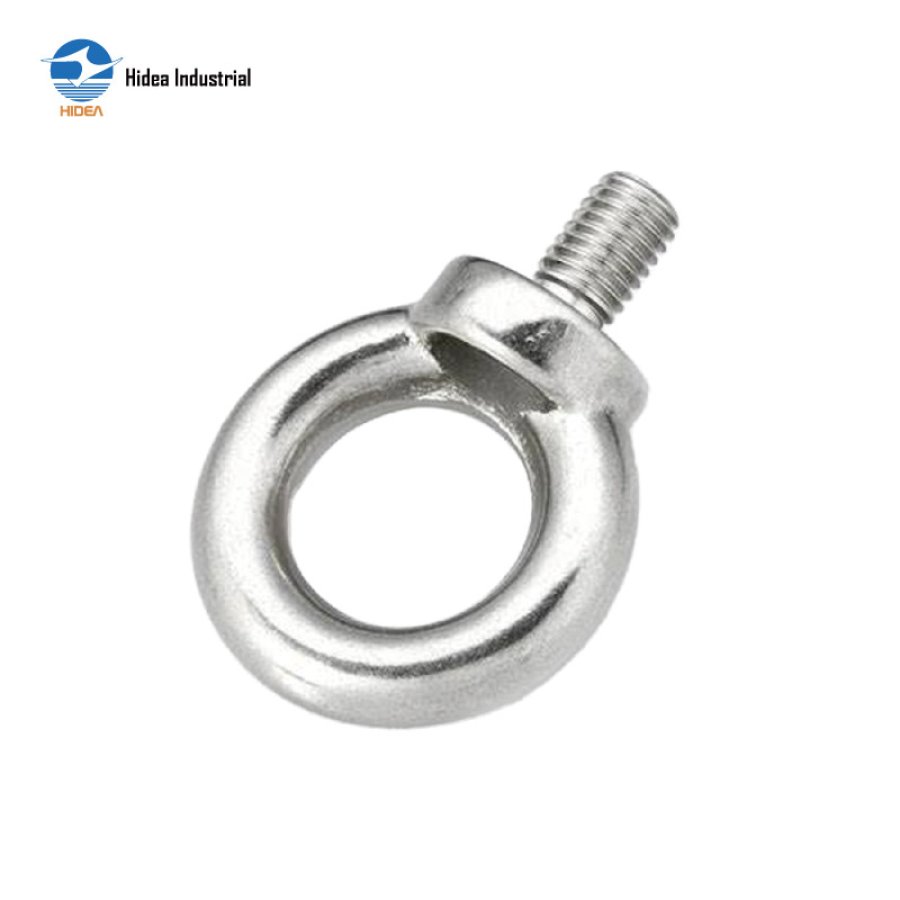

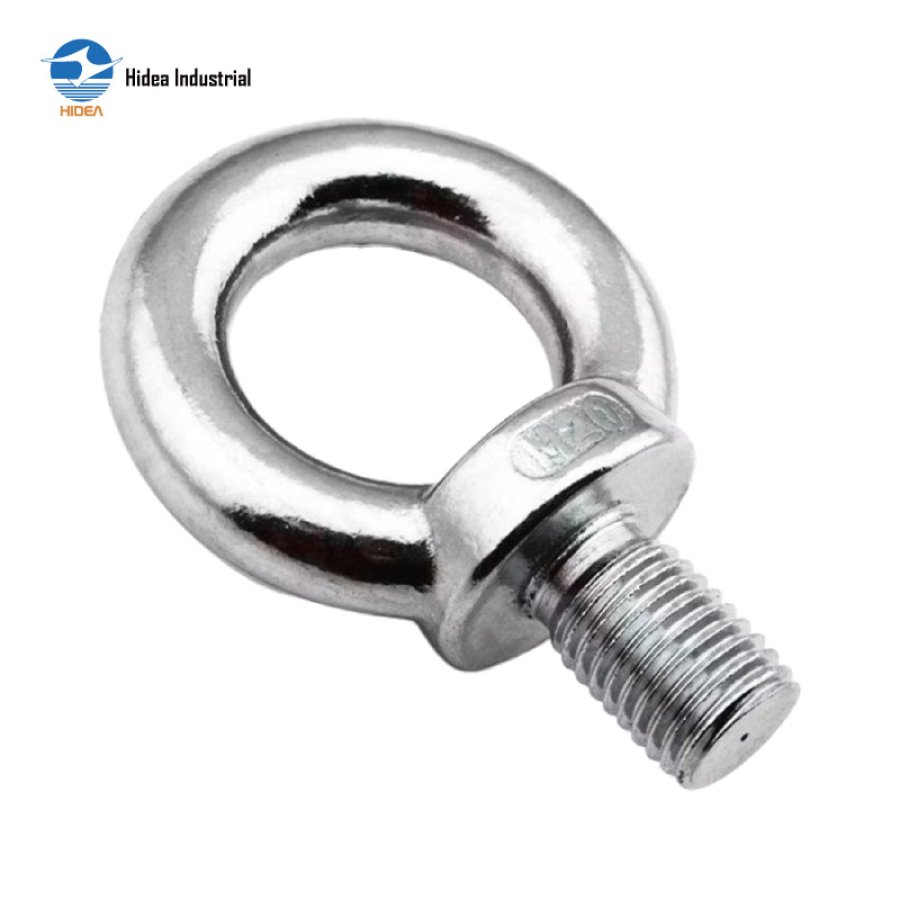

HIDEA DIN 580 Stainless Steel Lifting Eye Bolt

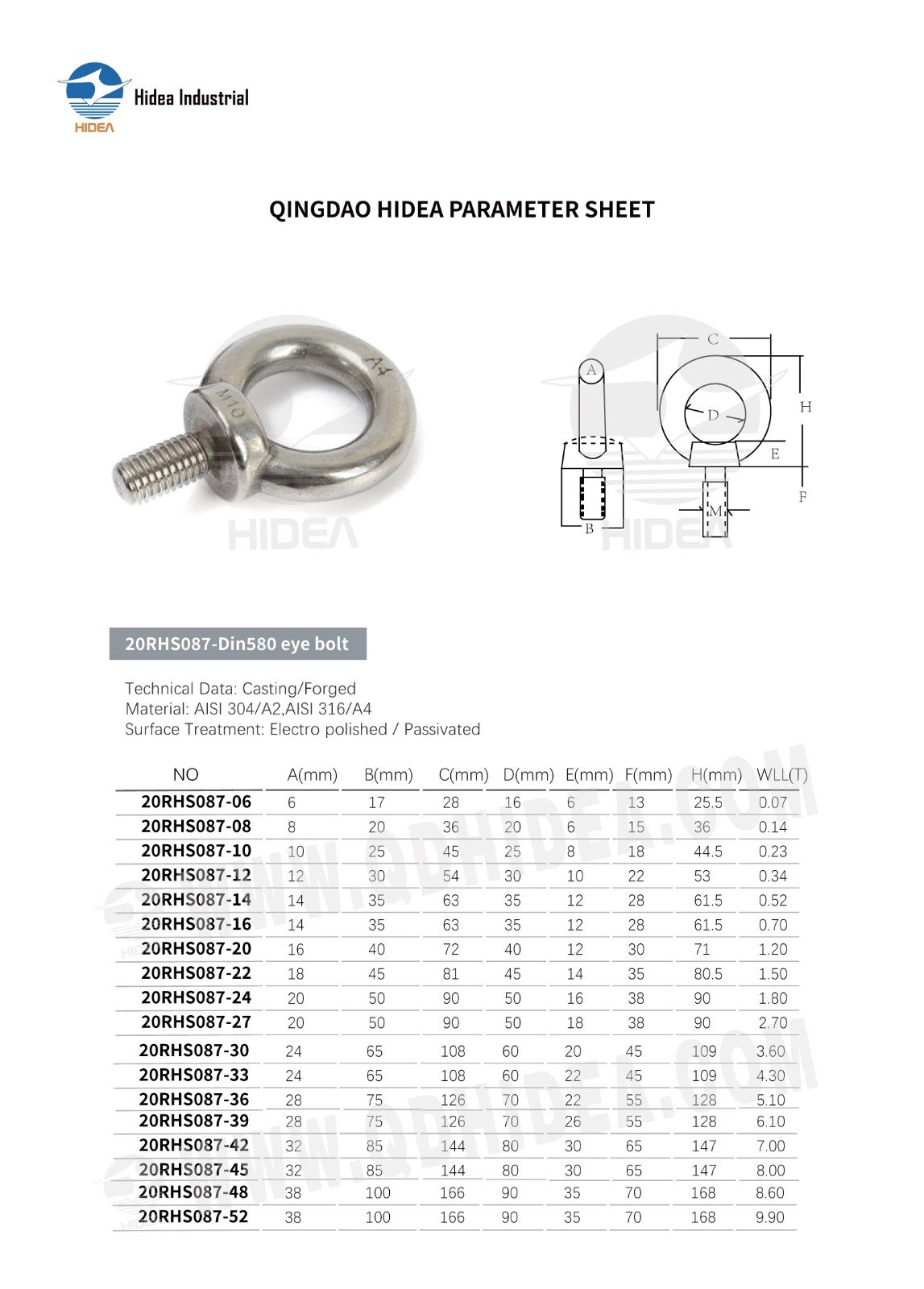

QINGDAO HIDEA PARAMETER SHEET FOR

20RHS087-Din580   eye   bolt

NOA(mm)B(mm)C(mm)D(mm)E(mm)F(mm)H(mm)WLL(T)
20RHS087-0617  28 16 13 25.5 0.07
20RHS087-0820  36 20 15 36 0.14
20RHS087-1010 25  45 25 18 44.5 0.23
20RHS087-1212 30  54 30 10 22 53 0.34
20RHS087-1414 35  63 35 12 28 61.5 0.52
20RHS087-1614 35  63 35 12 28 61.5 0.70
20RHS087-2016 40  72 40 12 30 71 1.20
20RHS087-2218 45  81 45 14 35 80.5 1.50
20RHS087-2420 50  90 50 16 38 90 1.80
20RHS087-2720 50  90 50 18 38 90 2.70
20RHS087-3024 65  108 60 20 45 109 3.60
20RHS087-3324 65  108 60 22 45 109 4.30
20RHS087-3628 75  126 70 22 55 128 5.10
20RHS087-3928 75  126 70 26 55 128 6.10
20RHS087-4232 85  144 80 30 65 147 7.00
20RHS087-4532 85  144 80 30 65 147 8.00
20RHS087-4838 100  166 90 35 70 168 8.60
20RHS087-5238 100  166 90 35 70 168 9.90
