Durable HIDEA DIN 82056 Round Link Chain – Trusted for Tough Industrial Environments

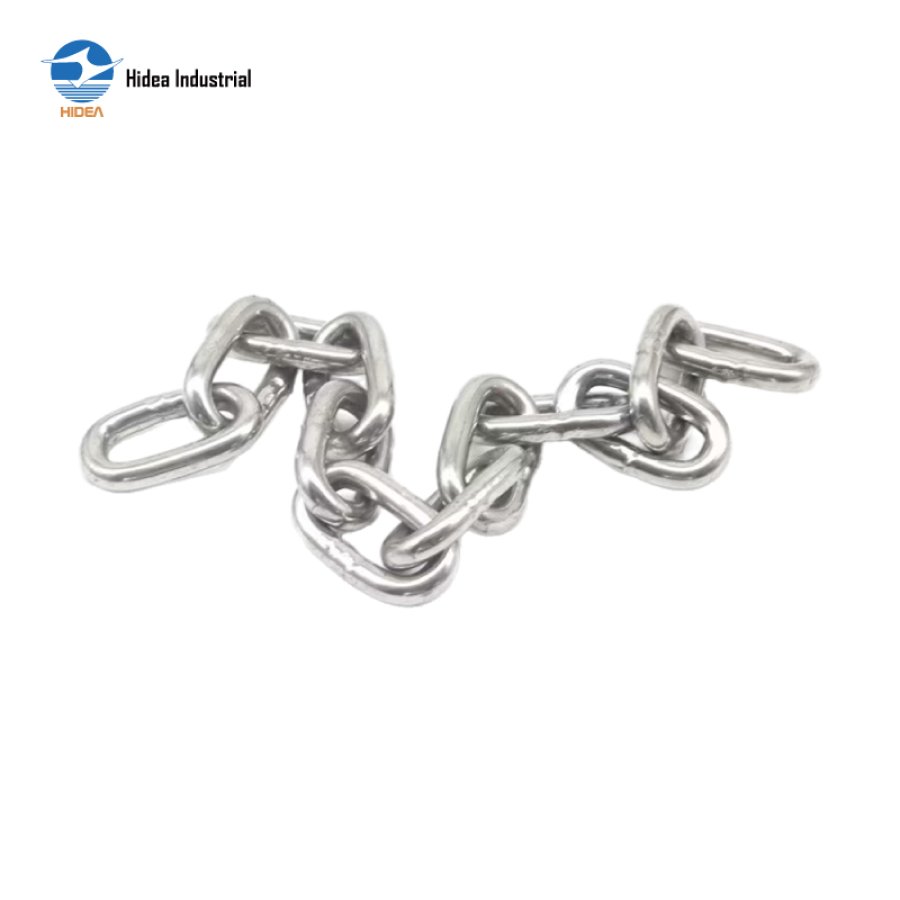

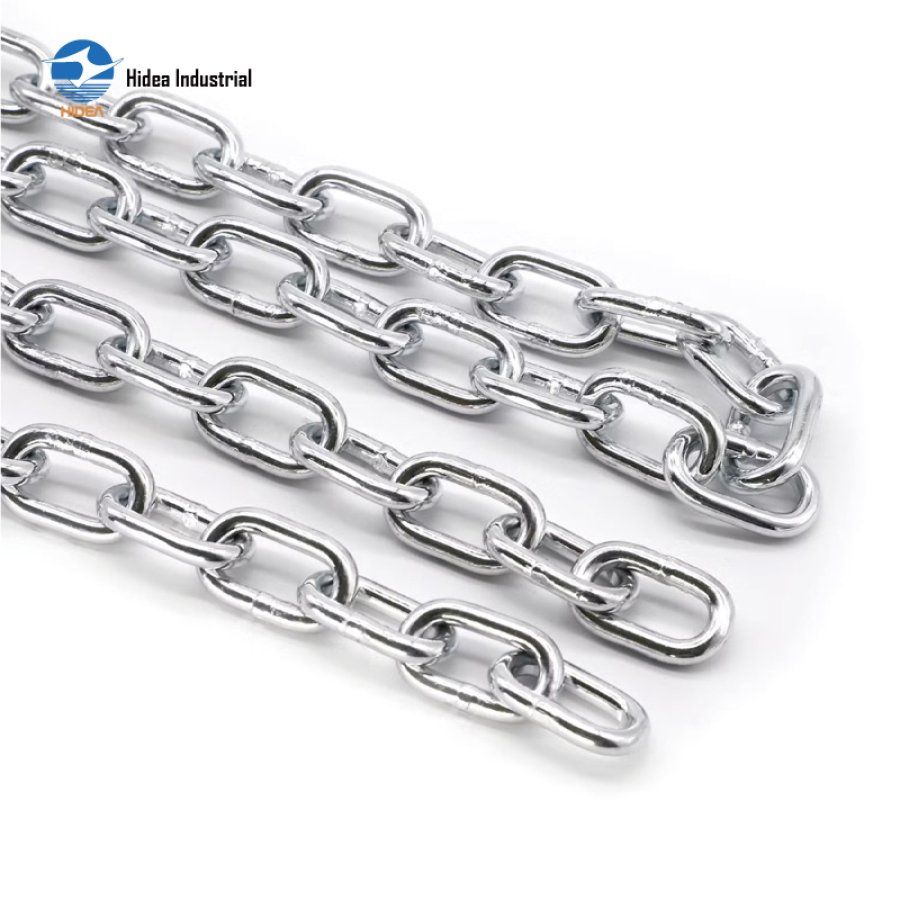

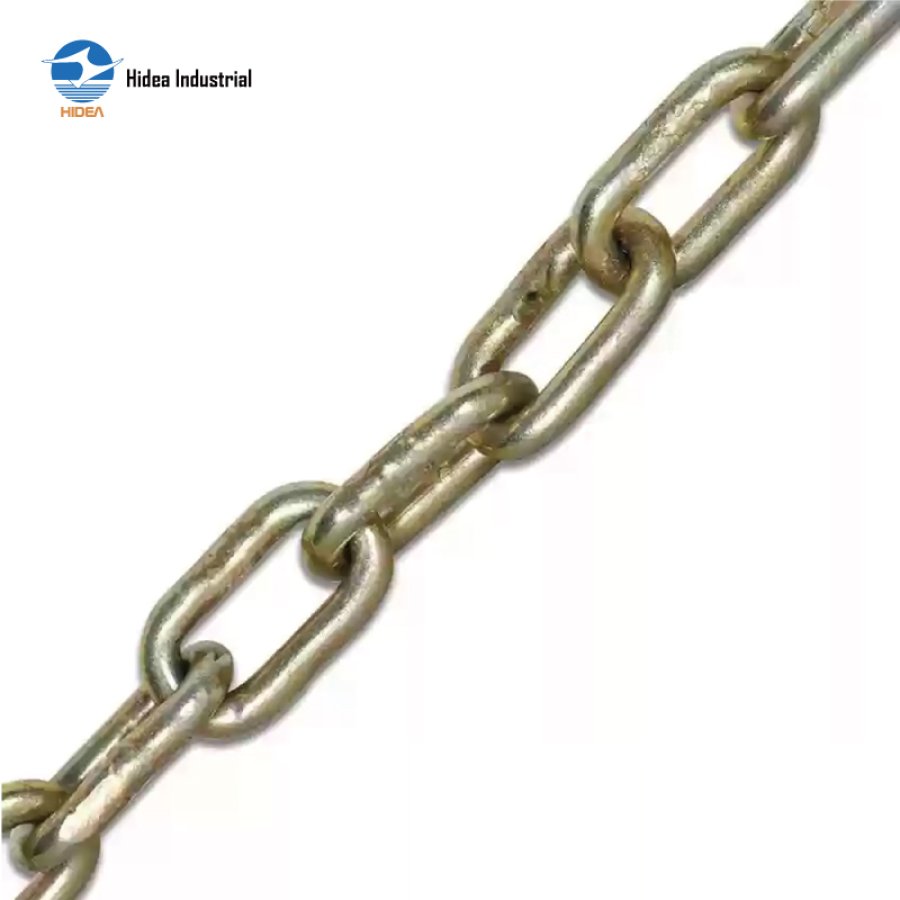

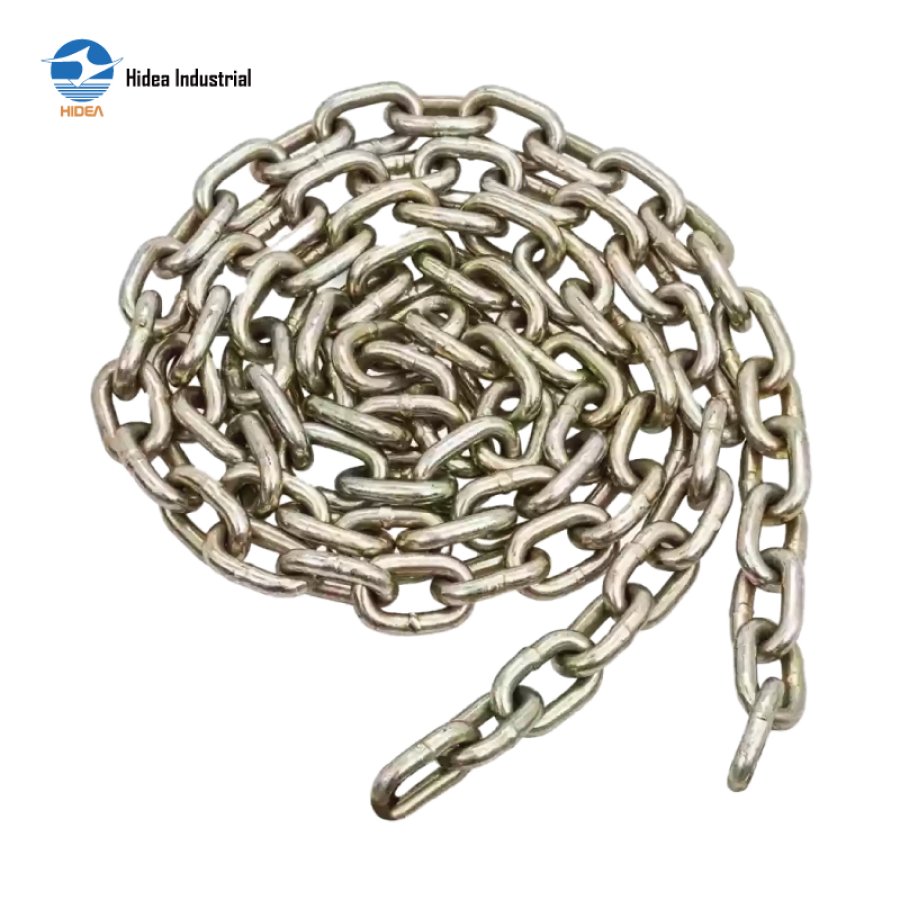

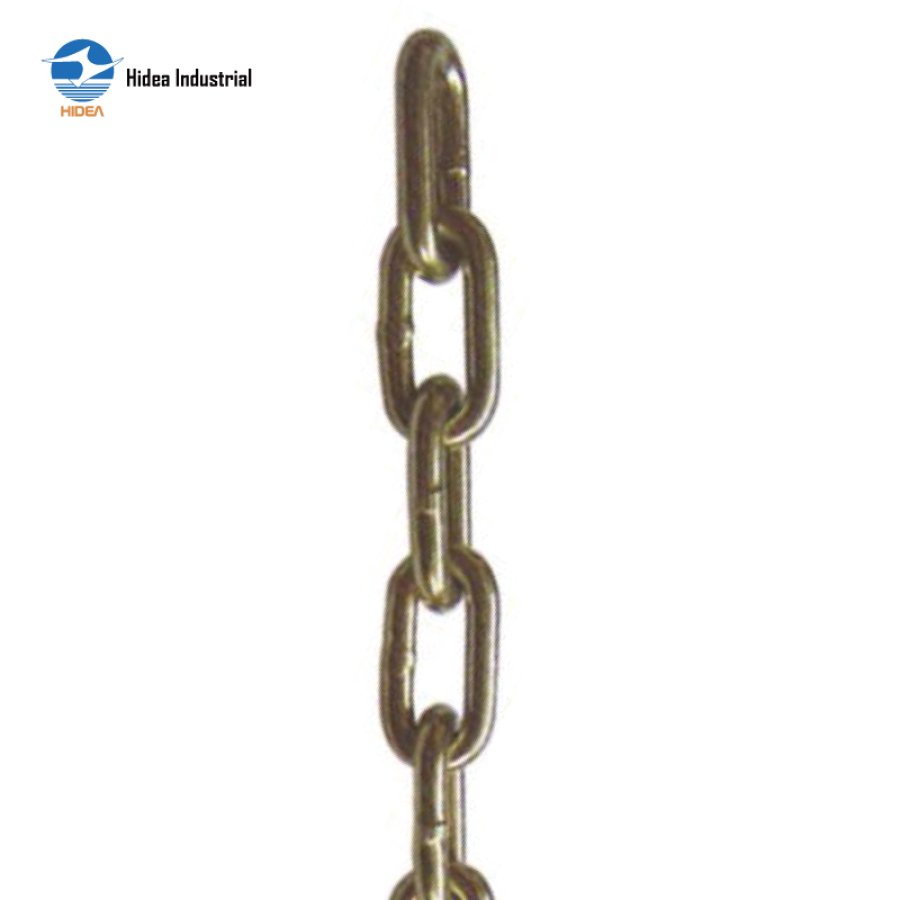

DIN82056 LINK CHAIN GERMAN TYPE

Material: Carbon Steel Mild Steel
Surface Treatment: Electro OR Hot Dip galvanized, Blackened or as requested
DIN82056 Link Chain German Type Span Chain

Inquire Now

QINGDAO HIDEA PARAMETER SHEET FOR

30SC129 DIN82056 Link Chain German Type

Size	Inside Length	Inside Width	Outside Width	Working Load	Proof Load	Breaking Load	Weight
mm	mm	mm	mm	kn	kn	kn	kg/m
13	78	18	44	10	20	63	2.9
16	96	22	54	16	32	100	4.4
18	108	24	60	20	40	125	5.5
20	120	27	67	25	50	160	6.8
23	138	31	77	32	63	200	9.0
26	156	35	87	40	80	250	11.6
28	168	38	94	50	100	300	13.4
33	198	46	112	63	125	400	18.7
36	216	50	122	80	160	500	22.2
39	234	54	132	100	200	560	26.1
45	270	62	152	125	250	760	34.7
