Industrial-Grade and Versatile Hidea Grade 80 Clevis Grab Hook with Cradle

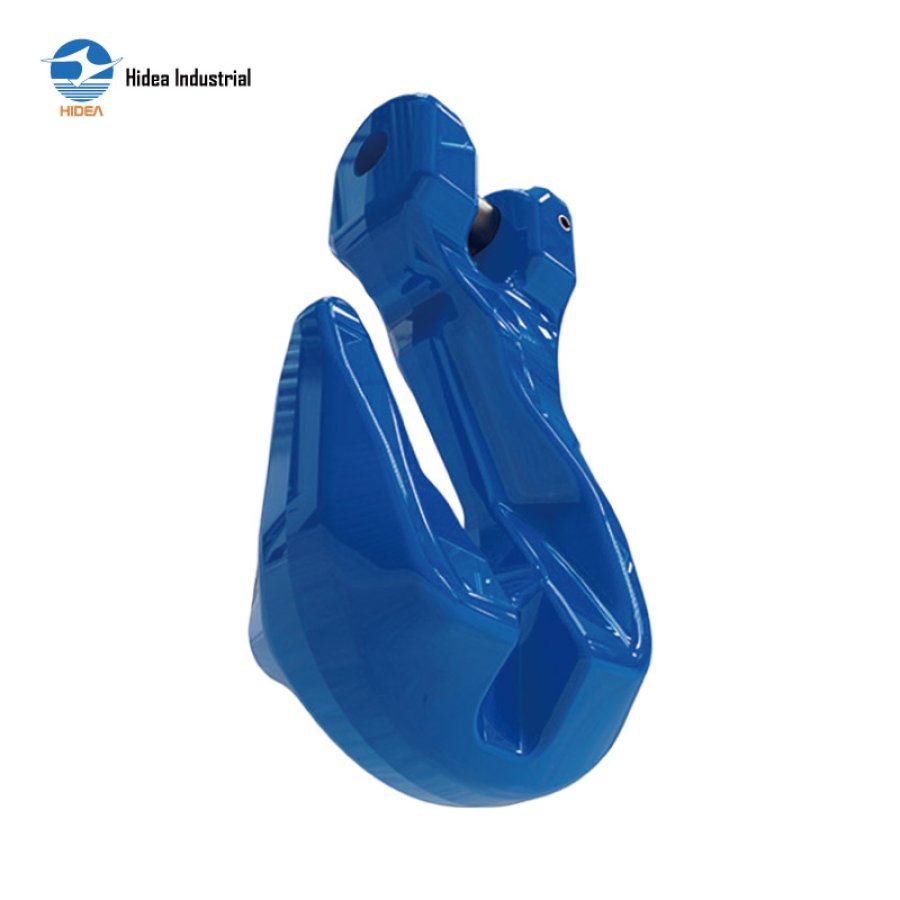

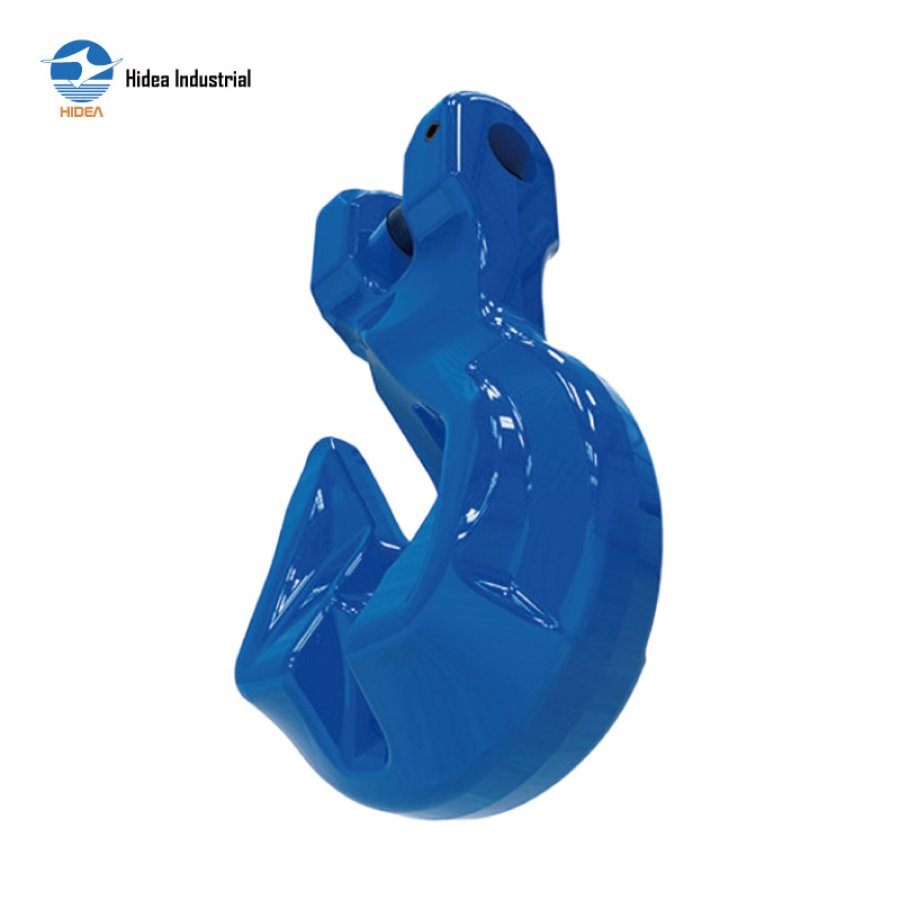

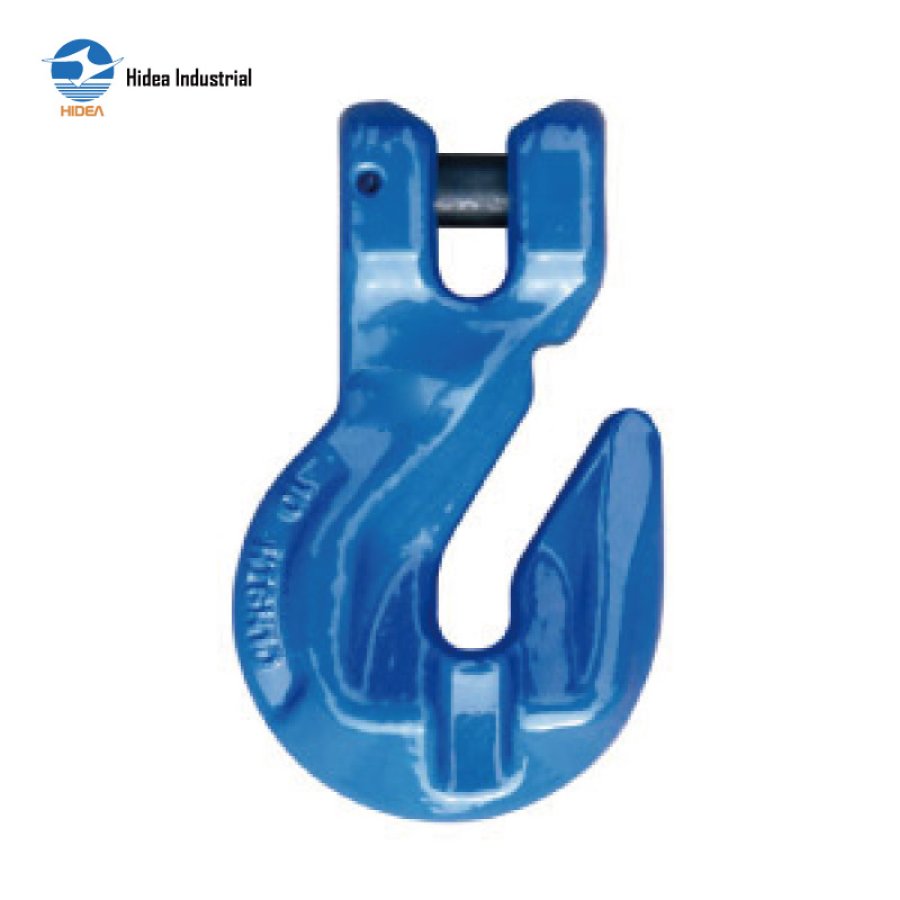

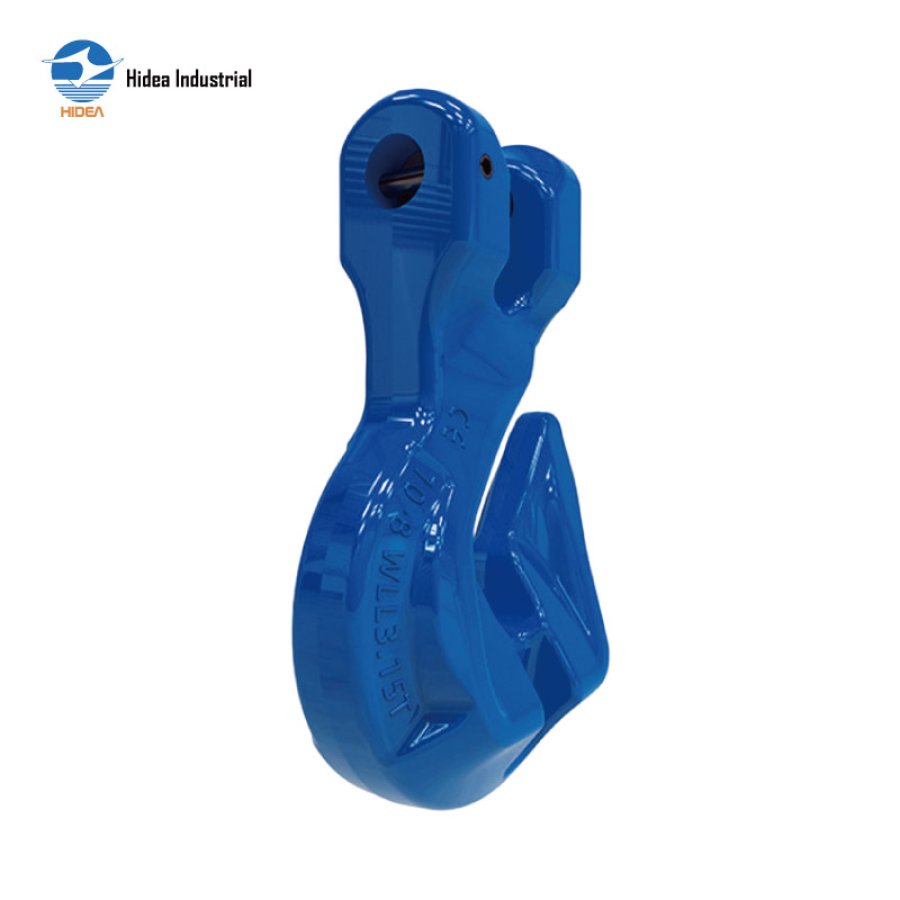

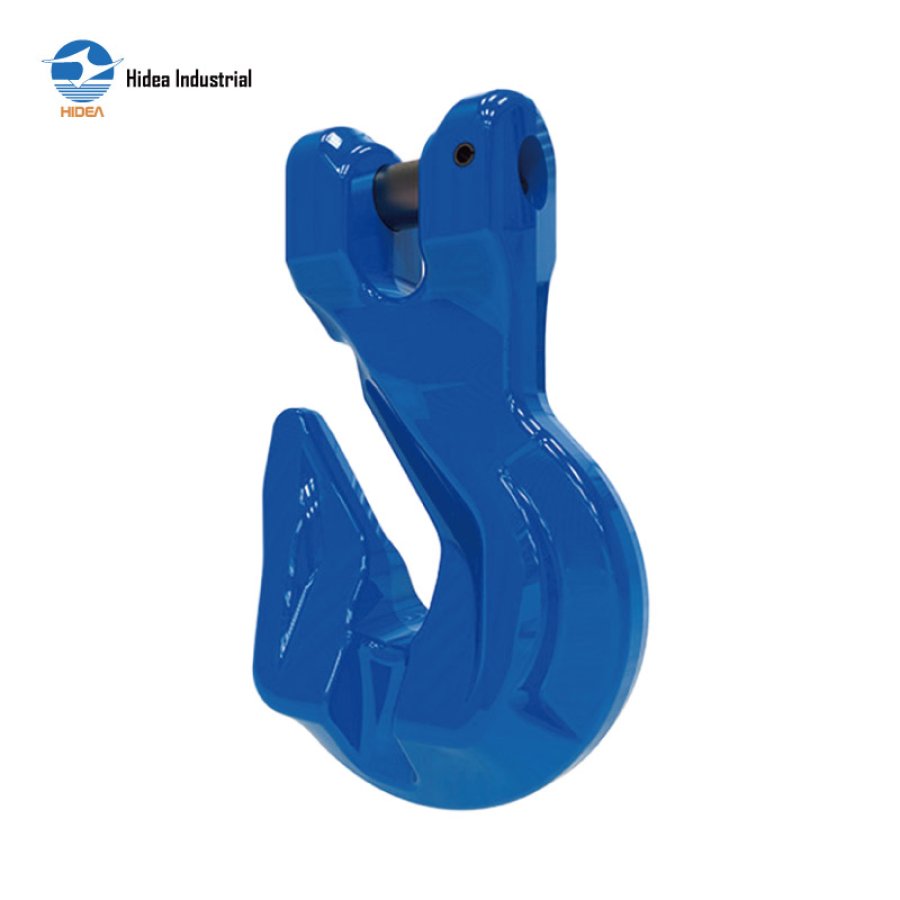

G80 CLEVIS GRAB HOOK WITH CRADLE

Forged super alloy steel-Quenched and Tempered
Individually proof test at 2.5 times Working Load Limit
Fatigue tested at 1.5 times Working Load Limit for 20000 cycles
Breakage test
100% magnaflux crack detection

Inquire Now

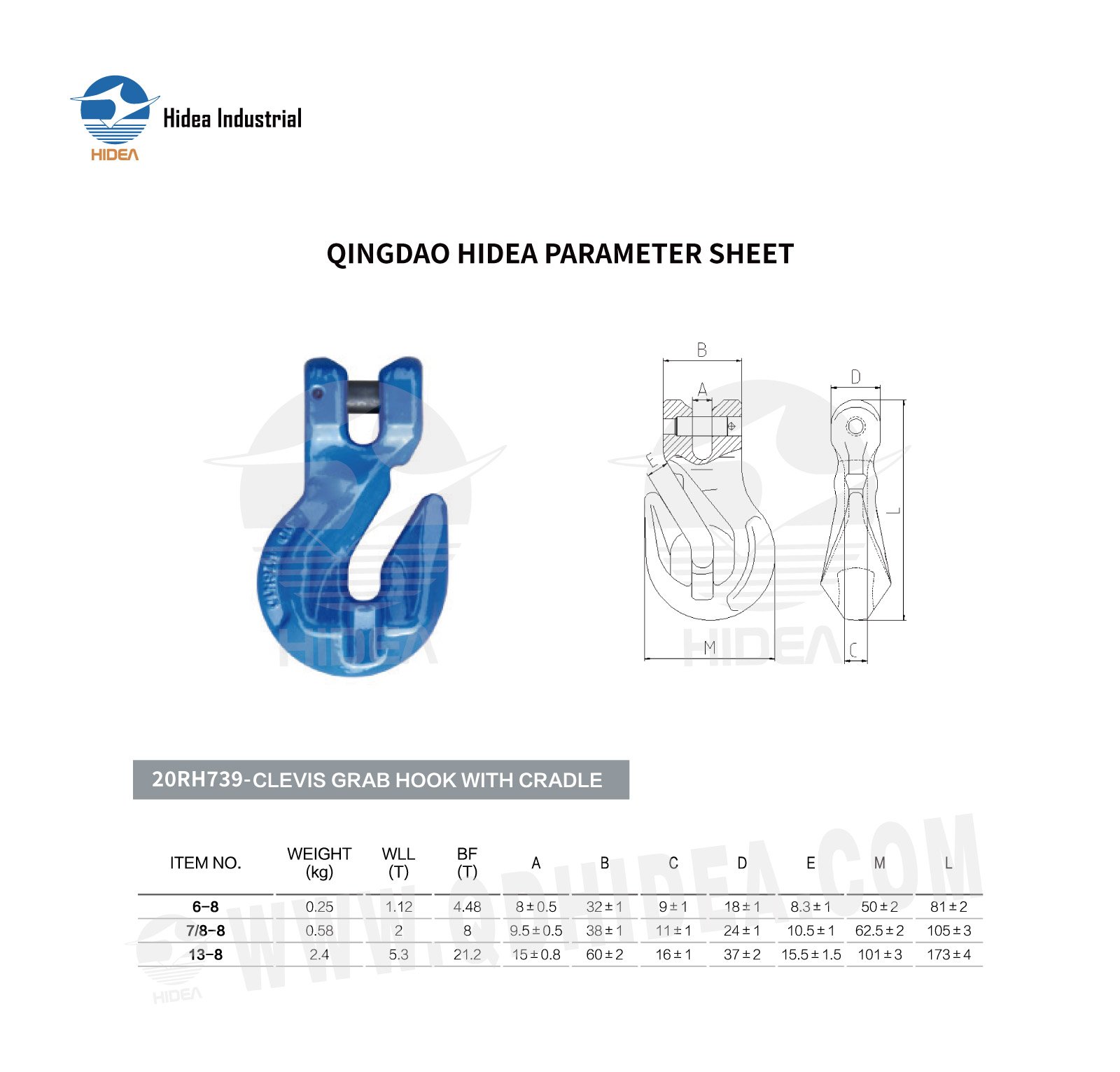

QINGDAO HIDEA PARAMETER SHEET FOR

20RH739-CLEVIS GRAB HOOK WITH CRADLE

ITEMNO.

WEIGHT
(kg)

WLL
(T)

BF (T)

A

B

C

D

E

M

L

6-8

0.25

1.12

4.48

8±0.5

32±1

9±1

18±1

8.3±1

50±2

81±2

7/8-8

0.58

2

8

9.5±0.5

38±1

11±1

24±1

10.5±1

62.5±2

105±3

13-8

2.4

5.3

21.2

15±0.8

60±2

16±1

37±2

15.5±1.5

101±3

173±4
