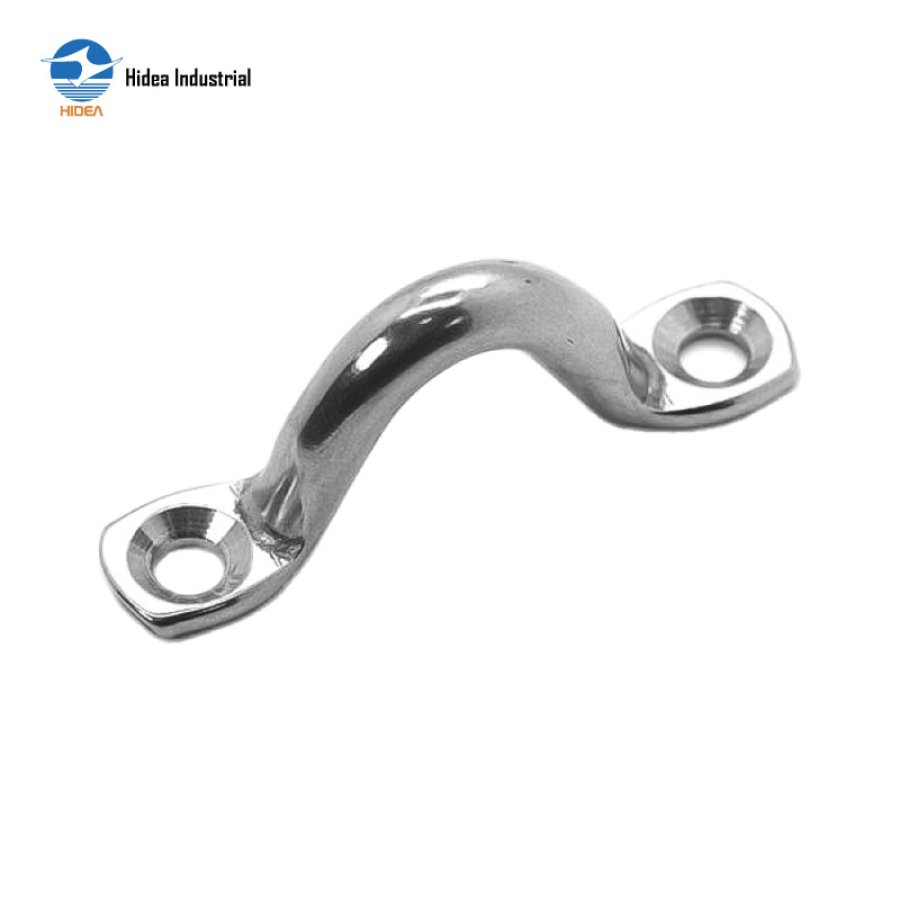

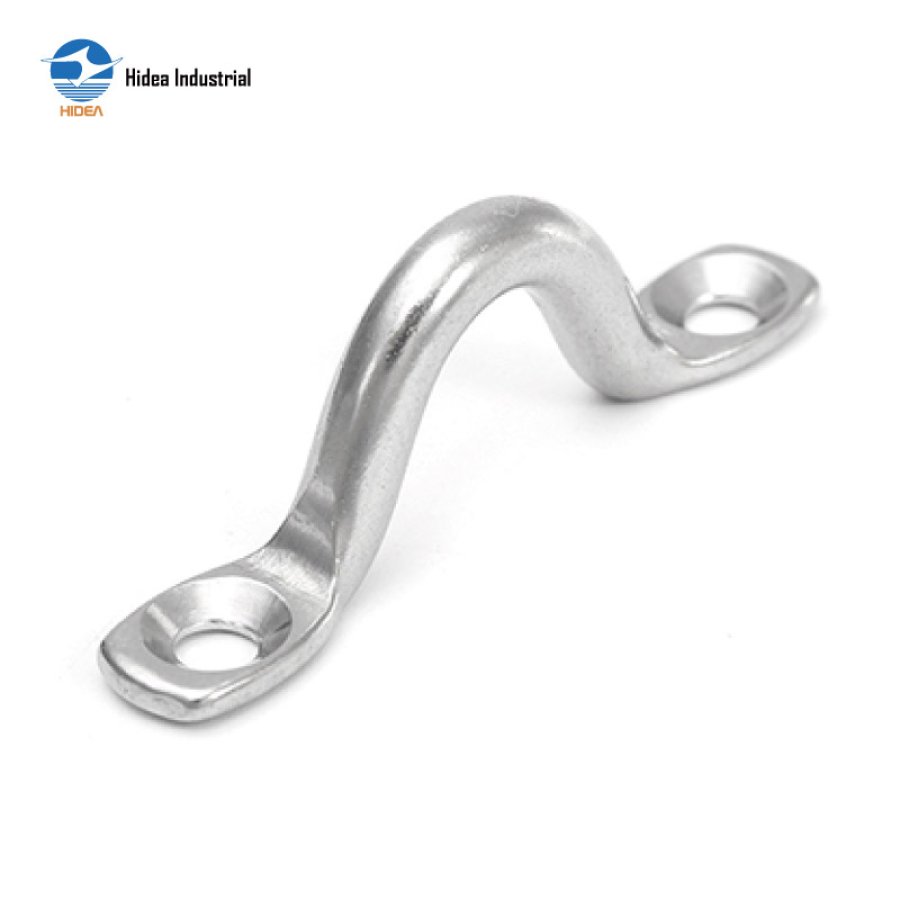

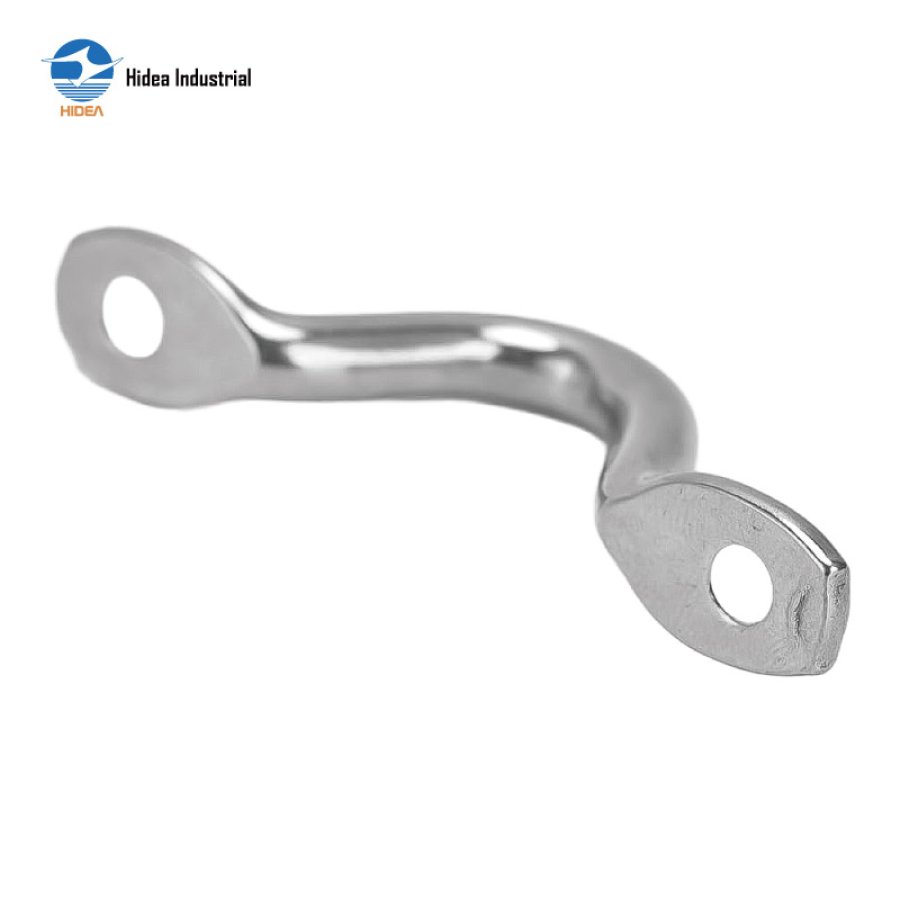

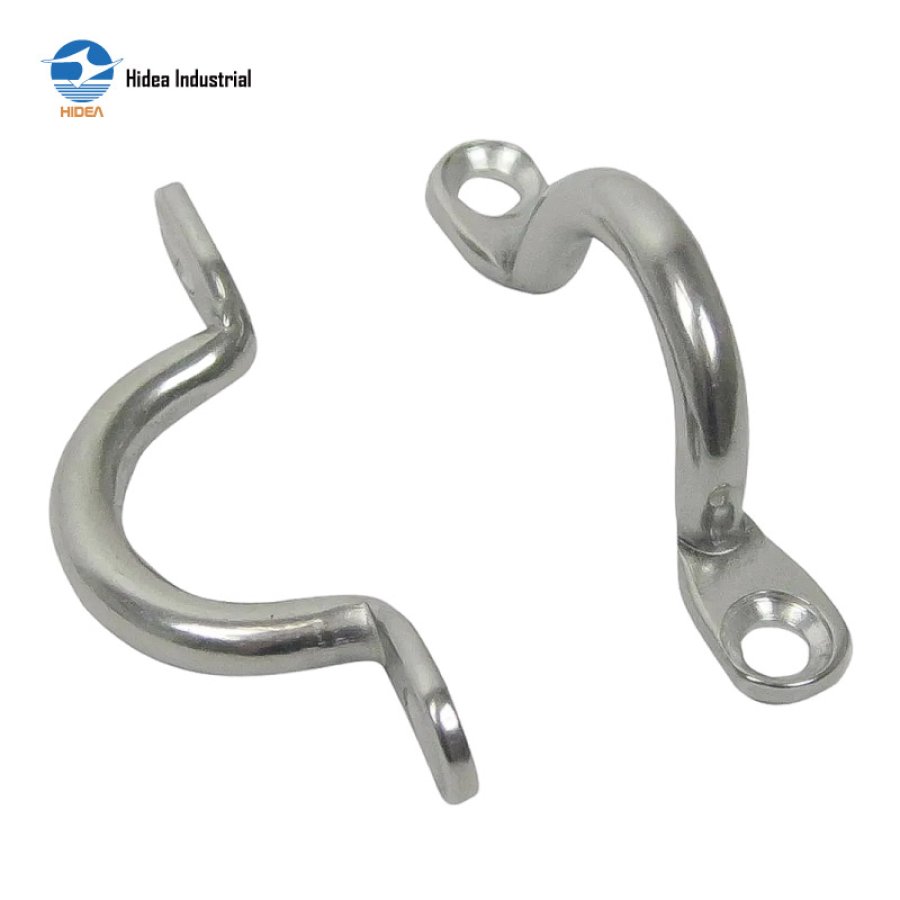

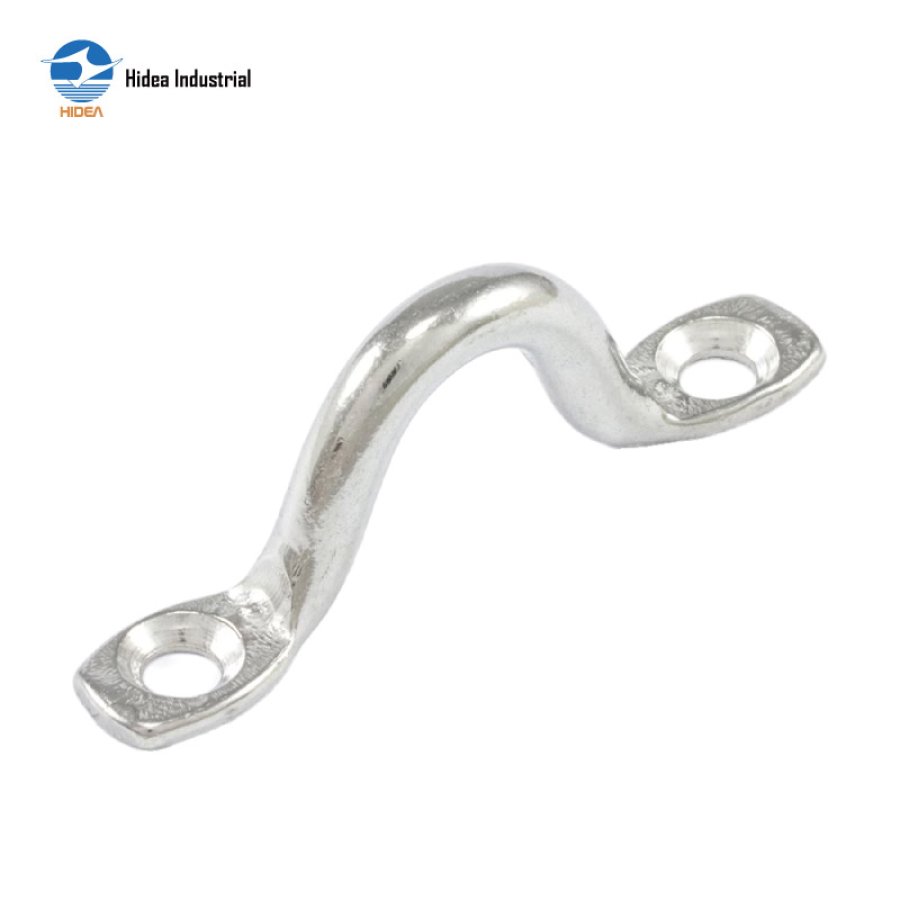

HIDEA Stainless Steel Pad Eye Strap – Rust and Corrosion Resistant for Marine Use

PAD EYE

Technical Data: Investment Casting/Forged
Material: AISI 304/INOX A2, AISI 316/INOX A4
Surface Treatment: Electro Polished/Passivated

Inquire Now

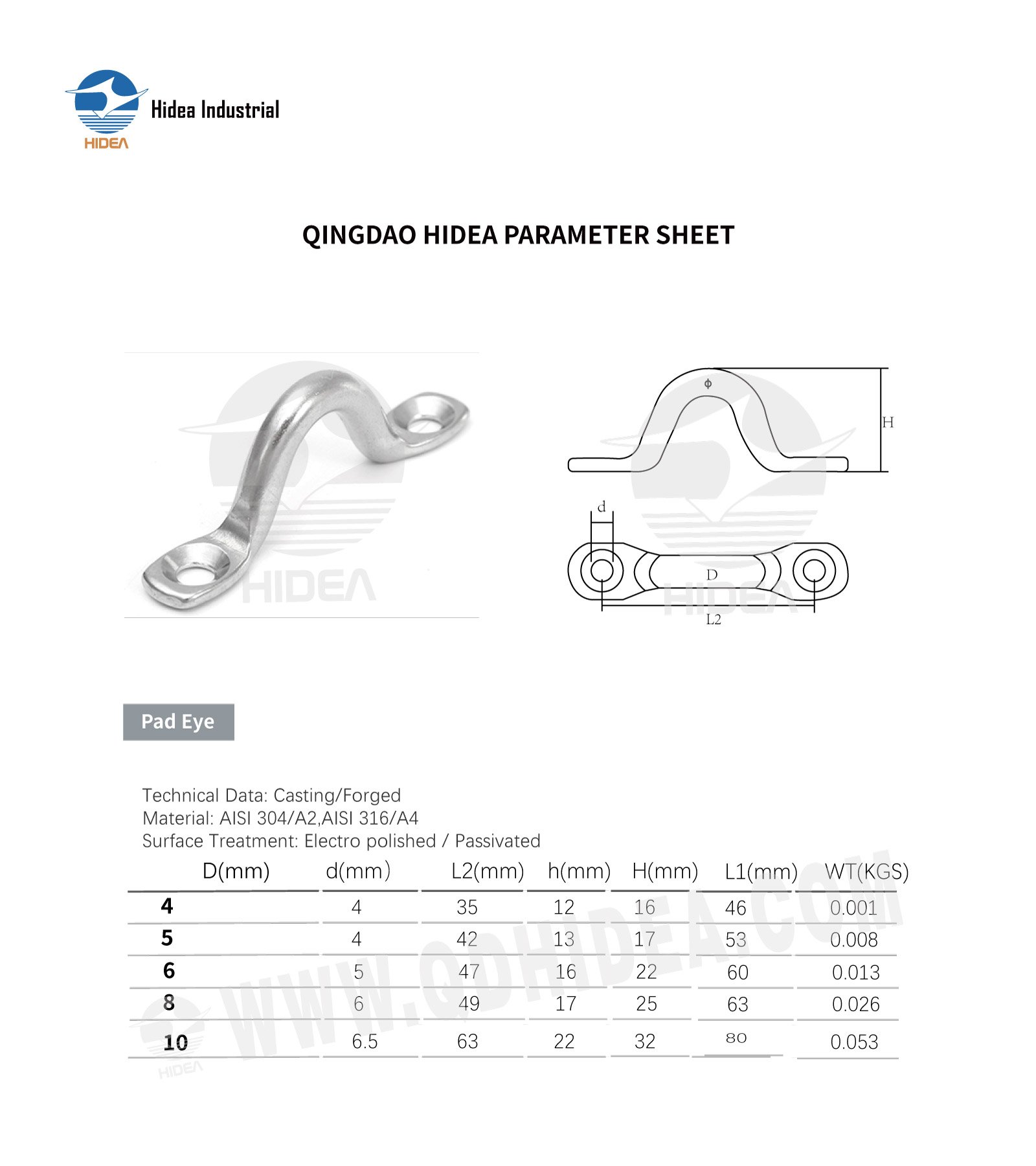

QINGDAO HIDEA PARAMETER SHEET FOR

Pad Eye

D(mm)	d(mm)	L2(mm)	h(mm)	H(mm)	L1(mm)	WT(KGS)
4	4	35	12	16	46	0.001
5	4	42	13	17	53	0.008
6	5	47	16	22	60	0.013
8	6	49	17	25	63	0.026
10	6.5	63	22	32	80	0.053
