In rigging and load handling, choosing between bow and D-shackles depends on your specific application. While similar in appearance, each type offers distinct advantages for different loading conditions.
This guide examines their key differences to help you make the right selection.
Bow Shackles: The Versatile Connector
Design & Features
● O-shaped body – Provides a wider bearing surface.
● Larger inside width – Allows for multiple connections (slings, ropes, etc.).
● Smooth curvature – Reduces wear on slings and ropes.
Best Uses for Bow Shackles
Bow shackles are ideal for multi-directional loading because their rounded shape distributes force more evenly. Common applications include:
● Lifting operations where slings may shift angles.
● Marine and sailing due to their ability to handle dynamic loads.
● Off-road recovery (vehicle towing) where forces come from different directions.
Limitations
● Not ideal for in-line tension – The wider bow can bend under extreme straight-line force.
● Larger size may not fit tight spaces compared to D-shackles.
|
|
|
|

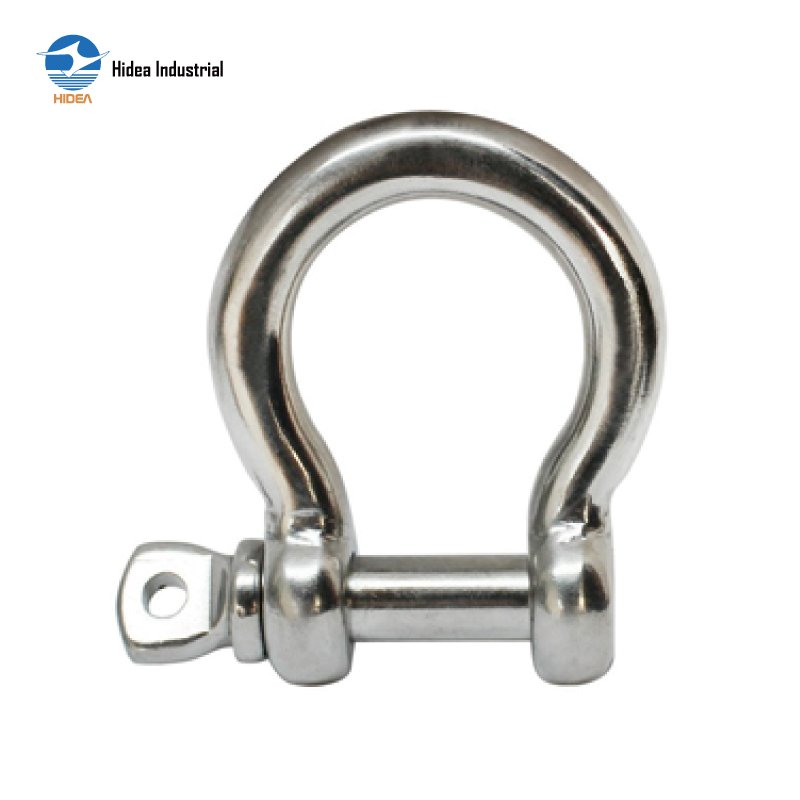

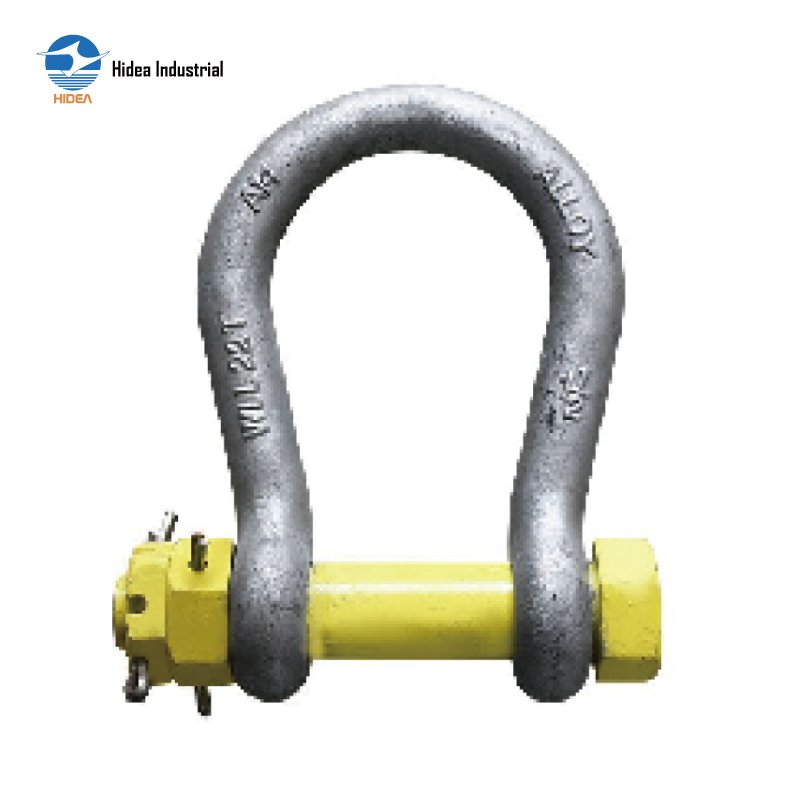

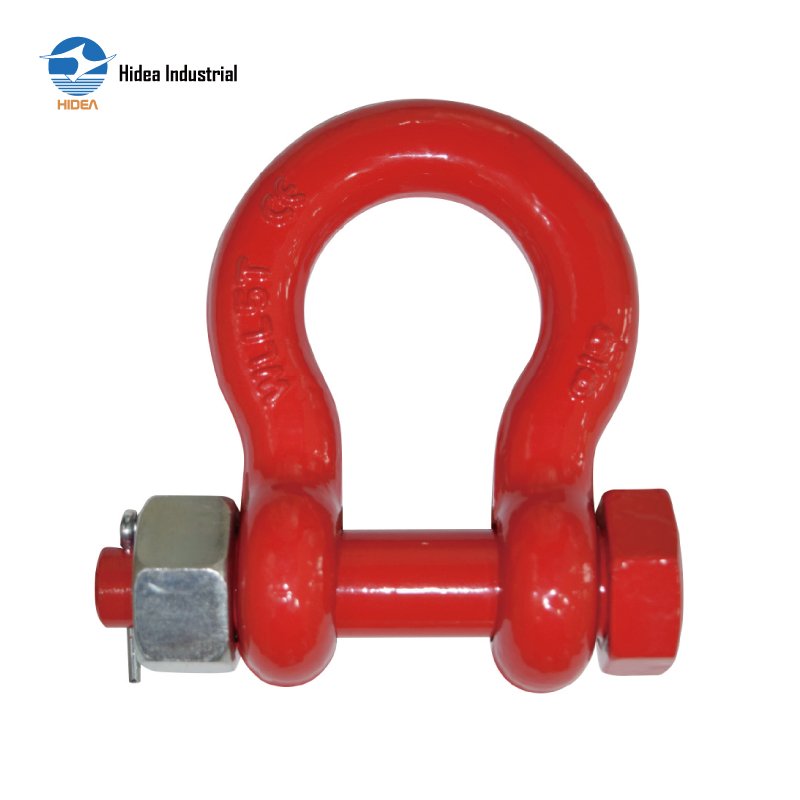

| G209 SCREW PIN BOW SHACKLE | G80/G8 BOLT TYPE SHACKLE | EU & JIS BOW SHACKLE |

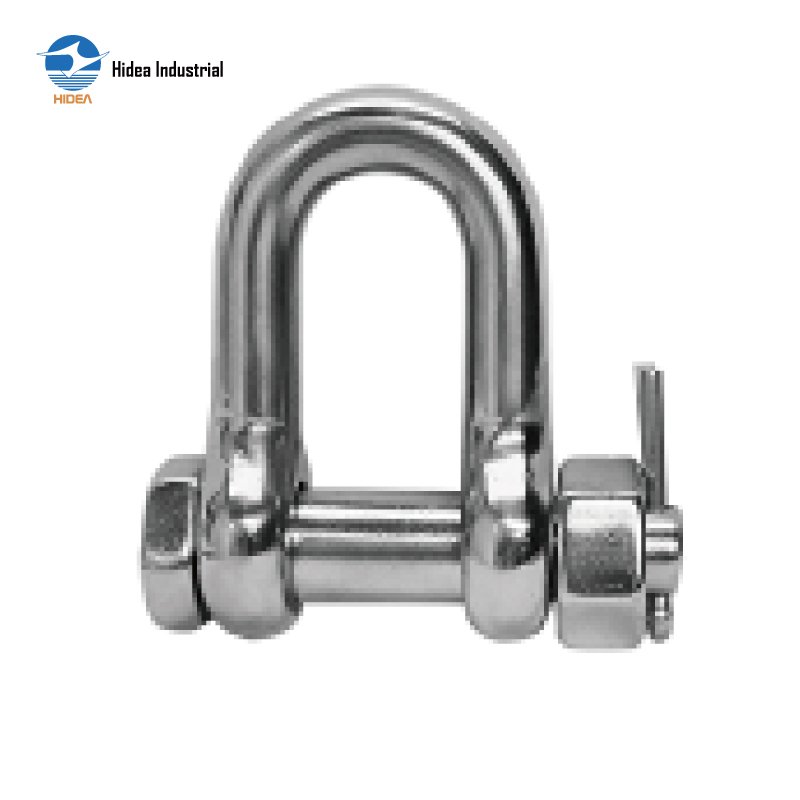

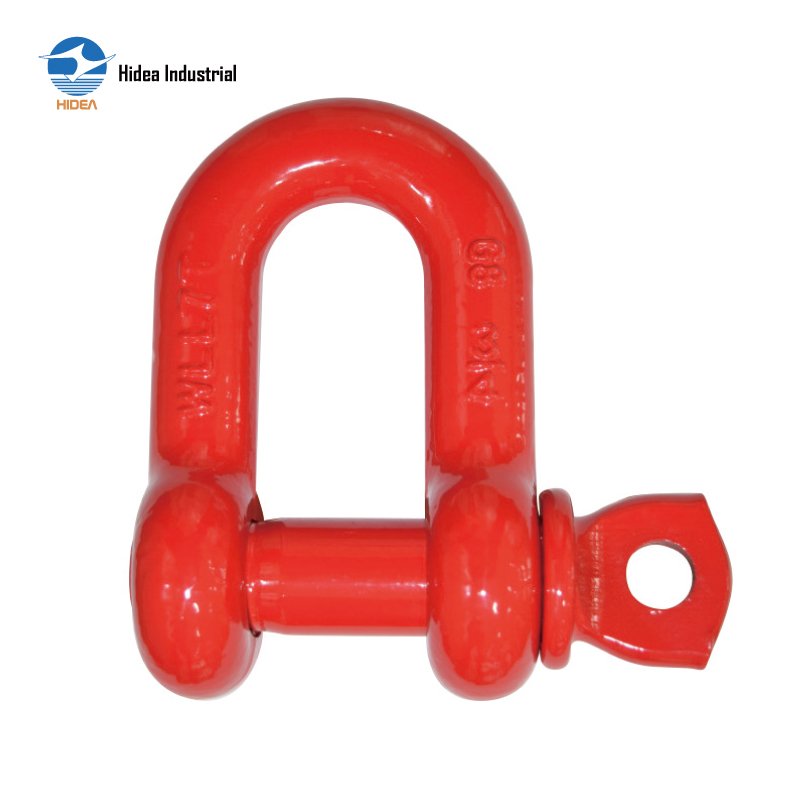

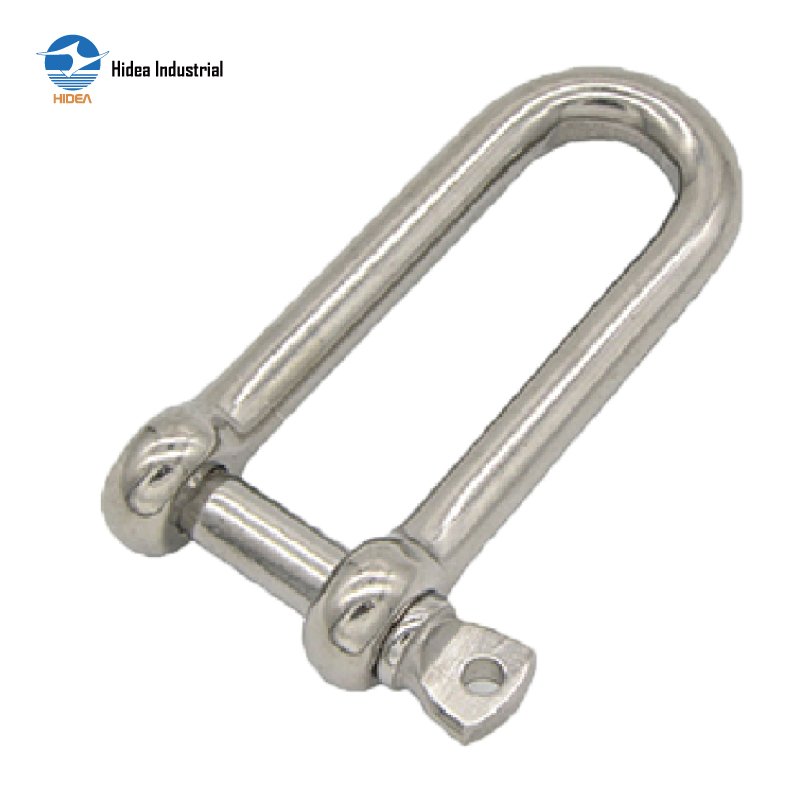

D-Shackles: The Strong, Streamlined Choice
Design & Features
● Narrower, D-shaped body – Optimized for straight-line pulls.
● Higher load capacity in-line – Stronger under direct tension.
● Compact design – Fits tighter spaces better than bow shackles.
Best Uses for D-Shackles
D-shackles excel in single-directional loading and high-tension scenarios. Typical applications include:
● Chain rigging and towing (where force is straight-line).
● Industrial lifting with wire ropes or synthetic slings.
● Safety-critical connections where minimal movement is desired.
Limitations
● Less suitable for side loads – The narrower design can be stressed under angular forces.
● Smaller throat opening – Limits the number of attachments compared to bow shackles.
 |  |  |  |
Key Factors When Choosing Between Bow and D-Shackles
To determine which shackle is right for your application, consider the following:
1. Load Direction
● Bow shackles = Multi-directional (side loads, angular forces).
● D-shackles = Best for straight-line tension.
2. Space Constraints
● If working in tight spaces, D-shackles may be more practical.
● If accommodating multiple attachments, bow shackles offer more flexibility.
3. Weight & Strength Requirements
● D-shackles typically have higher Working Load Limits (WLL) for in-line pulls.
● Bow shackles handle dynamic loads better but may have a lower WLL in direct pulls.
4. Material & Environment
● Stainless steel shackles resist corrosion (ideal for marine use).
● Alloy steel shackles provide high strength for industrial lifting.
5. Safety & Compliance
Always check for certifications (e.g., OSHA, ASME, WLL markings) to ensure the shackle meets industry standards.
Final Recommendation
● Choose a bow shackle if you need flexibility in load angles (e.g., lifting, marine, recovery).
● Opt for a D-shackle if your application involves straight-line tension (e.g., rigging, towing, industrial lifting).
Still unsure? Our team is ready to help you select the perfect shackle for your needs.
