Why Standards Matter in Rigging
Rigging hardware forms the critical link between loads and lifting equipment. Compliance with international standards isn't just about legality - it's about preventing catastrophic failures that can lead to injuries, fatalities, and costly downtime.

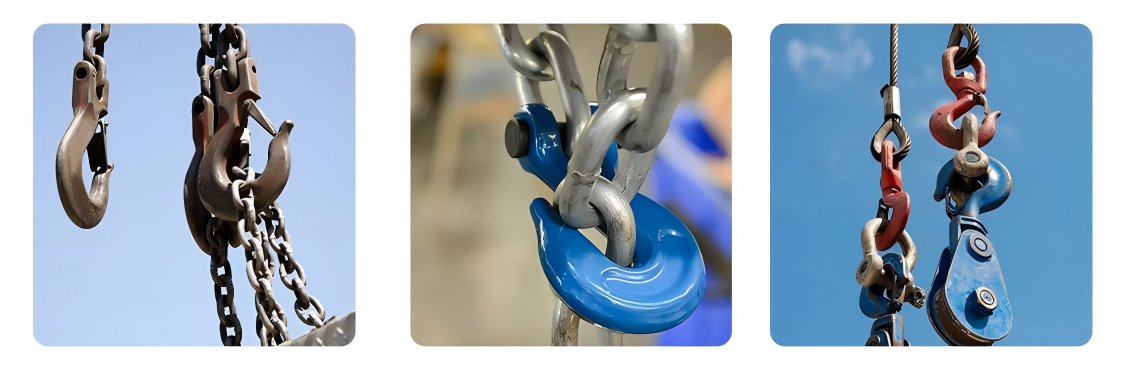

Key Standards for Rigging Components
1. General Rigging Hardware (ASME B30.26)
● Covers shackles, hooks, links, and other rigging components
● Specifies:
○ Design requirements
○ Proof load testing procedures
○ Inspection criteria
○ Retirement standards
2. Chain Standards
● Grade 80/100 Chain (ASTM A391/A391M)
● Chemical composition requirements
○ Heat treatment specifications
○ Working load limits
○ Proof Testing (ASME B30.9)
○ 2.5 times working load limit (WLL) test requirement
3. Shackle Standards
● ASME B30.26
● Mandatory markings (size, WLL, manufacturer)
○ Pin retention requirements
○ Deformation limits
○ EN 13889 (European Standard)
○ Additional corrosion resistance requirements
○ Different safety factor calculations
4. Hook Standards
● ASME B30.10
○ Throat opening limitations
○ Wear limits (10% of original dimension)
○ Latches and safety closures
● ISO 2415
○ International hook classification system
Critical Compliance Factors
1. Marking Requirements:
● Must include:
○ Manufacturer identification
○ Working Load Limit (WLL)
○ Serial number or batch code
○ Grade/material identification
2. Inspection Protocols:
● Visual Inspection:
○ Cracks or deformation
○ Wear exceeding 10% of original dimension
○ Corrosion affecting structural integrity
● Measurement Checks:
○ Hook throat opening
○ Pin diameter reduction
● Documentation:
○ Inspection records
○ Repair/maintenance history
3. Load Testing:
● Proof load = 2 x WLL (typically)
● Dynamic testing requirements for certain applications
Maintenance & Retirement Criteria
Shackles must be immediately retired if inspection reveals any cracks, permanent deformation, or pin wear exceeding 10% of the original diameter. These defects compromise structural integrity and significantly reduce working load limits.
Hooks require replacement when throat openings deform beyond 15% of their original specification or when shanks show visible twisting. Such damage indicates metal fatigue and potential failure points during load-bearing operations.
Chains should be removed from service when individual links demonstrate stretching or diameter reduction greater than 10%. This wear pattern suggests material weakening that could lead to catastrophic failure under load.
Wire Ropes must be discarded when exhibiting six or more broken wires within one rope lay length, or when core failure is detected. Internal damage often precedes visible exterior wear, making regular magnetic particle inspection critical for safety.
Regular inspection intervals should be established according to ASME B30.26 standards, with documentation maintained for all retirement decisions. These criteria apply to all rigging components regardless of apparent surface condition, as internal stress fractures may not be visible to the naked eye.
Why Choose Certified Hardware?
○ Reduced liability exposure
○ Predictable performance
○ Insurance compliance
○ Longer service life through proper specifications
Our rigging hardware collection meets all major international standards, with full certification documentation available. For help selecting compliant components for your specific application, consult our engineering team.
